Installation Procedure

  1. Install the lumbar support knob to the seat.
  2. Install the lumbar support knob retaining clip.
  3. Rotate the knob in order to thread the clip from the outside of the trim cover to the inside of the seat cushion cover.

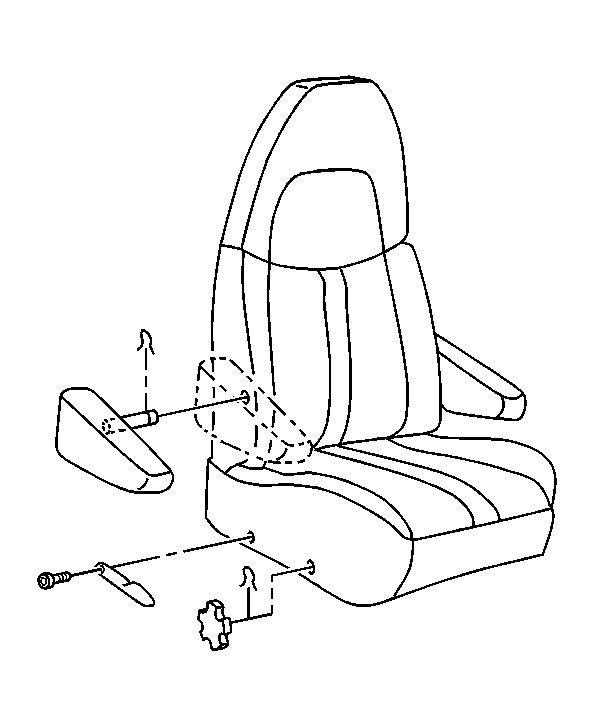

    Fig 1: Expanded View Of Lumbar Knob
    GM300312Courtesy of GENERAL MOTORS CORP.
