Removal Procedure

  1. Remove the instrument panel extension. Refer to Instrument Panel (I/P) Extension Replacement in Instrument Panel, Gages and Console.
  2. Remove the floor air outlet duct. Refer to Air Outlet Replacement - Center Floor in Heating, Ventilation and Air Conditioning.

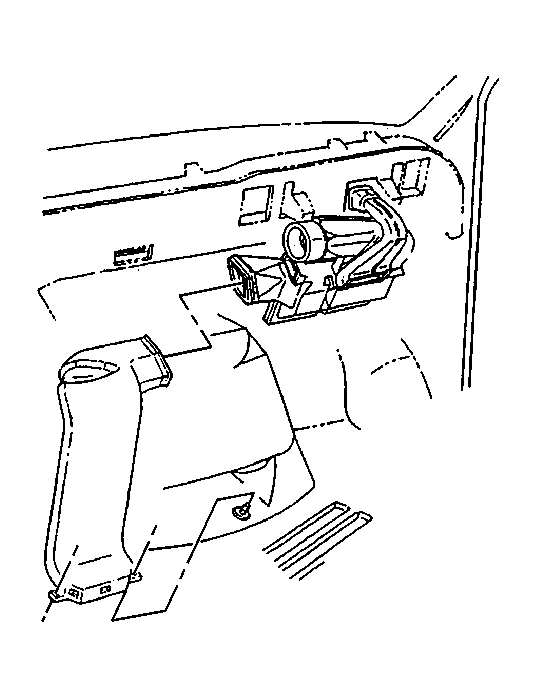

    Fig 1: Expanded View Of Floor Air Outlet Duct
    GM314653Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts from the brackets:
    1. Loosen the bolt.
    2. Rotate the bracket out of the way.
  4. Remove the latches.

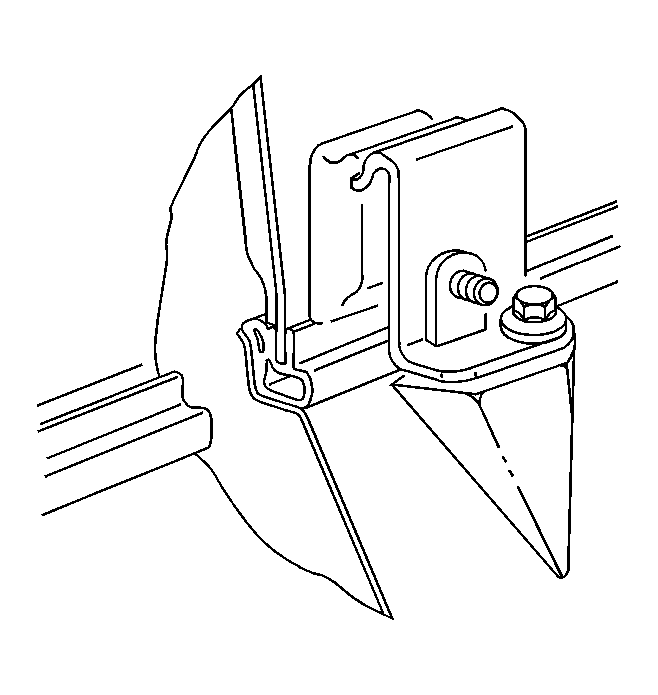

    Fig 2: Identifying Engine Cover Latches
    GM314658Courtesy of GENERAL MOTORS CORP.
  5. Remove the screws.

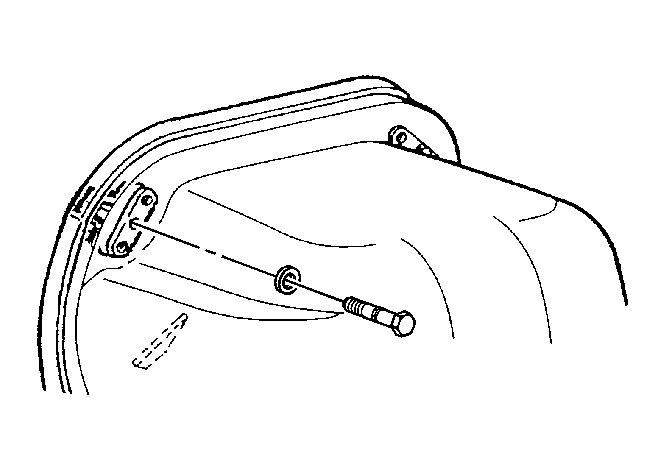

    Fig 3: Locating Engine Cover Screws
    GM314655Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine cover.

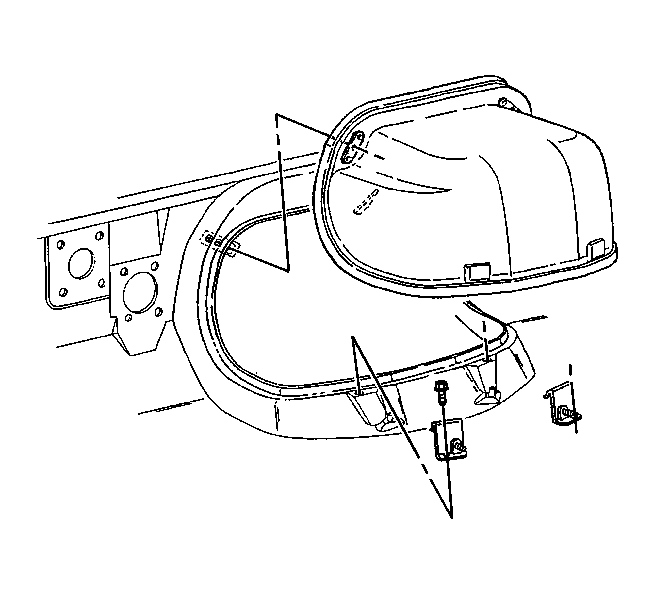

    Fig 4: Expanded View Of Engine Cover
    GM314654Courtesy of GENERAL MOTORS CORP.
