Body Control System Schematics

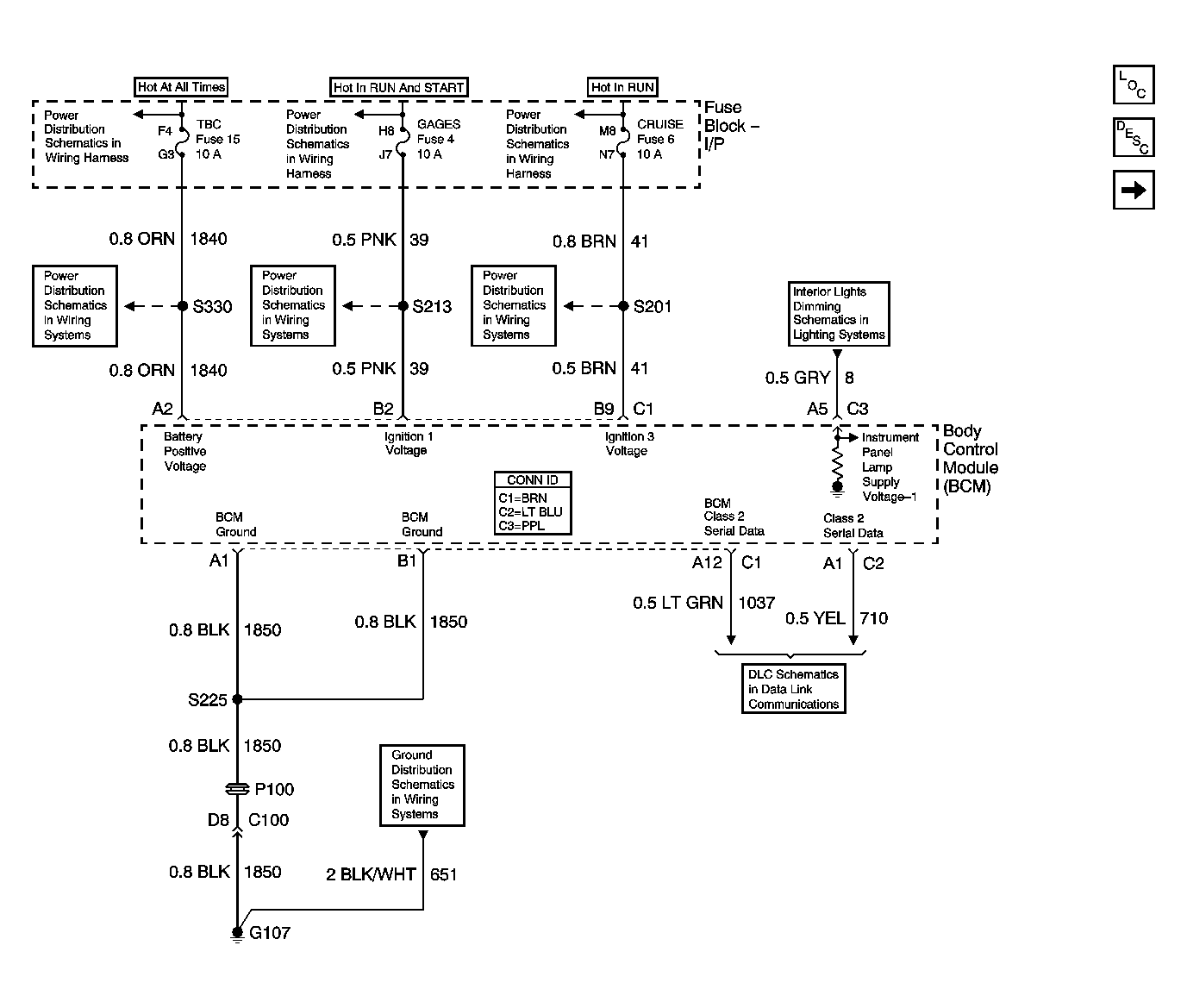

Fig 1: Power, Ground, and DLC Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: RAP, Door/Locks, Headlights/DRL, Headlights (w/VE1) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Theft Deterrent, A/T Audible Warnings, Brake Warnings, Interior Lights Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Horns, Interior/Exterior Lights, RKE, Instrument Cluster Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Exterior/Interior Lights, Door/Locks, Body Rear End, Audible Warnings Schematic

Courtesy of GENERAL MOTORS CORP.

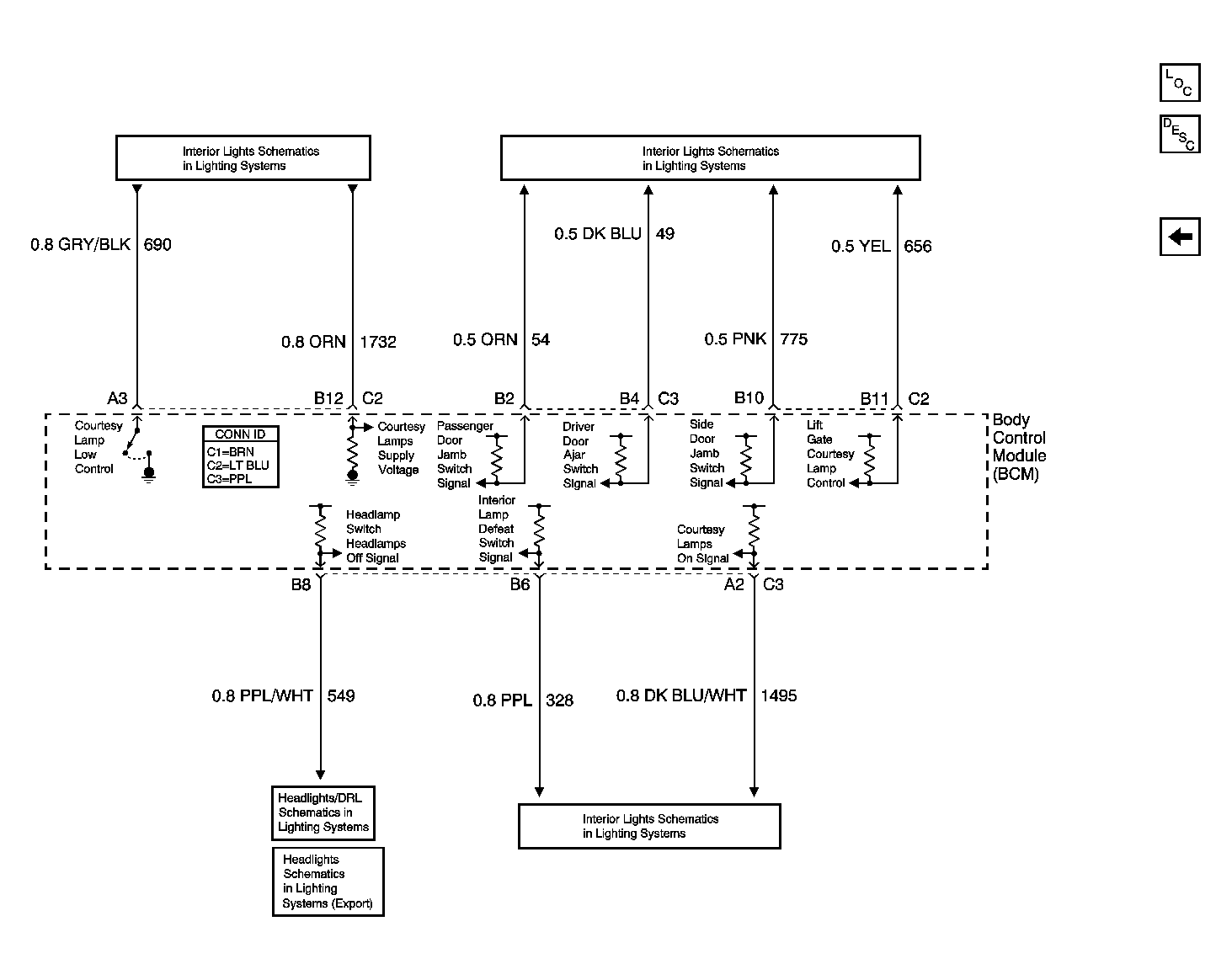

Fig 6: Headlights/DRL, Headlights (Export), and Interior Lights Schematic

Courtesy of GENERAL MOTORS CORP.
