Removal Procedure

  1. Remove the front door outside handle. Refer to DOOR HANDLE REPLACEMENT - FRONT OUTSIDE  .
  2. Remove the lock cylinder retainer from the front door outside handle.
  3. Remove the front door lock cylinder from the front door outside handle.

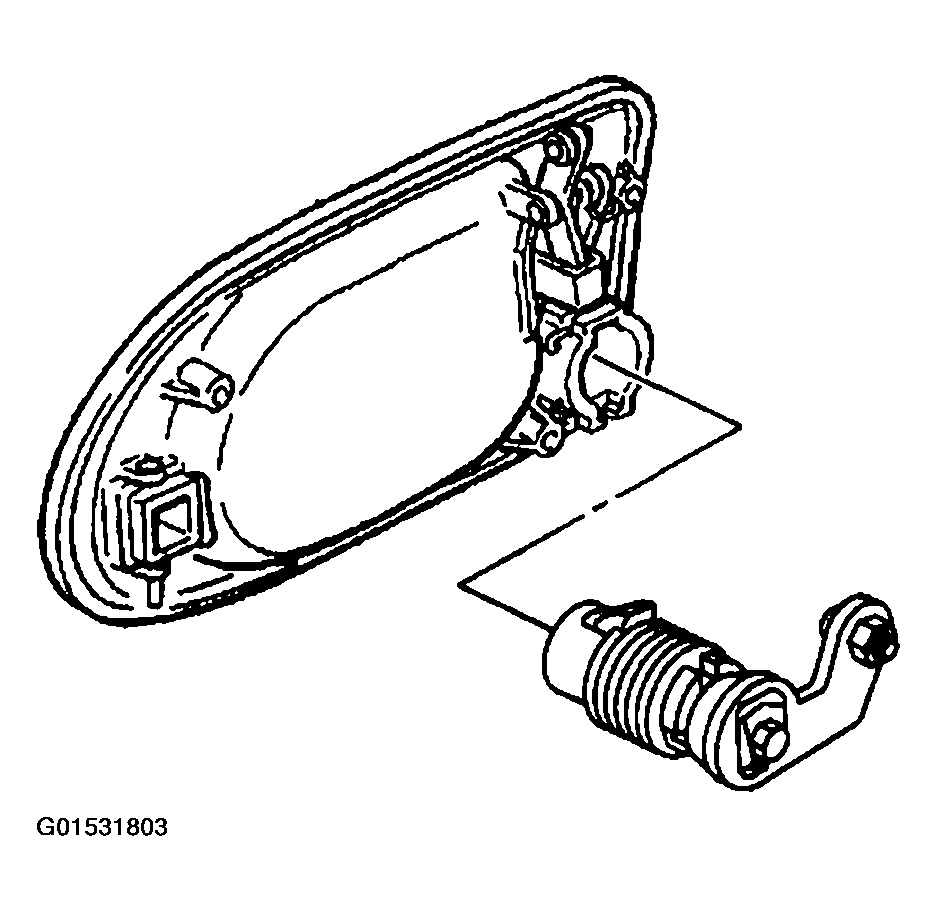

    Fig 1: Removing Front Door Lock Cylinder From Front Door Outside Handle
    G01531803Courtesy of GENERAL MOTORS CORP.
