Liftgate Door Lock Cylinder Switch Connector End View

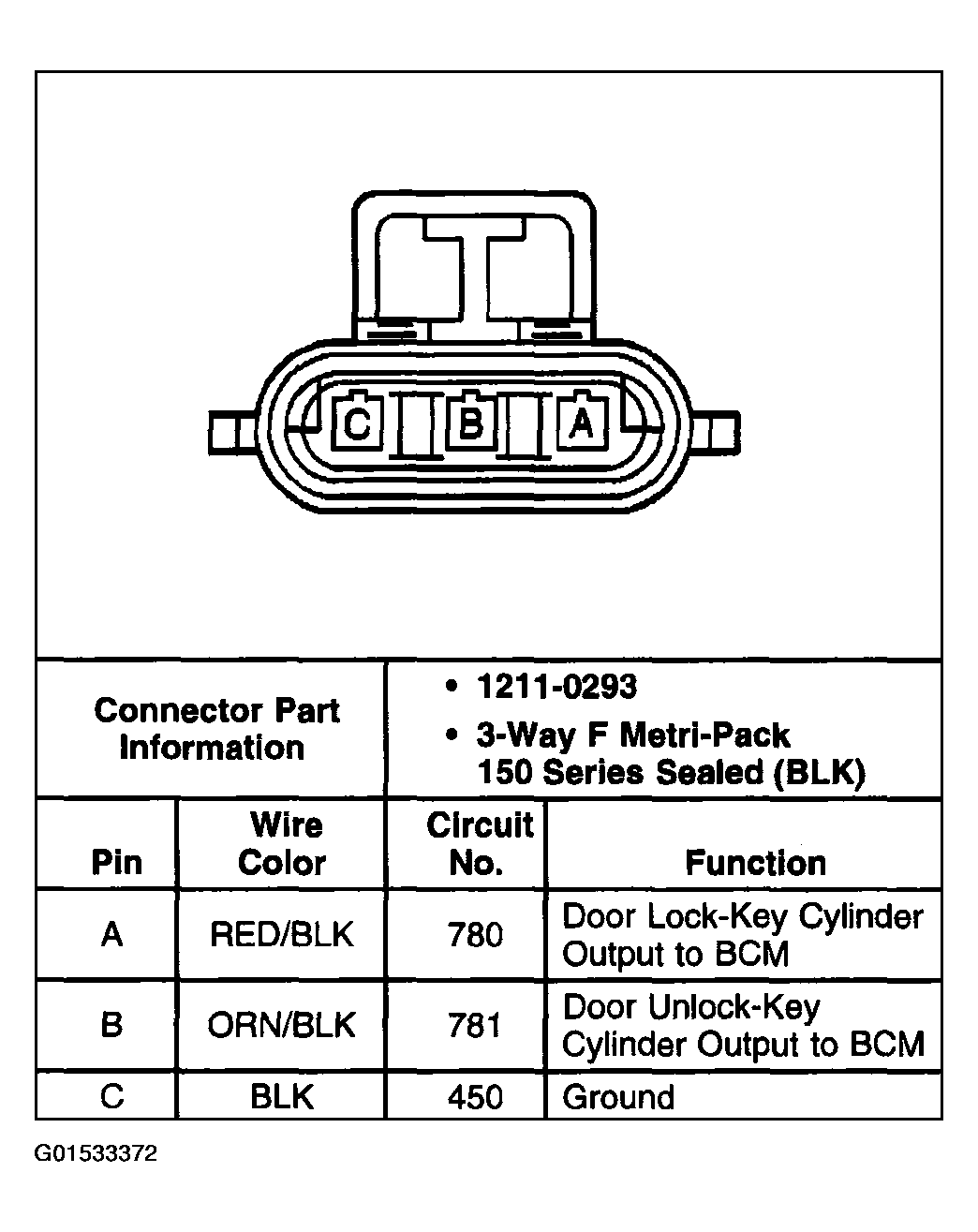

Fig 1: Liftgate Door Lock Cylinder Switch Connector End View

G01533372

Courtesy of GENERAL MOTORS CORP.
