Connector Identification

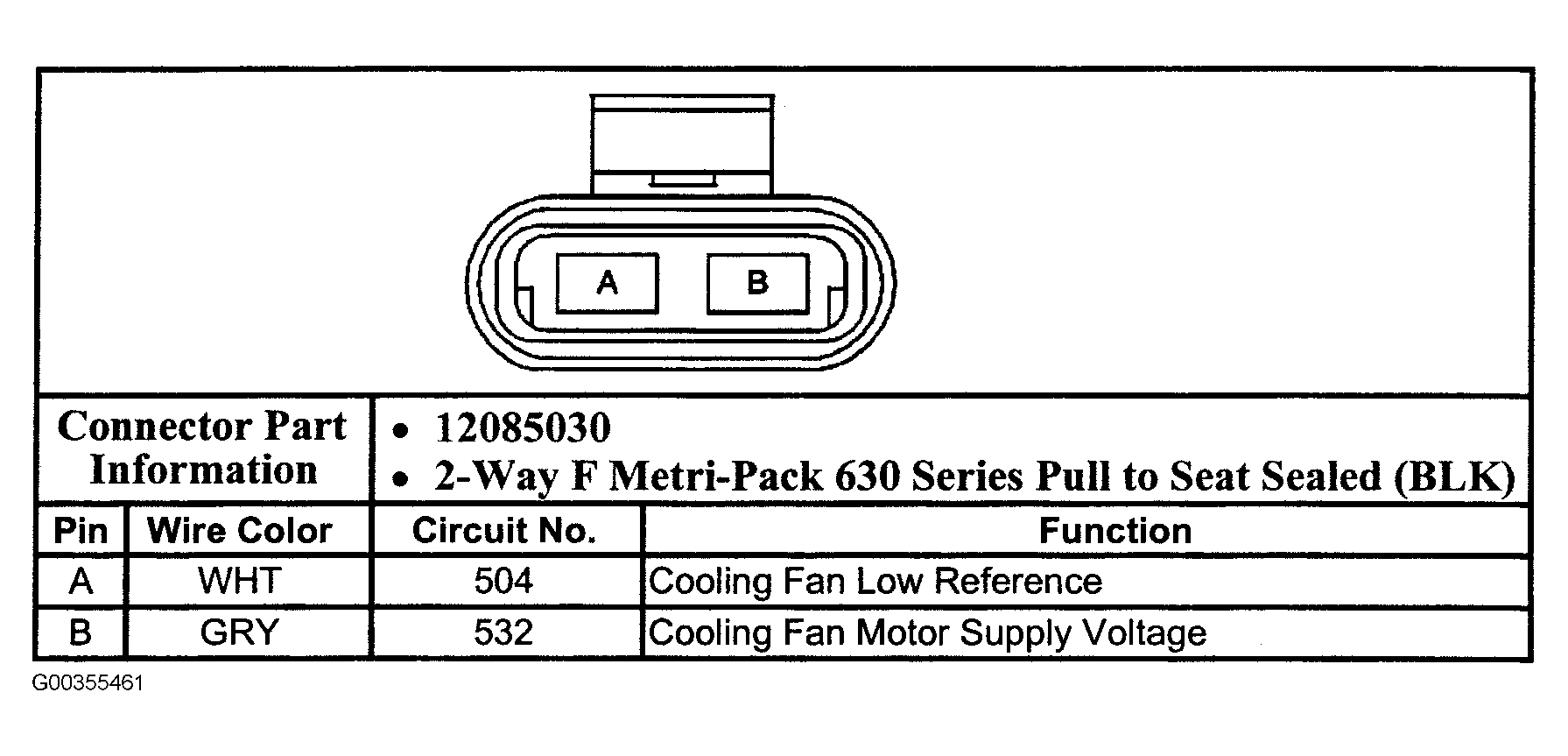

Fig 1: Identifying Left Cooling Fan Connector Harness Terminals
G00355461Courtesy of GENERAL MOTORS CORP.

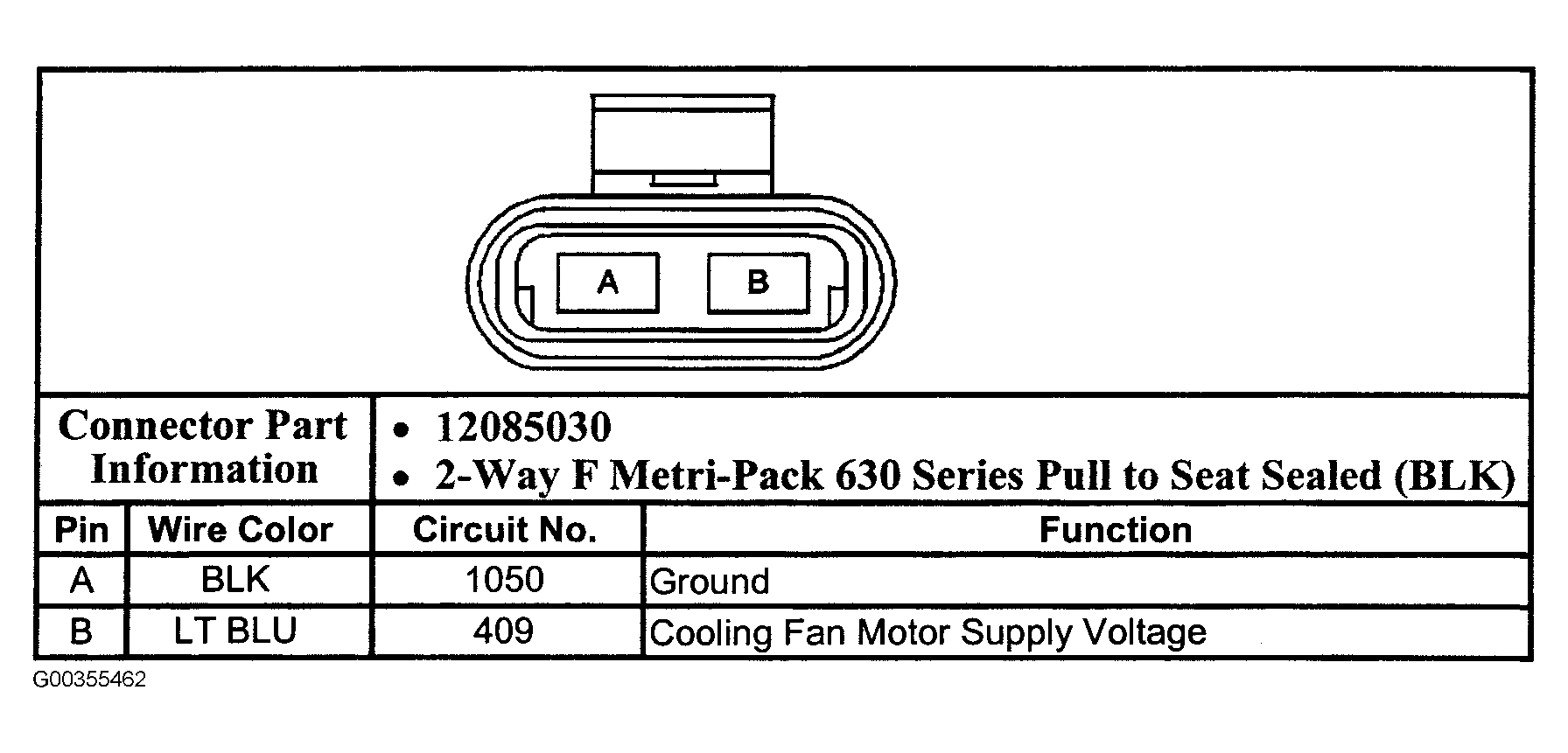

Fig 2: Identifying Right Cooling Fan Connector Harness Terminals
G00355462Courtesy of GENERAL MOTORS CORP.
