Installation Procedure

  1. Install the stabilizer shaft from the left side of the vehicle.
  2. Install the left and right stabilizer shaft links. Refer to STABILIZER SHAFT LINK REPLACEMENT   .

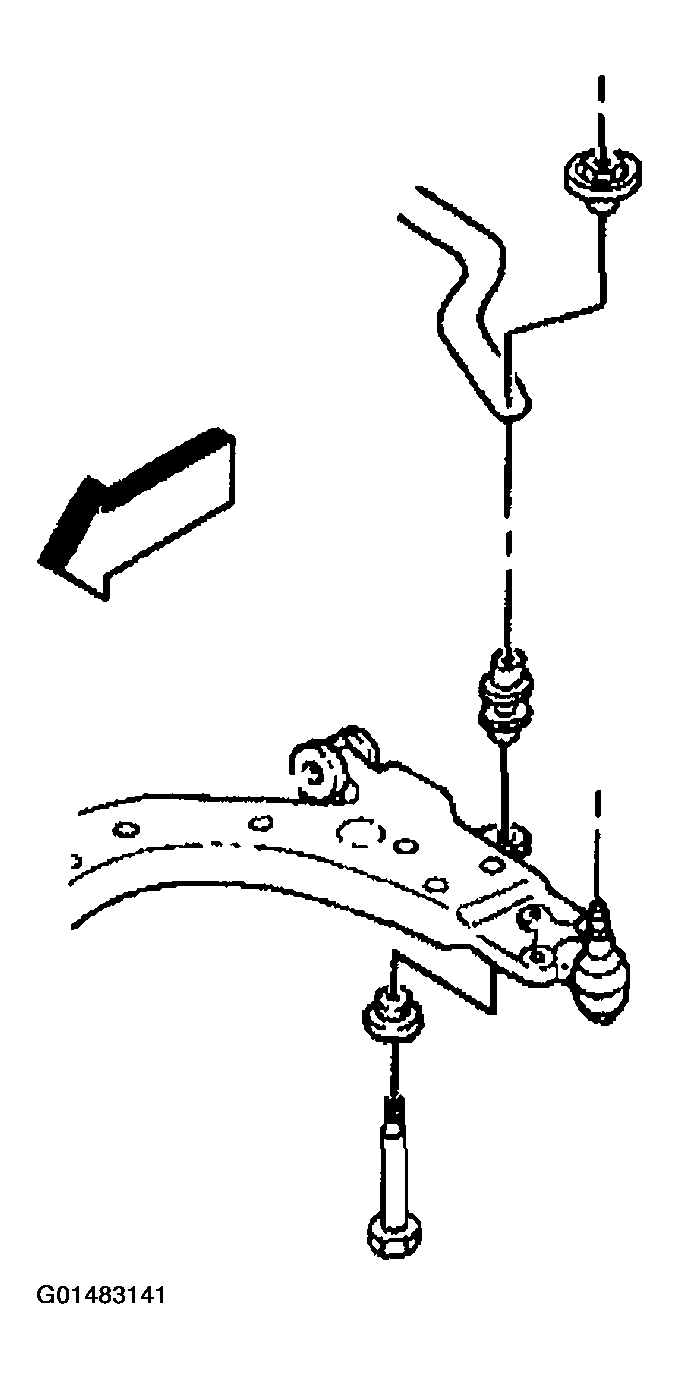

    Fig 1: Install Stabilizer Shaft From Left Side Of Vehicle
    G01483141Courtesy of GENERAL MOTORS CORP.
  3. Install the left and right stabilizer shaft insulators and brackets. Refer to STABILIZER SHAFT INSULATOR REPLACEMENT   .
  4. Install the left front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  5. Lower the vehicle.

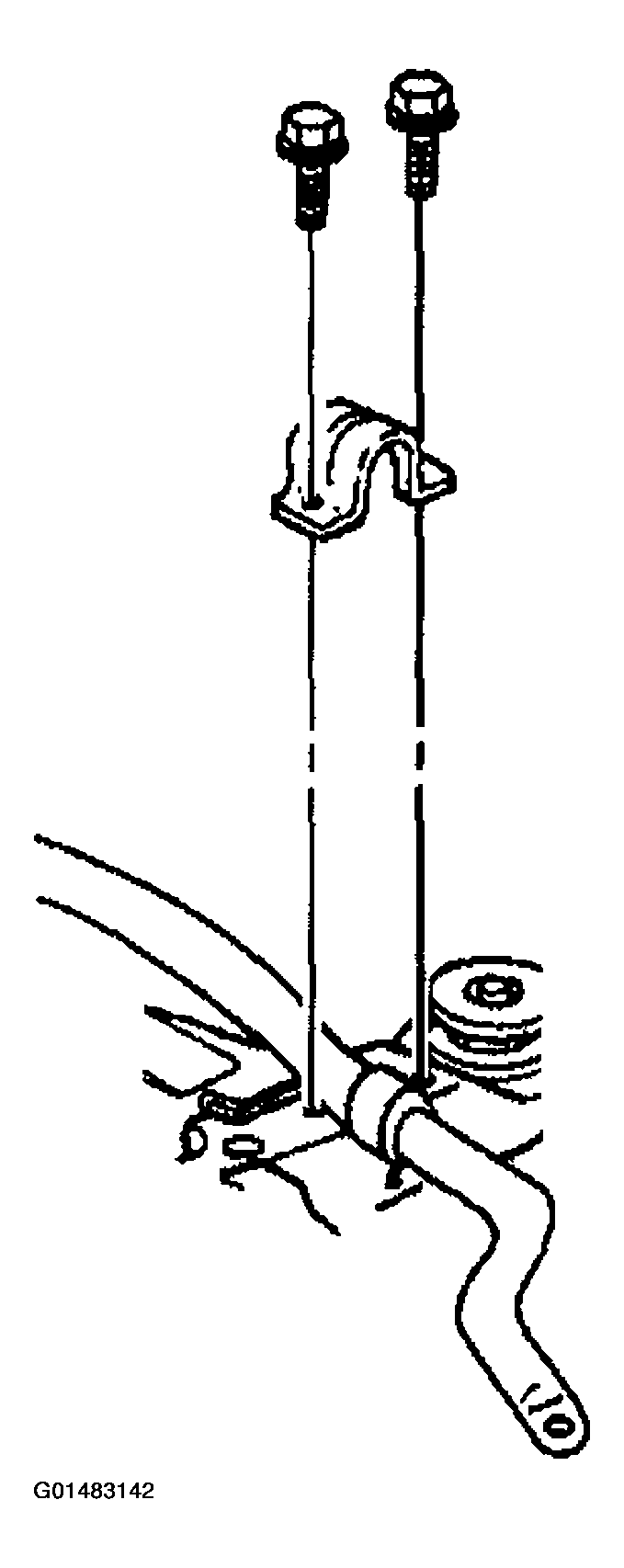

    Fig 2: Installing Stabilizer Shaft Brackets
    G01483142Courtesy of GENERAL MOTORS CORP.
