Installation Procedure

  1. Install the stabilizer link into the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the stabilizer shaft link bolt and nut.

    Tighten

    Tighten the stabilizer shaft link nut to 23 N.m (17 lb ft).

  3. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  4. Lower the vehicle.

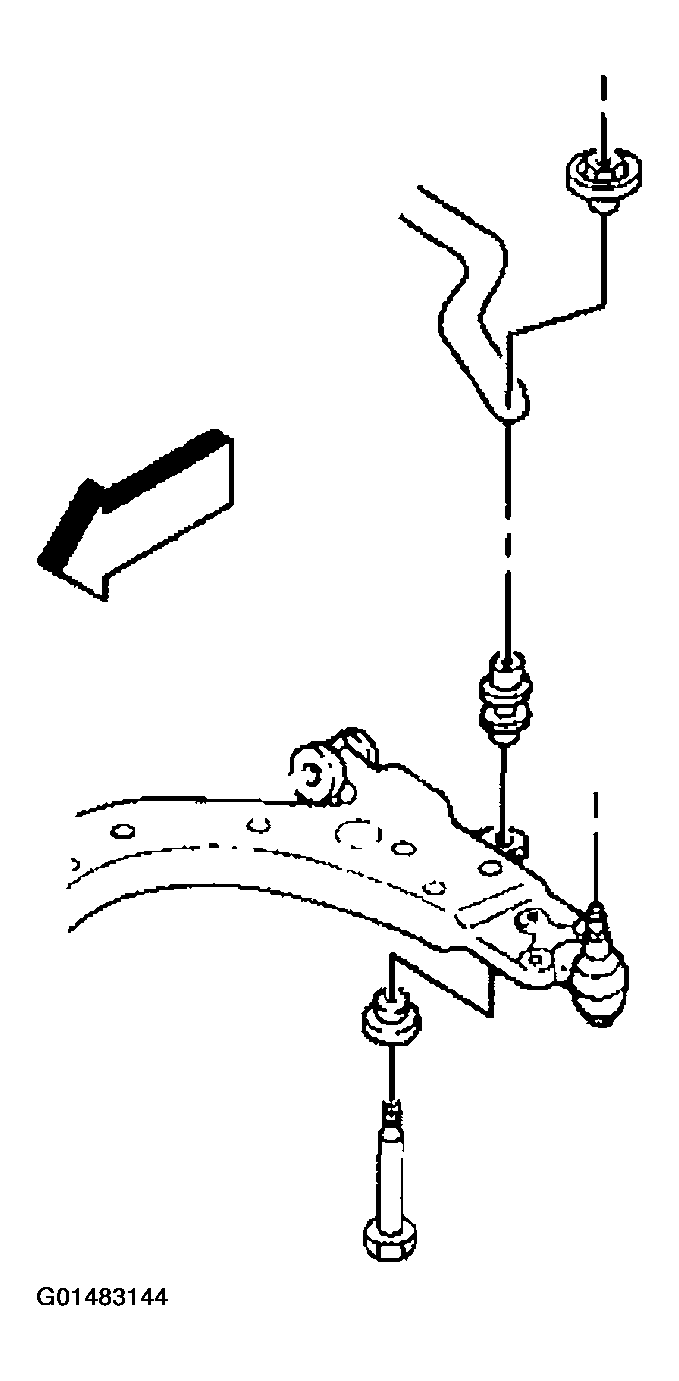

    Fig 1: Installing Stabilizer Link Into Vehicle
    G01483144Courtesy of GENERAL MOTORS CORP.
