Installation Procedure

  1. Install the left and right side stabilizer shaft insulators (1) to the stabilizer shaft (2).

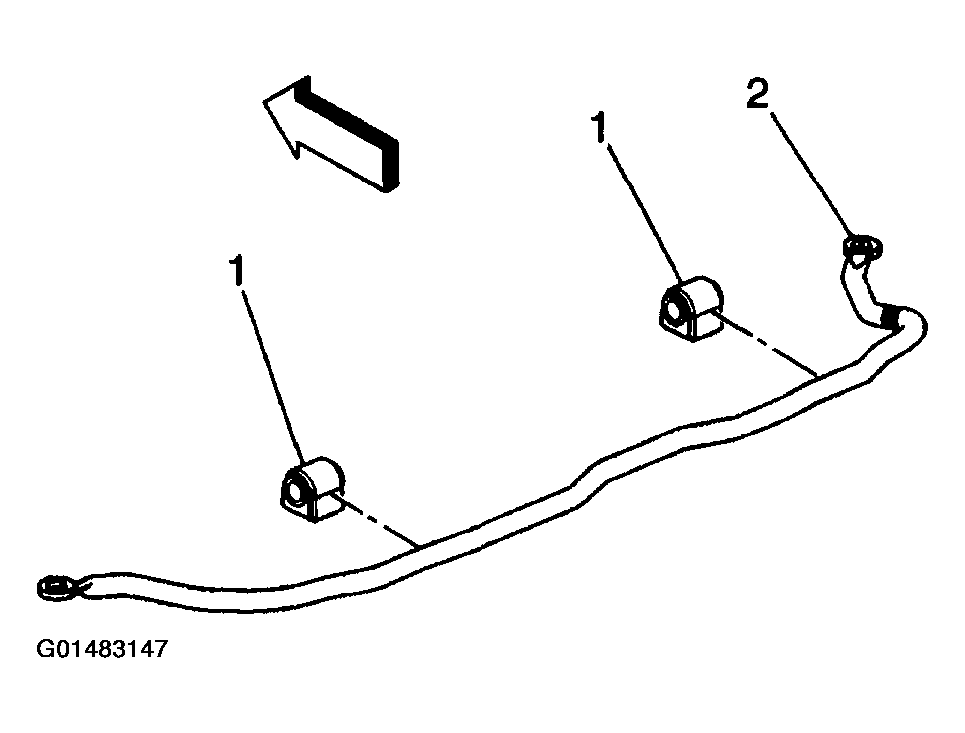

    Fig 1: Installing Left And Right Side Stabilizer Shaft Insulators To Stabilizer Shaft
    G01483147Courtesy of GENERAL MOTORS CORP.
  2. Install the left and right side stabilizer shaft insulator brackets.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the left and right side stabilizer shaft insulator bracket bolts.

    Tighten

    Tighten the stabilizer shaft insulator bracket bolts to 48 N.m (35 lb in).

  4. Lower the vehicle.

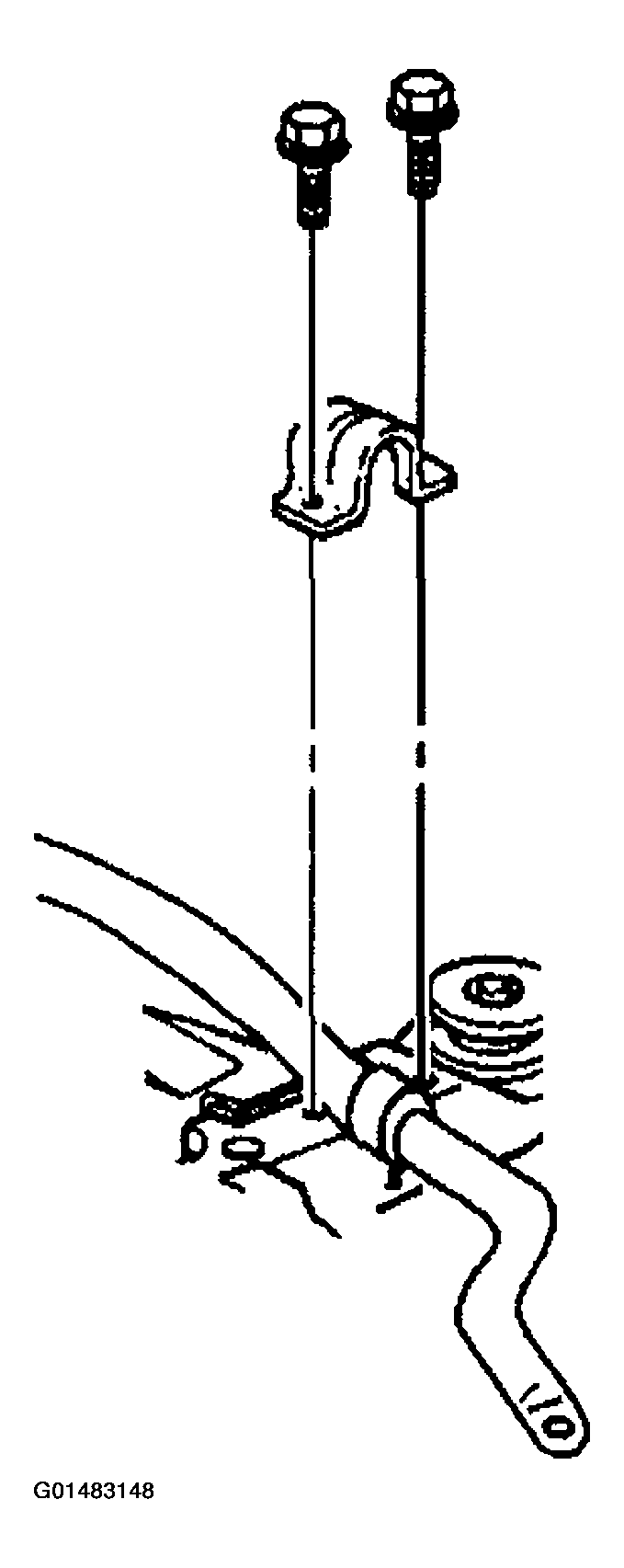

    Fig 2: Installing Left And Right Side Stabilizer Shaft Insulator Brackets
    G01483148Courtesy of GENERAL MOTORS CORP.
