Schematic and Routing Diagrams
Schematic and Routing Diagrams

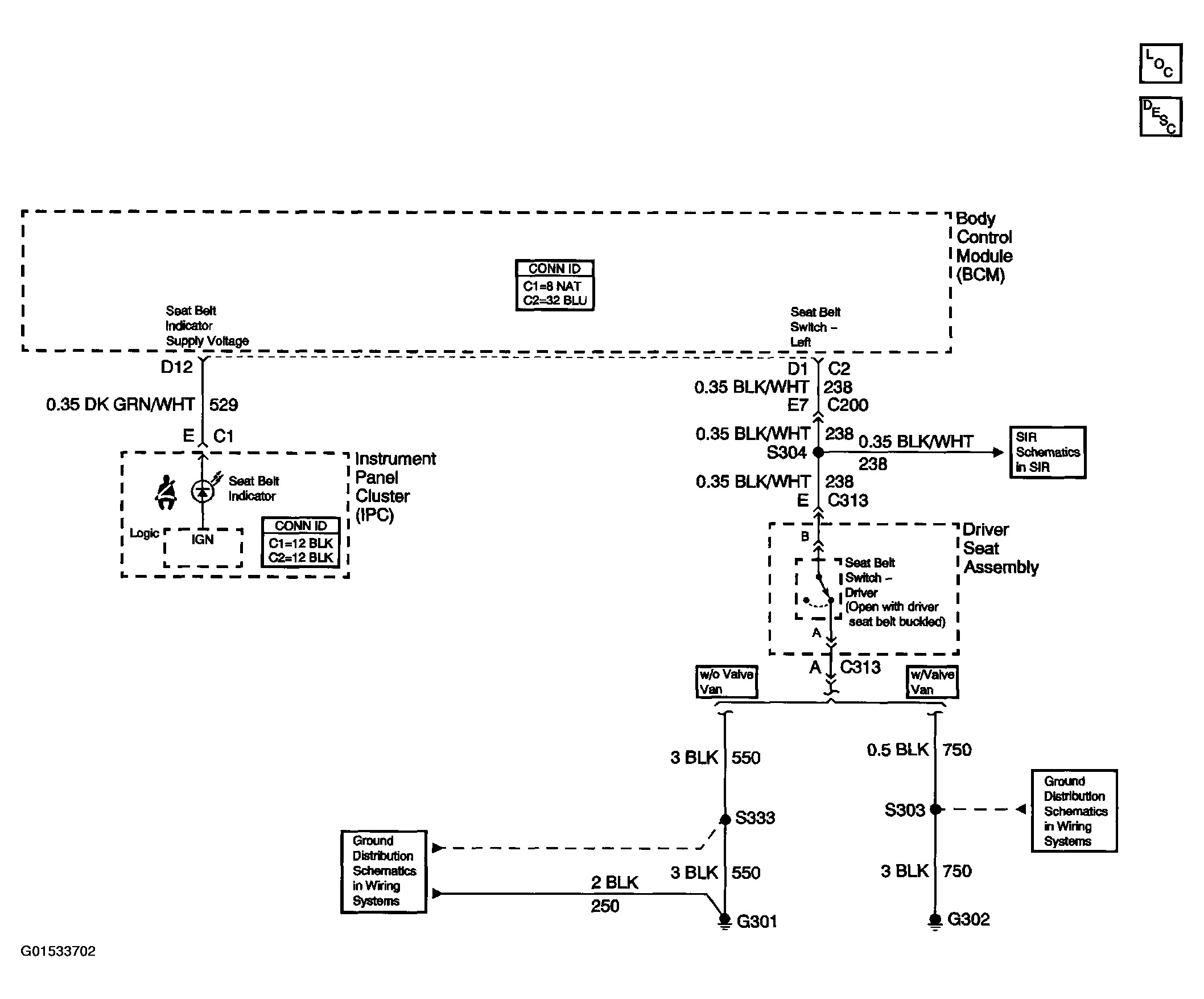

Fig 1: Seat Belt Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
