Rear Toe Adjustment

Important:  Make any adjustments to camber before setting toe.

1. Loosen the jam nut (6) at the rear wheel tie rod.
2. Adjust the toe to the proper setting by turning the inner link adjustment hex (4). Refer to WHEEL ALIGNMENT SPECIFICATIONS   .
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
3. When the toe adjustment is correct, tighten the jam nut.

   Tighten

   Tighten the nut to 62 N.m (45 lb ft).

4. Recheck the toe alignment.

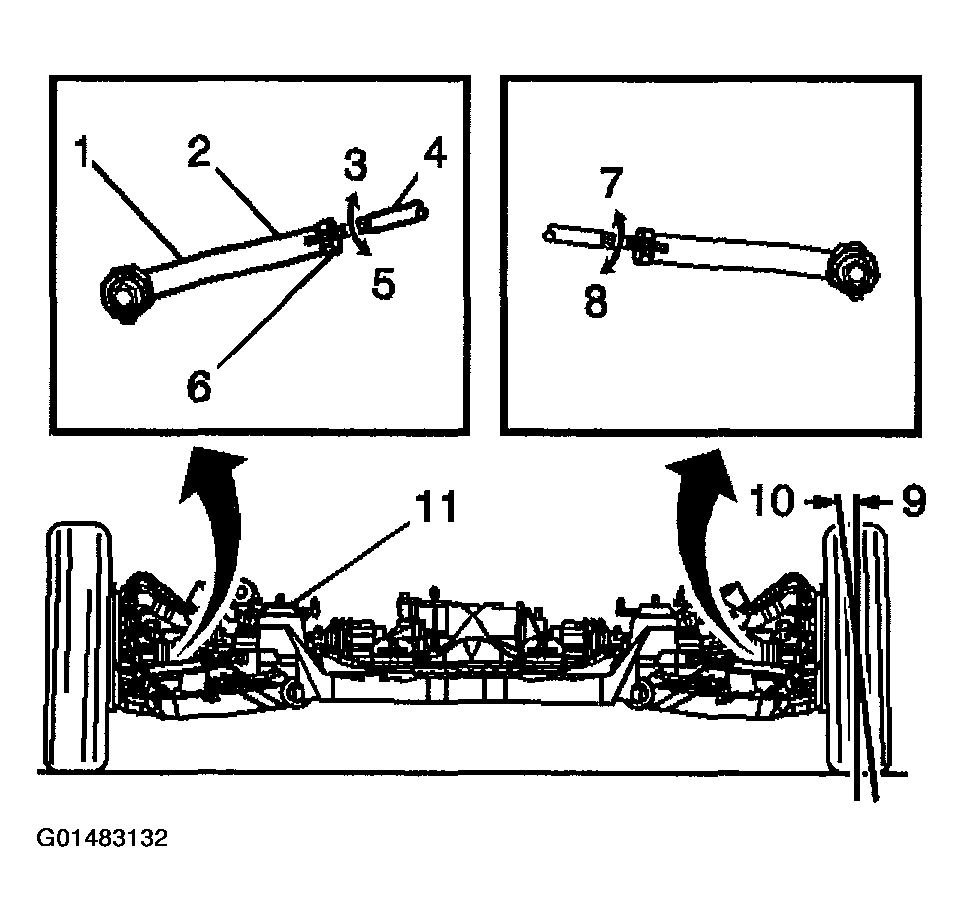

   Fig 1: Identifying Rear Toe Adjustment

   Courtesy of GENERAL MOTORS CORP.
