Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper drive system module cover to the pinchweld flange.
  2. Install the wiper drive system module cover to the pinchweld flange, pressing down until fully seated.
  3. Install the hood rear seal to the pinchweld flange.
  4. Close the hood.

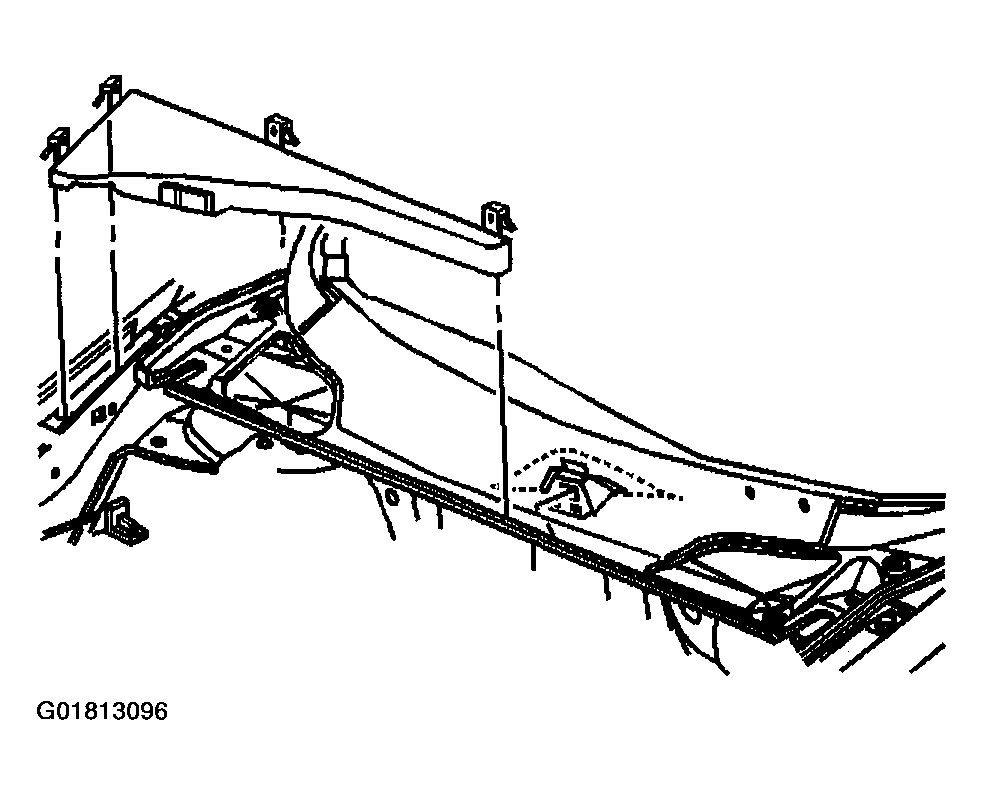

    Fig 1: Installing Wiper Drive System Module Cover & Retainers
    G01813096Courtesy of GENERAL MOTORS CORP.
