Horns Connector End Views

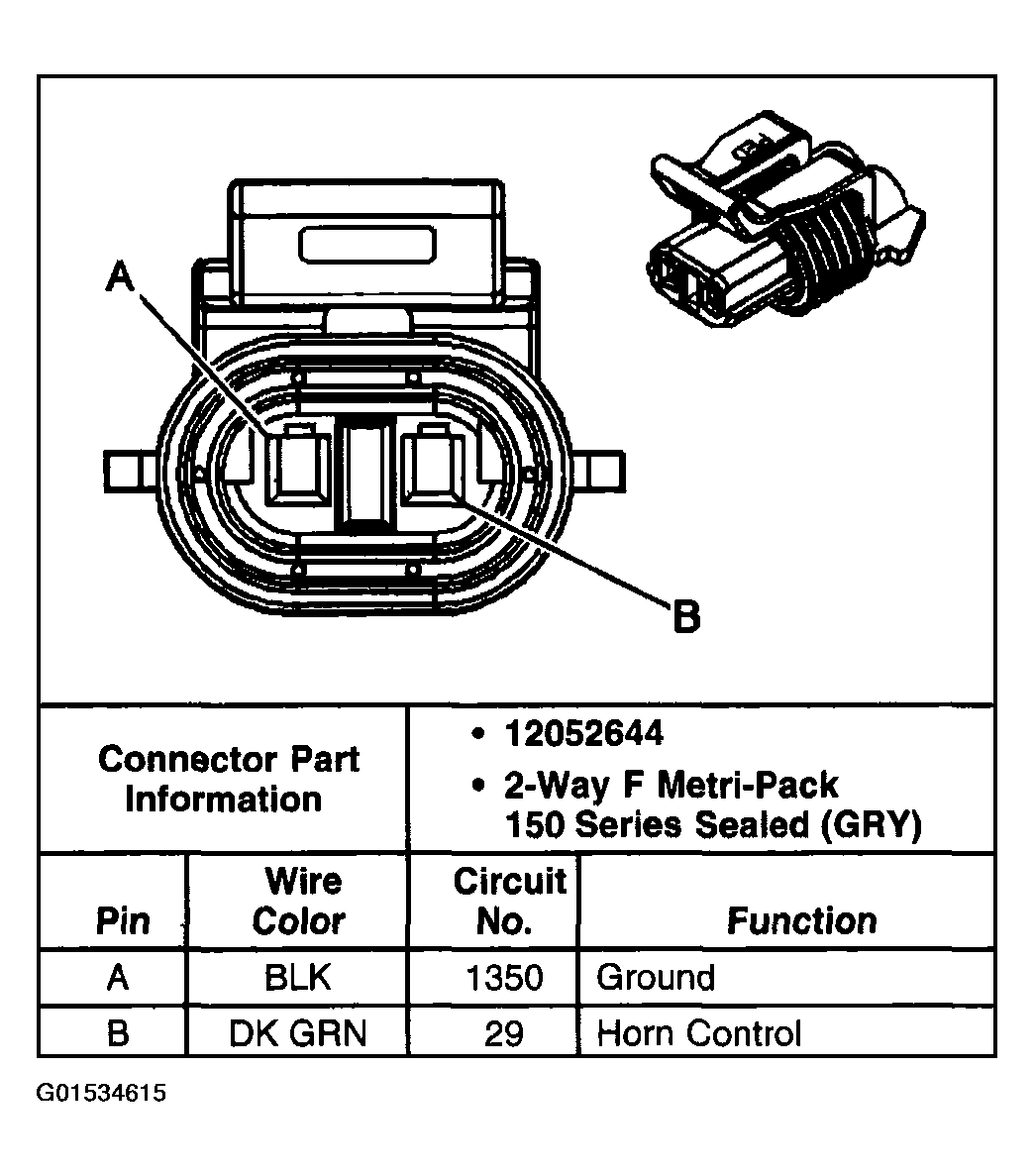

Fig 1: Horn (Left) Connector End View

G01534615

Courtesy of GENERAL MOTORS CORP.

Fig 2: Horn (Right) Connector End View

G01534616

Courtesy of GENERAL MOTORS CORP.
