Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Important:  Clean any existing corrosion from the battery terminal bolt flange and the battery cable end.

Install the battery ground (negative) cable and bolt to the battery.

Tighten

Tighten the battery terminal bolt to 16 N.m (12 lb ft).

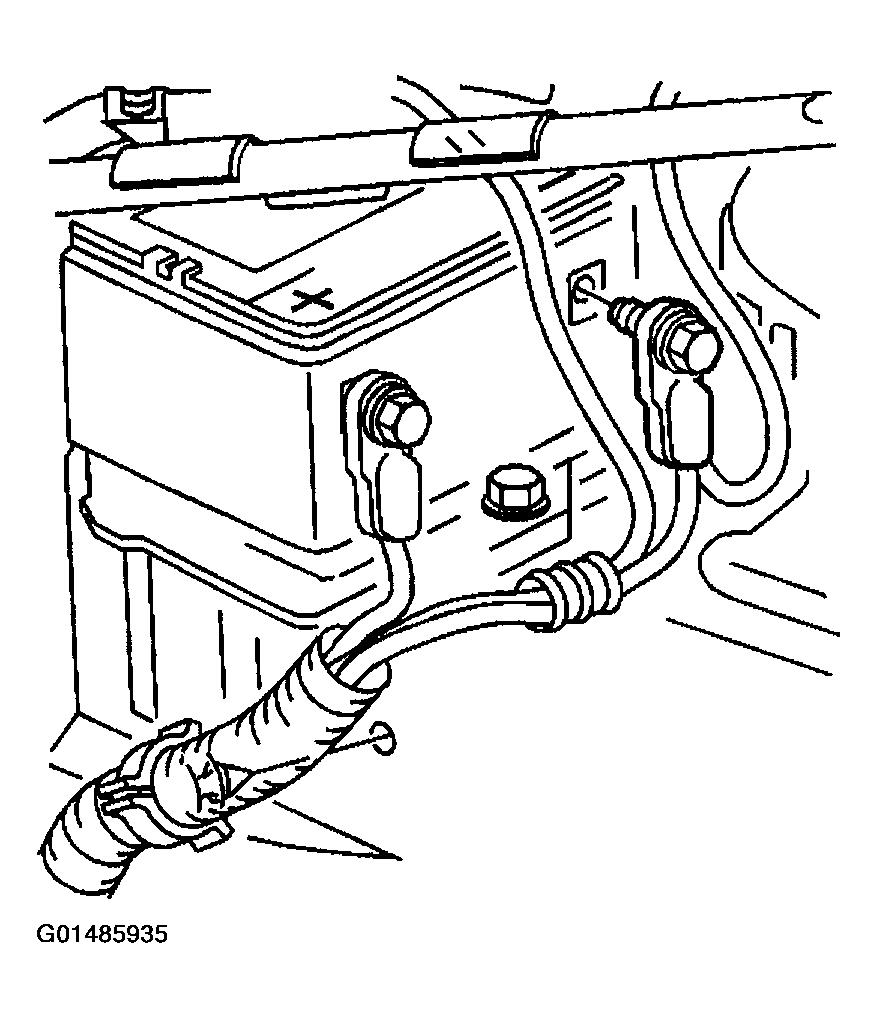

Fig 1: Installing Battery Ground (Negative) Cable And Bolt To Battery
G01485935Courtesy of GENERAL MOTORS CORP.
