Recirculation Actuator Connector End View

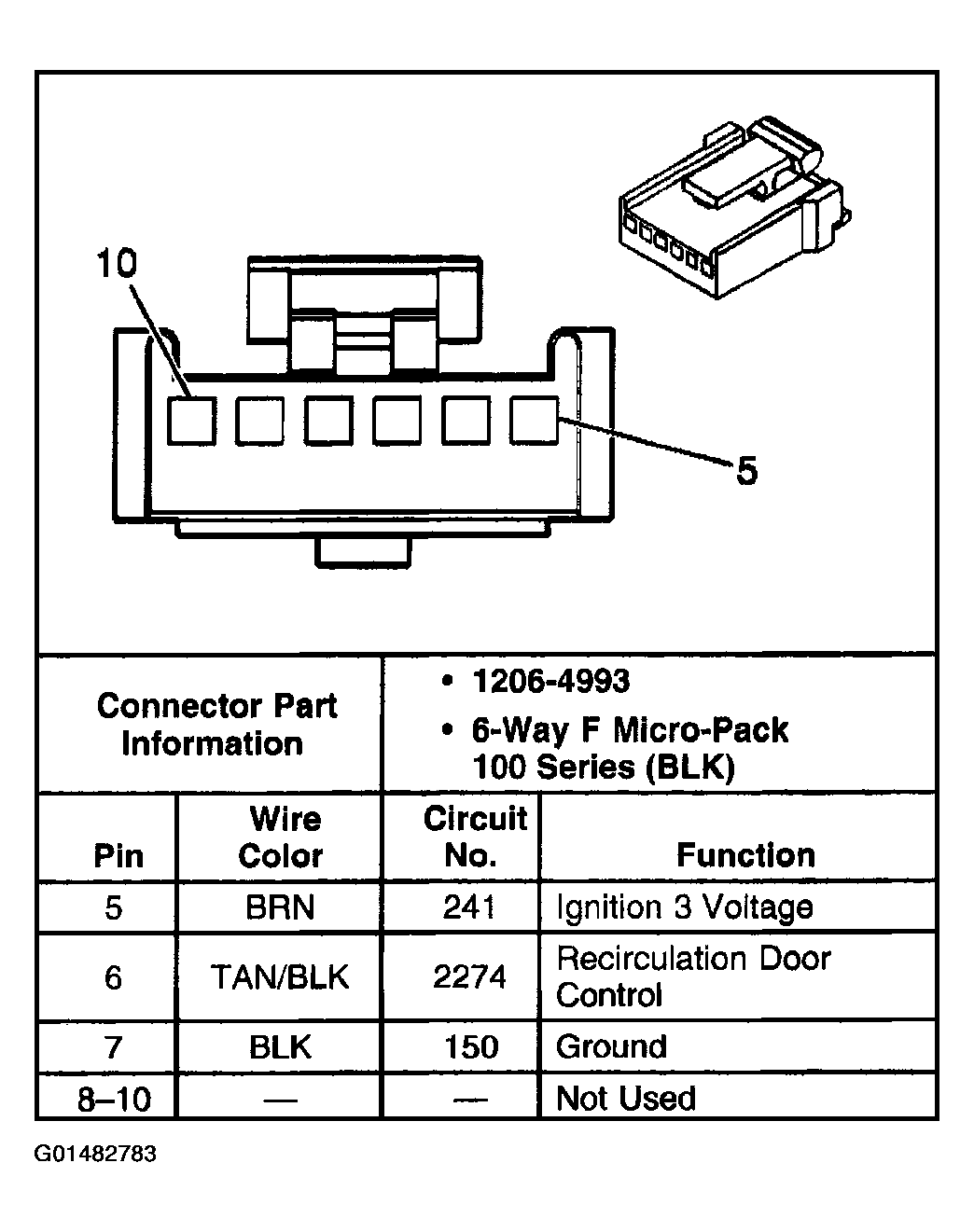

Fig 1: Recirculation Actuator Connector End View

G01482783

Courtesy of GENERAL MOTORS CORP.
