HVAC Control Module - Auxiliary Connector End View C2

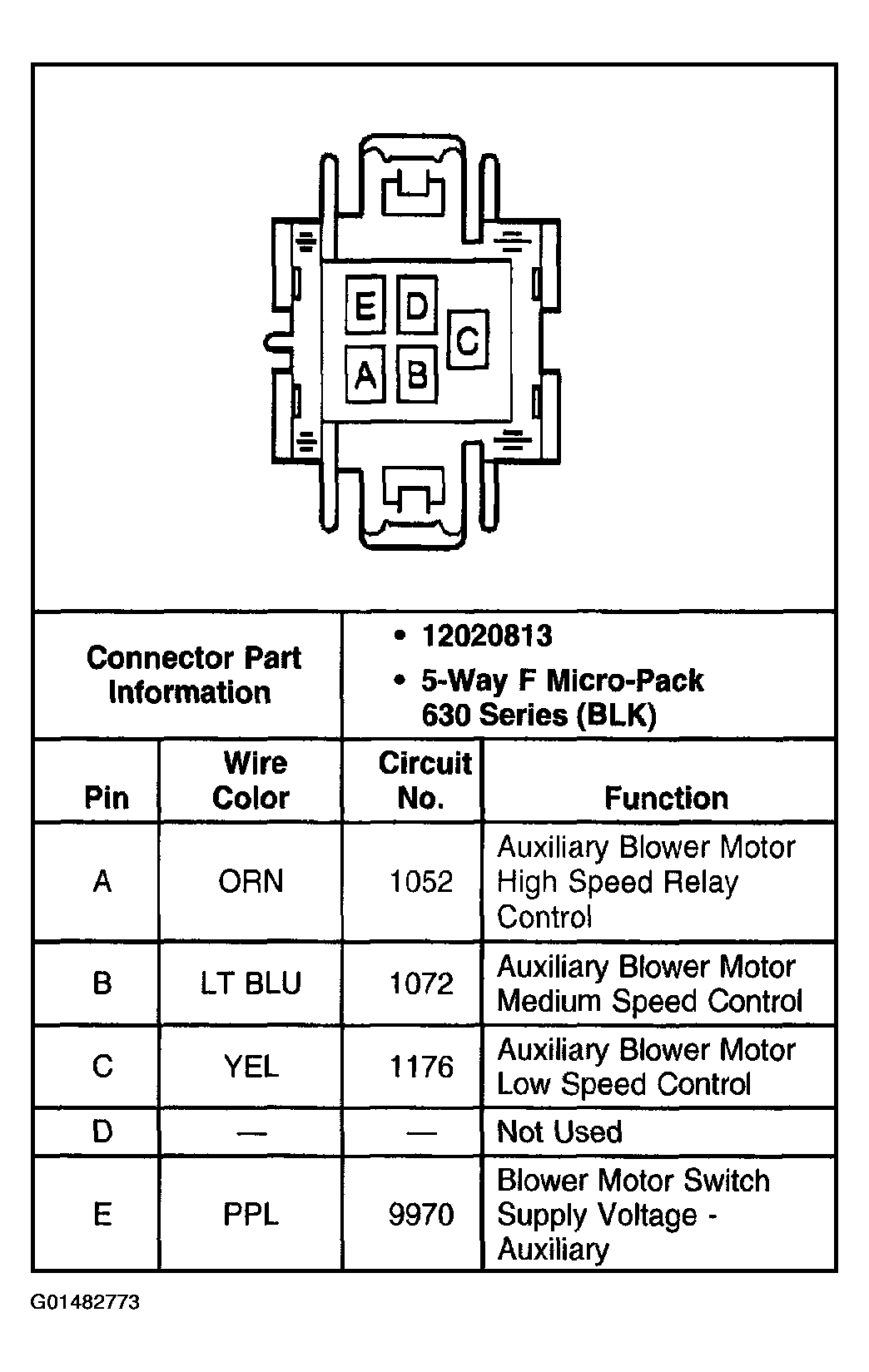

Fig 1: HVAC Control Module - Auxiliary Connector End View C2

G01482773

Courtesy of GENERAL MOTORS CORP.
