Schematic and Routing Diagrams

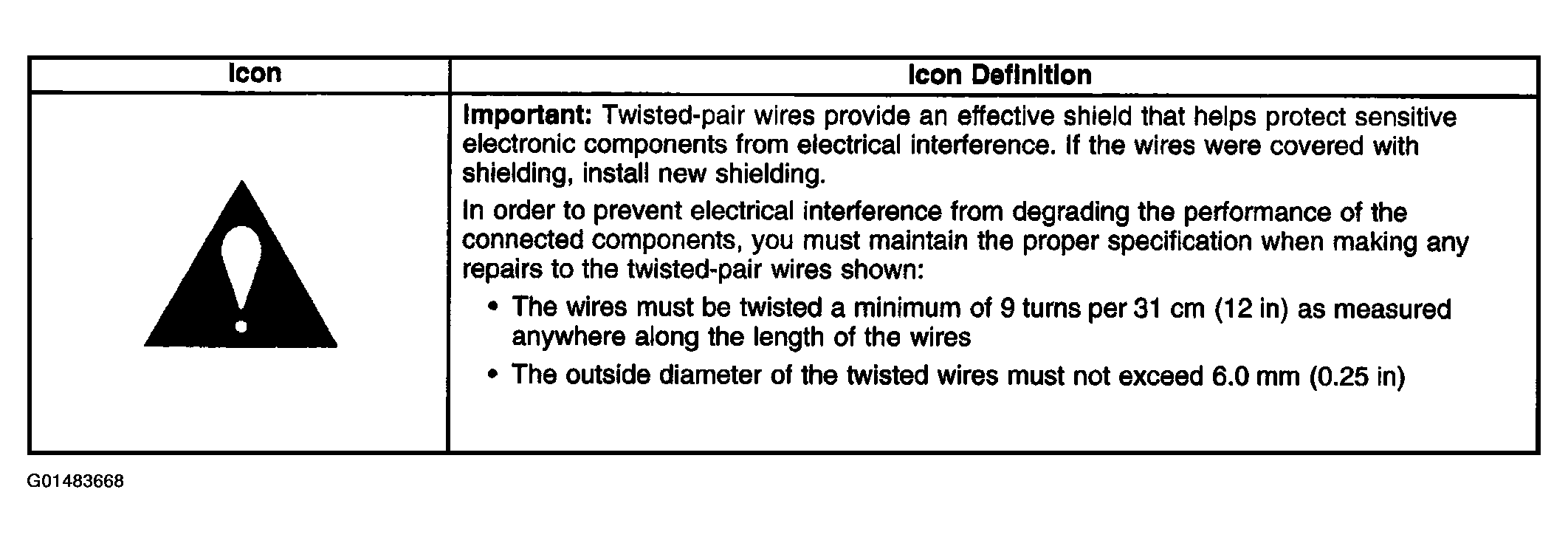

Fig 1: ABS Schematic Icons
G01483668Courtesy of GENERAL MOTORS CORP.

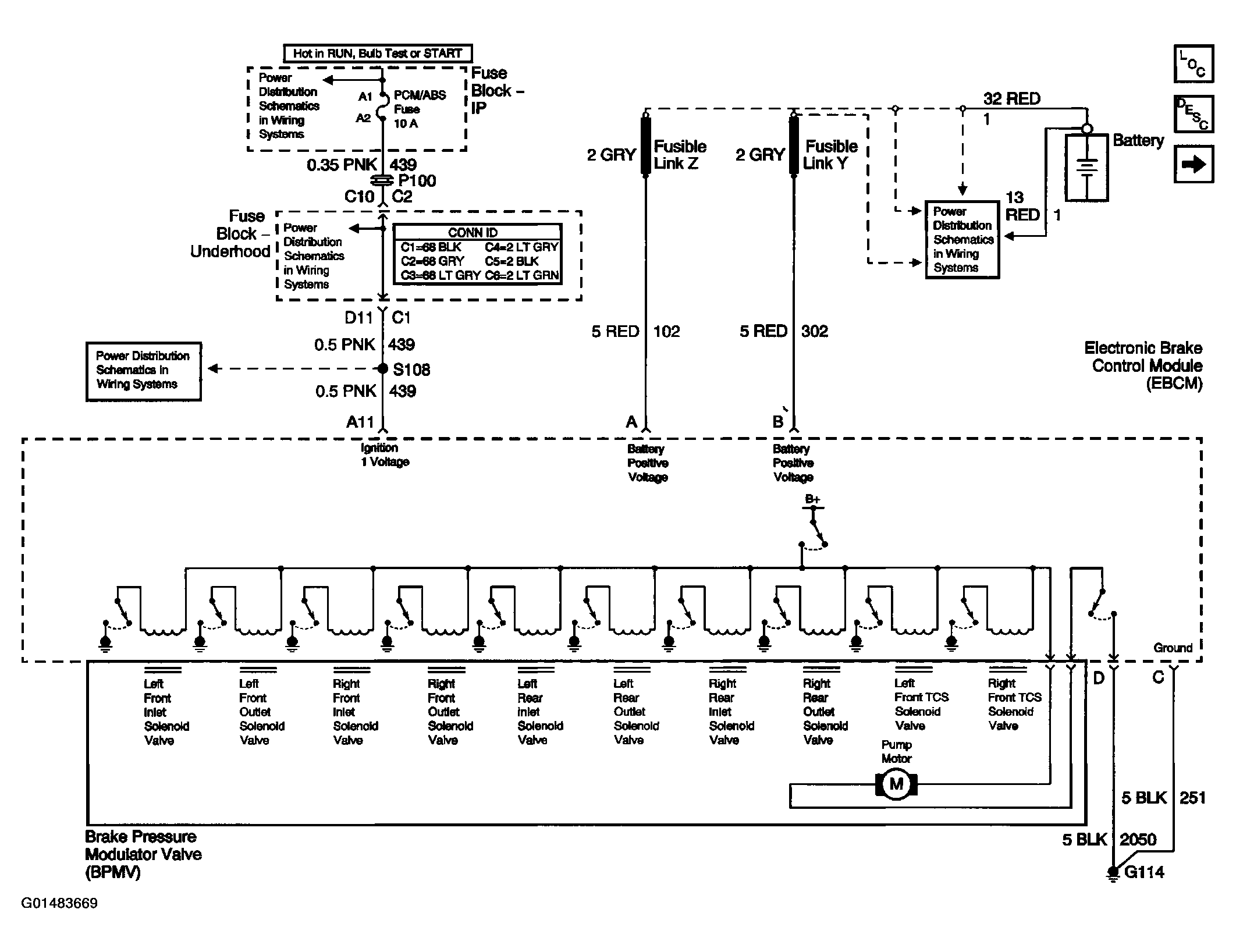

Fig 2: EBCM, Power and Ground Schematics
G01483669Courtesy of GENERAL MOTORS CORP.

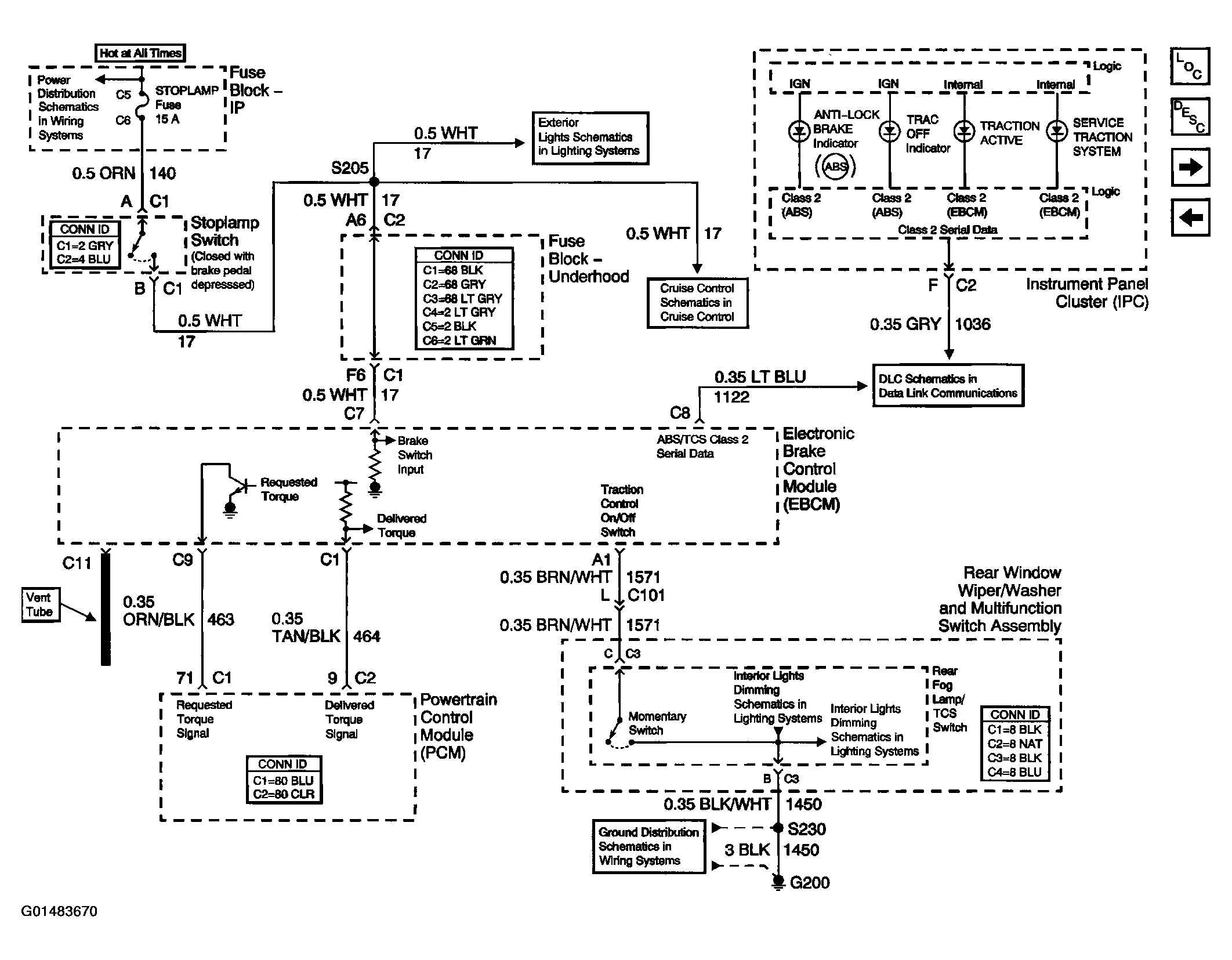

Fig 3: Data Link, MIL, PCM, and Stop Lamp Switch Schematics
G01483670Courtesy of GENERAL MOTORS CORP.

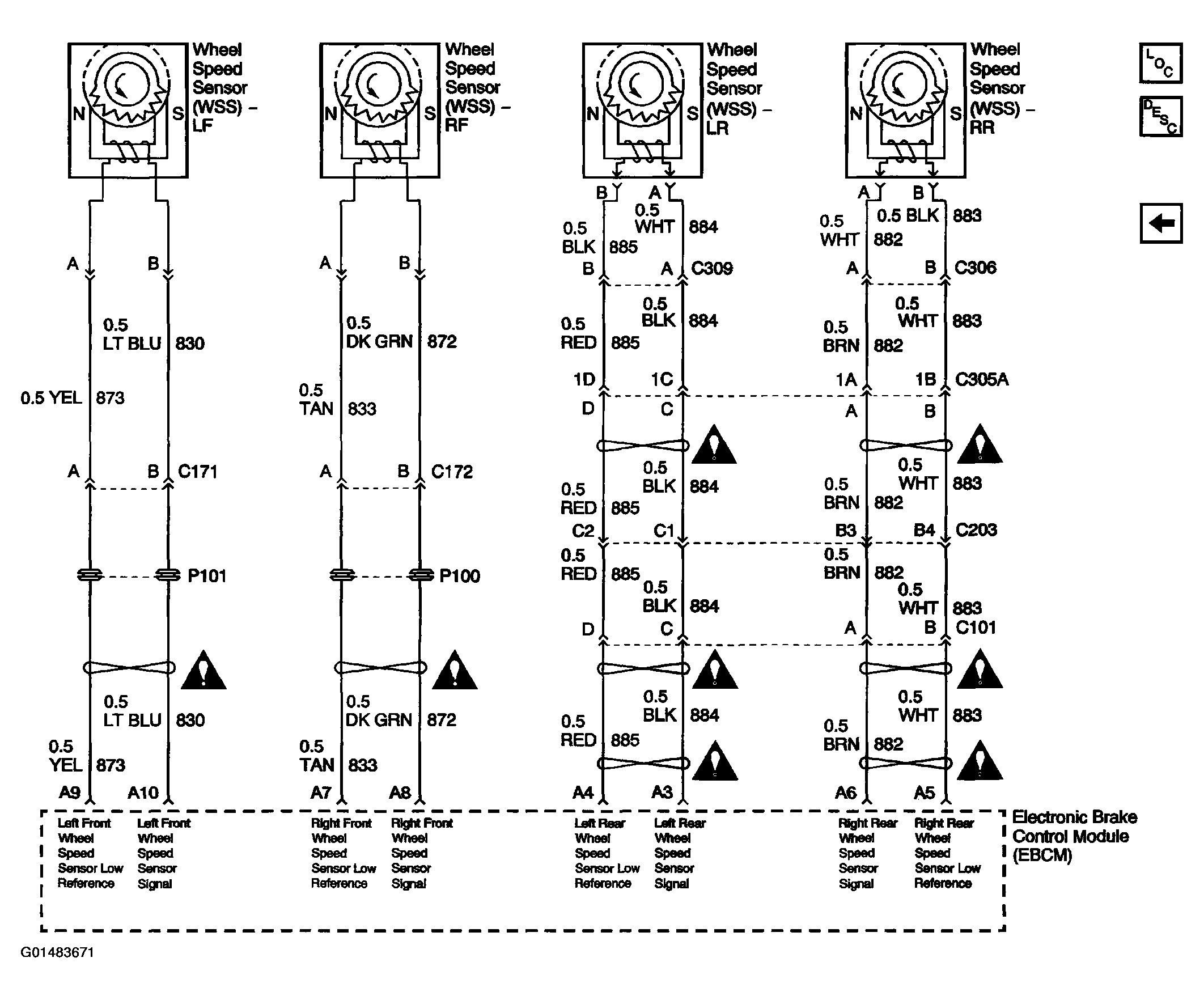

Fig 4: Wheel Speed Sensors Schematics
G01483671Courtesy of GENERAL MOTORS CORP.
