Scan Tool Data List
Scan Tool Data List

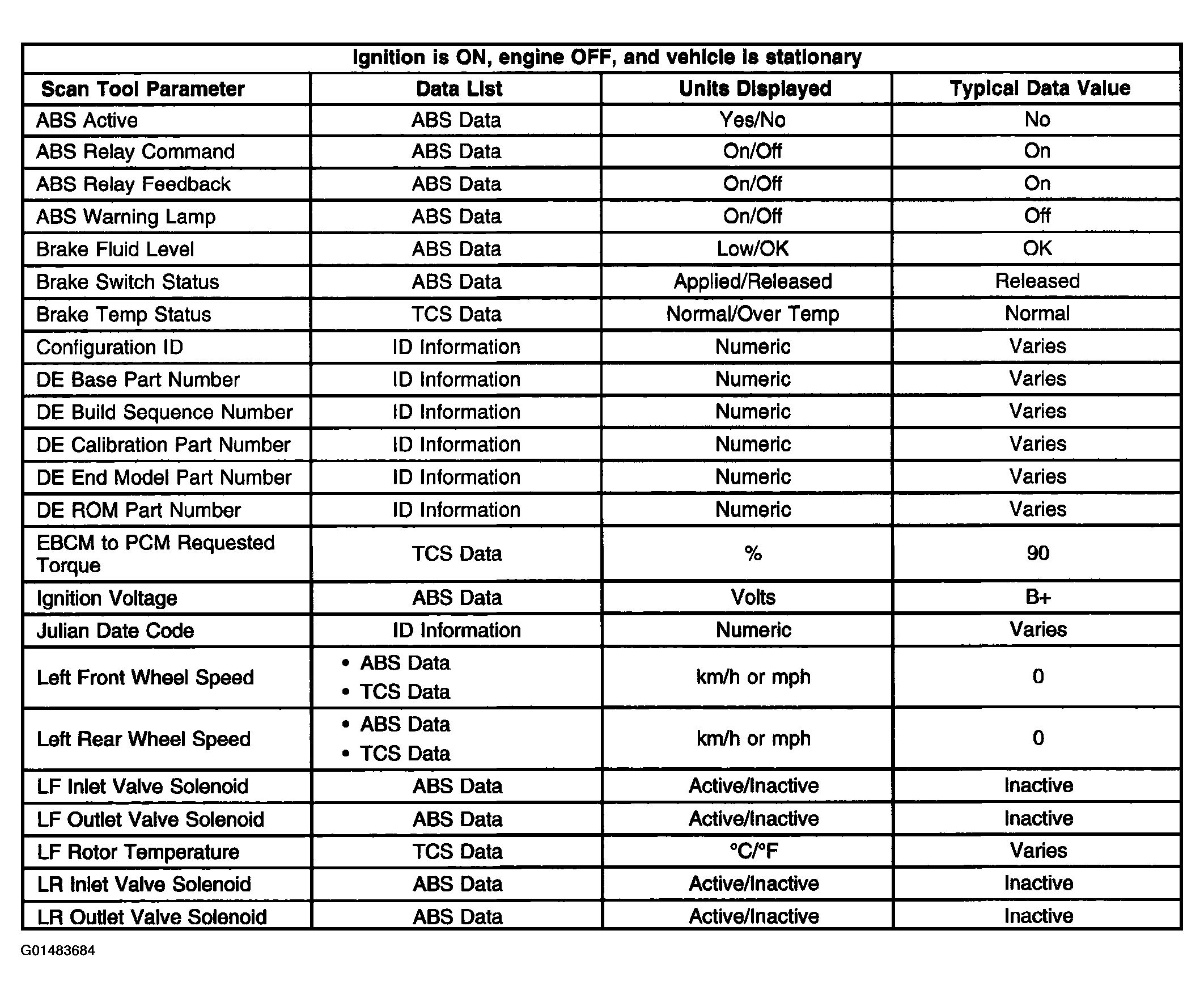

Fig 1: Scan Tool Data List - Electronic Brake Control Module (EBCM) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

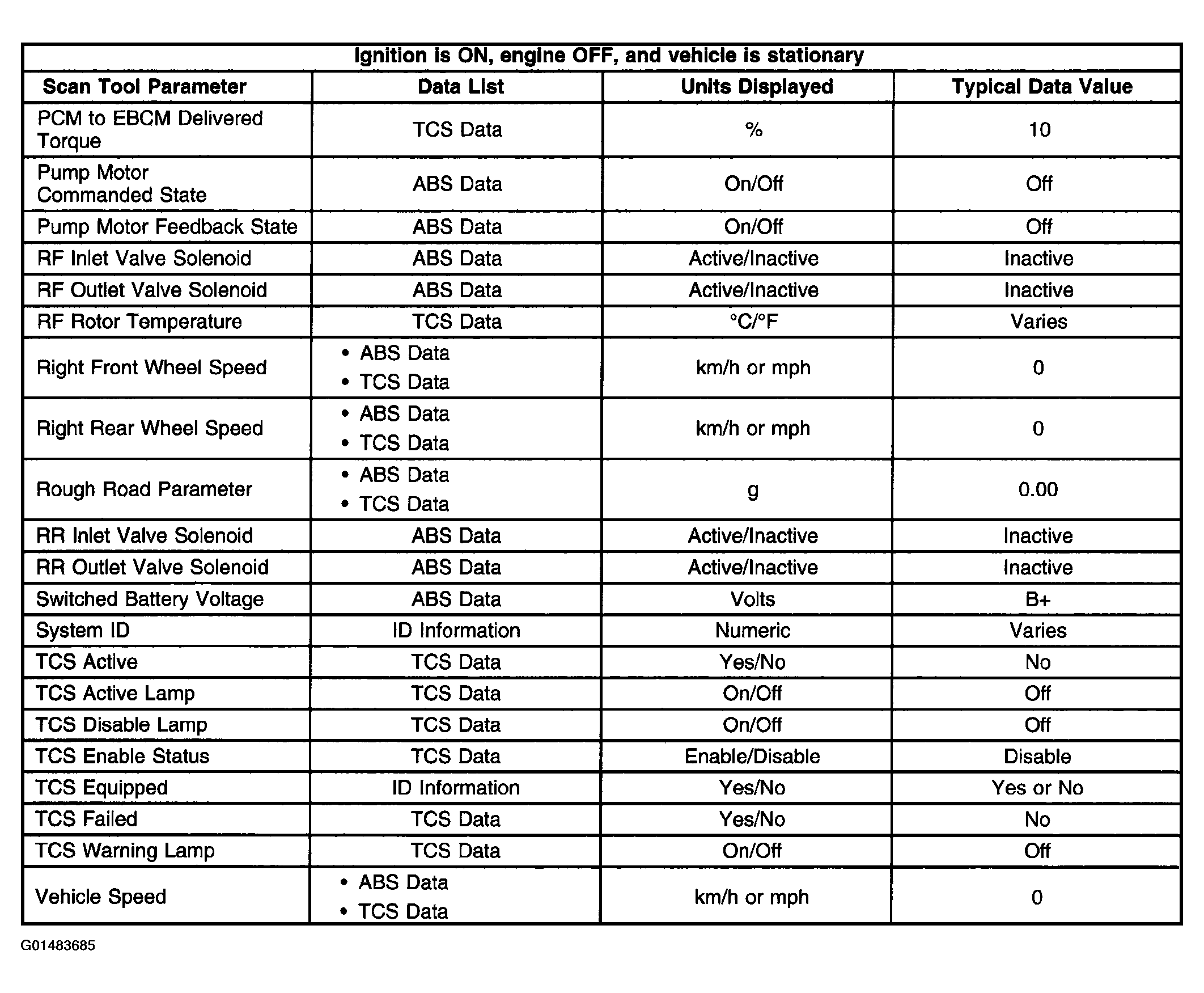

Fig 2: Scan Tool Data List - Electronic Brake Control Module (EBCM) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

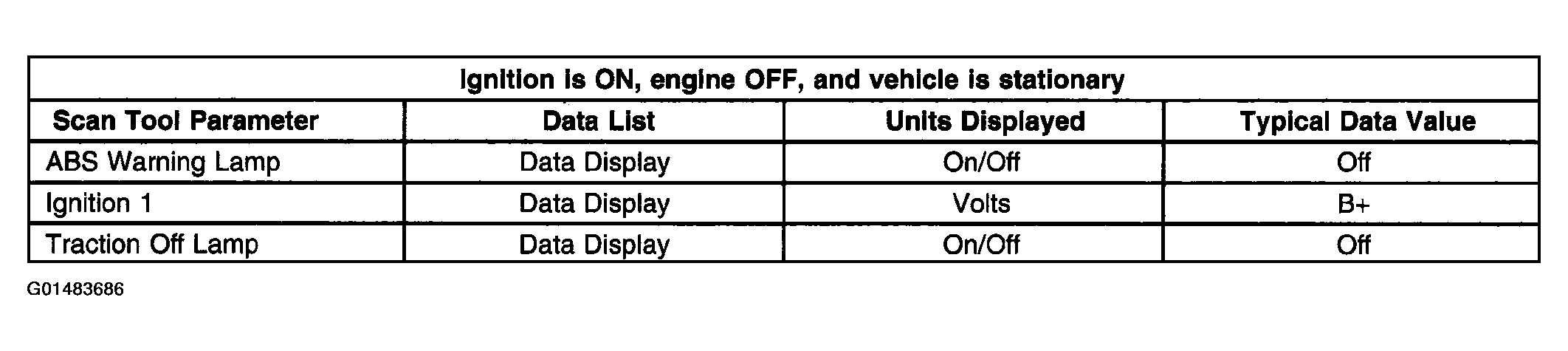

Fig 3: Scan Tool Data List - Instrument Panel Cluster (IPC)
Courtesy of GENERAL MOTORS CORP.

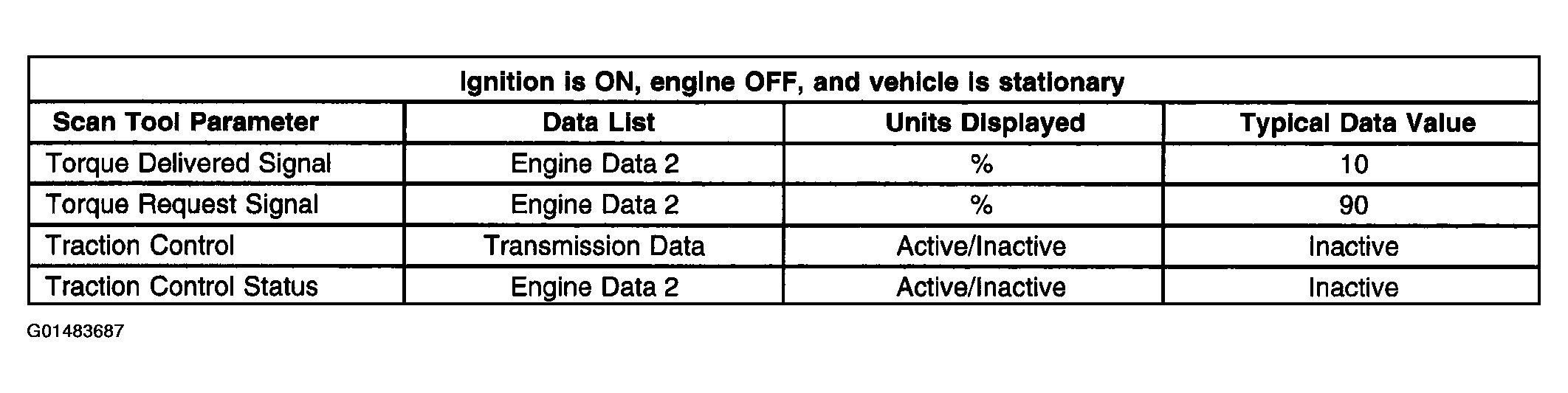

Fig 4: Scan Tool Data List - Powertrain Control Module (PCM)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
