Schematic and Routing Diagrams
Schematic and Routing Diagrams

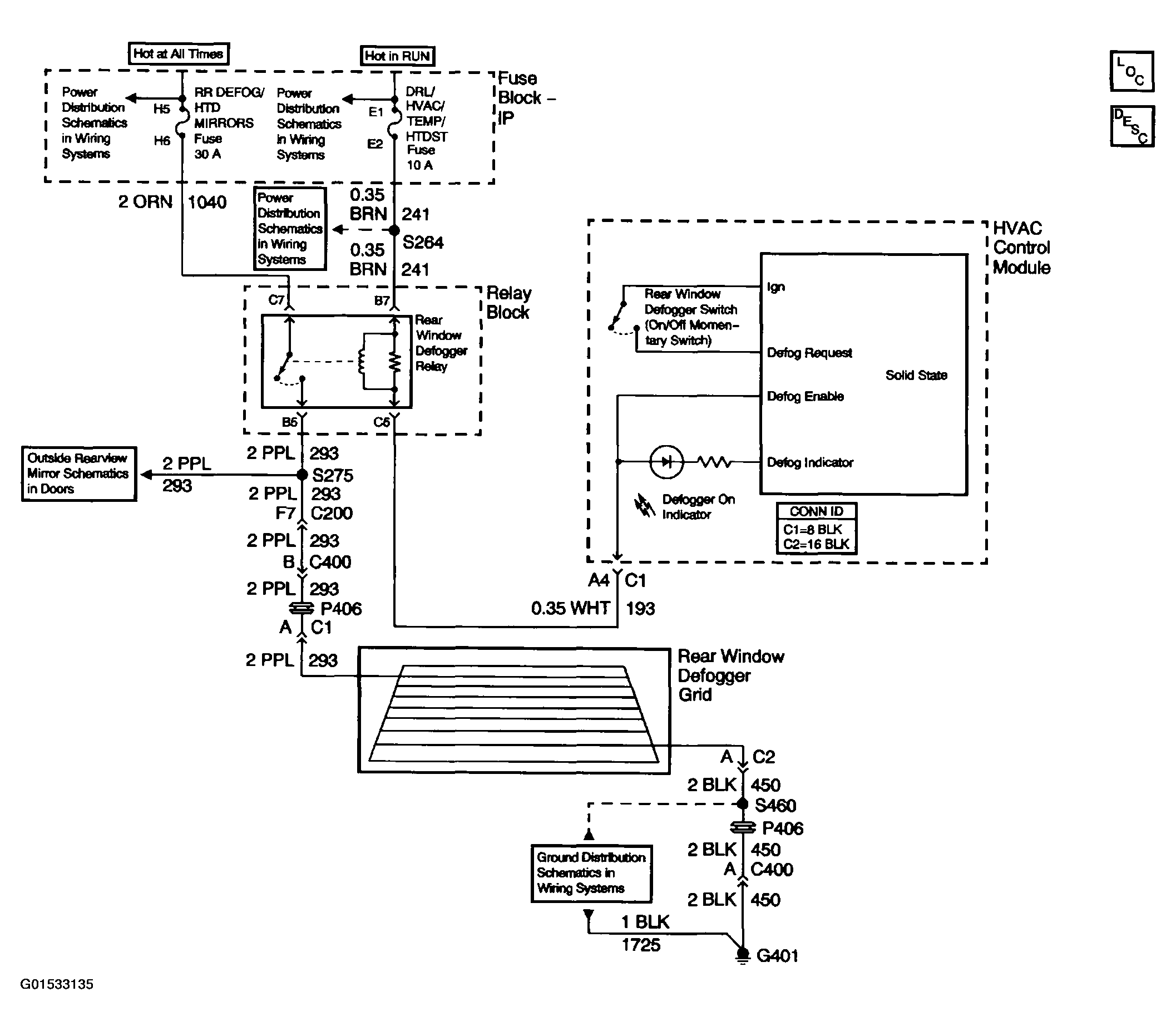

Fig 1: Defogger Schematic Diagram
Courtesy of GENERAL MOTORS CORP.
