Removal Procedure

  1. Remove the right side instrument panel insulator panel. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in instrument Panel, Gages, and Console.
  2. Remove the rear window Defogger timer/relay (2) from the relay block (1).

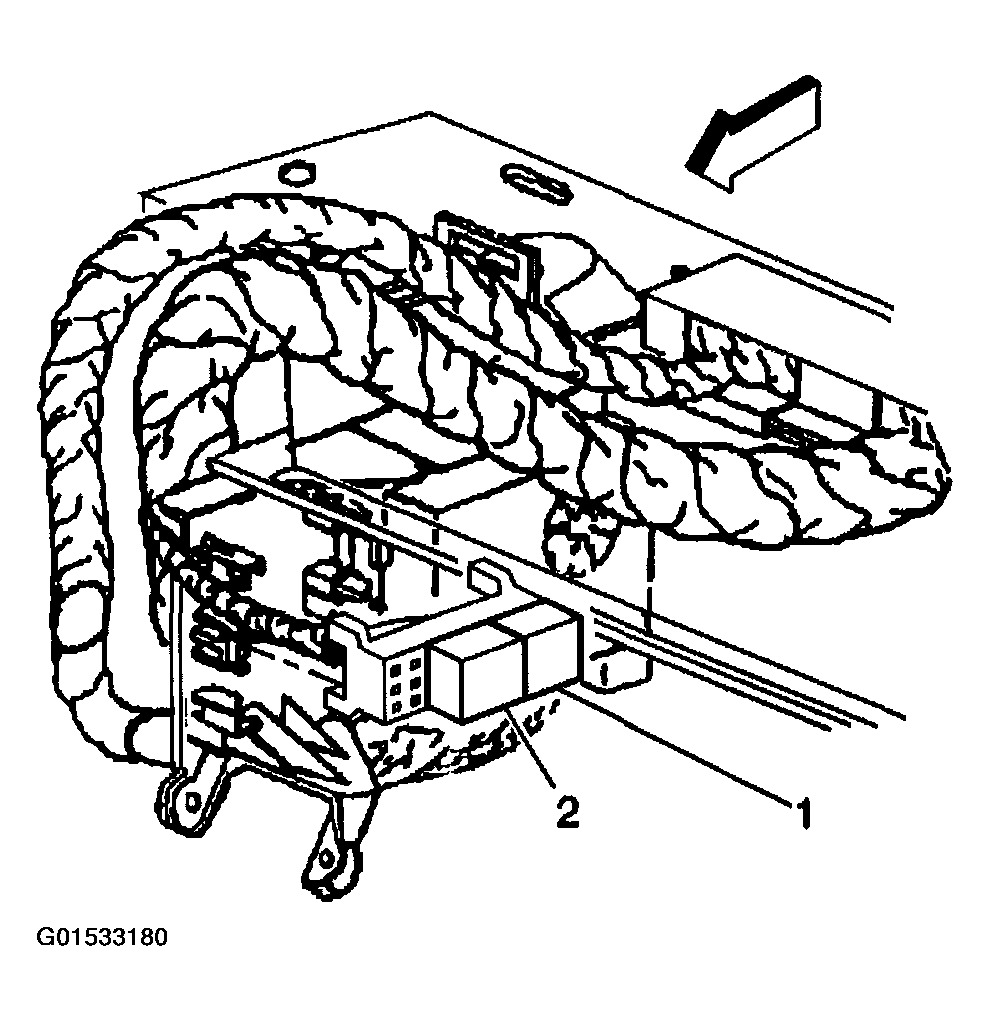

    Fig 1: Removing Rear Window Defogger Timer/Relay From Relay Block
    G01533180Courtesy of GENERAL MOTORS CORP.
