Removal Procedure

  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Remove the front door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  4. Remove the weatherstrip from the door frame.

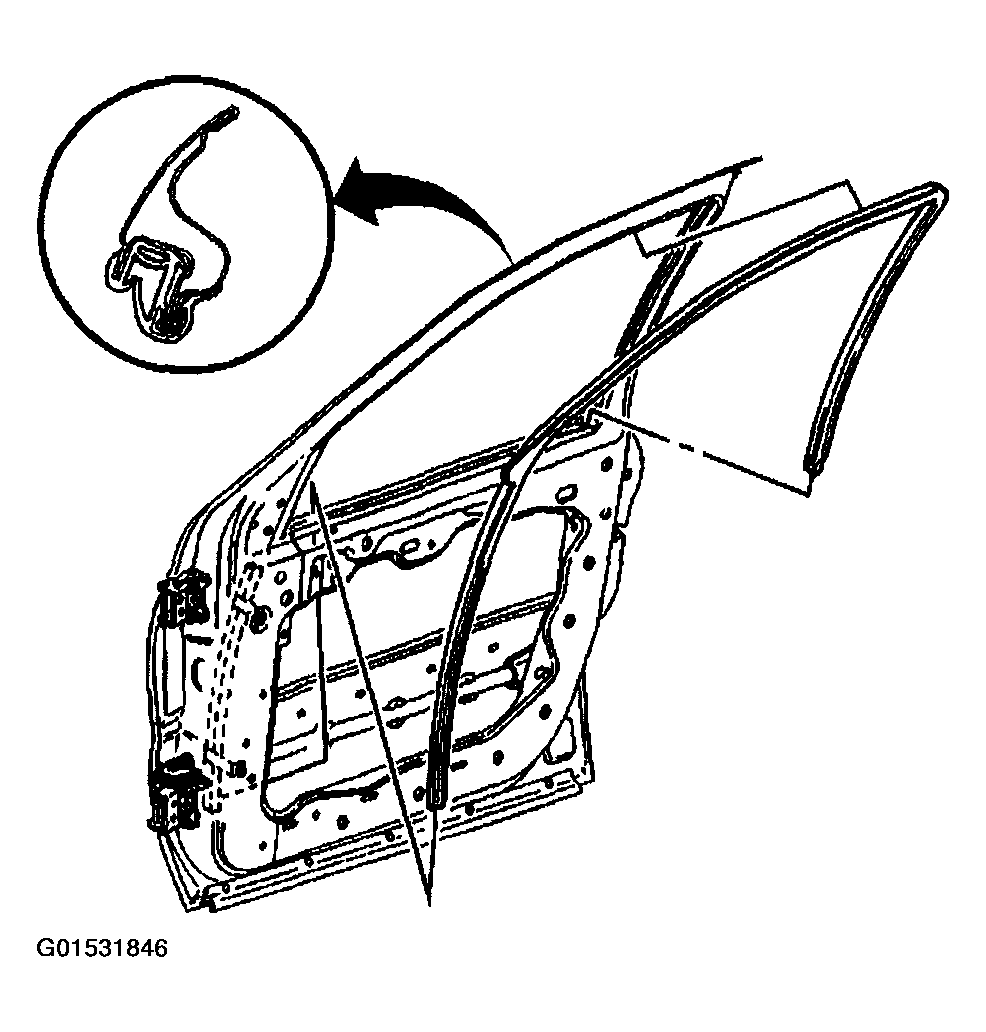

    Fig 1: Removing Weatherstrip From Door Frame
    G01531846Courtesy of GENERAL MOTORS CORP.
