Installation Procedure

  1. Install the weatherstrip to the door frame.
  2. Install the front door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  3. Install the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  4. Install the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .

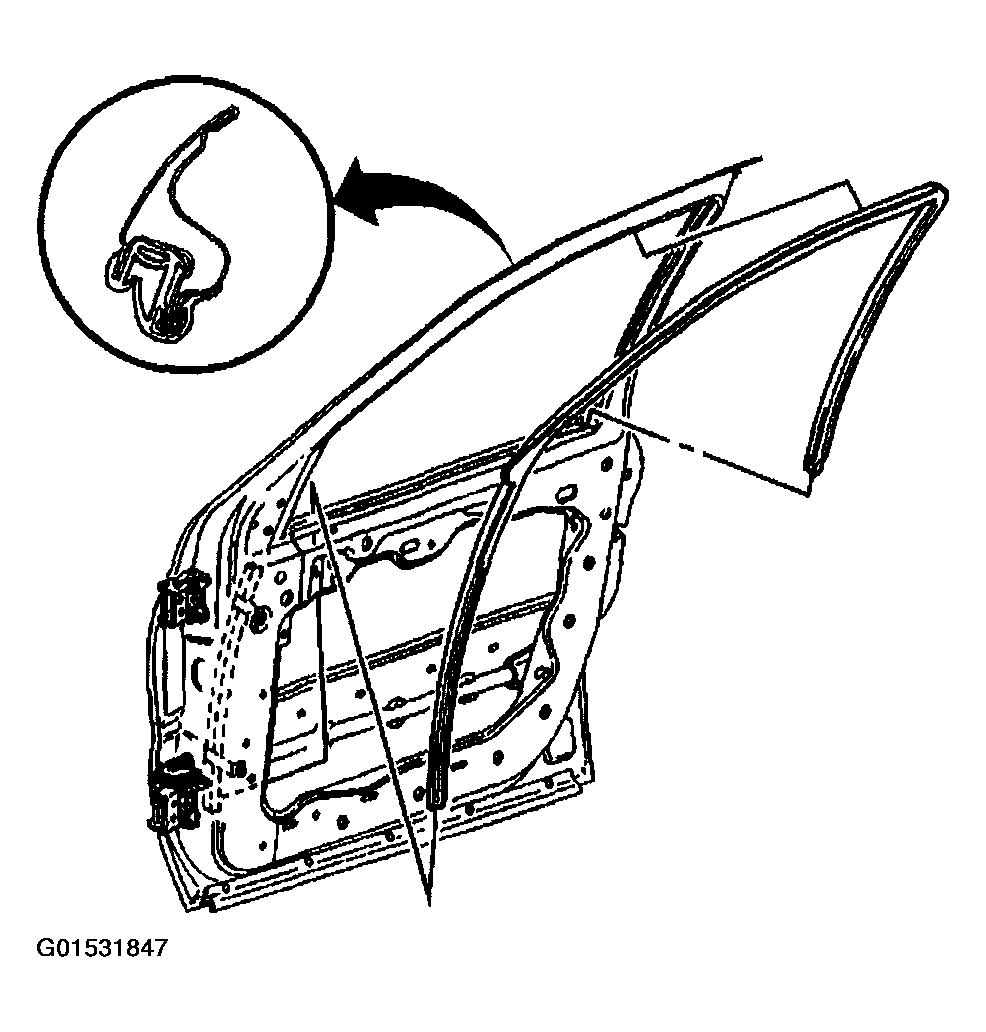

    Fig 1: Installing Weatherstrip To Door Frame
    G01531847Courtesy of GENERAL MOTORS CORP.
