Removal Procedure

  1. Use a flat-bladed tool at the rear of the switch mounting plate in order to release the clip.
  2. Lift up in order to unsnap the switch mounting plate from the front door trim panel.
  3. Disconnect the electrical connectors.

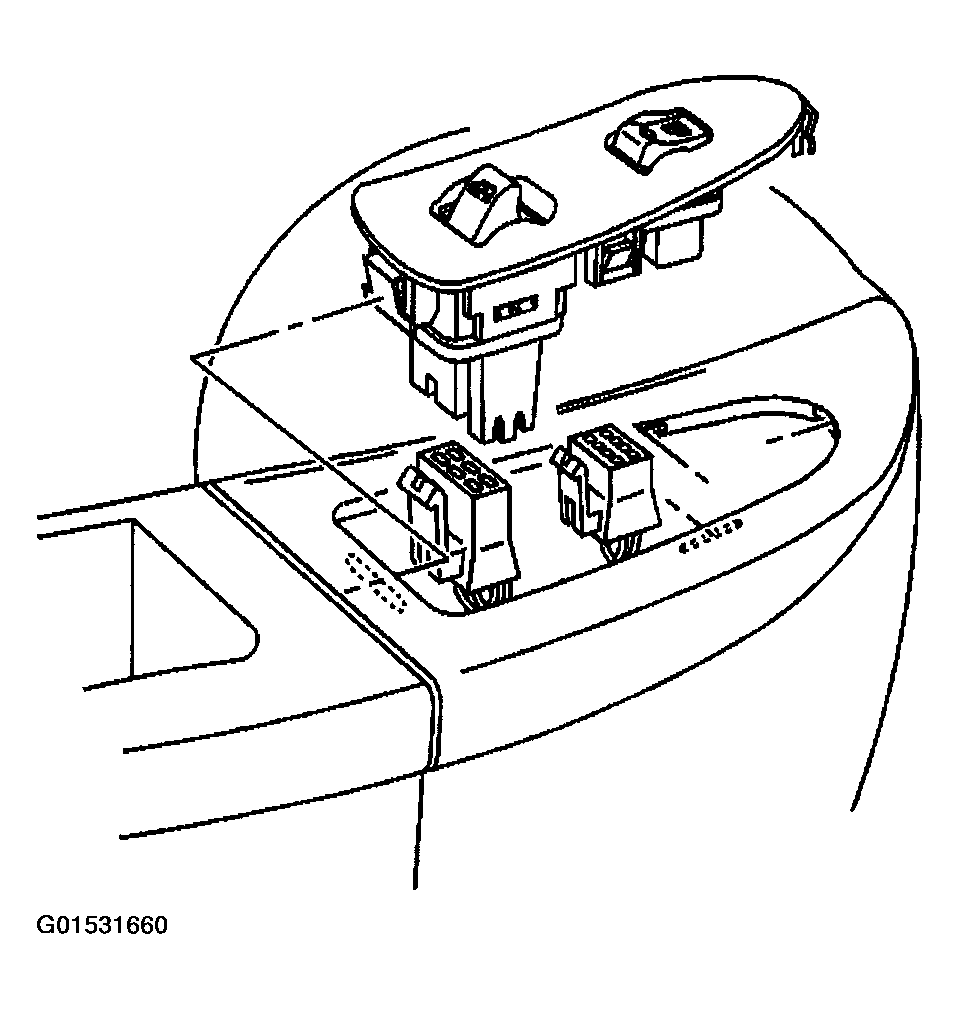

    Fig 1: Removing Power Window Switch - Right Front
    G01531660Courtesy of GENERAL MOTORS CORP.
  4. Unsnap the power window switch from the switch mounting plate.

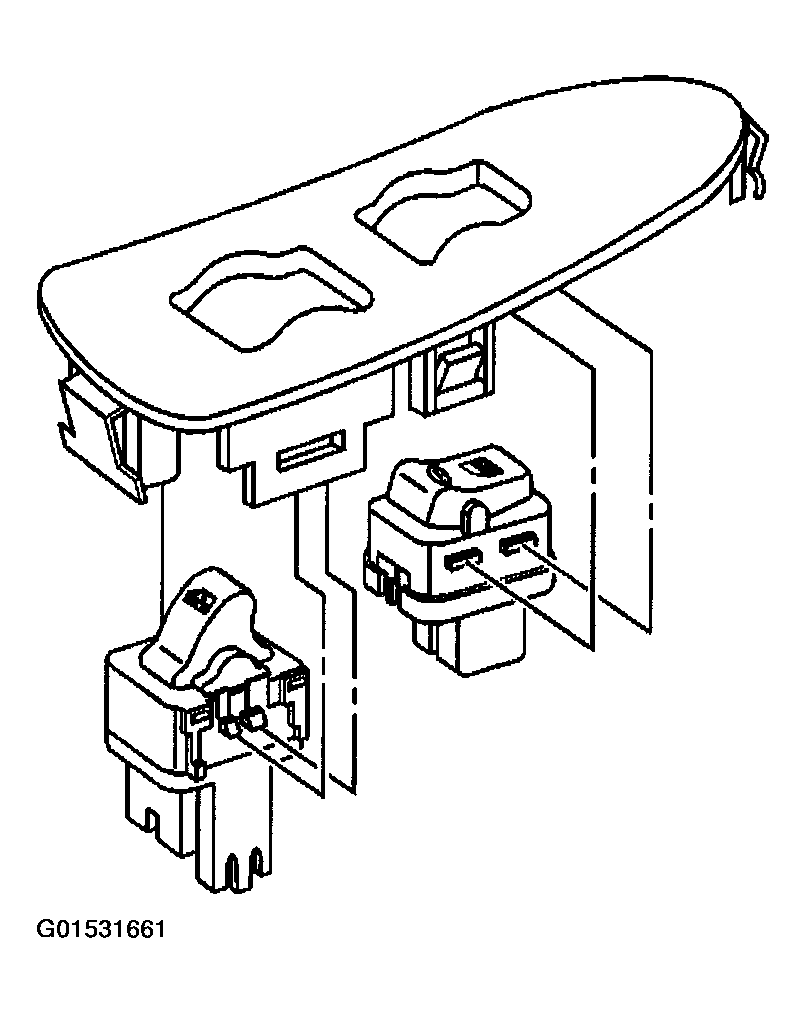

    Fig 2: Unsnapping Power Window Switch From Switch Mounting Plate
    G01531661Courtesy of GENERAL MOTORS CORP.
