Installation Procedure

  1. Install the power window switch to the switch mounting plate.

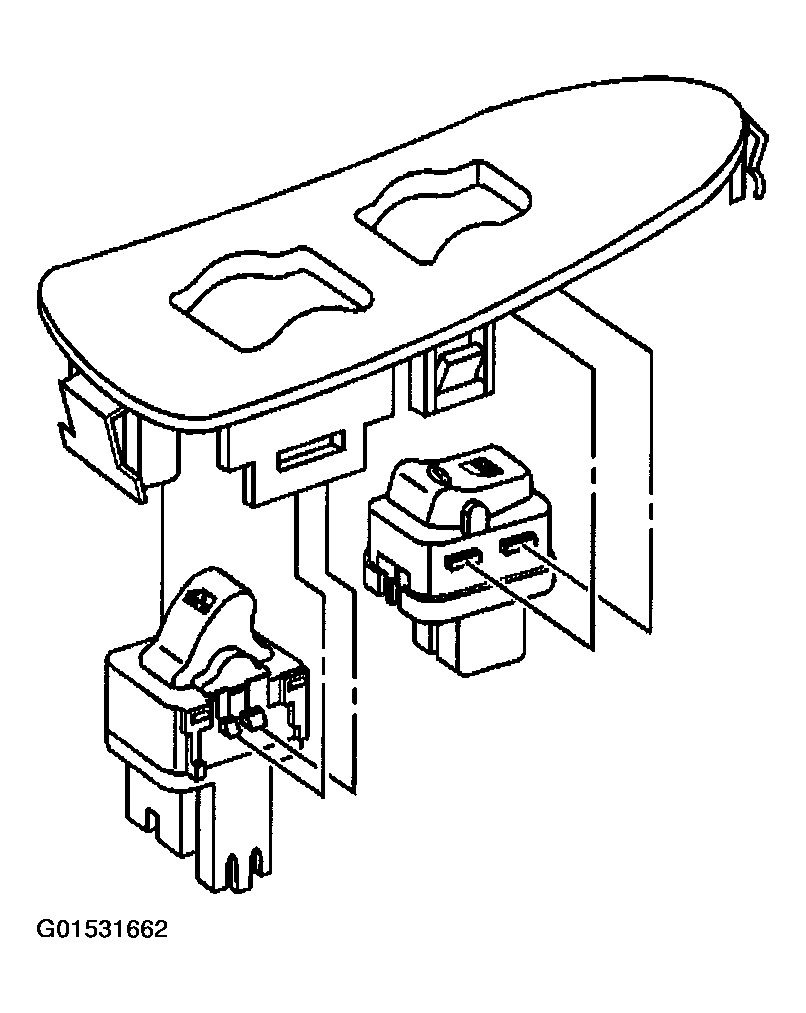

    Fig 1: Installing Power Window Switch To Switch Mounting Plate
    G01531662Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors.
  3. Install the switch mounting plate to the front door trim panel.

    Insert the front edge into the trim panel and snap down the rear of the switch mounting plate to the front door trim panel.

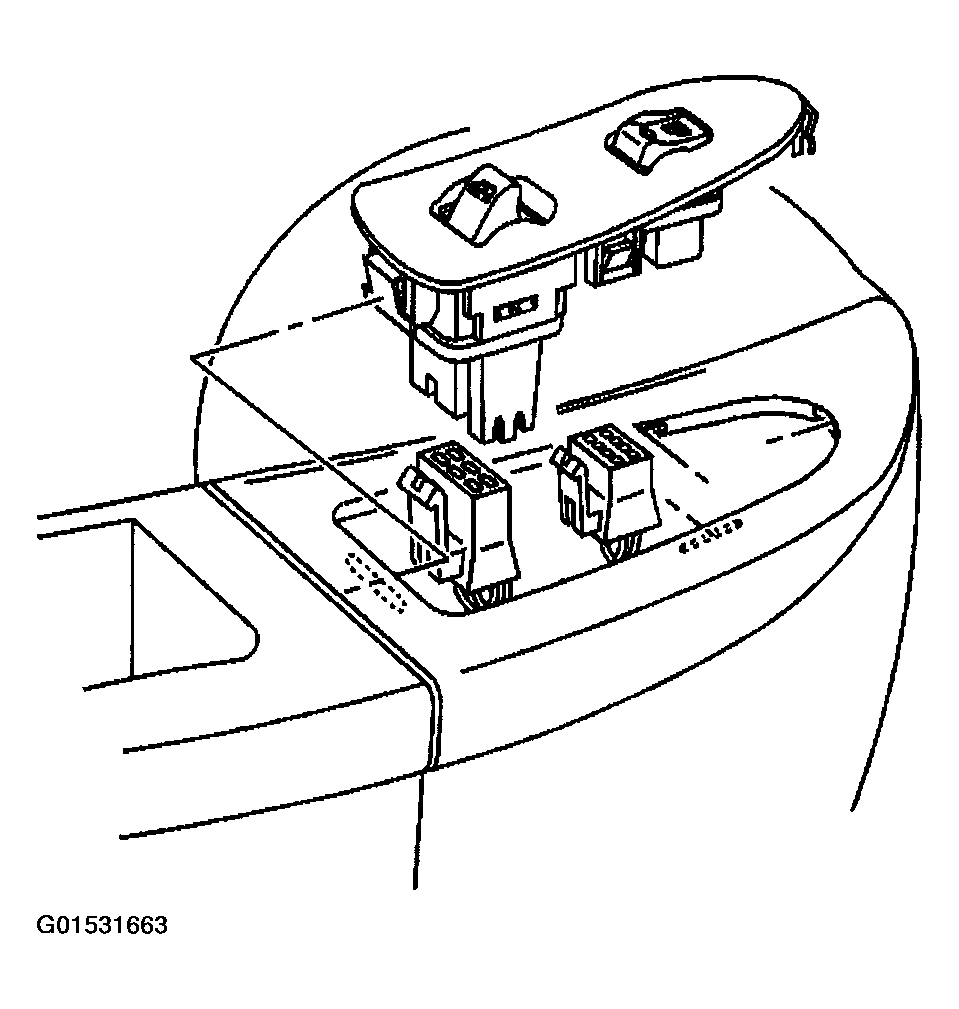

    Fig 2: Installing Switch Mounting Plate To Front Door Trim Panel
    G01531663Courtesy of GENERAL MOTORS CORP.
