Removal Procedure

CAUTION: When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.

Carefully push the outside rearview mirror face on the inner edge, near the front door window glass, to allow finger access.
Grasp the mirror face firmly and pull it from the mirror body.

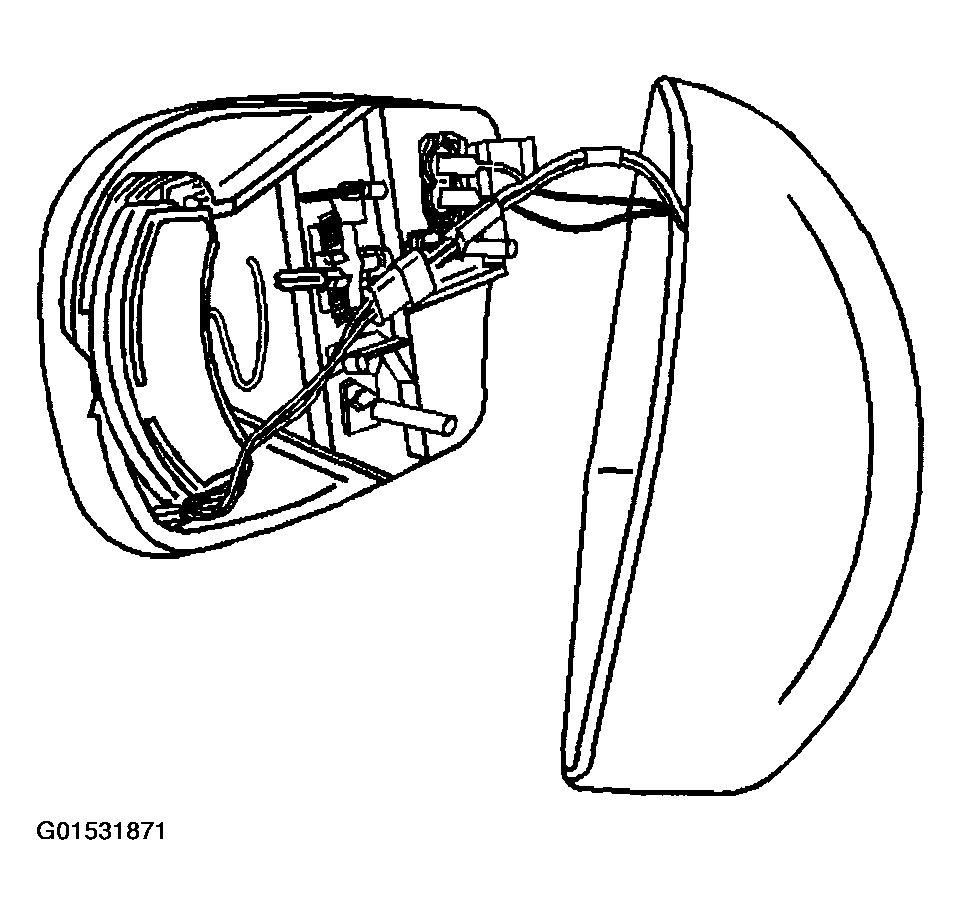

Fig 1: Removing Mirror Face From Mirror Body
Courtesy of GENERAL MOTORS CORP.
Disconnect the heated mirror face electrical connector if equipped.
Disconnect the rearview mirror turn signal indicator electrical connector if equipped.

Fig 2: Disconnecting Rearview Mirror Turn Signal Indicator Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the 2 jackscrews from back of the mirror case
- Bend the 2 jackscrews over.
- Press down on the side of the jackscrew popping the screw from the mirror glass case.
- Save the jackscrews for reinstallation to the mirror motor.
Fig 3: Removing Jackscrews From Back Of Mirror Case
Courtesy of GENERAL MOTORS CORP.
