Schematic and Routing Diagrams

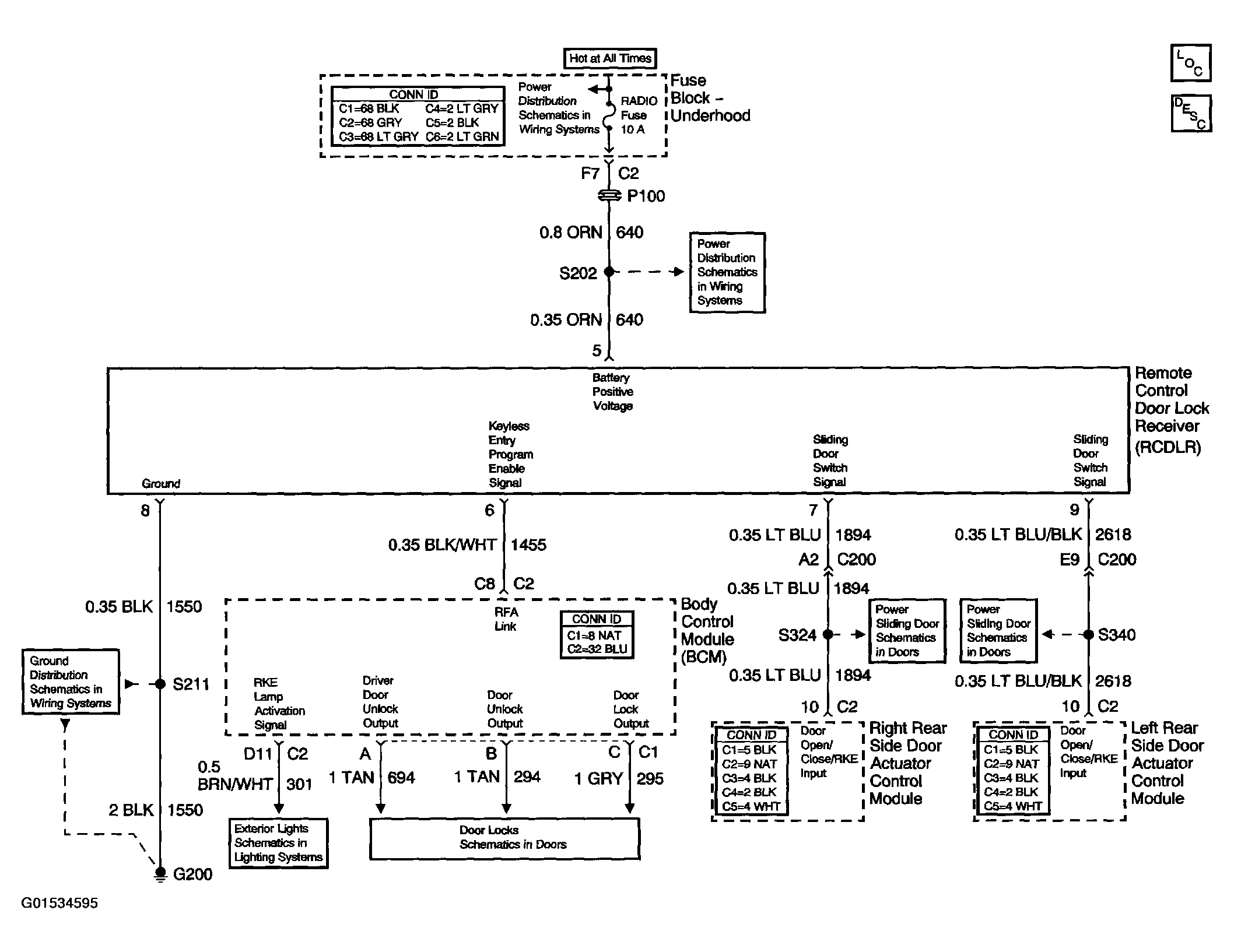

Fig 1: Keyless Entry Schematic

G01534595

Courtesy of GENERAL MOTORS CORP.
