Test Description

The number(s) below refer to the step number(s) on the diagnostic table.

  1. The inability of the body control module (BCM) to enter the diagnostic mode may be due to a BCM malfunction.
  2. The symptoms list in Symptoms will determine the correct diagnostic procedure to use.

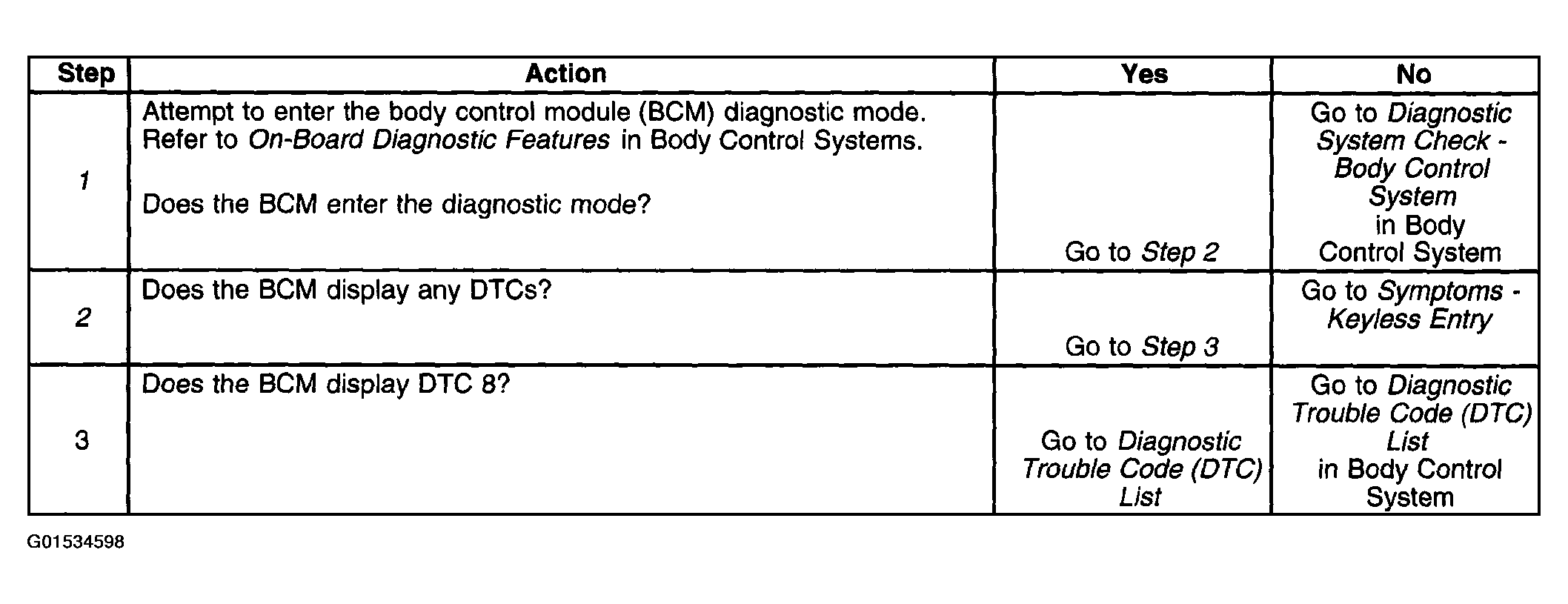

    Fig 1: Diagnostic System Check - Chart Remote Keyless Entry
    G01534598Courtesy of GENERAL MOTORS CORP.
    Fig 2: Diagnostic Trouble Code Chart
    G01534599Courtesy of GENERAL MOTORS CORP.
