Window Wiper Motor-Rear Connector End View

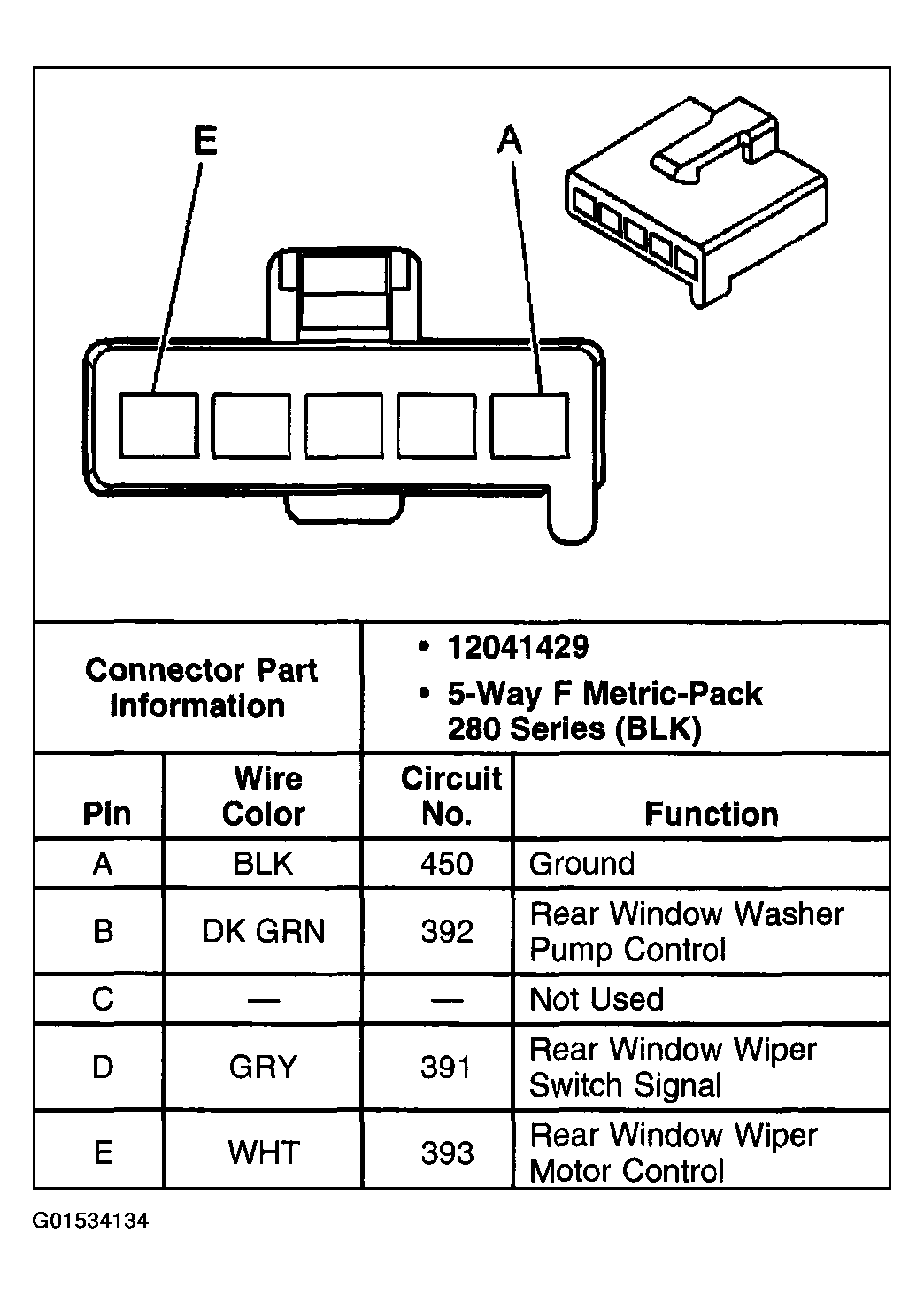

Fig 1: Window Wiper Motor-Rear Connector End View

G01534134

Courtesy of GENERAL MOTORS CORP.
