Object Sensor-LH Middle Connector End View

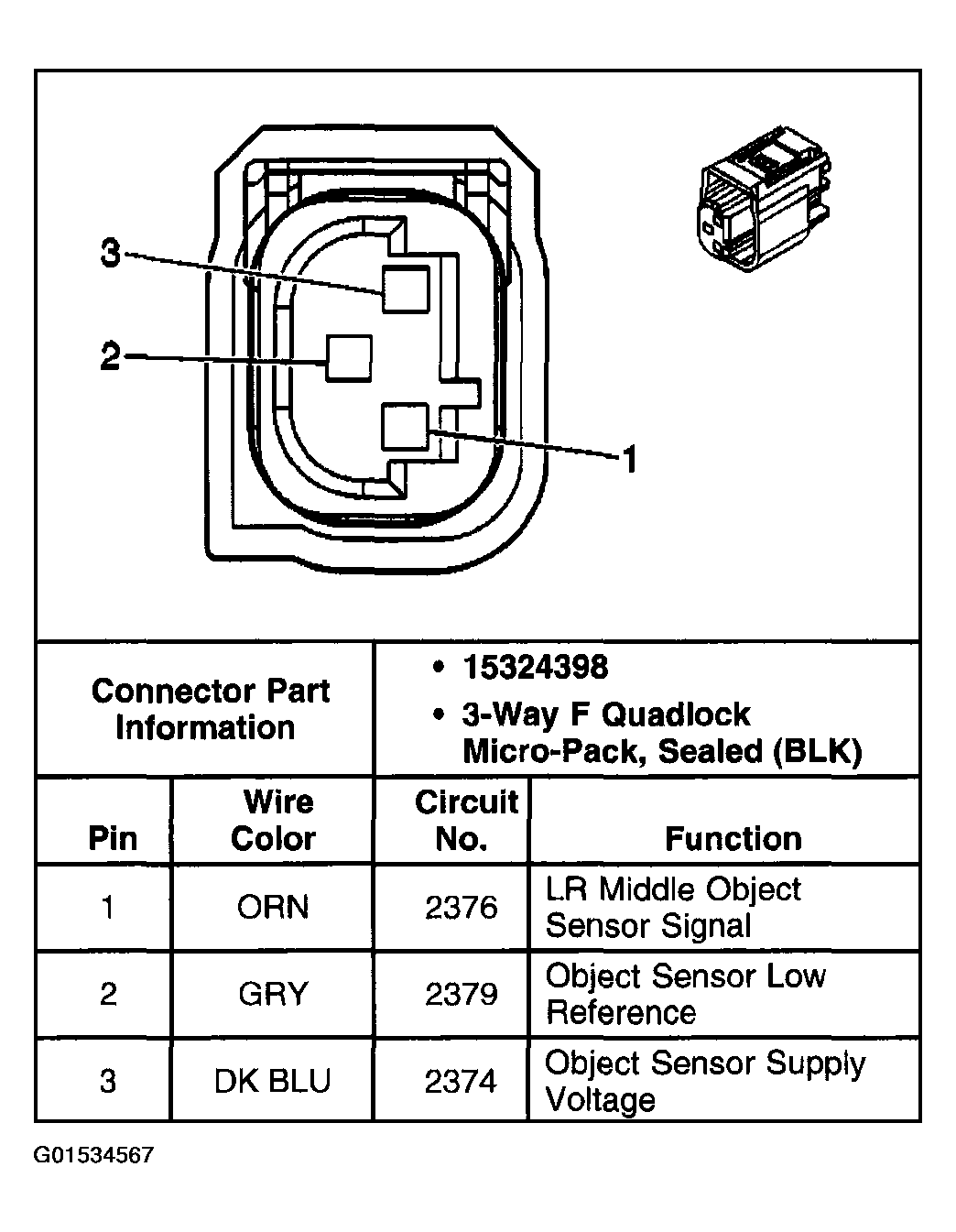

Fig 1: Object Sensor-LH Middle Connector End View

G01534567

Courtesy of GENERAL MOTORS CORP.
