Installation Procedure

  1. Connect the electrical connectors.
  2. Push in on the switch bank in order to install the switch bank.

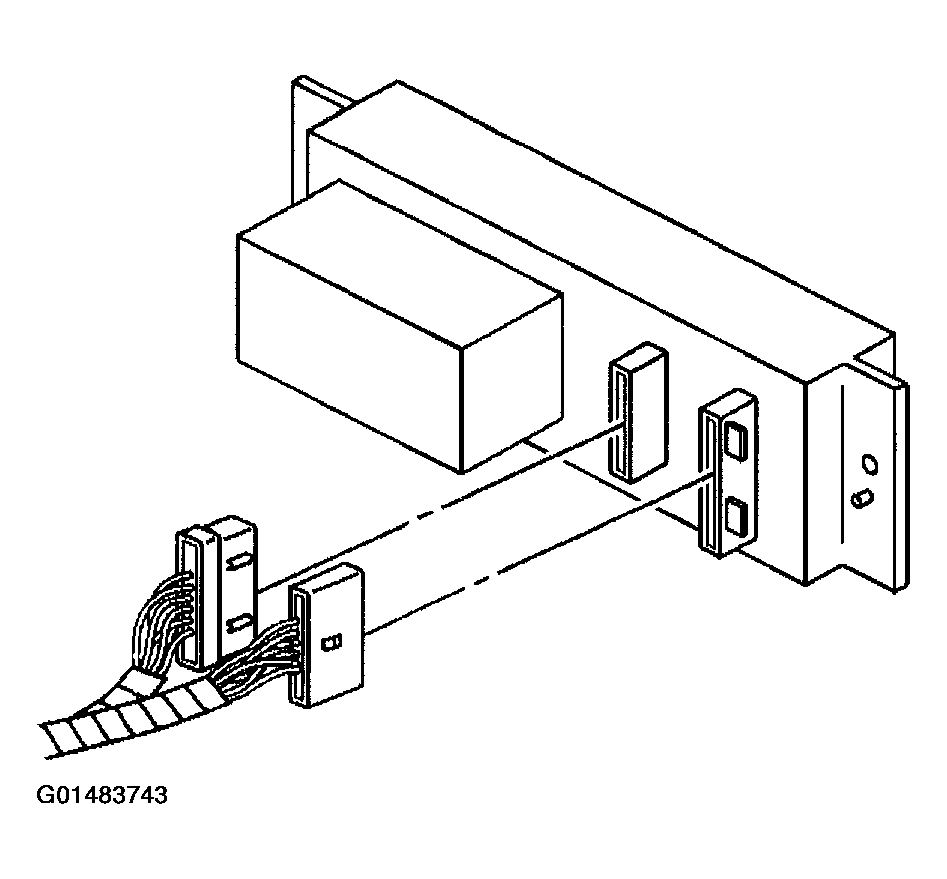

    Fig 1: Connecting Electrical Connectors
    G01483743Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolts/screws to the switch bank to instrument panel.

    Tighten

    Tighten the bolts/screws to 2.5 N.m (22 lb in).

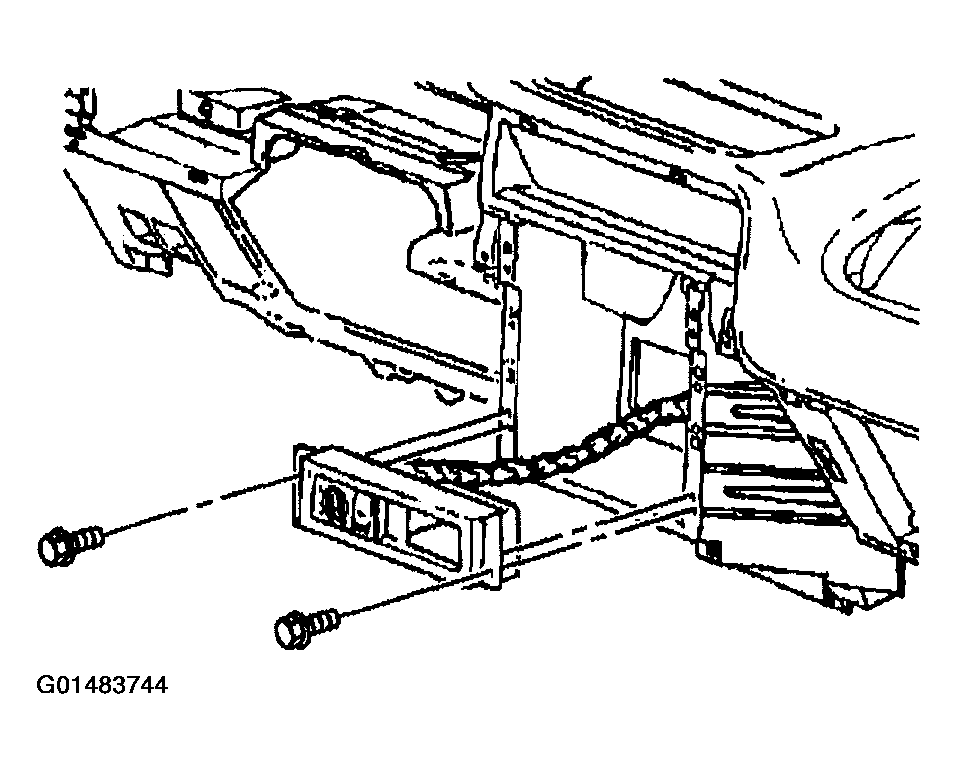

    Fig 2: Installing Bolts/Screws To Switch Bank To Instrument Panel
    G01483744Courtesy of GENERAL MOTORS CORP.
  4. Install the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY  in Instrument Panel, Gages and Console.
    Fig 3: Installing Instrument Panel Accessory Trim Plate
    G01483745Courtesy of GENERAL MOTORS CORP.
