Installation Procedure

Important:  Use only new wave springs and screws supplied with the new EBCM.

  1. Clean the BPMV surface with alcohol using a clean rag.
  2. Install the EBCM (1) to the BPMV.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the 6 screws that attaches the EBCM to BPMV.

    Tighten

    • Tighten the top 4 mounting screws to 5 N.m (44 lb in). Tighten screws in an X pattern.
    • Tighten the bottom 2 mounting screws to 5 N.m (44 lb in).
    • Connect the pump motor connector to the bottom of the EBCM.
    Fig 1: Installing EBCM To BPMV
    G01483720Courtesy of GENERAL MOTORS CORP.
  4. Connect the EBCM harness connector and depress the locking tab (1) to secure.
  5. Install the air cleaner housing. Refer to AIR CLEANER ASSEMBLY  in Removal and Installation in Engine Performance.
  6. Turn the ignition switch to the RUN position, do not start engine.
  7. Perform the DIAGNOSTIC SYSTEM CHECK - ABS   .

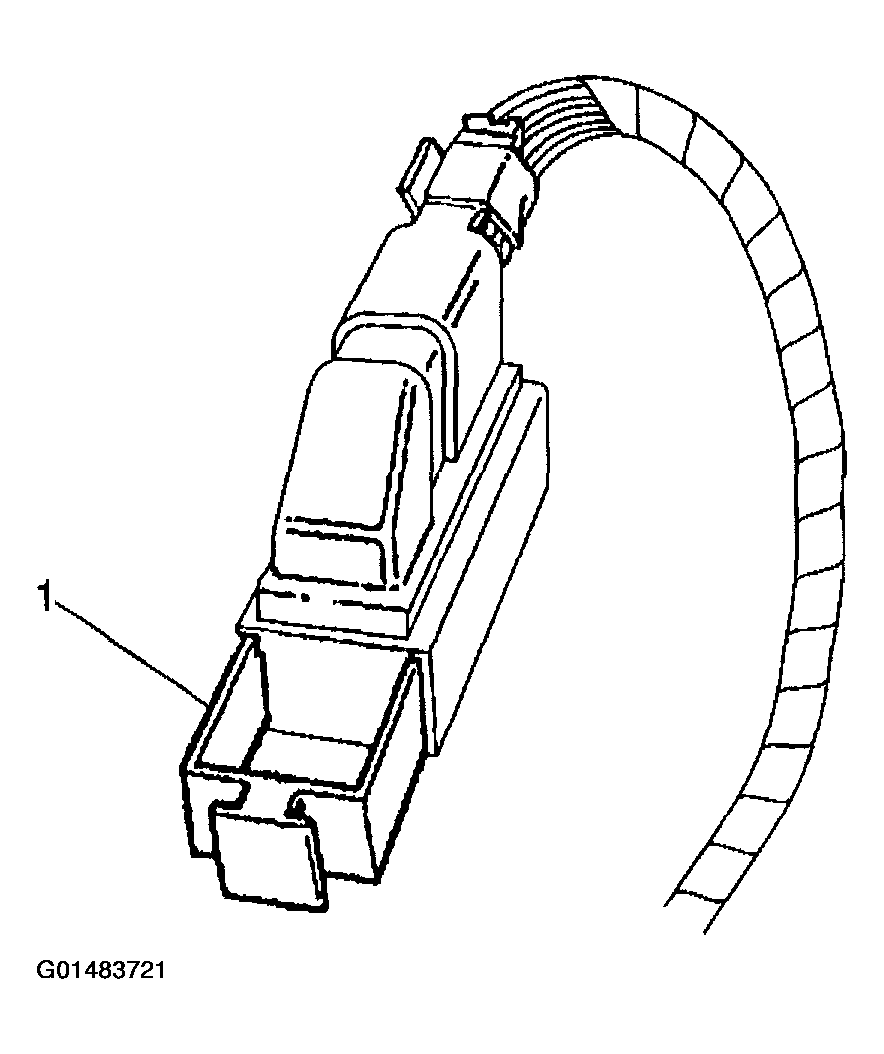

    Fig 2: Connecting EBCM Harness Connector And Depressing Locking Tab To Secure
    G01483721Courtesy of GENERAL MOTORS CORP.
