ABS Component Views

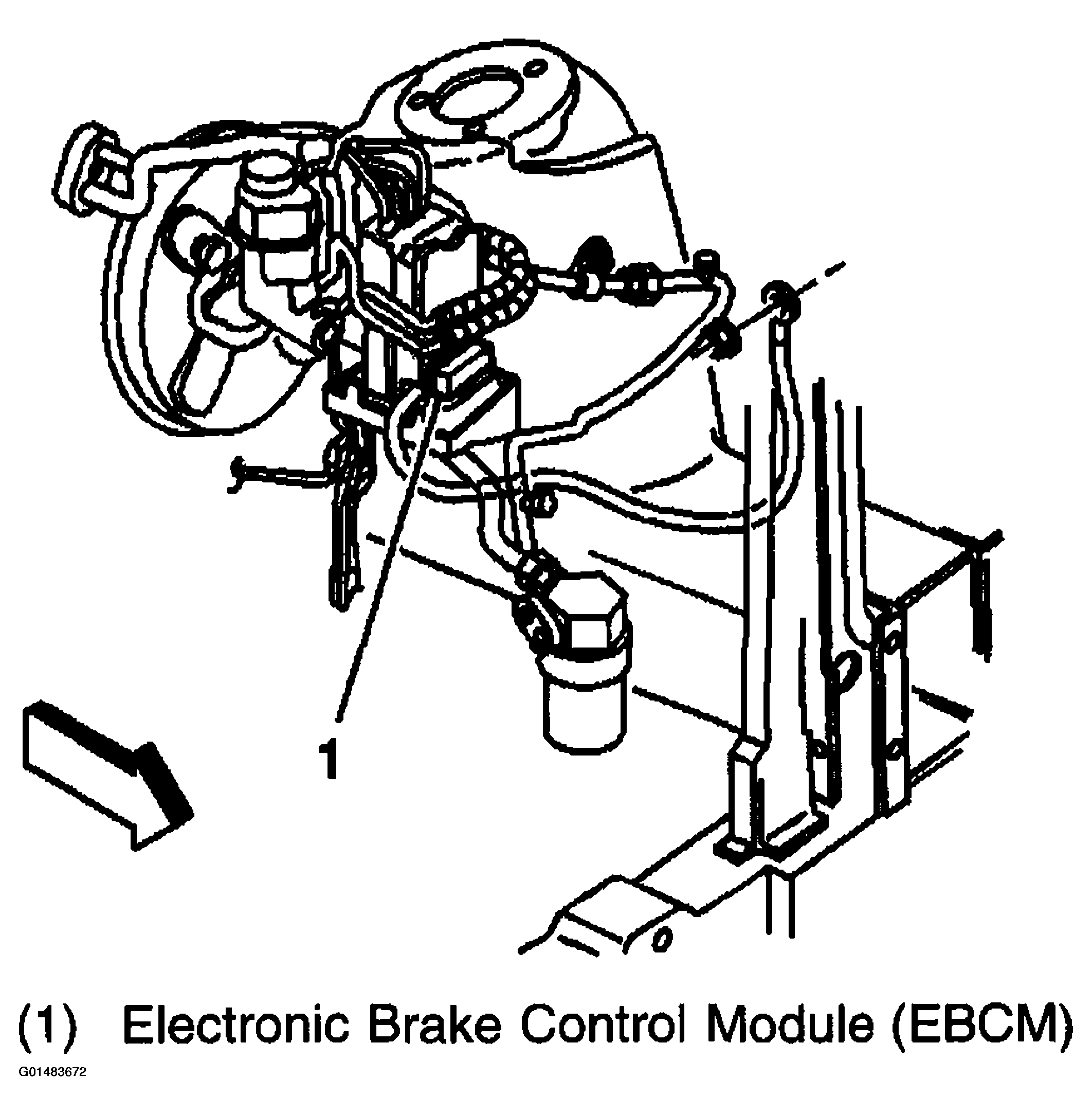

Fig 1: LH Side of Engine Compartment Component View
G01483672Courtesy of GENERAL MOTORS CORP.

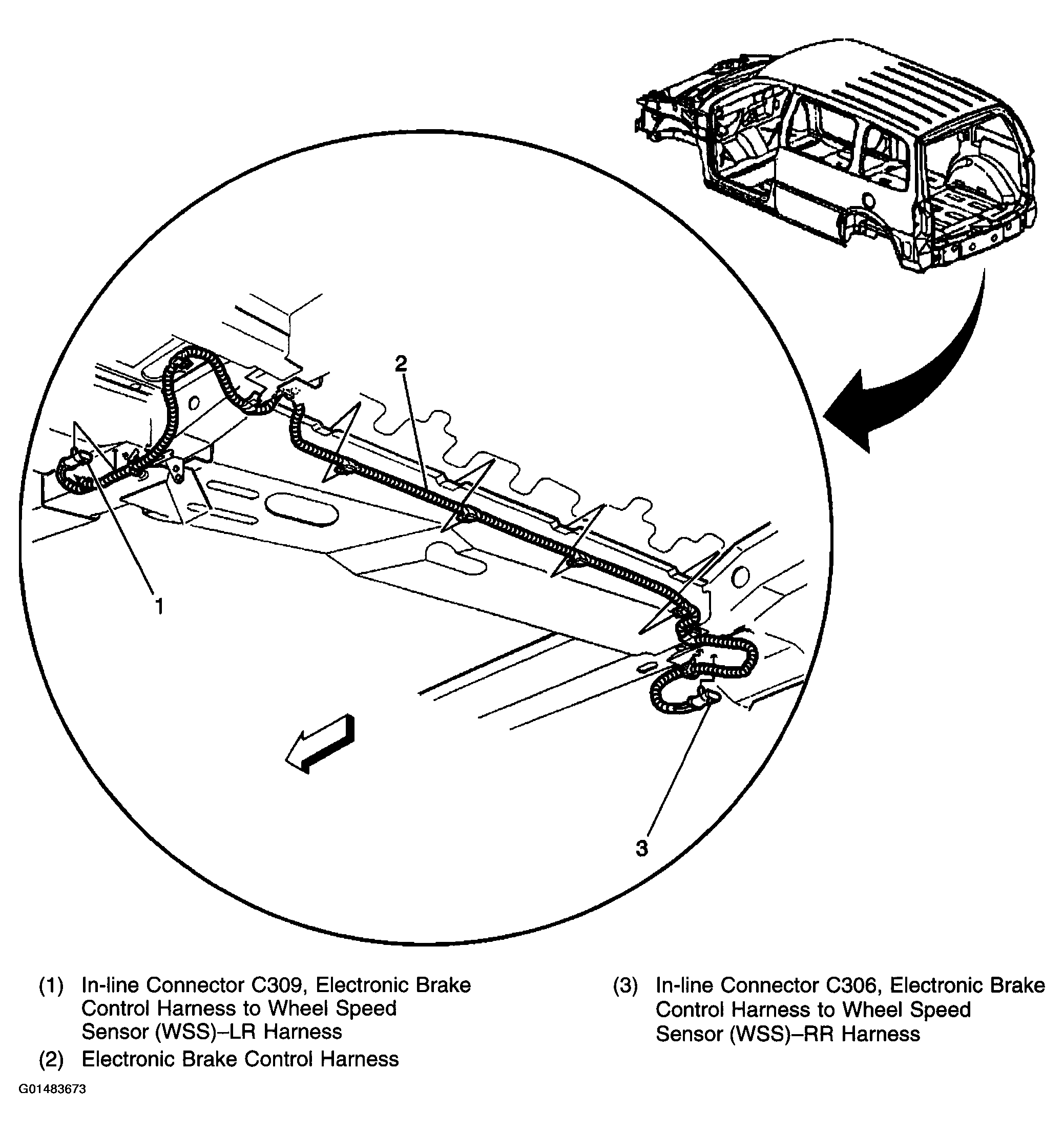

Fig 2: Underneath Rear of Vehicle Component Views
G01483673Courtesy of GENERAL MOTORS CORP.

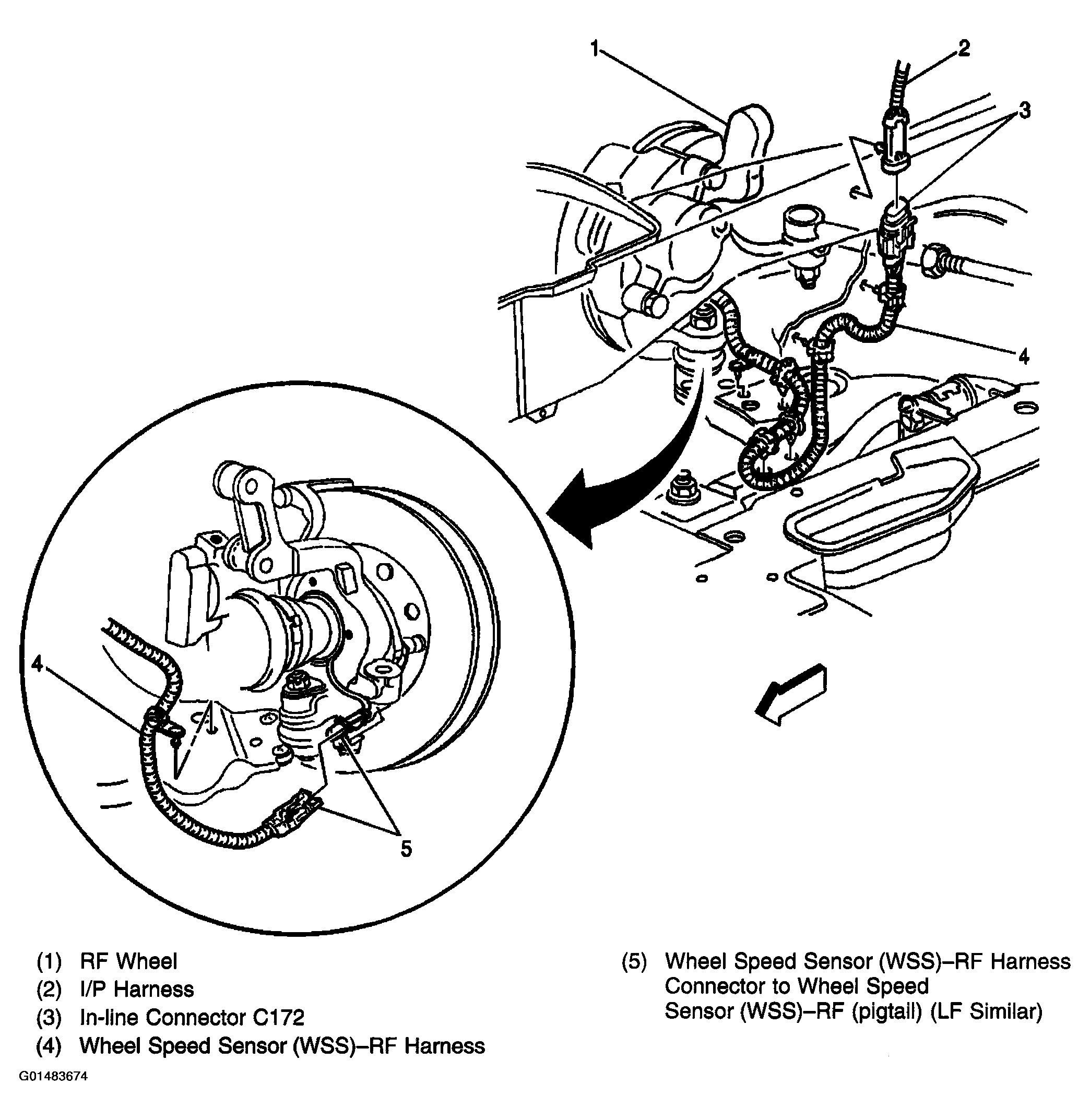

Fig 3: Wheel Speed Sensor (WSS) - RF Component View
G01483674Courtesy of GENERAL MOTORS CORP.

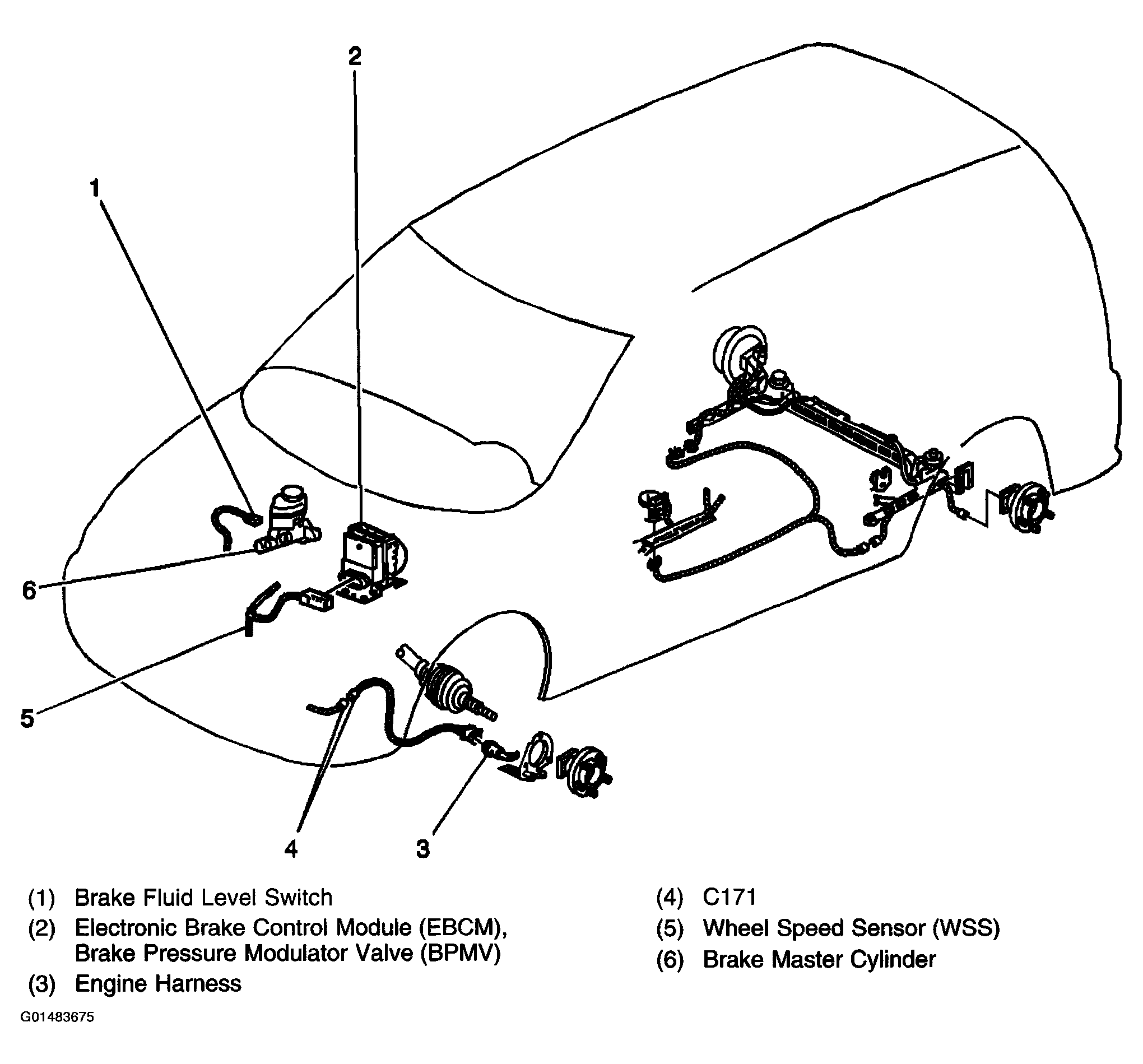

Fig 4: Front of Vehicle, Braking Component View
G01483675Courtesy of GENERAL MOTORS CORP.
