Installation Procedure

  1. Install a stationary window into the opening. Refer to URETHANE ADHESIVE INSTALLATION OF STATIONARY WINDOWS   .
  2. Install the windshield garnish moldings. Refer to INTERIOR TRIM  in Interior Trim.
  3. Install the rearview mirror. Refer to REARVIEW MIRROR REPLACEMENT   .
  4. Install the door auxiliary weatherstrip from the upper pinchweld flange. Refer to DOOR SYSTEM, MIRROR SYSTEM & WINDOW SYSTEM  .
  5. Install the air inlet grille. Refer to AIR INLET GRILL PANEL REPLACEMENT  in Body Front End.
  6. Install the windshield wiper arms. Refer to WIPER ARM REPLACEMENT  in Wipers/Washer Systems.

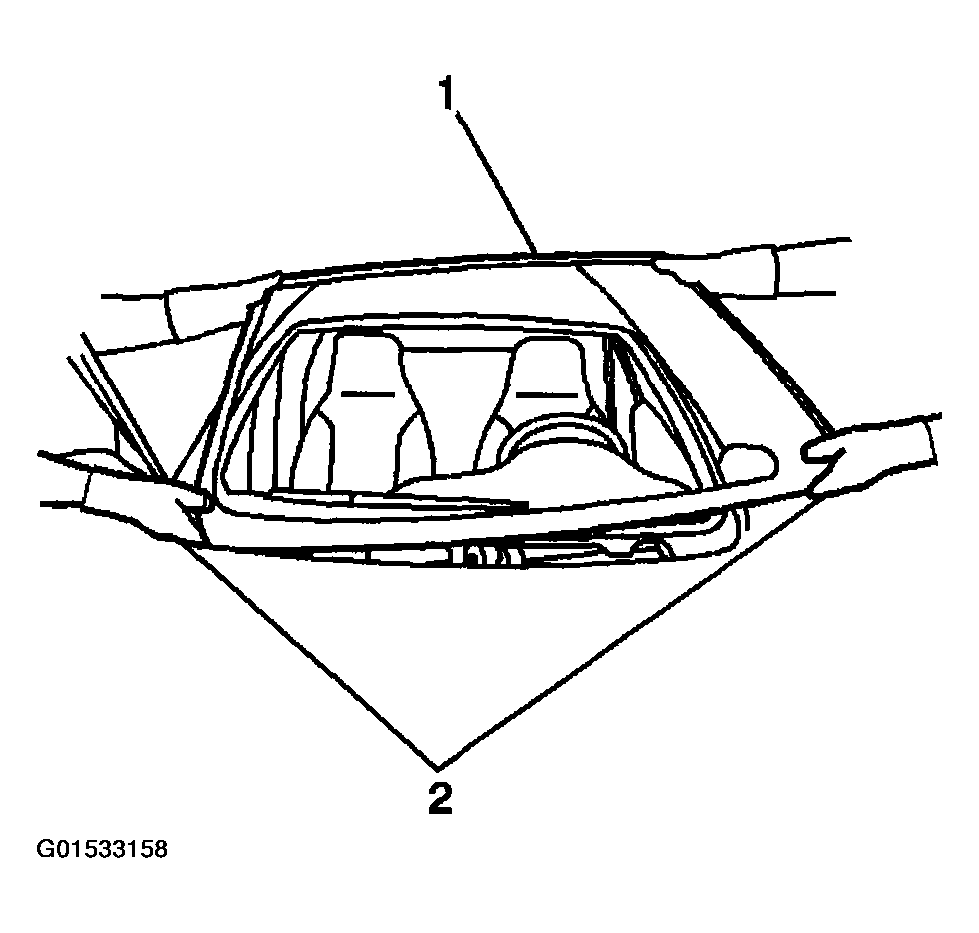

    Fig 1: Installing Stationary Window
    G01533158Courtesy of GENERAL MOTORS CORP.
  7. Remove the double layer of masking tape from around the perimeter of the painted surfaces and the interior trim.
  8. Close the hood.
