Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM  in Airbag.
  2. Remove the seat.
  3. Disconnect the electrical connectors.
  4. Using a flat-bladed tool, gently pry the memory seat control module from the bracket slots.

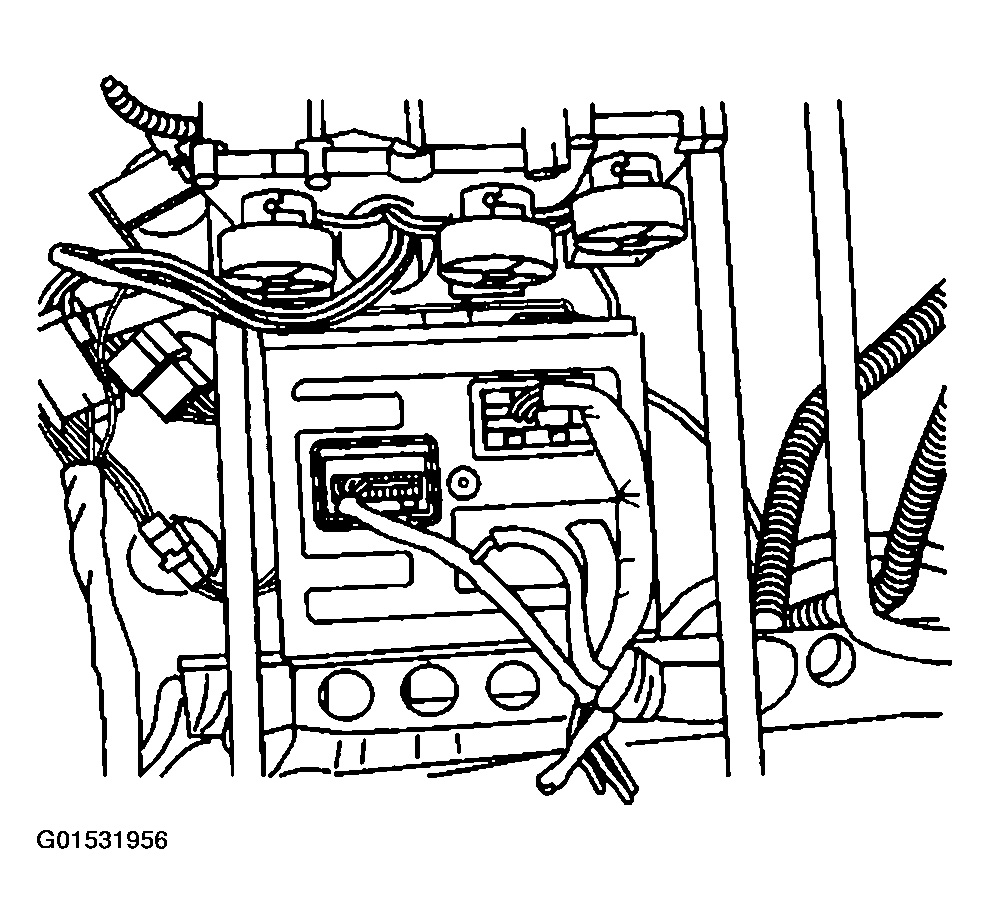

    Fig 1: Identifying Memory Seat Control Module
    G01531956Courtesy of GENERAL MOTORS CORP.
  5. Slide the module toward the rear of the seat.

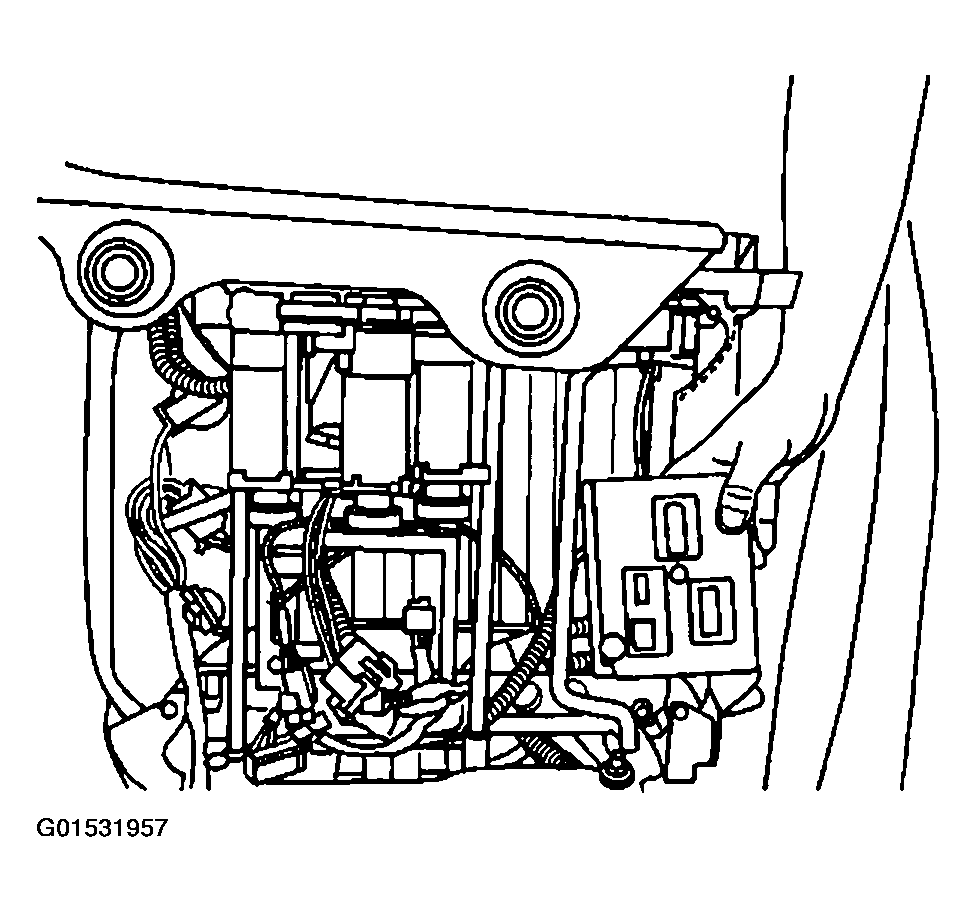

    Fig 2: Sliding Module Toward Rear Of Seat
    G01531957Courtesy of GENERAL MOTORS CORP.
