Removal Procedure

  1. Remove the cruise control cable from the module. Refer to CRUISE CONTROL CABLE REPLACEMENT   .
    Fig 1: Removing Cruise Control Cable From Module
    G01533015Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector.

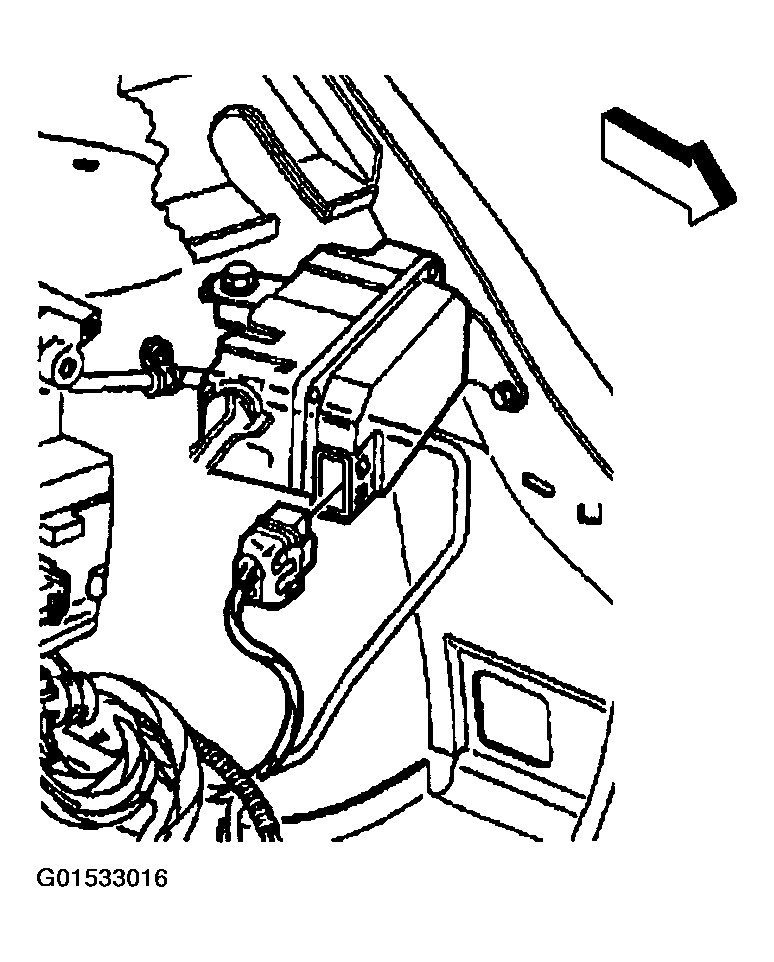

    Fig 2: Disconnecting Electrical Connector
    G01533016Courtesy of GENERAL MOTORS CORP.
  3. Remove the mounting bracket bolt from the cruise control module.
  4. Remove the cruise control module from the mounting bracket.

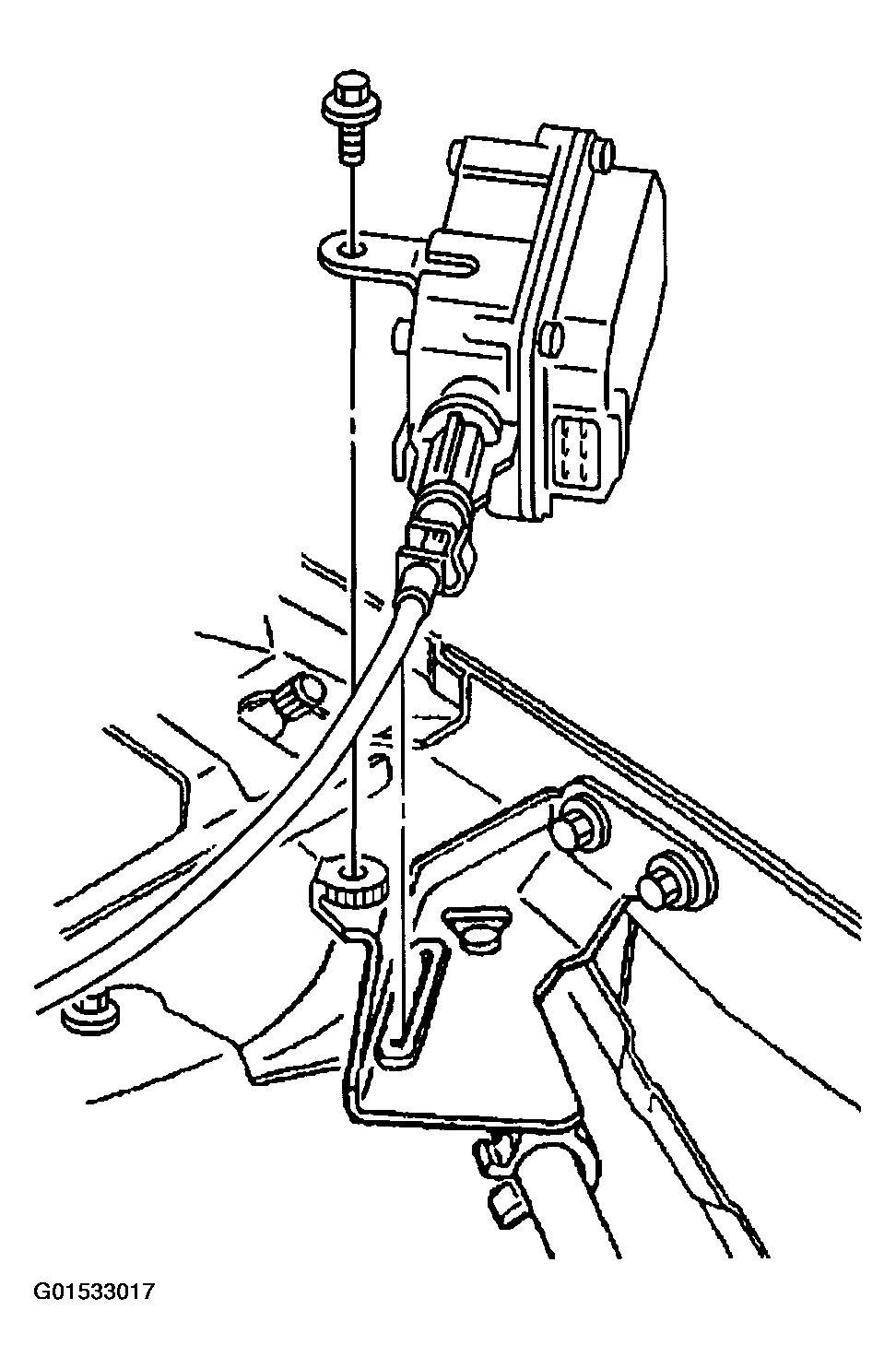

    Fig 3: Removing Cruise Control Module From Mounting Bracket
    G01533017Courtesy of GENERAL MOTORS CORP.
