Installation Procedure

  1. Install the cruise control module to the mounting bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the mounting bracket bolt to the cruise control module.

    Tighten

    Tighten the bolt to 6 N.m (53 lb in).

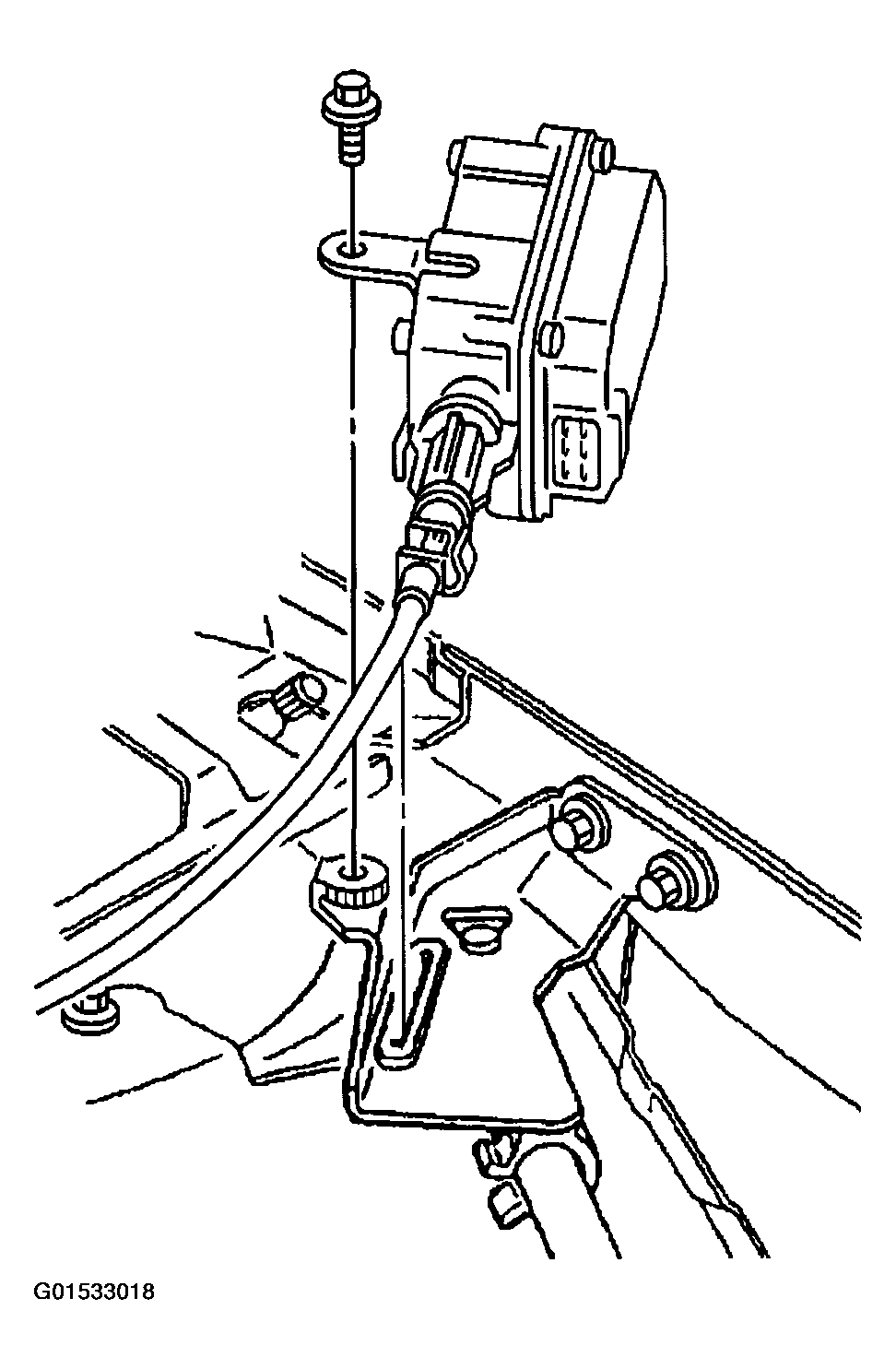

    Fig 1: Installing Cruise Control Module To Mounting Bracket
    G01533018Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the module.
  4. Install the cruise control cable to the module. Refer to CRUISE CONTROL CABLE REPLACEMENT   .
  5. Adjust the cruise control cable. Refer to CRUISE CONTROL CABLE REPLACEMENT

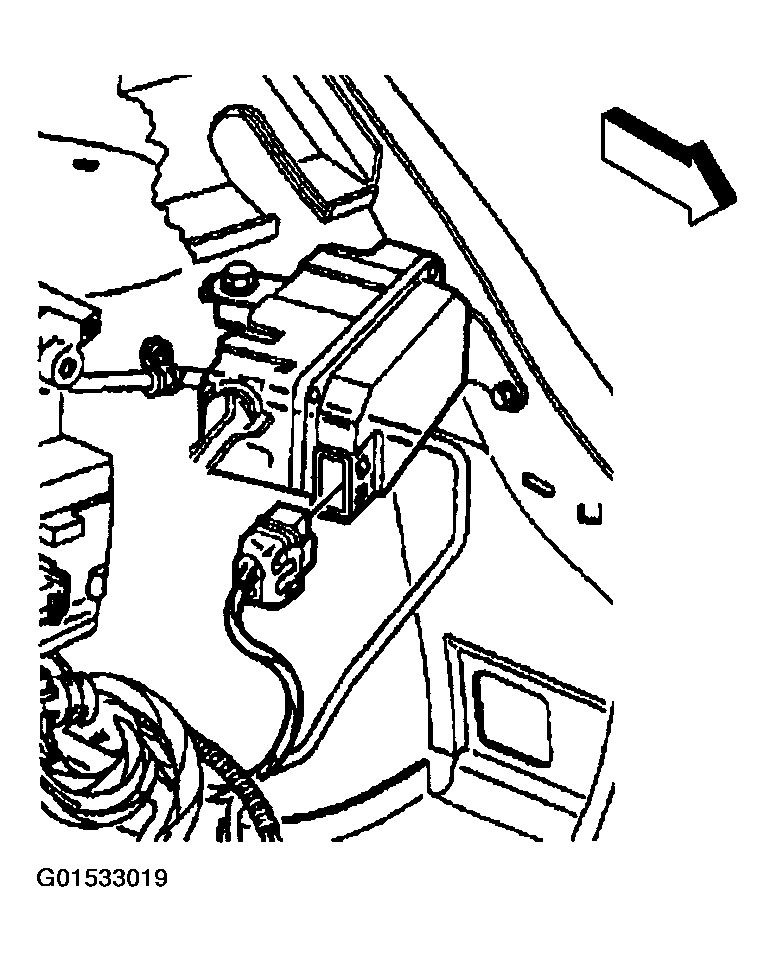

    Fig 2: Connecting Electrical Connector To Module
    G01533019Courtesy of GENERAL MOTORS CORP.
