Removal Procedure

  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  in Battery
  2. Remove the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT  in Instrument Panel, Gages and Console.
  3. Push the release tab on the bottom of the bracket to release the body control module.
  4. Slide the body control module from the bracket.

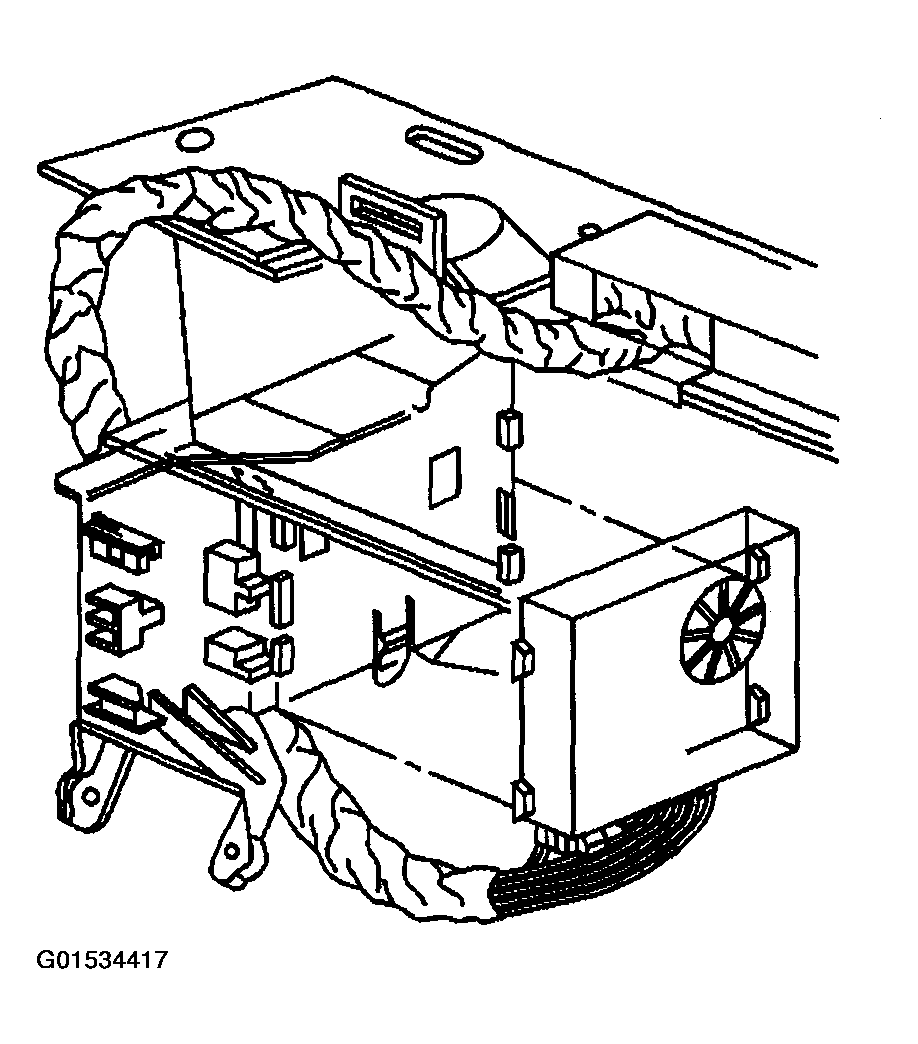

    Fig 1: Sliding Body Control Module From Bracket
    G01534417Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connectors.

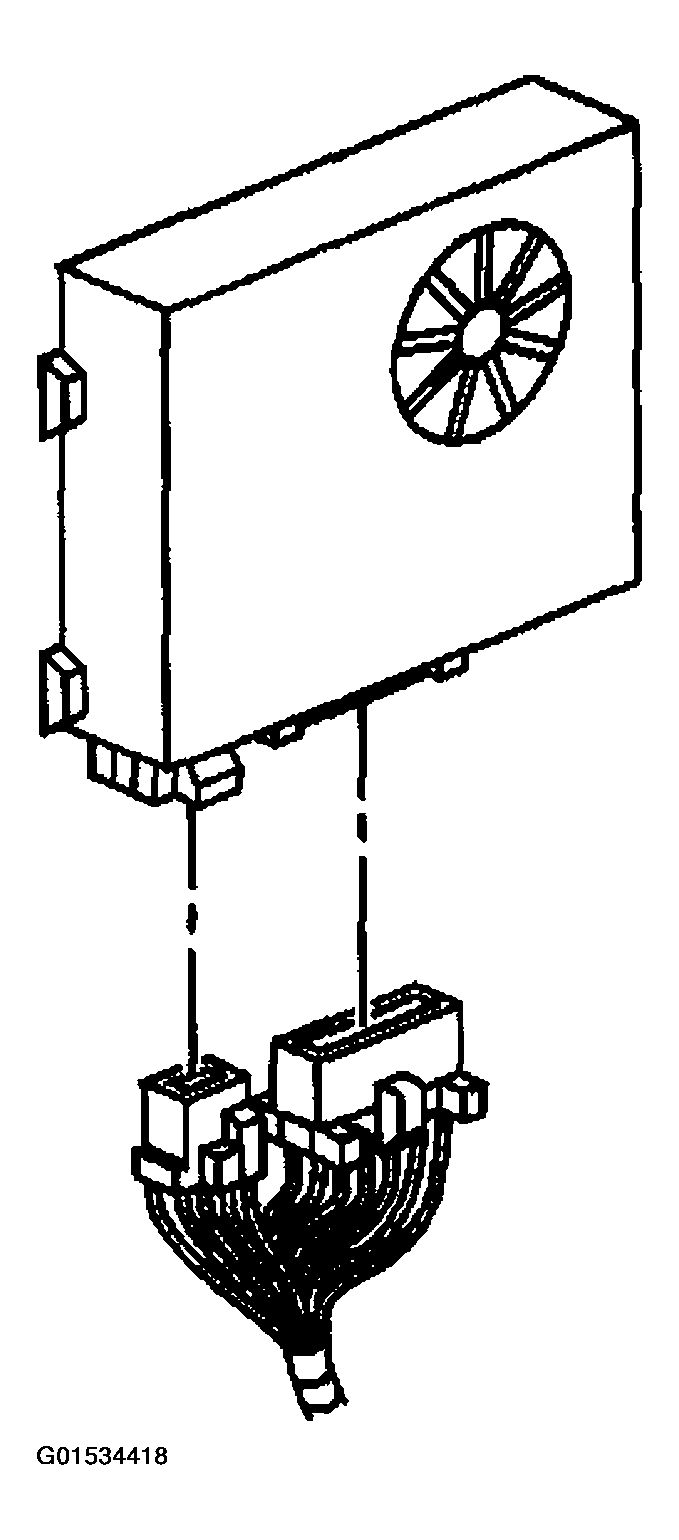

    Fig 2: Disconnecting Electrical Connectors
    G01534418Courtesy of GENERAL MOTORS CORP.
