Body Control System Connector End Views

Fig 1: Body Control Module (BCM) C1 Connector End View
G01534406Courtesy of GENERAL MOTORS CORP.

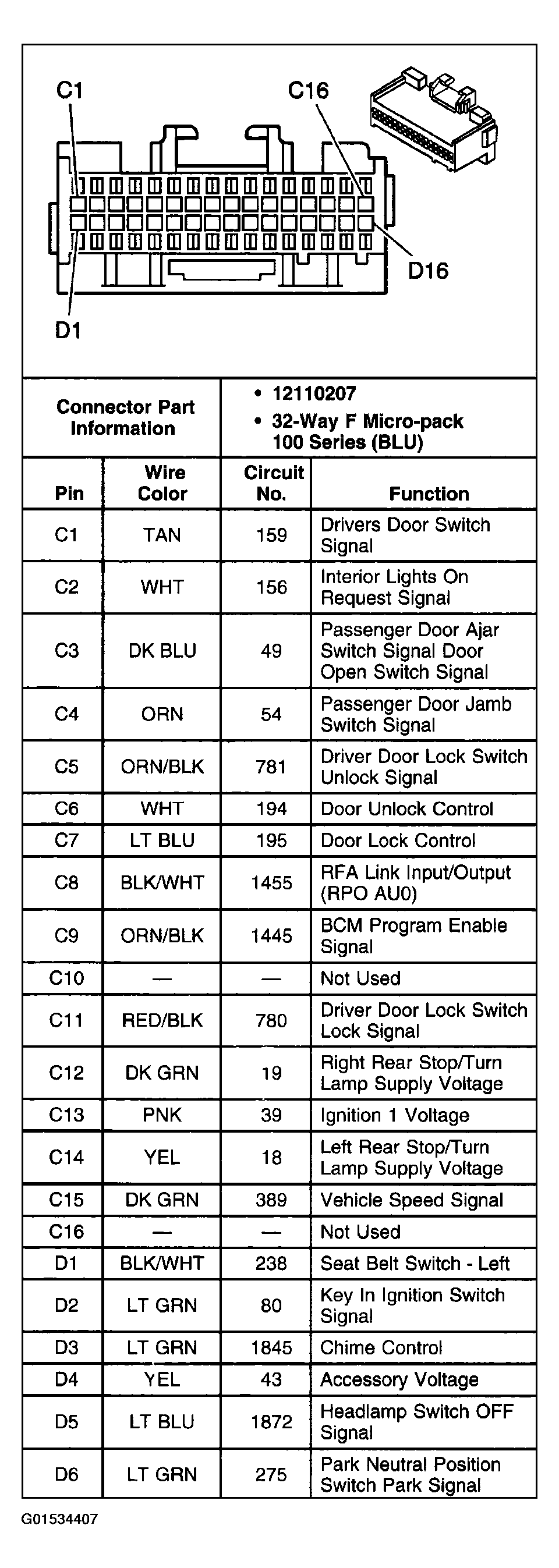

Fig 2: Body Control Module (BCM) C2 Connector End View (1 Of 2)
G01534407Courtesy of GENERAL MOTORS CORP.

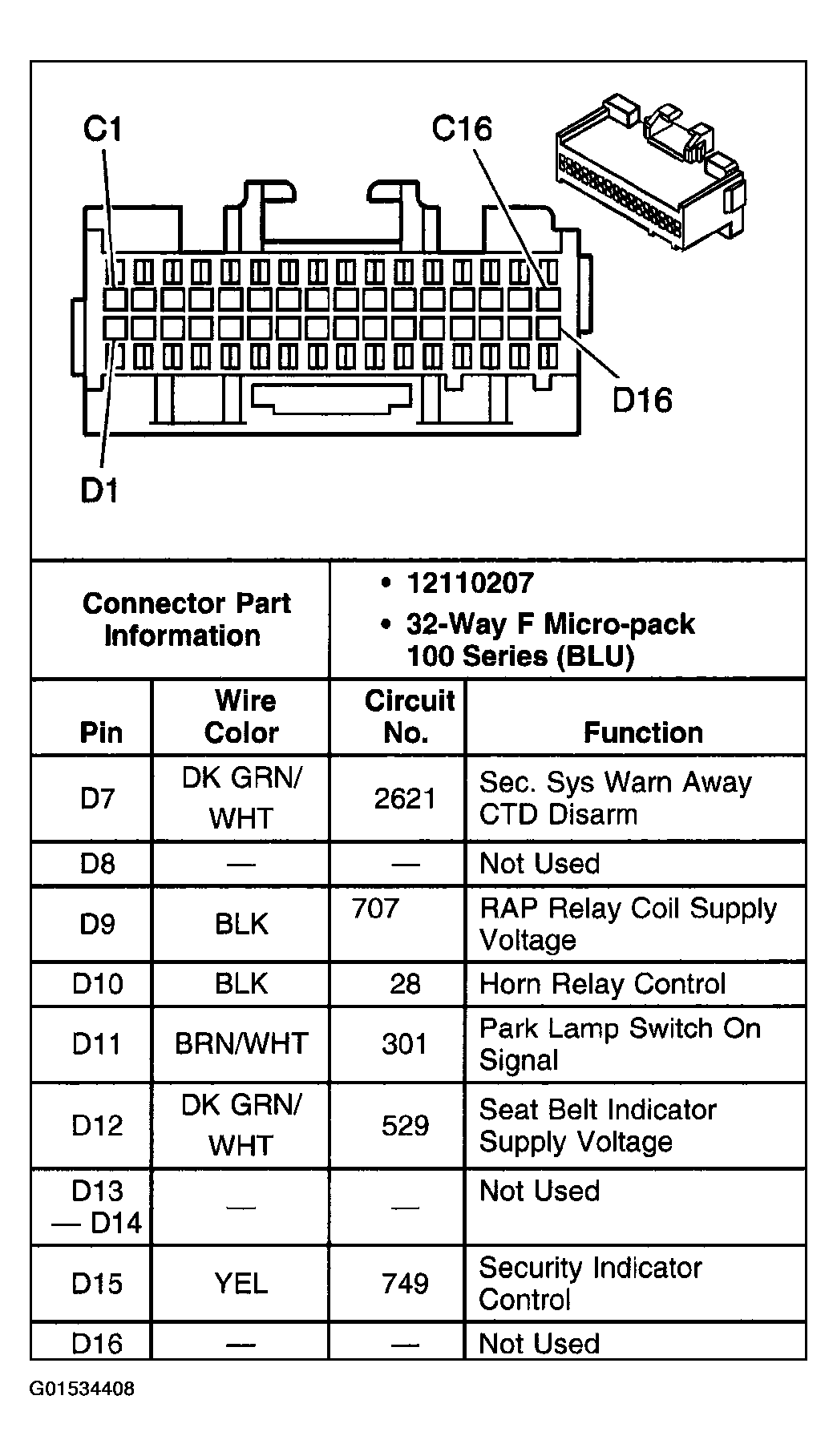

Fig 3: Body Control Module (BCM) C2 Connector End View (2 Of 2)
G01534408Courtesy of GENERAL MOTORS CORP.
