Diagnostic Procedure

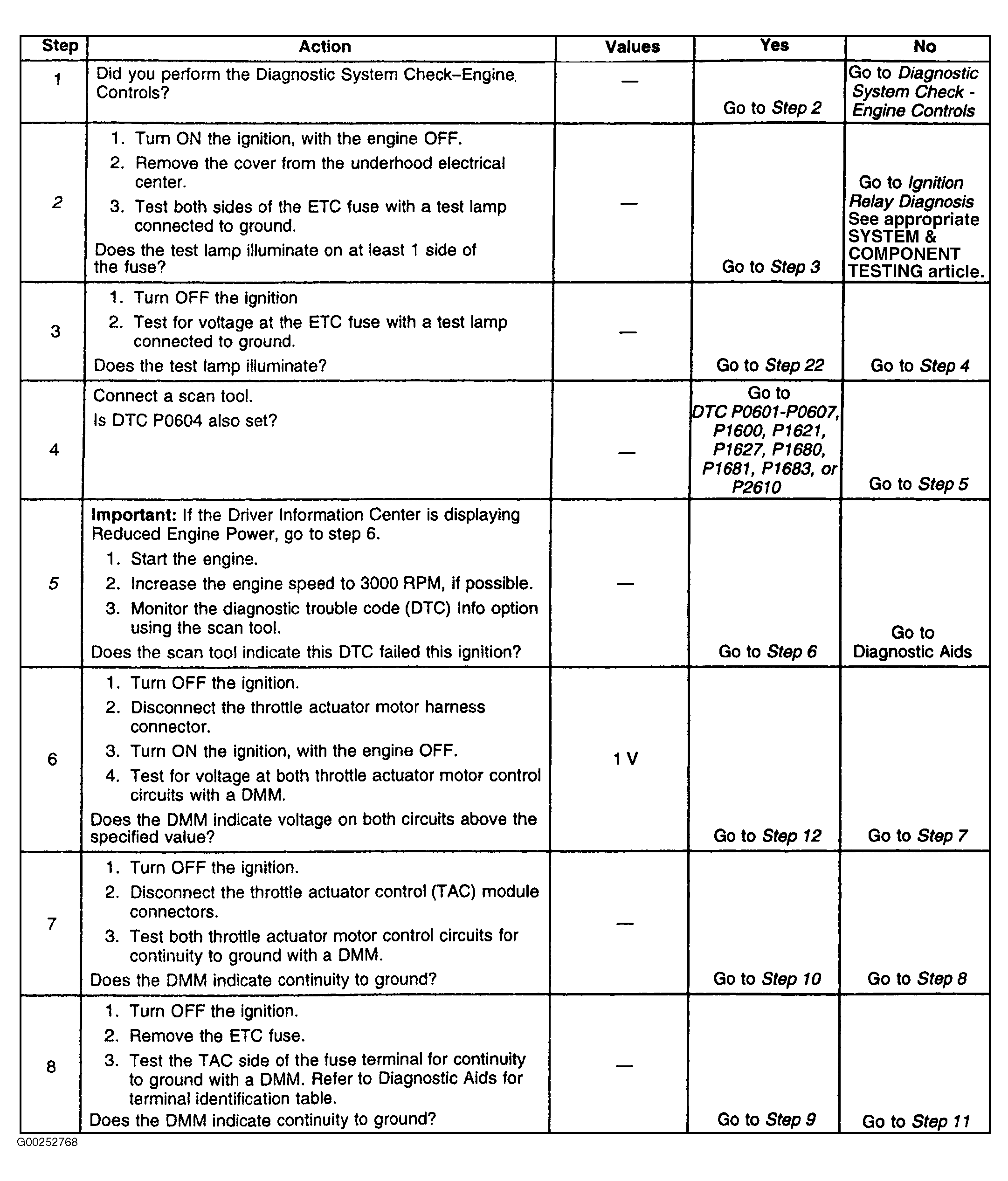

Fig 1: DTC P1518: TAC Module Serial Data Fault (Steps 1-8)
G00252768Courtesy of GENERAL MOTORS CORP.

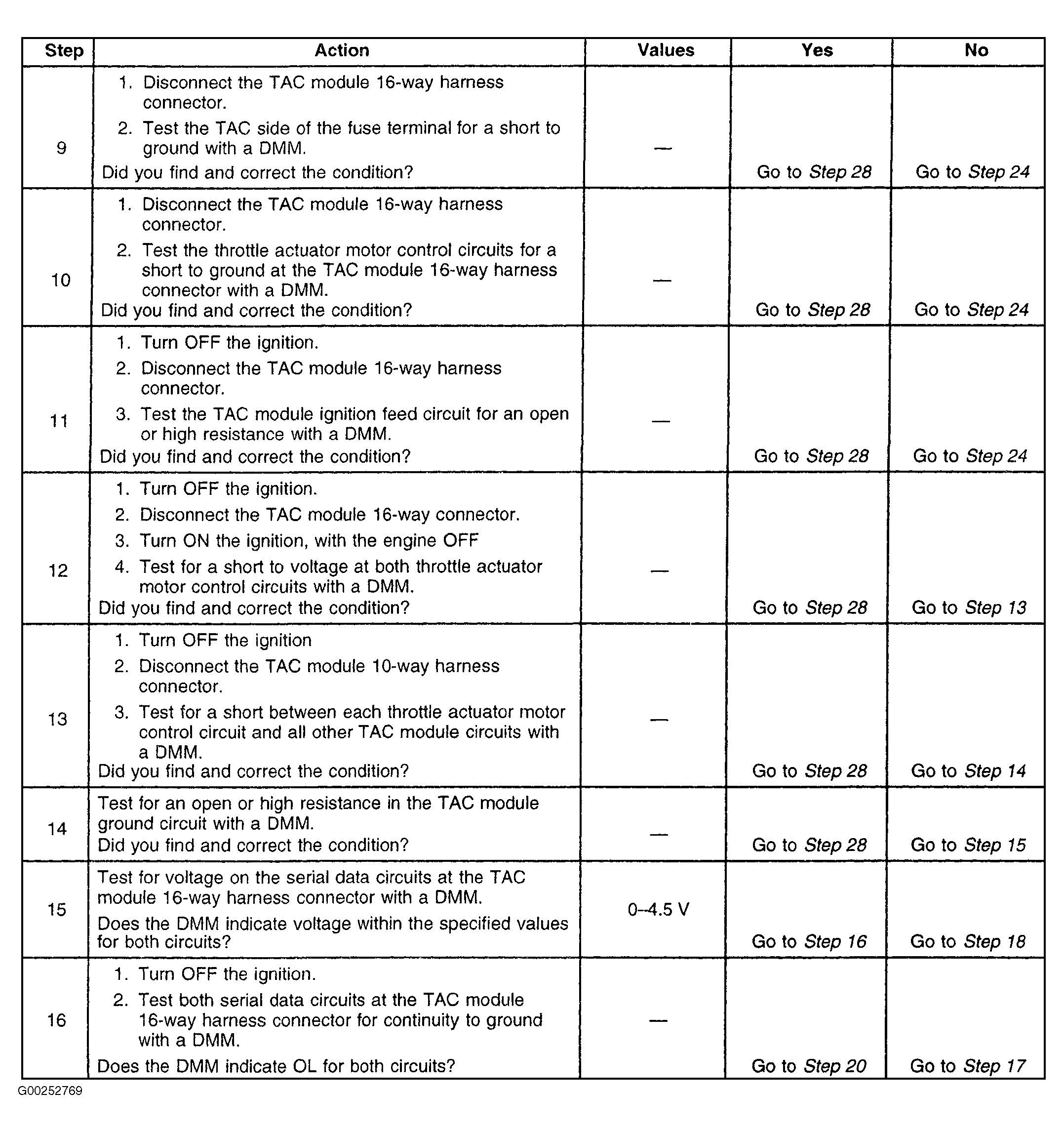

Fig 2: DTC P1518: TAC Module Serial Data Fault (Steps 9-16)
G00252769Courtesy of GENERAL MOTORS CORP.

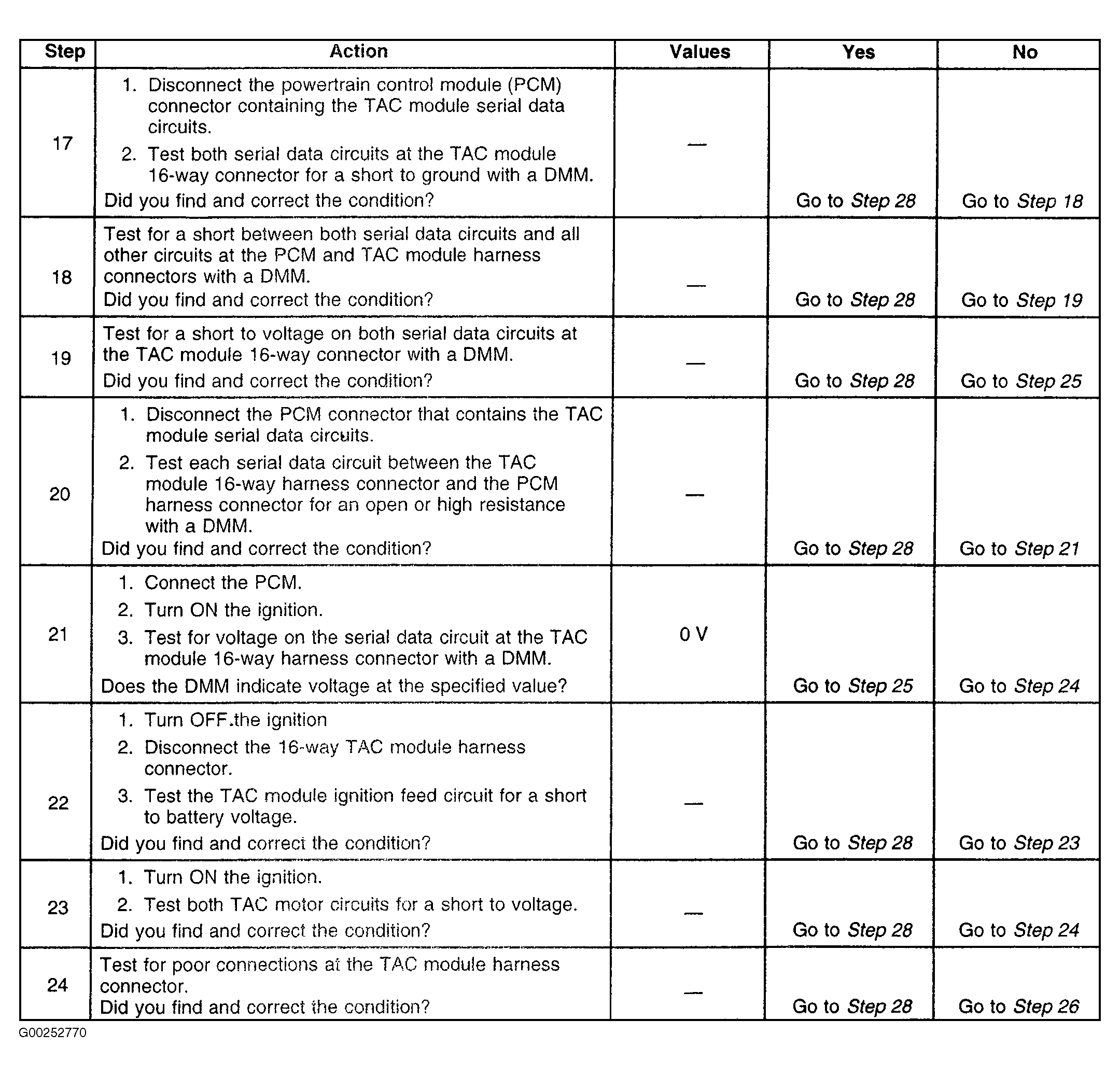

Fig 3: DTC P1518: TAC Module Serial Data Fault (Steps 17-24)
G00252770Courtesy of GENERAL MOTORS CORP.

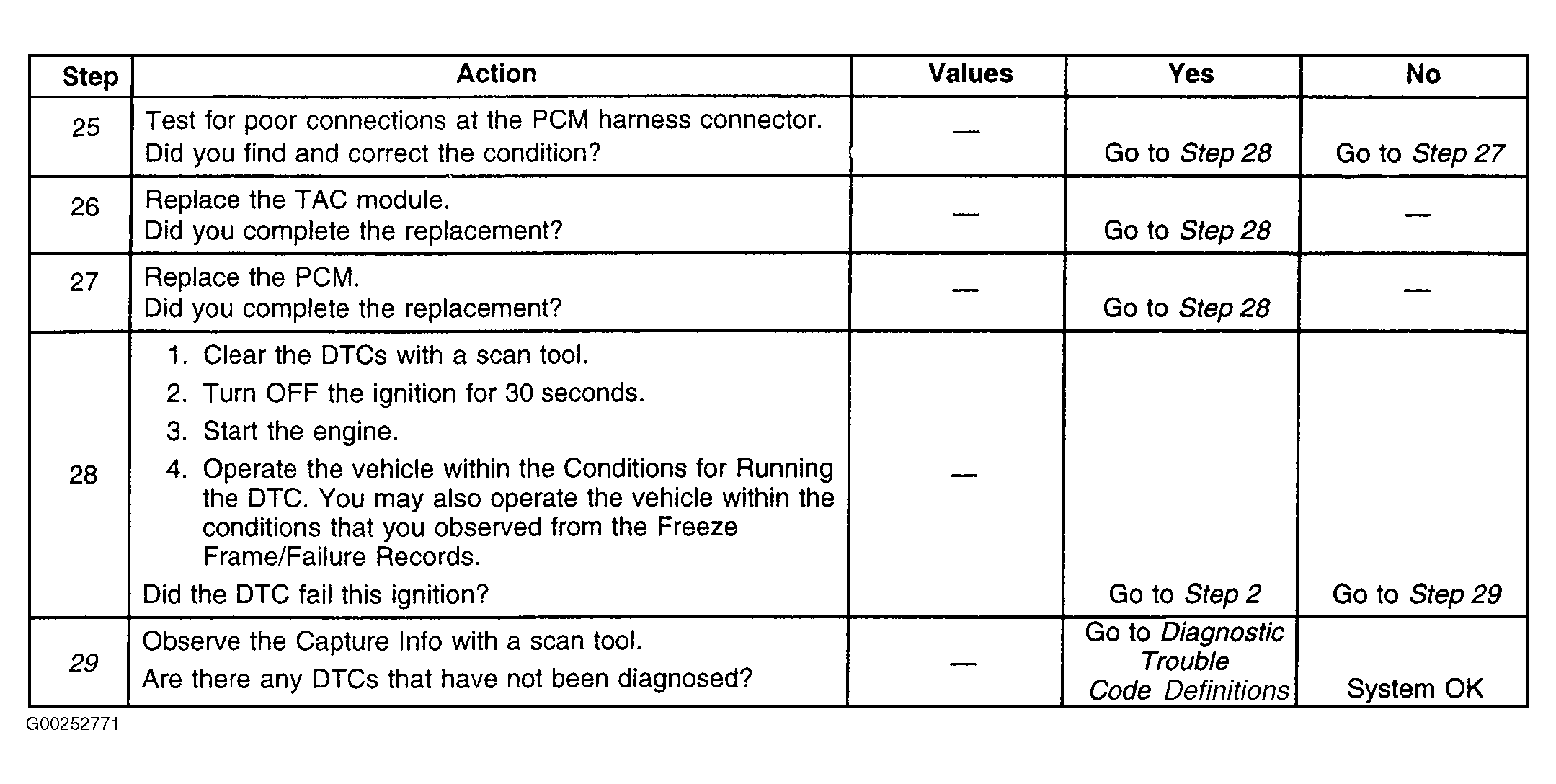

Fig 4: DTC P1518: TAC Module Serial Data Fault (Steps 25-29)
G00252771Courtesy of GENERAL MOTORS CORP.
