Wheel Alignment Specifications & Adjustment Procedures
>>
Specifications
>>
Wheel Alignment Specifications
>>
Wheel Alignment Specifications
Wheel Alignment Specifications

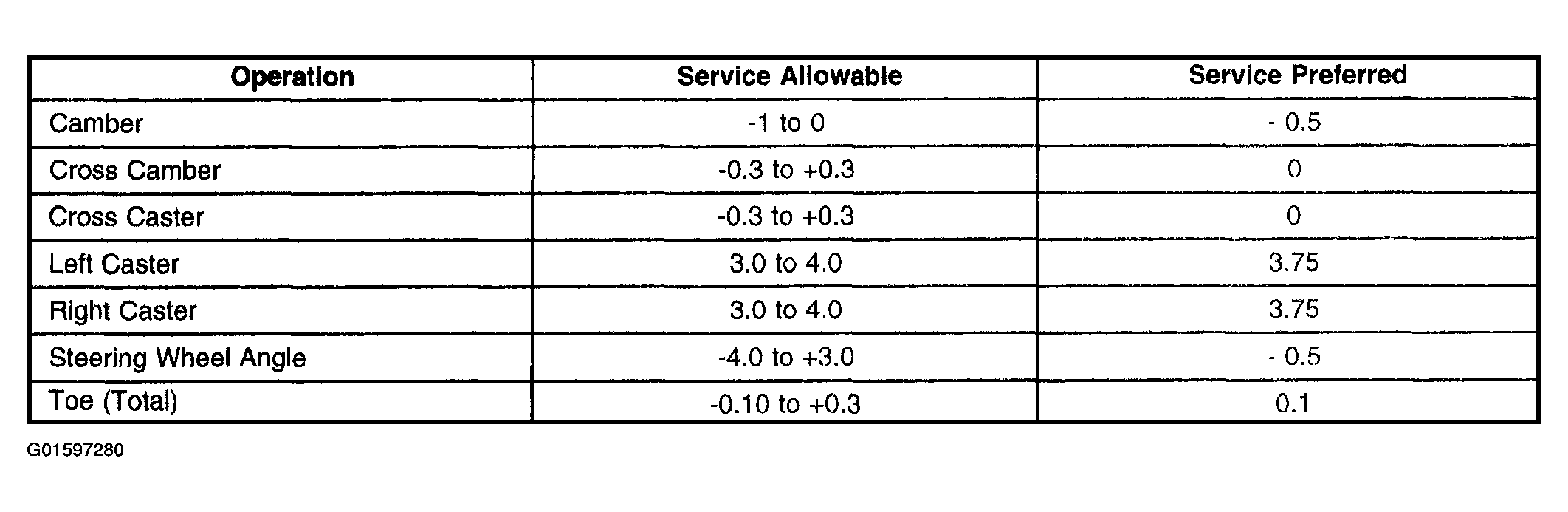

Fig 1: Wheel Alignment Specifications
Courtesy of GENERAL MOTORS CORP.
