Removal Procedure

Remove the accessory trim plate.
- For TrailBlazer/Bravada, refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (CHEVROLET) or TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (OLDSMOBILE) in Instrument Panel, Gauges and Console.
- For TrailBlazer/Envoy/Bravada, refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (CHEVROLET) or BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (GMC/OLDSMOBILE) in Instrument Panel, Gauges and Console.
Disconnect the electrical connector from the traction control switch.
Release the traction control switch locking tabs located behind the trim plate.
Remove the traction control switch from the trim plate

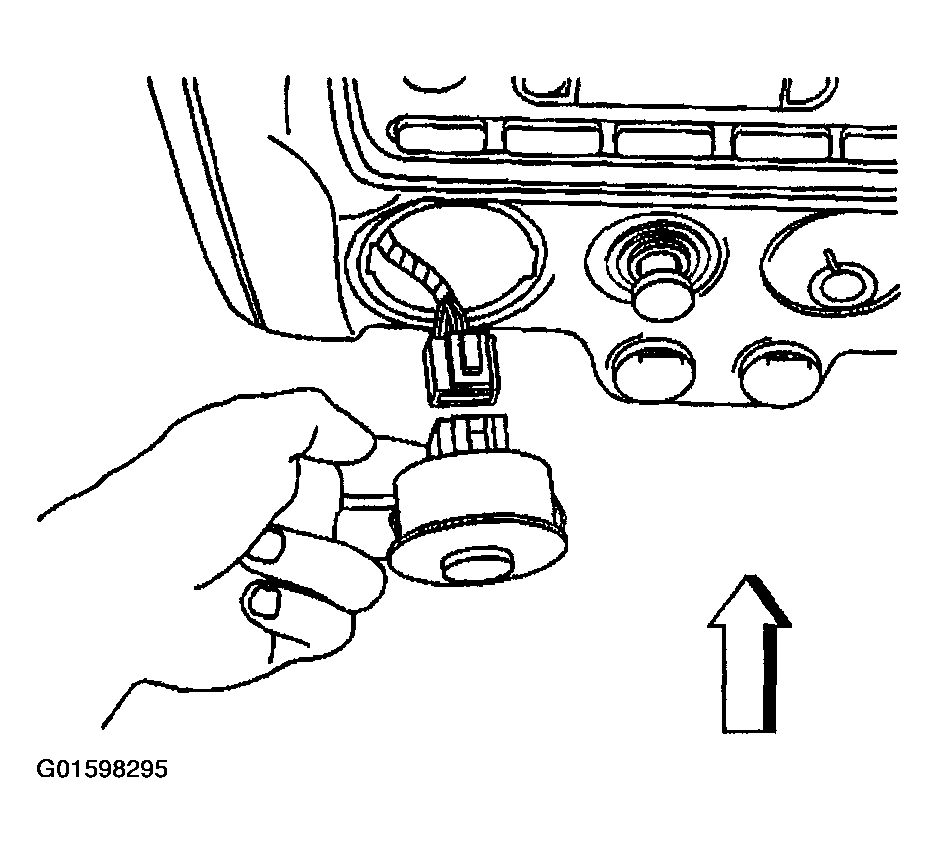

Fig 1: Disconnecting Electrical Connector From Traction Control Switch
Courtesy of GENERAL MOTORS CORP.
