ABS Component Views

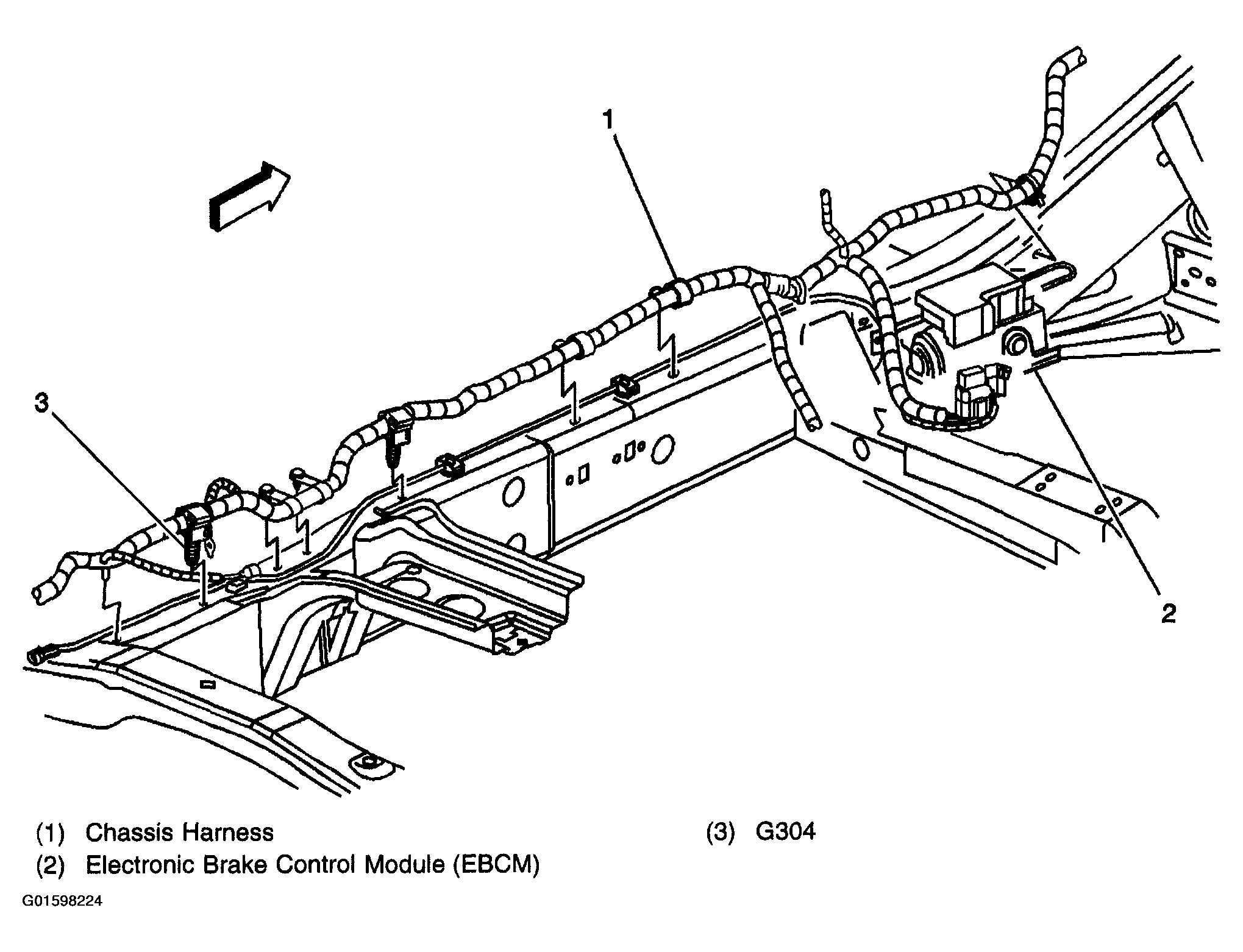

Fig 1: EBCM & Harness (Left Side Frame Rail) Component View
G01598224Courtesy of GENERAL MOTORS CORP.

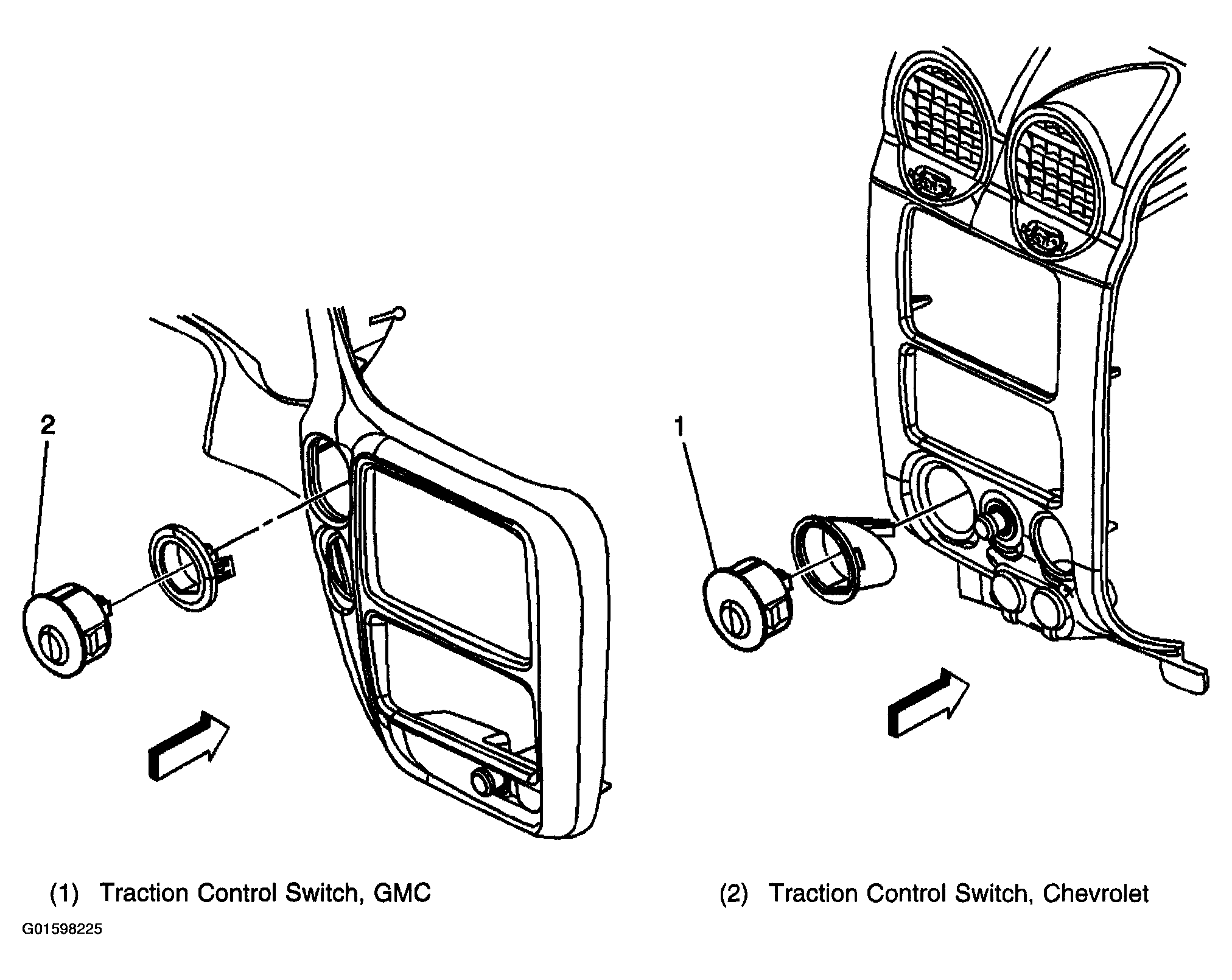

Fig 2: Traction Control Switch Component View (GMC & Chevrolet)
G01598225Courtesy of GENERAL MOTORS CORP.

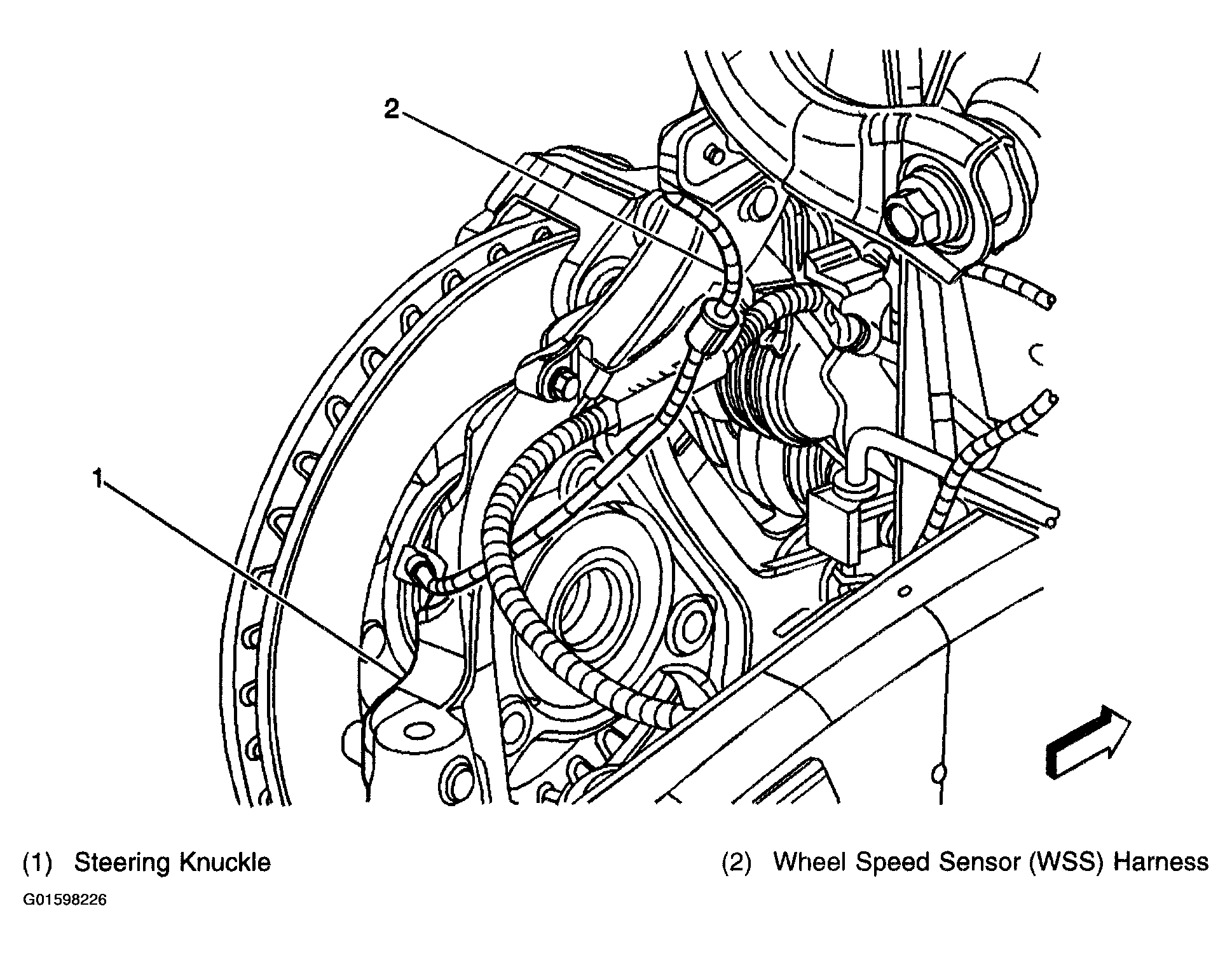

Fig 3: Steering Knuckle & Wheel Speed Sensor Harness Component View
G01598226Courtesy of GENERAL MOTORS CORP.
