Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the inflatable restraint steering wheel module.
  3. Remove the screws from the steering wheel control switch.

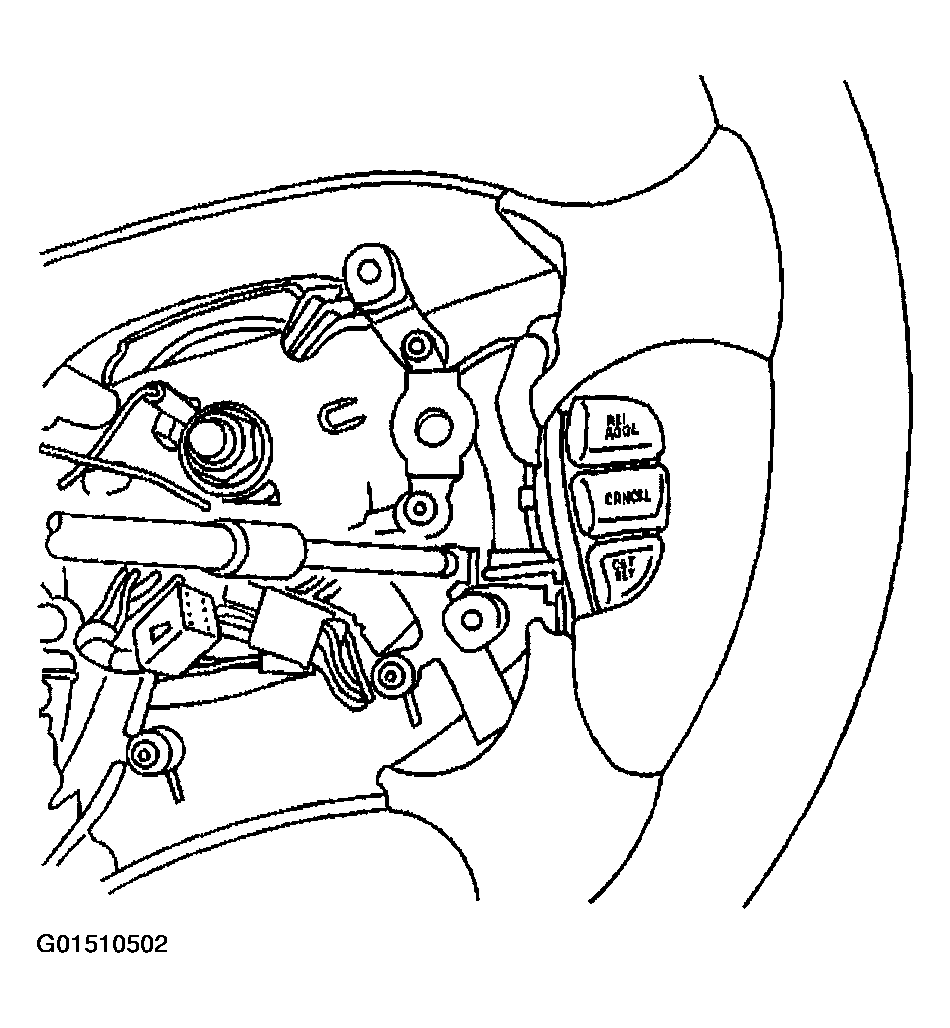

    Fig 1: Removing Screws From Steering Wheel Control Switch
    G01510502Courtesy of GENERAL MOTORS CORP.
  4. Remove the steering wheel control switch from the steering wheel.
  5. Disconnect the electrical connector from the steering wheel control switch.

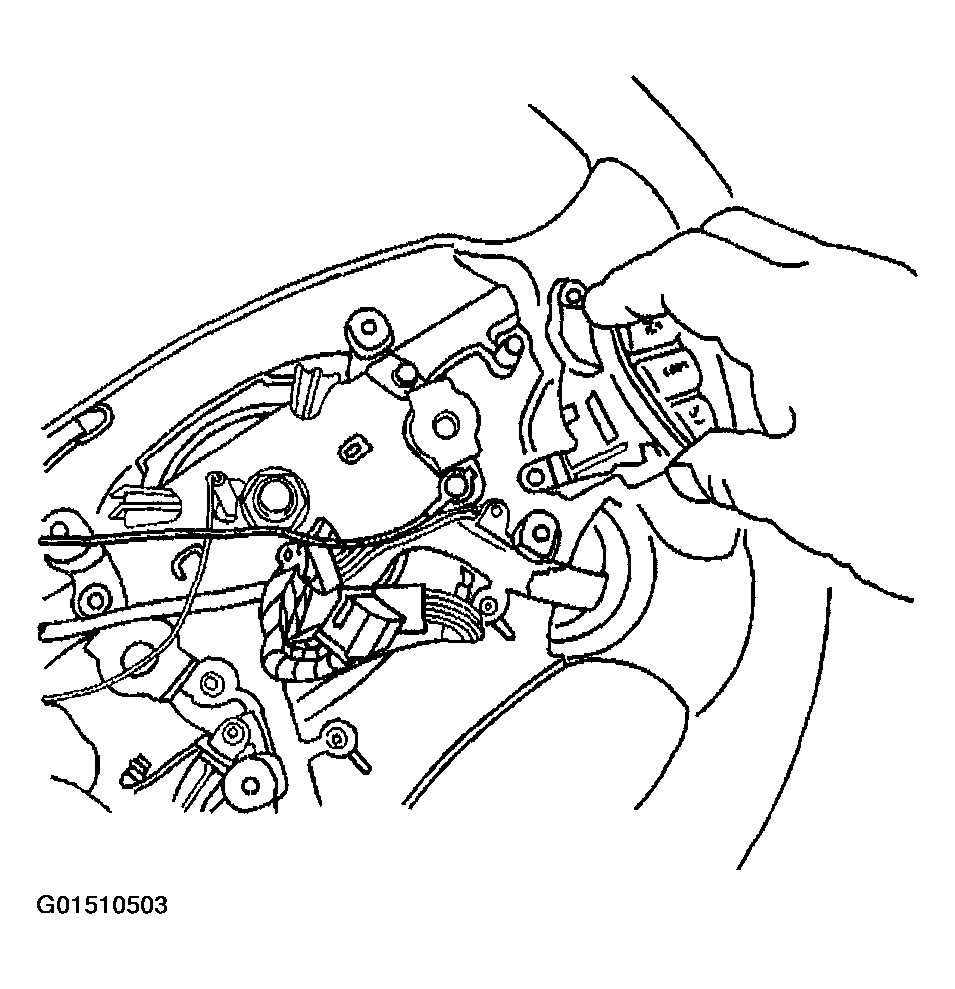

    Fig 2: Disconnecting Electrical Connector From Steering Wheel Control Switch
    G01510503Courtesy of GENERAL MOTORS CORP.
