Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

Important: The ribbon must not be twisted.

Connect the cruise control cable slug to the ribbon buckle.

Fig 1: Connecting Cruise Control Cable Slug To Ribbon Buckle
Courtesy of GENERAL MOTORS CORP.
Insert the cruise control cable into the cruise control module until the seal touches the module.
Position the narrow cable tab into the narrow slot and the wide tab into the wide slot.
Important: The adjuster tab must be pointing toward the front of the car after installation.
Connect the cruise control cable to the cruise control module by turning the cable clockwise.

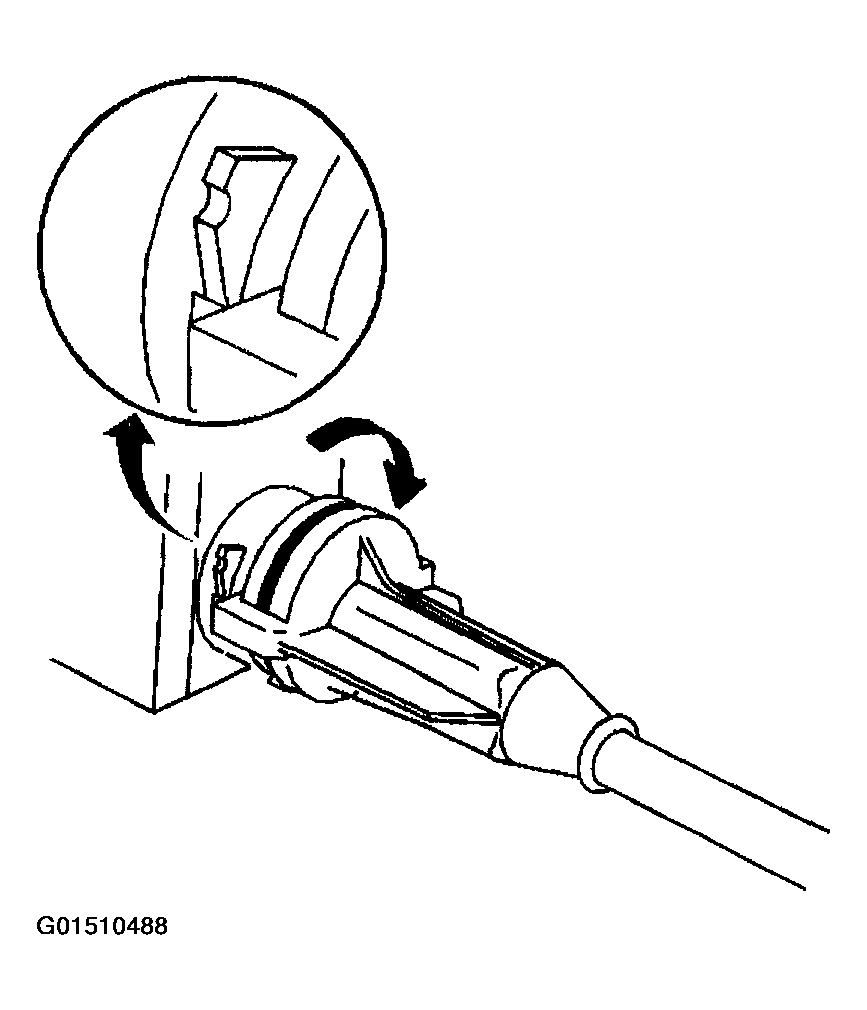

Fig 2: Connecting Cruise Control Cable To Cruise Control Module
Courtesy of GENERAL MOTORS CORP.
Install the cruise control cable to the retainer clip on the engine.
Install the cruise control cable to the throttle body bracket pressing into place until fully seated.
Open the throttle body cam slightly.
Connect the cruise control cable to the throttle body cam lever.

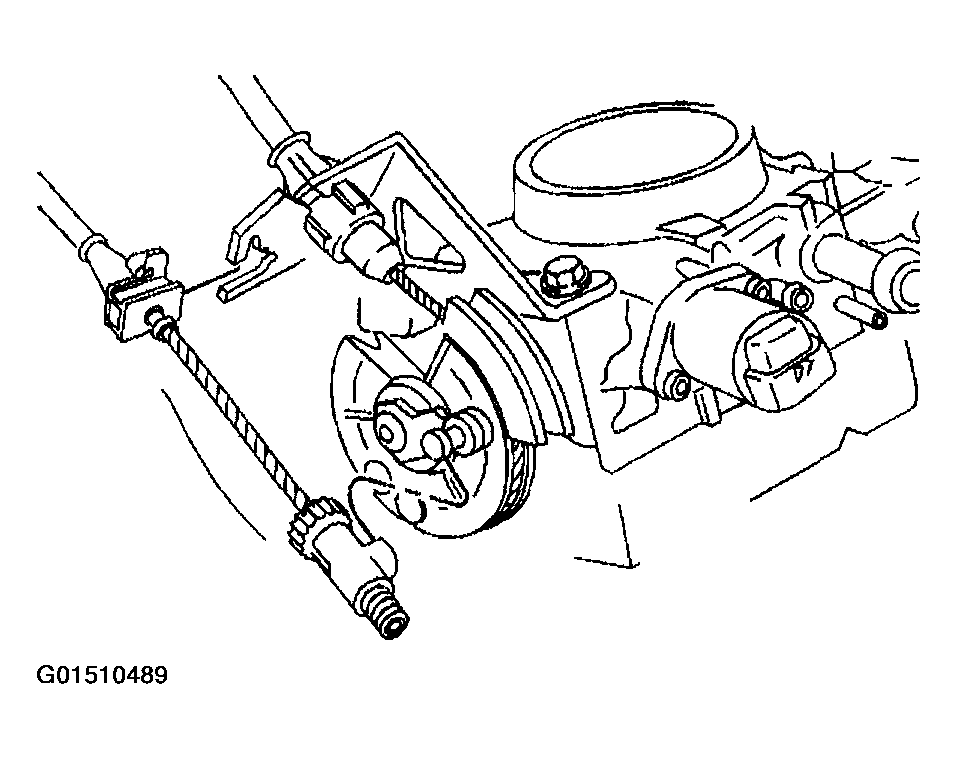

Fig 3: Connecting Cruise Control Cable To Throttle Body Cam Lever
Courtesy of GENERAL MOTORS CORP.
