Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

Important:

A malfunctioning transmitter may need synchronization. Refer to TRANSMITTER SYNCHRONIZATION .
The normal battery life is approximately 2 years. Replace the batteries when the range of the transmitter begins to decrease to less than approximately 7 meters (23 ft).

Open the transmitter case (6,4).
1. 1.1. Insert a small flat-bladed tool between the 2 halves of the transmitter case (6,4) at the slot provided near the key ring hole (5).
2. 1.2. Twist the tool in order to open the case.
Remove the battery (2).

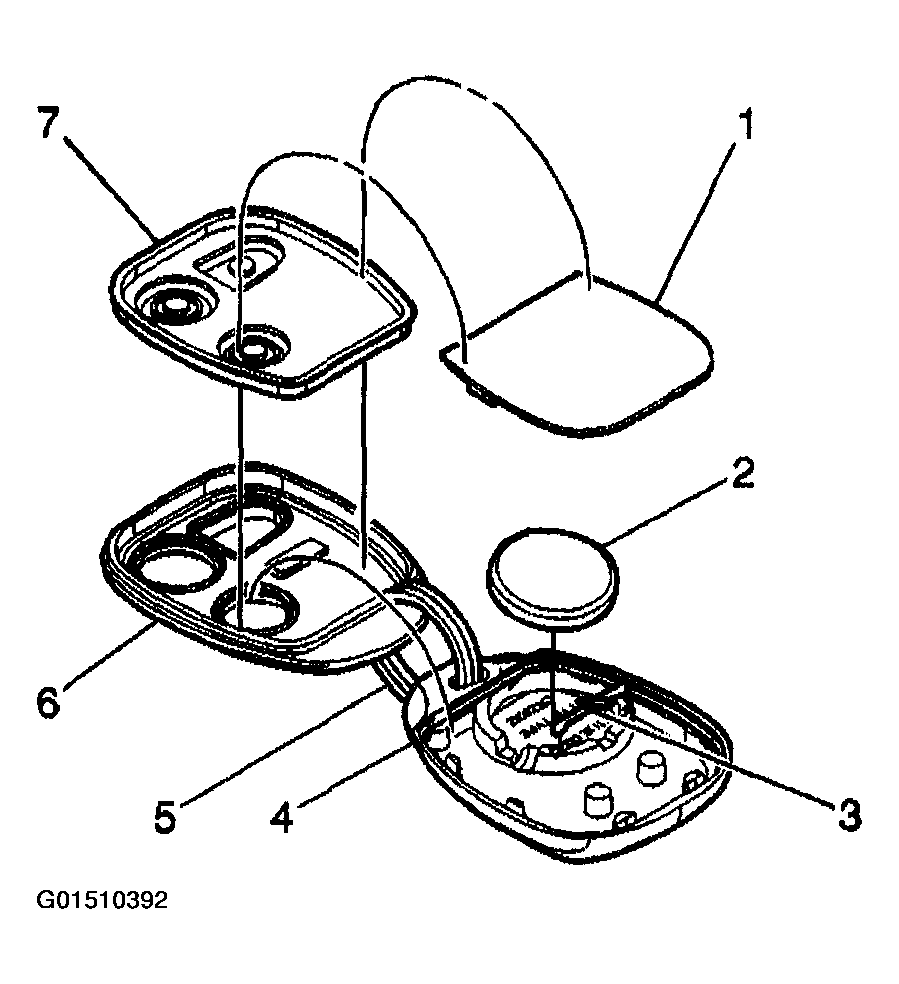

Fig 1: Opening Transmitter Case & Removing Battery
Courtesy of GENERAL MOTORS CORP.
