Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the tab on the module to the opening.

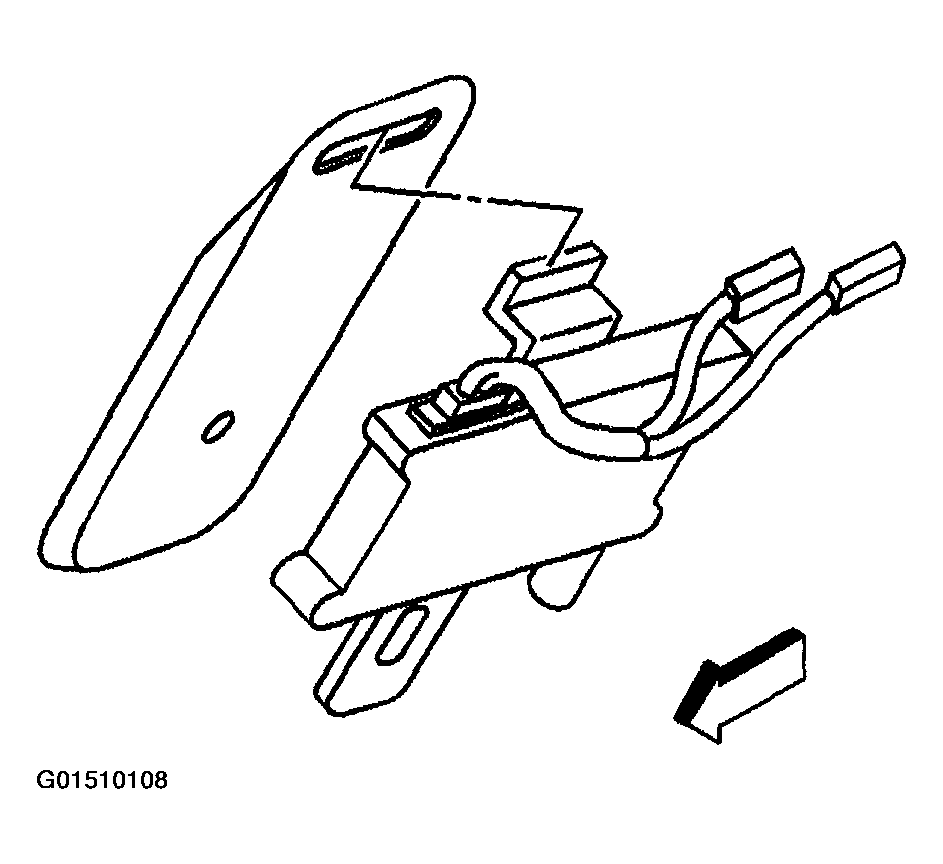

    Fig 1: Inserting Tab On Module To Opening
    G01510108Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the radio antenna module bolt.

    Tighten

    Tighten the bolt to 6 N.m (53 lb in).

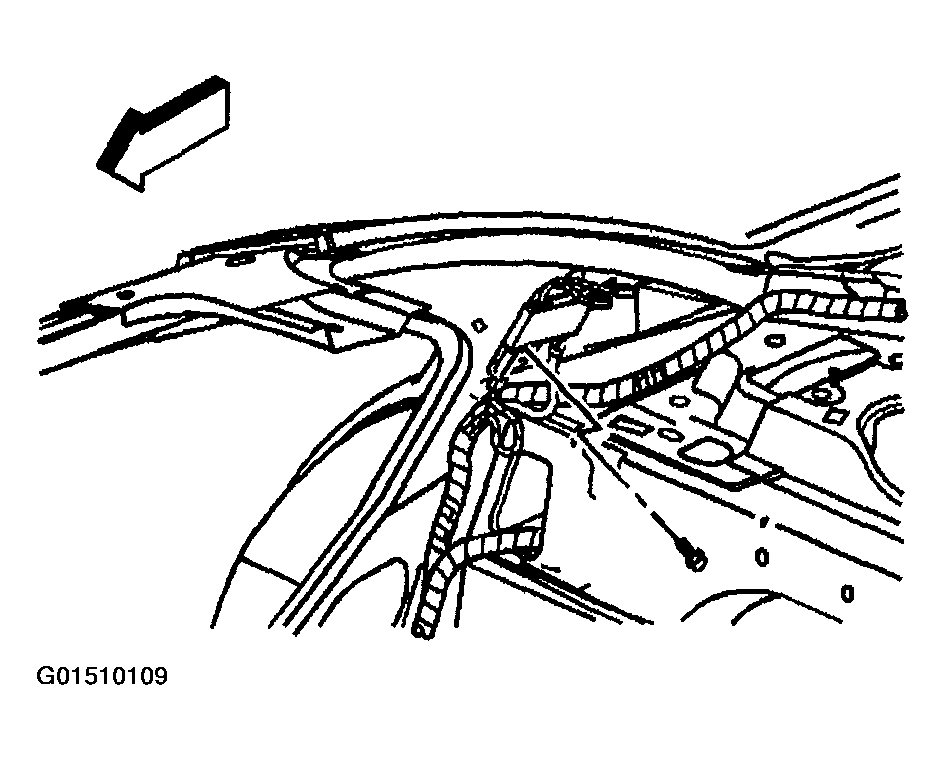

    Fig 2: Installing Radio Antenna Module Bolt
    G01510109Courtesy of GENERAL MOTORS CORP.
  3. Attach the radio antenna cable.
  4. Attach the body wiring harness connector.
  5. Attach the rear window defog connectors to the glass.
  6. Install the right rear quarter upper trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (COUPE) or TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (SEDAN) in Interior Trim.

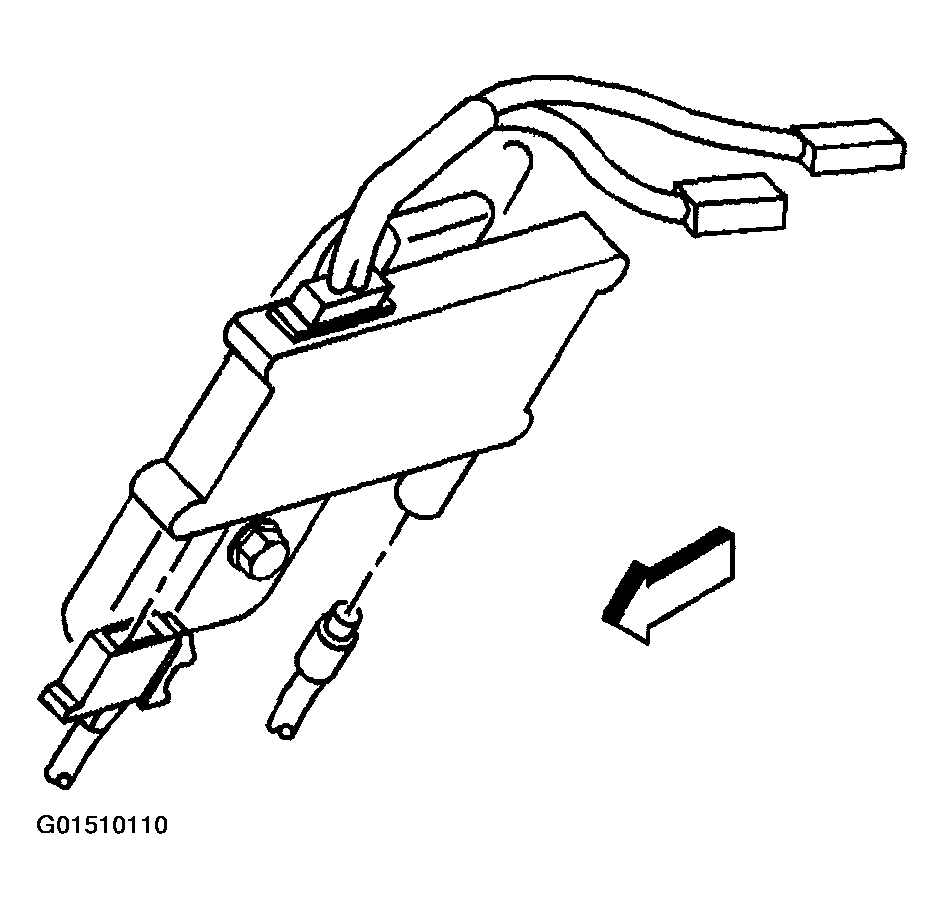

    Fig 3: Installing Body Wiring Harness Connector & Radio Antenna Cable
    G01510110Courtesy of GENERAL MOTORS CORP.
