Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

Insert the tab on the module to the opening.

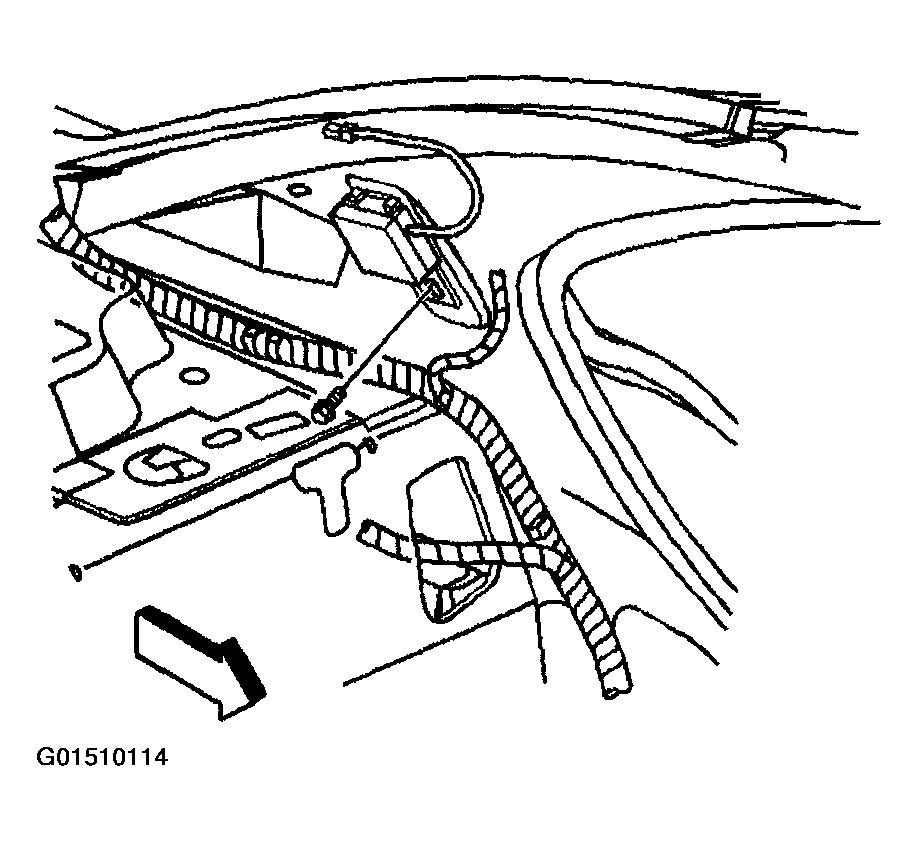

Fig 1: Inserting Tab On Module To Opening
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the radio antenna module coil bolt.
Tighten

Tighten the bolt to 6 N.m (53 lb in).
Connect the radio antenna module coil connector at the glass.
Install the left rear quarter upper trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (COUPE) or TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (SEDAN) in Interior Trim.

Fig 2: Installing Radio Antenna Module Coil Bolt
Courtesy of GENERAL MOTORS CORP.
