Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector (1) to the I/P dimmer module (2).
  2. Install the I/P dimmer module (2) to the HVAC bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the I/P dimmer module bolts (3).

    Tighten

    Tighten the bolts to 2.3 N.m (20 lb in).

  4. Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT (OUTBOARD) or CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT (INBOARD) in Instrument Panel, Gages, and Console.

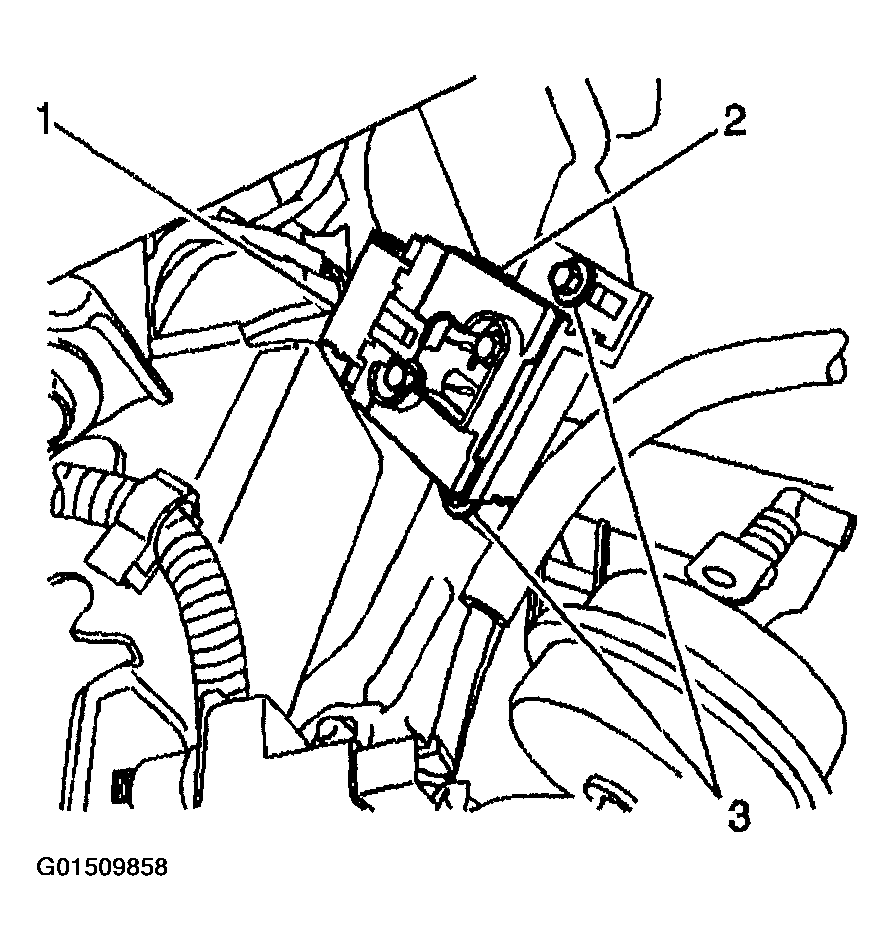

    Fig 1: Installing I/P Dimmer Module, Bolts & Electrical Connector To HVAC Bracket
    G01509858Courtesy of GENERAL MOTORS CORP.
