Section 458 (Lighting Systems)
>>
Component Locator
>>
Lighting Systems Connector End Views
Lighting Systems Connector End Views
WARNING:
This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

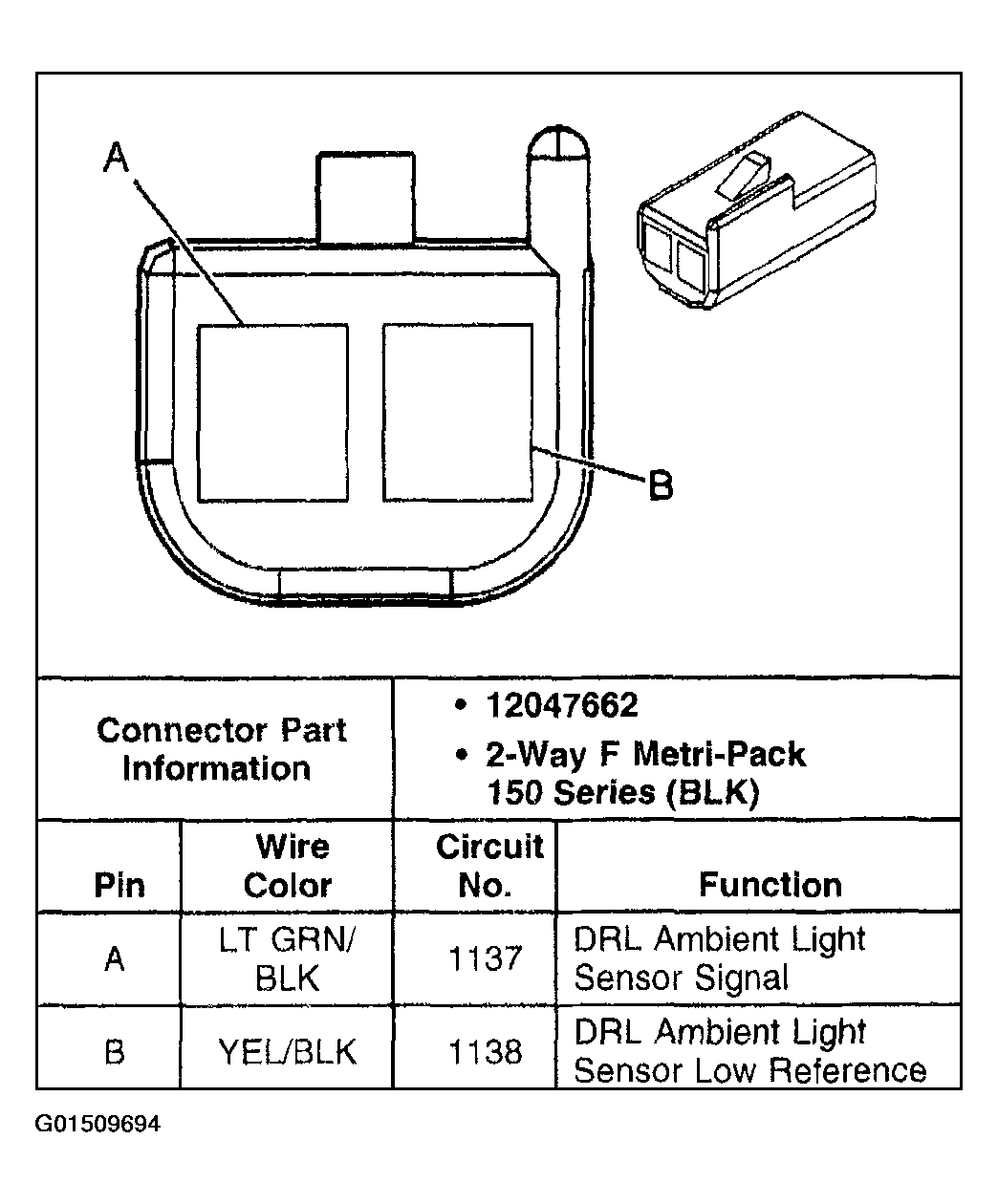

Fig 1: Identifying Ambient Light Sensor Connector Terminal
Courtesy of GENERAL MOTORS CORP.

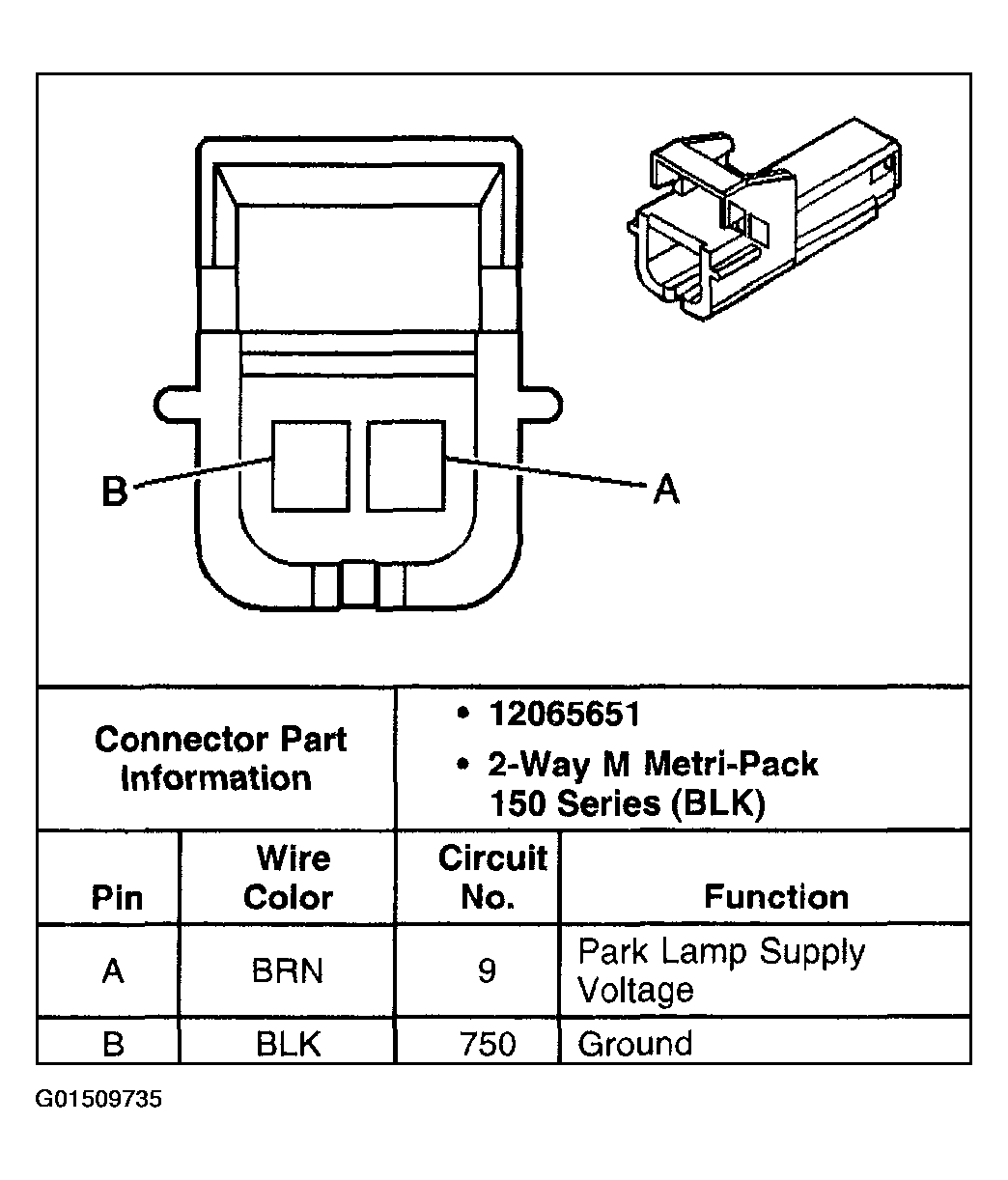

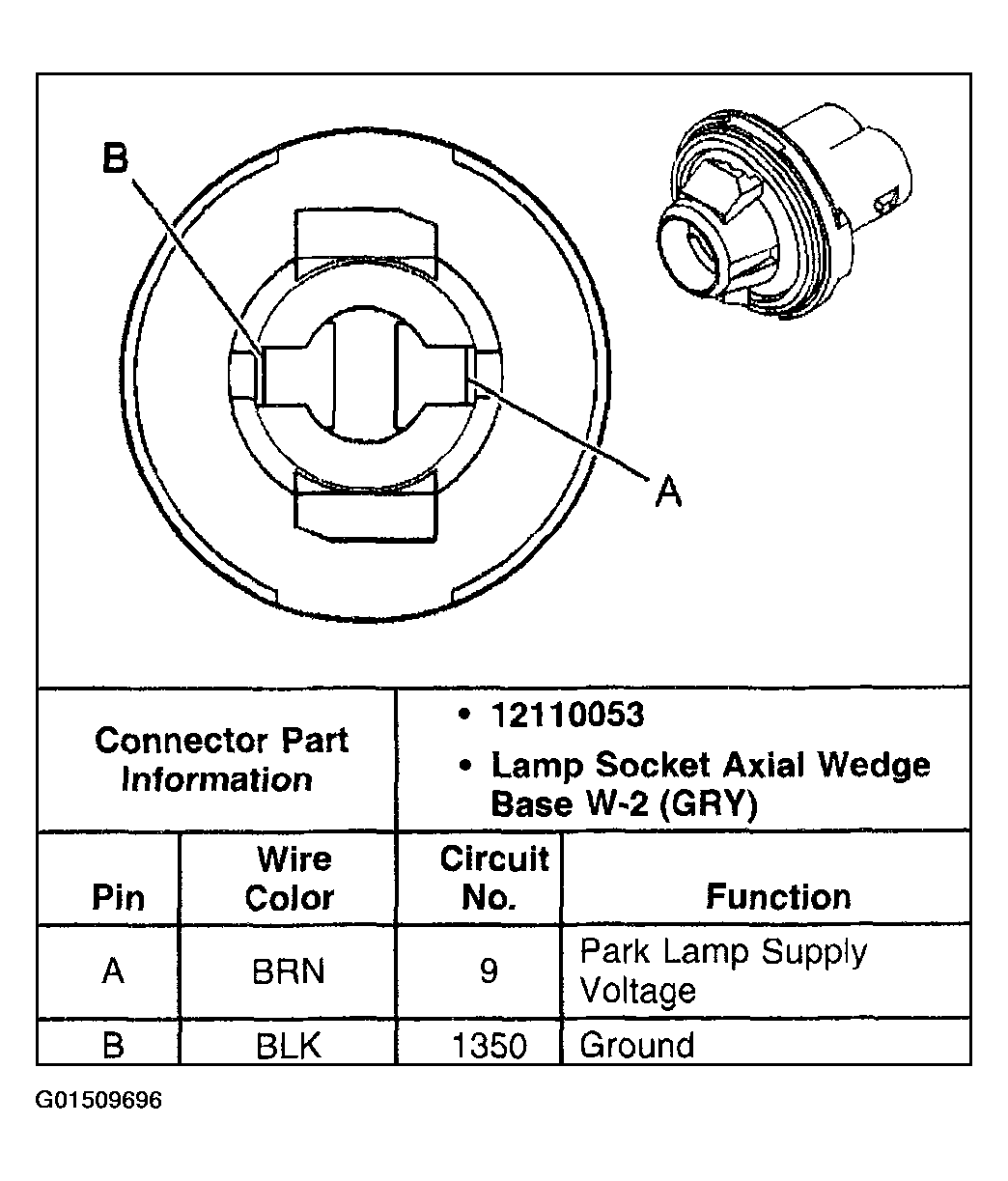

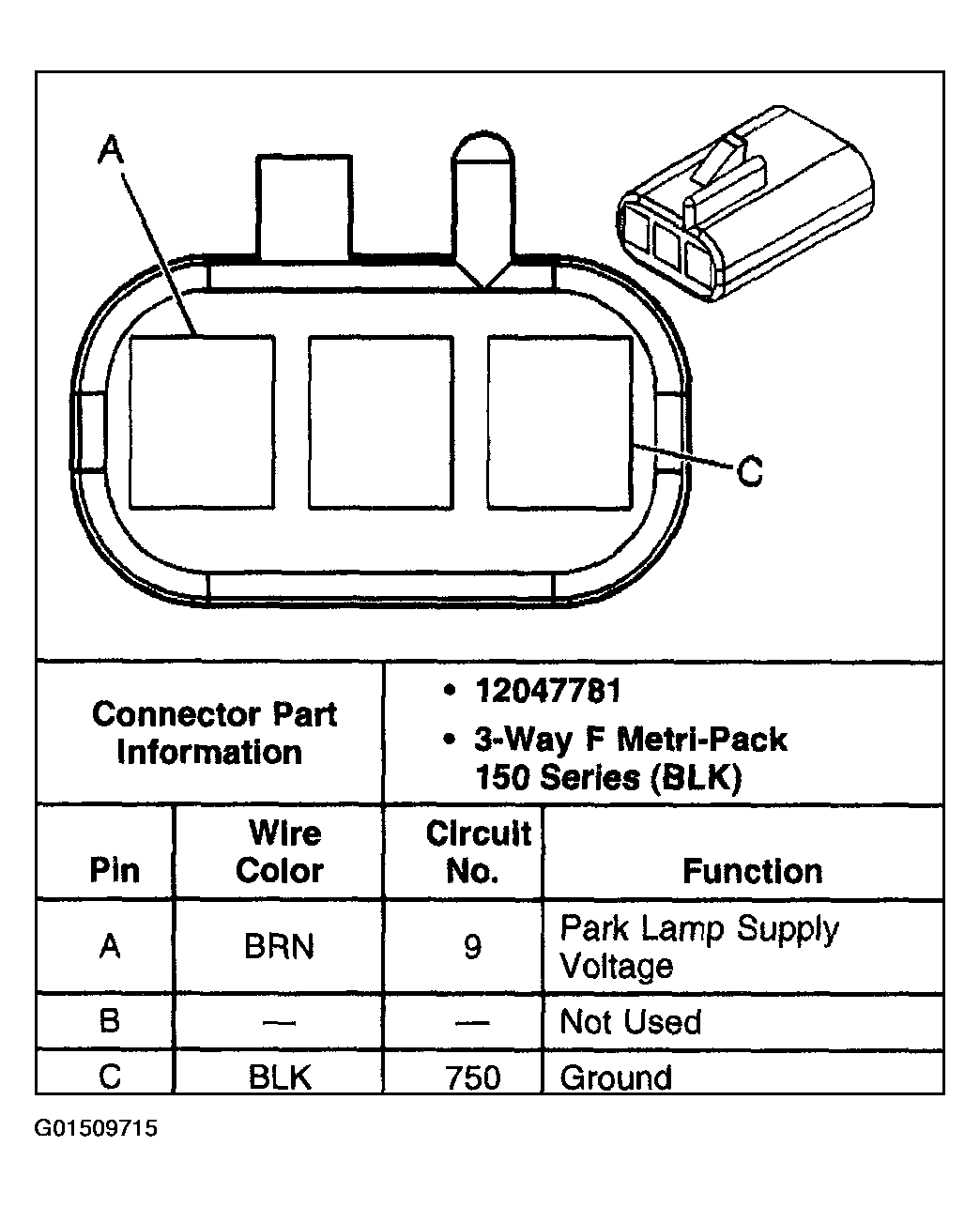

Fig 2: Identifying Auxiliary Park Lamp - LF Connector Terminal (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Auxiliary Park Lamp - RF Connector Terminal (Pontiac)
Courtesy of GENERAL MOTORS CORP.

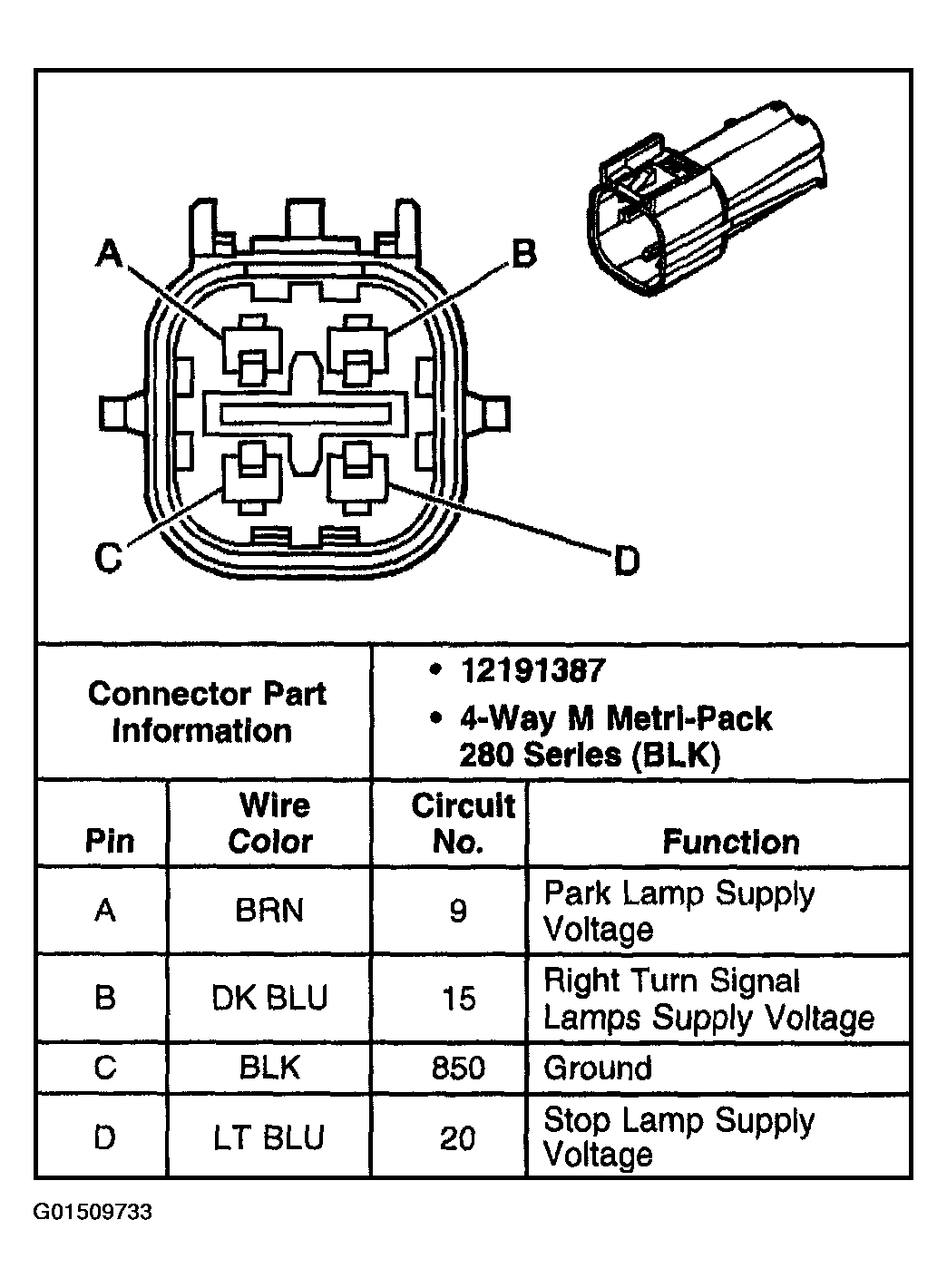

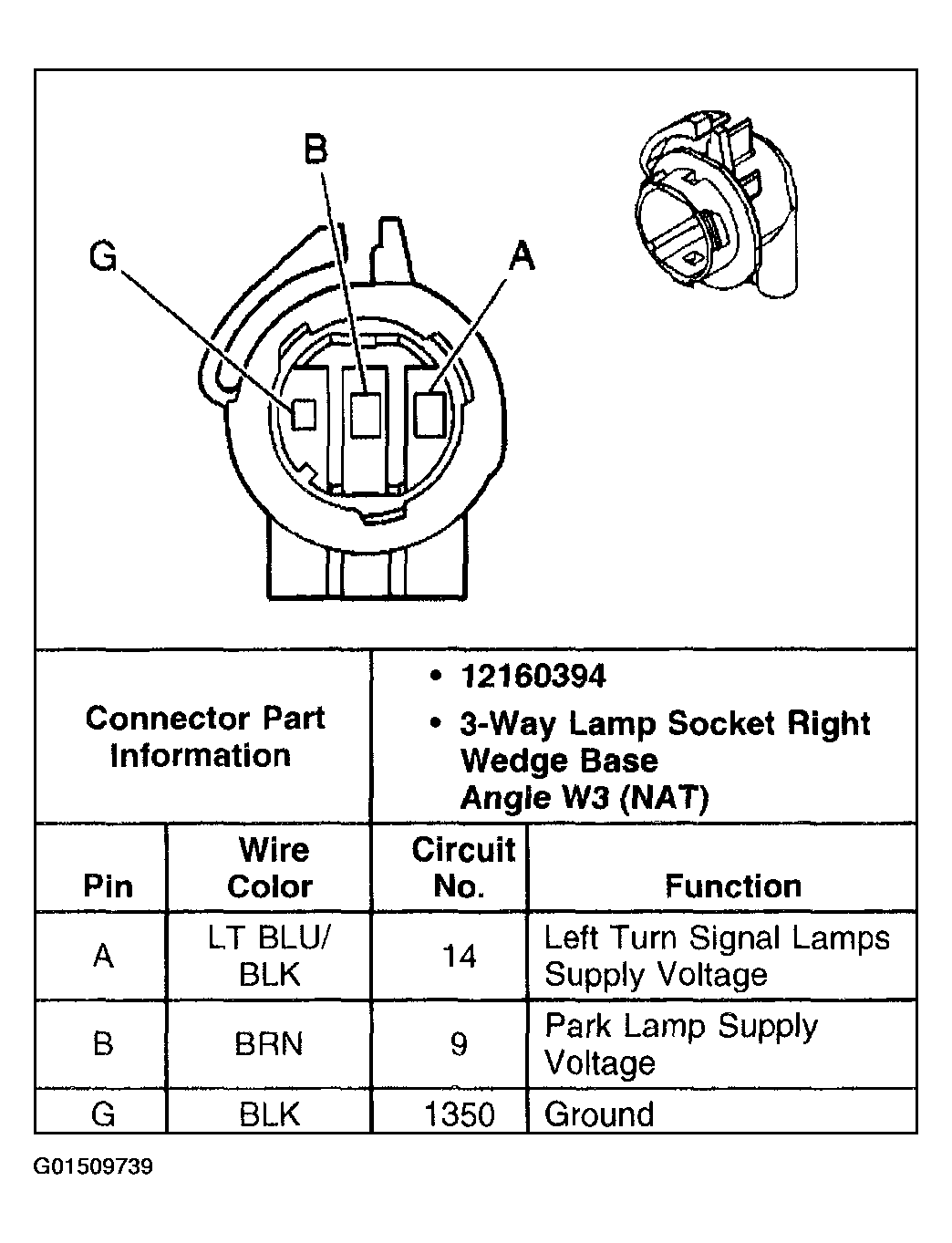

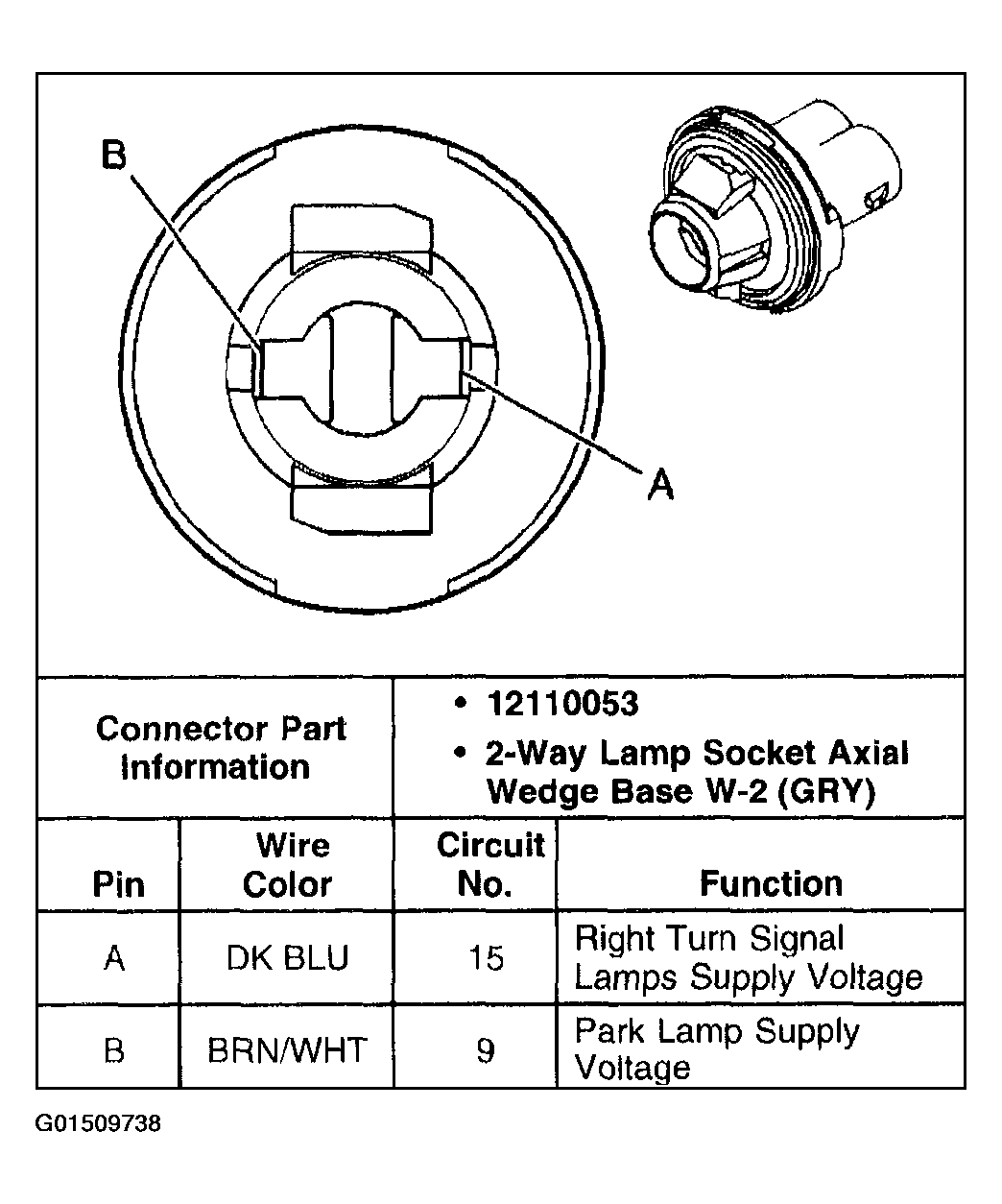

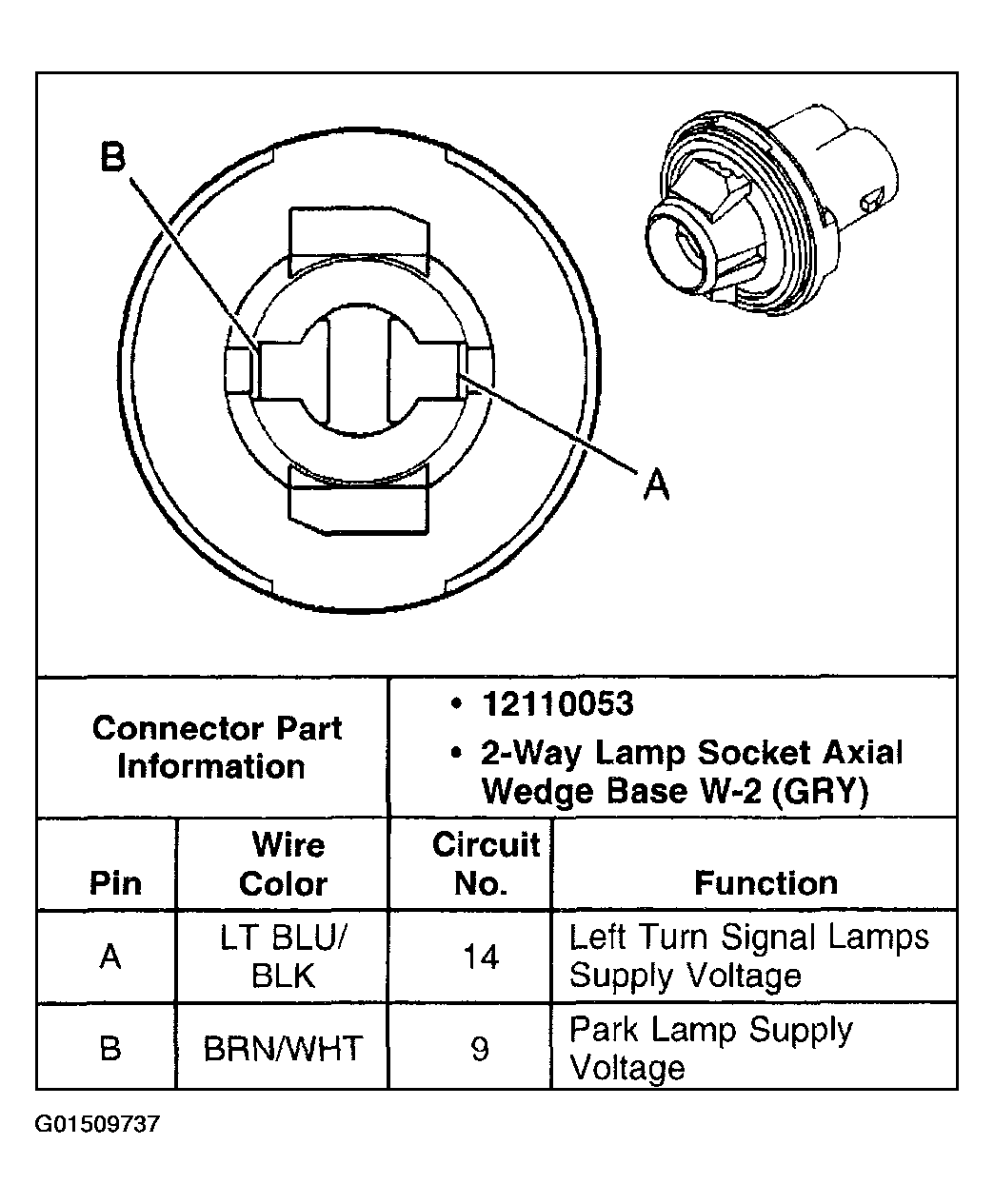

Fig 4: Identifying Auxiliary Turn Signal Lamp - LF Connector Terminal (Export Only)
Courtesy of GENERAL MOTORS CORP.

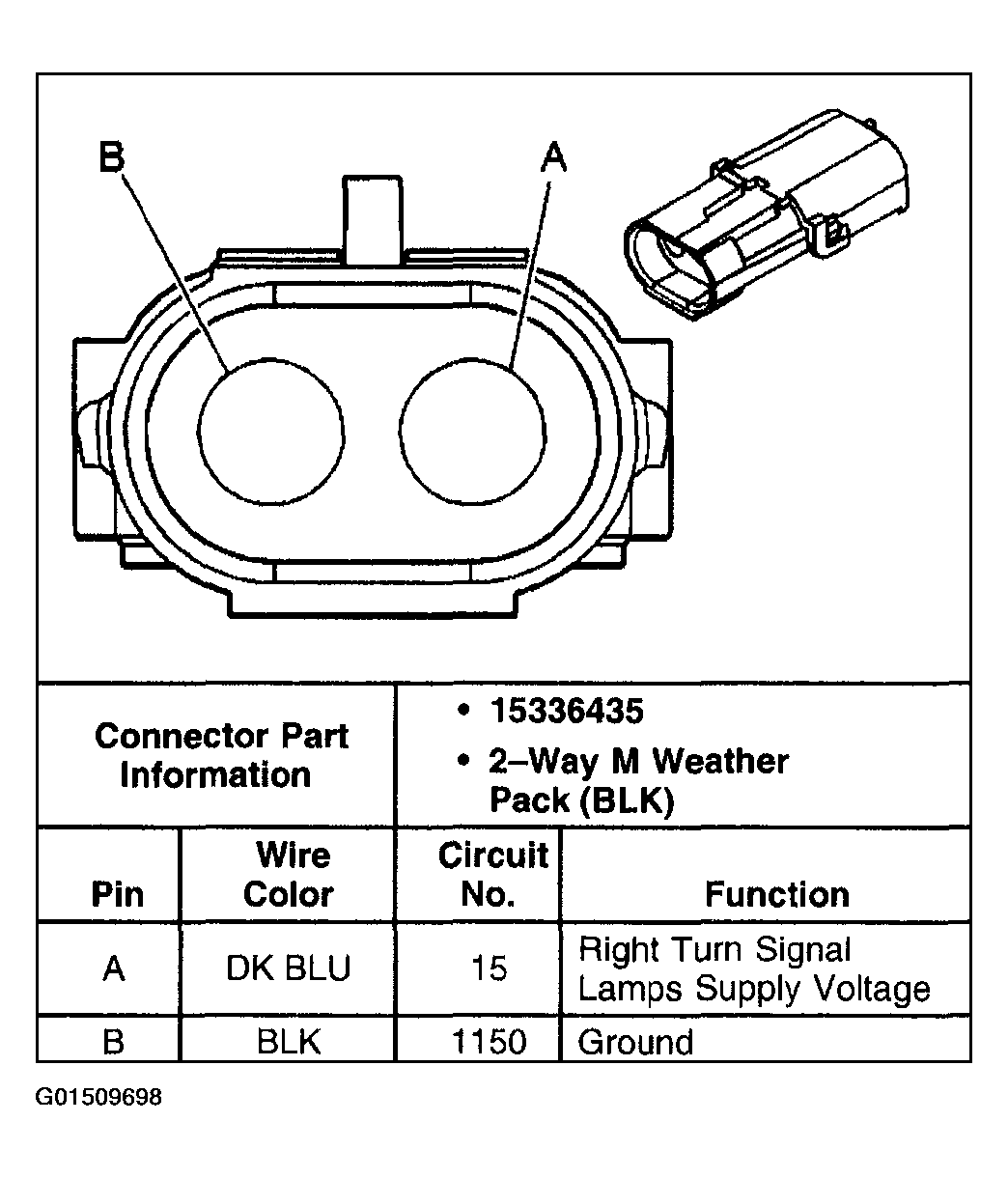

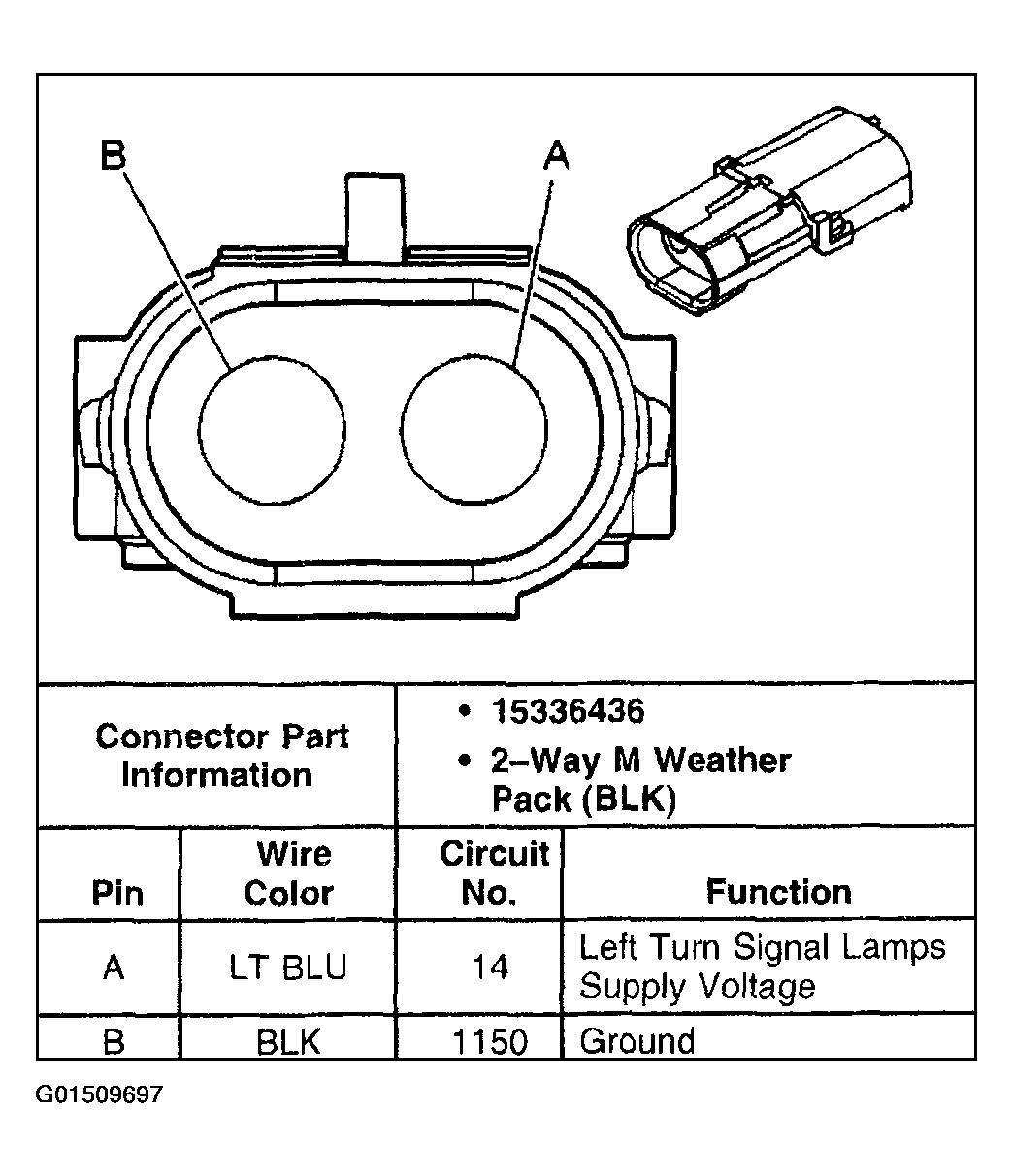

Fig 5: Identifying Auxiliary Turn Signal Lamp - RF Connector Terminal (Export Only)
Courtesy of GENERAL MOTORS CORP.

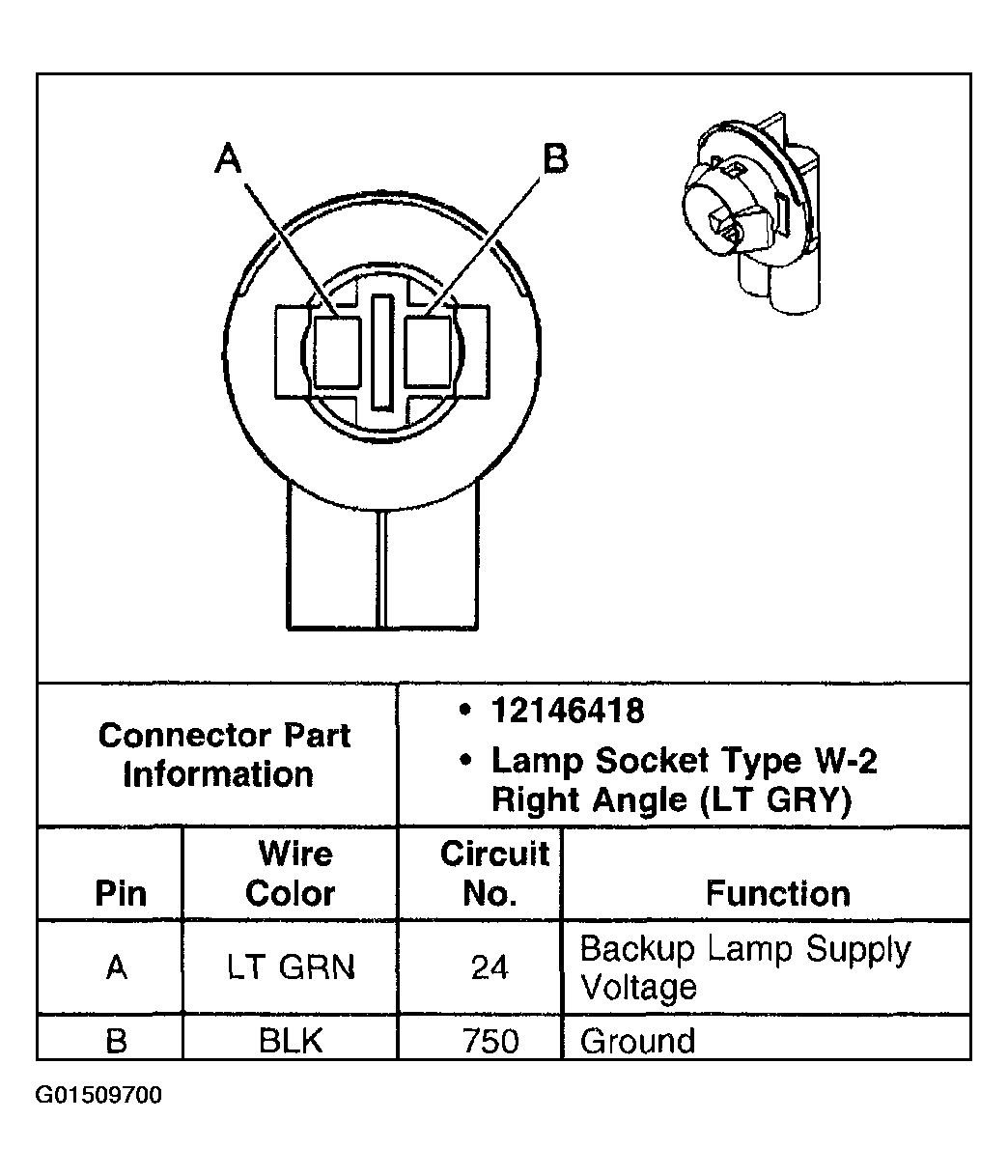

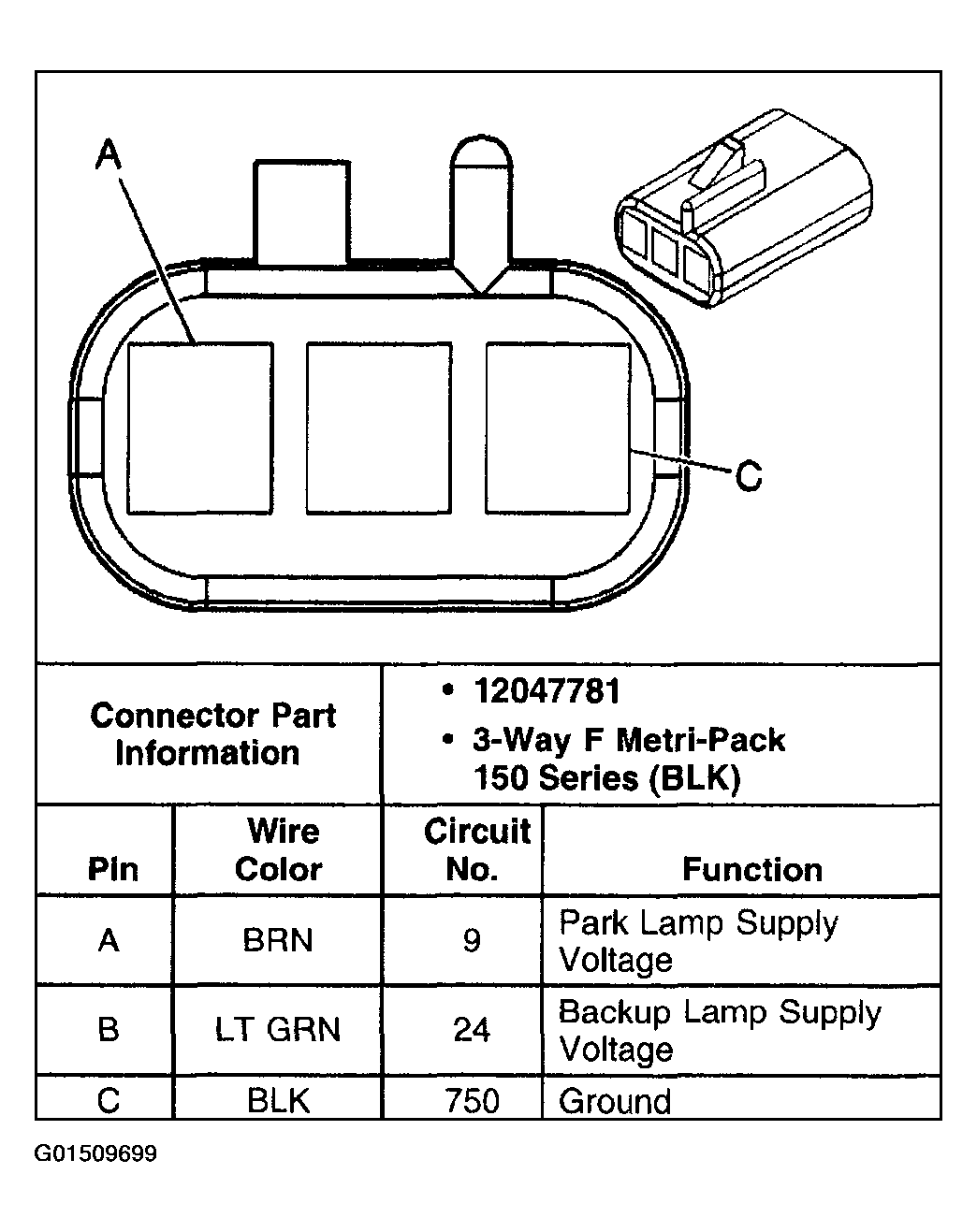

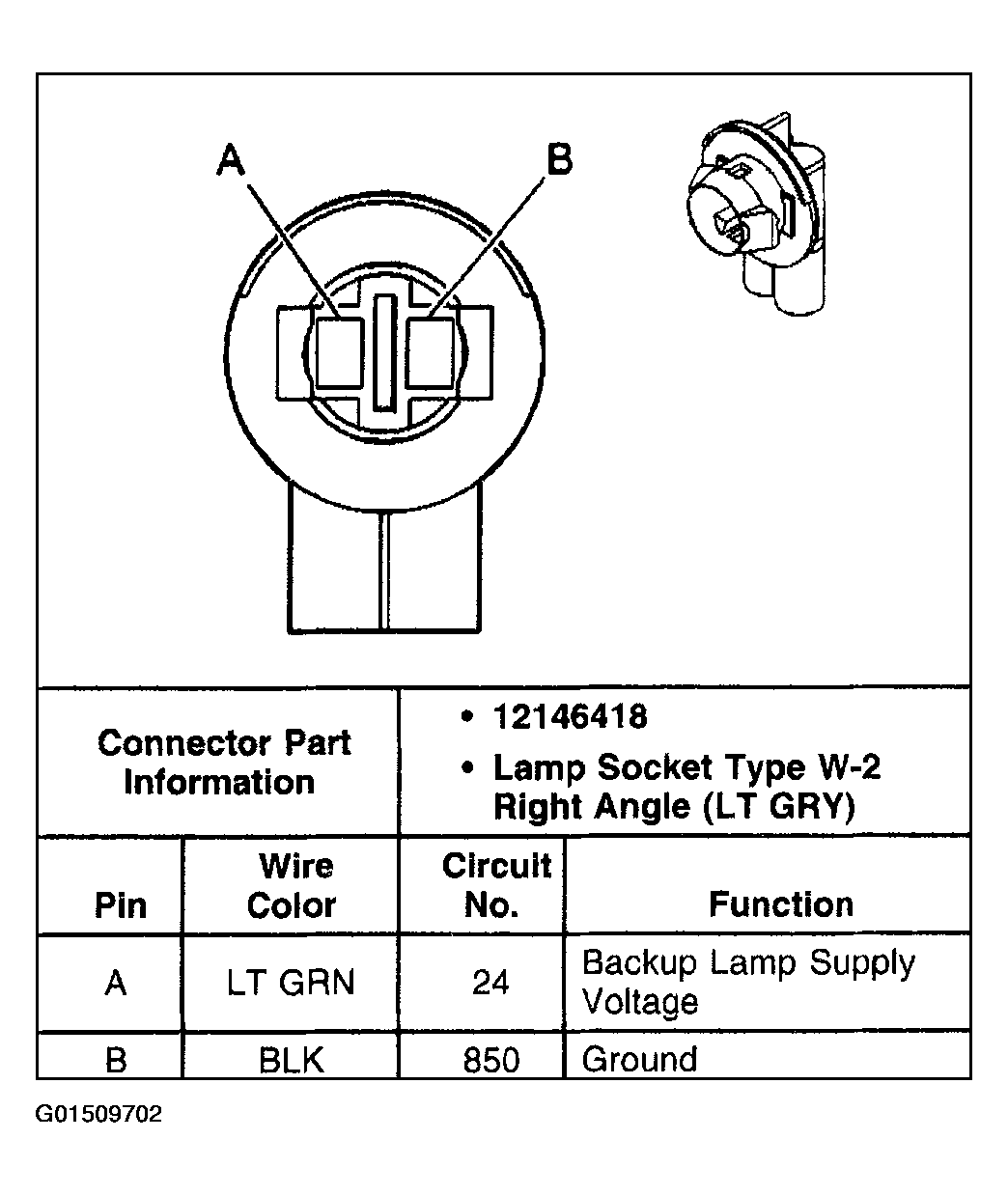

Fig 6: Identifying Backup Lamp - Left Connector Terminal (Oldsmobile)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying Backup Lamp - Left Connector Terminal (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying Backup Lamp - Right Connector Terminal (Oldsmobile)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Identifying Backup Lamp - Right Connector Terminal (Pontiac)
Courtesy of GENERAL MOTORS CORP.

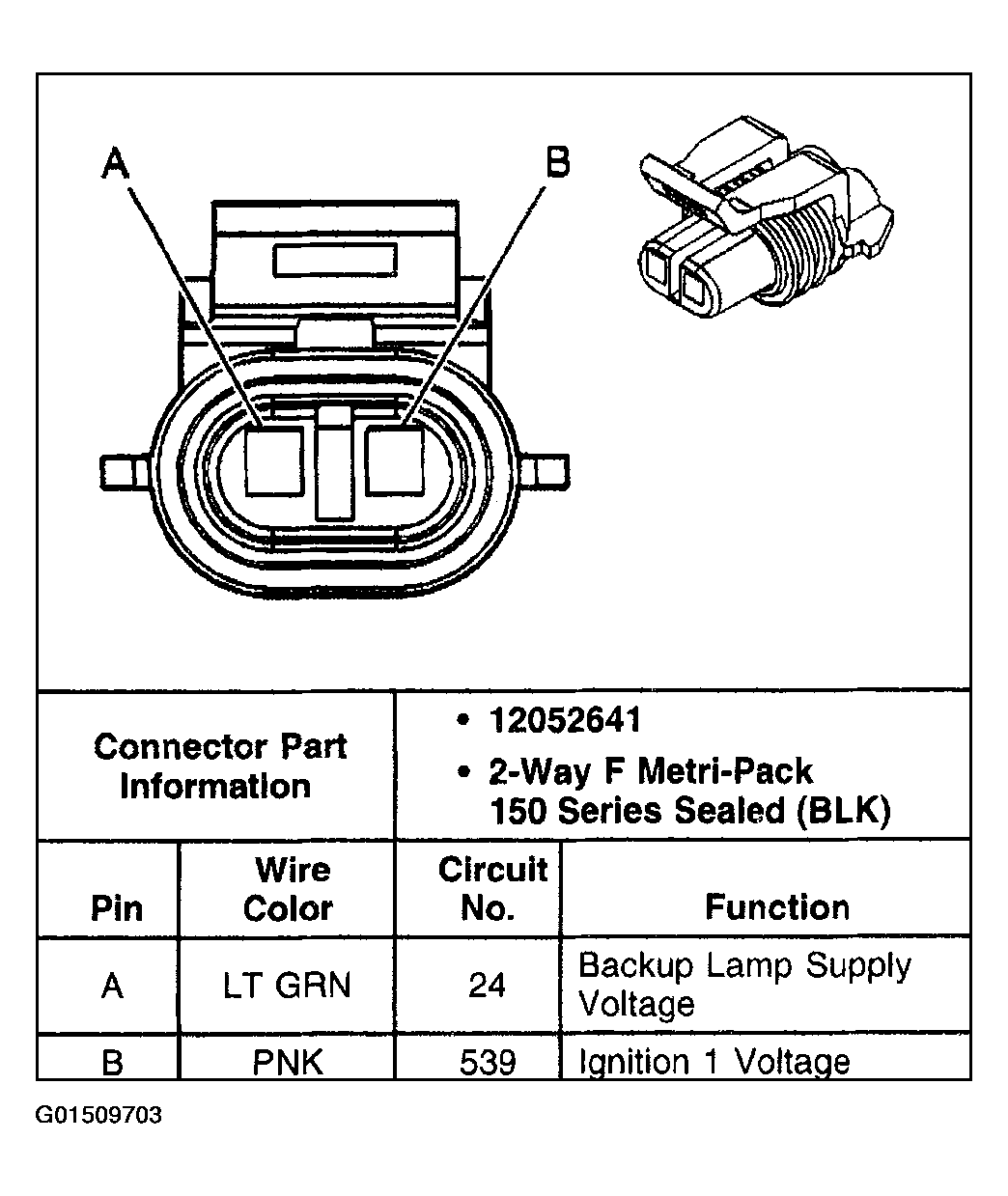

Fig 10: Identifying Backup Lamp Switch Connector Terminal
Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying Center High Mounted Stop Lamp (CHMSL) Connector Terminal
Courtesy of GENERAL MOTORS CORP.

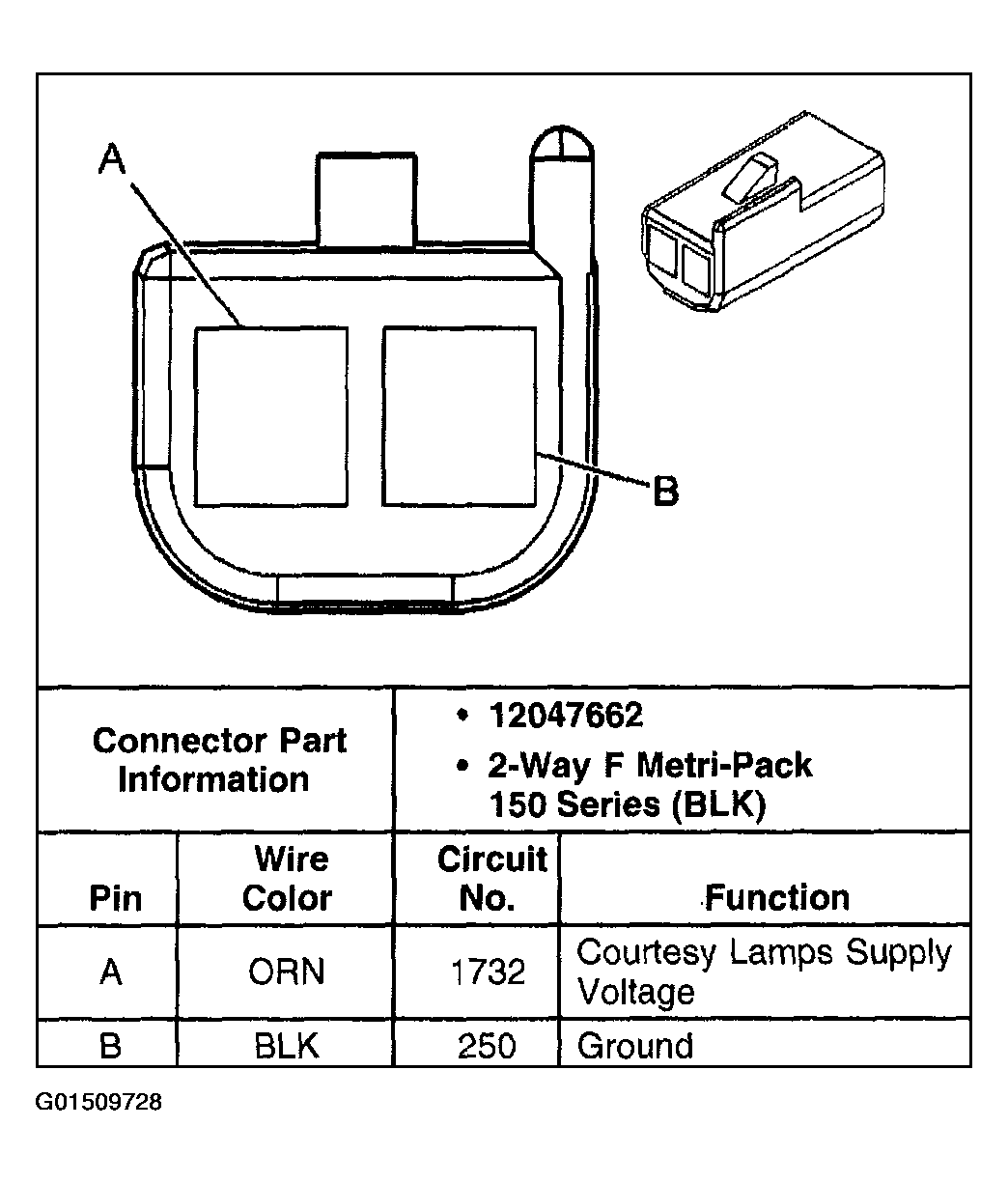

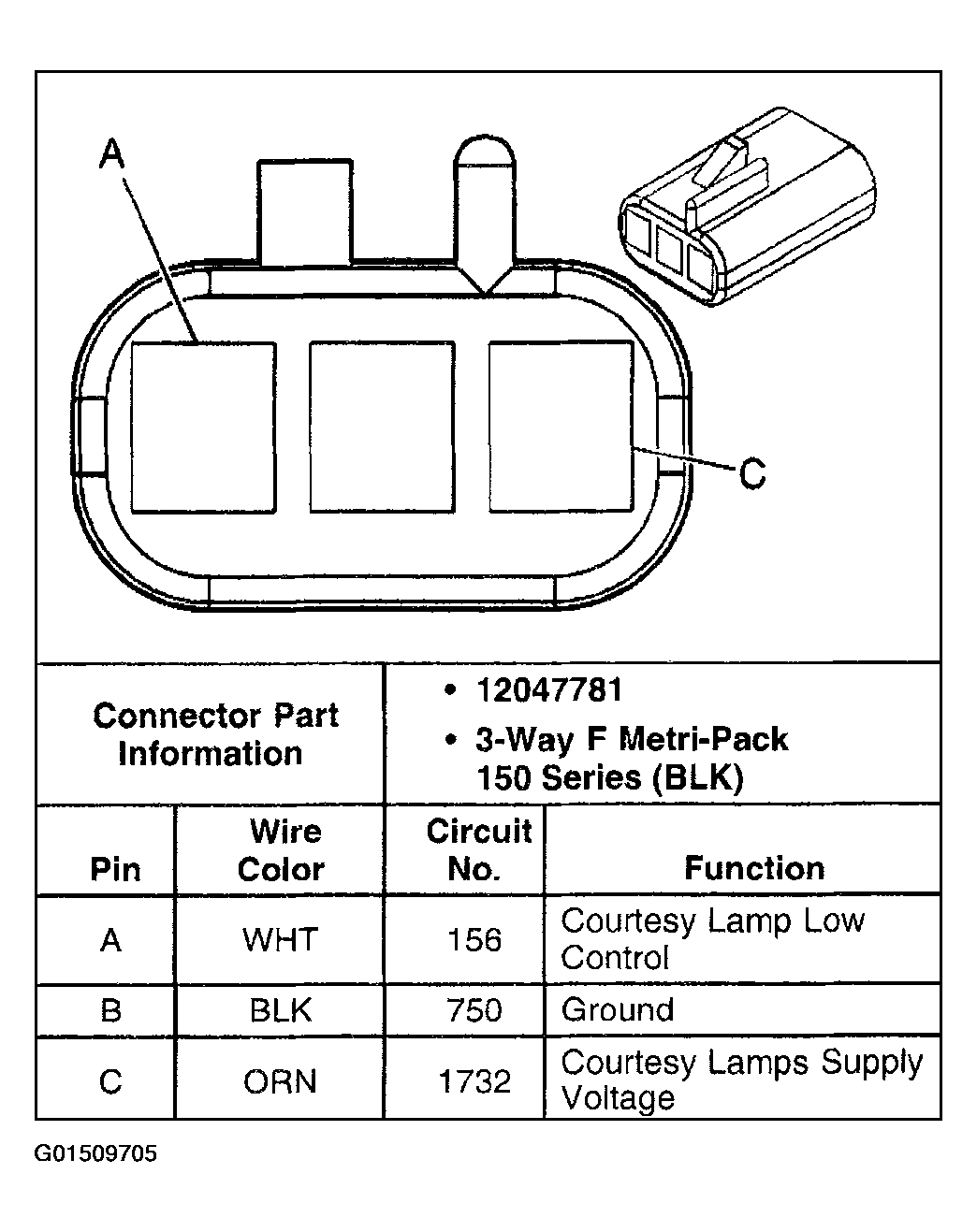

Fig 12: Identifying Dome Lamp Connector Terminal
Courtesy of GENERAL MOTORS CORP.

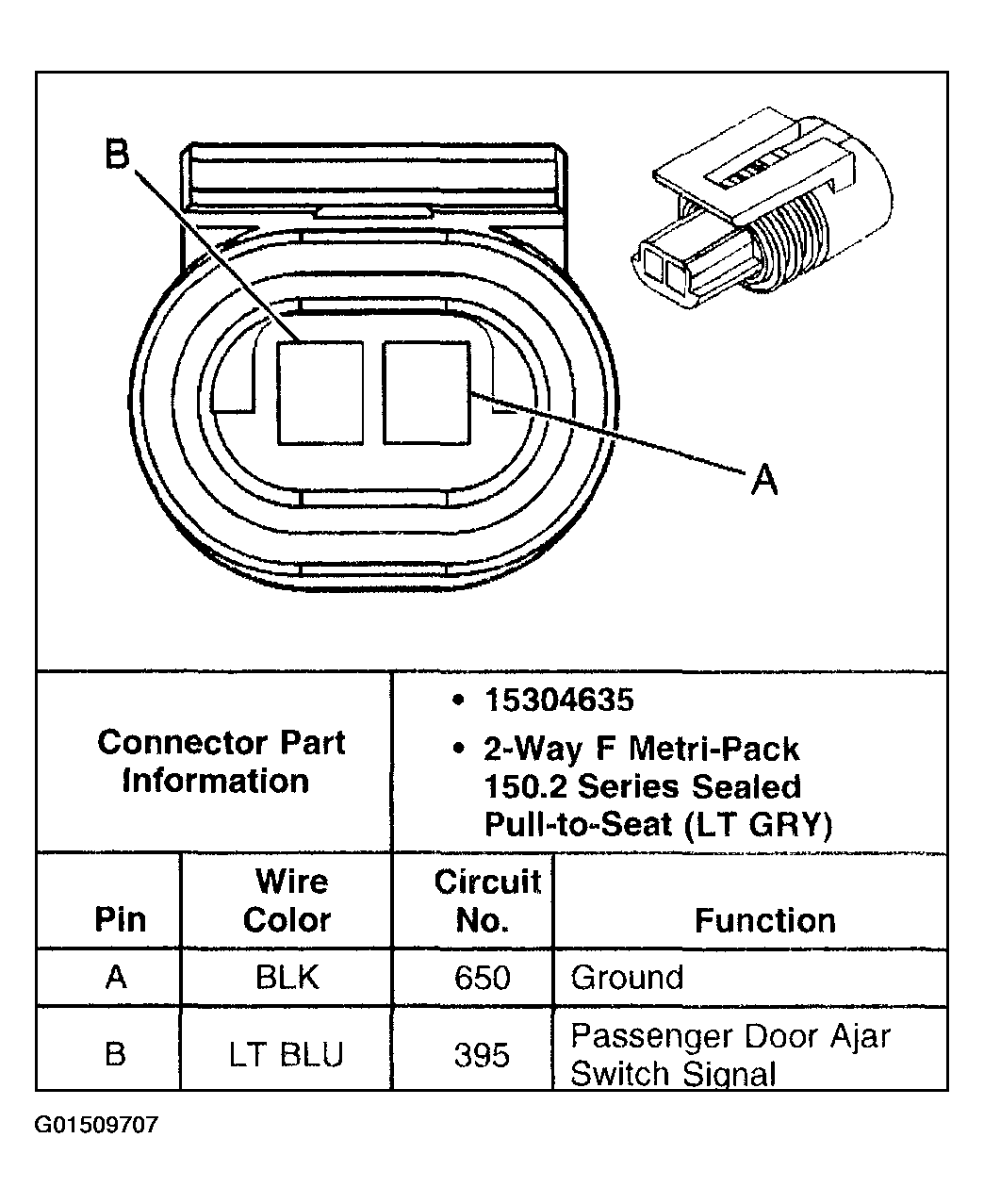

Fig 13: Identifying Door Ajar Switch - LR Connector Terminal
Courtesy of GENERAL MOTORS CORP.

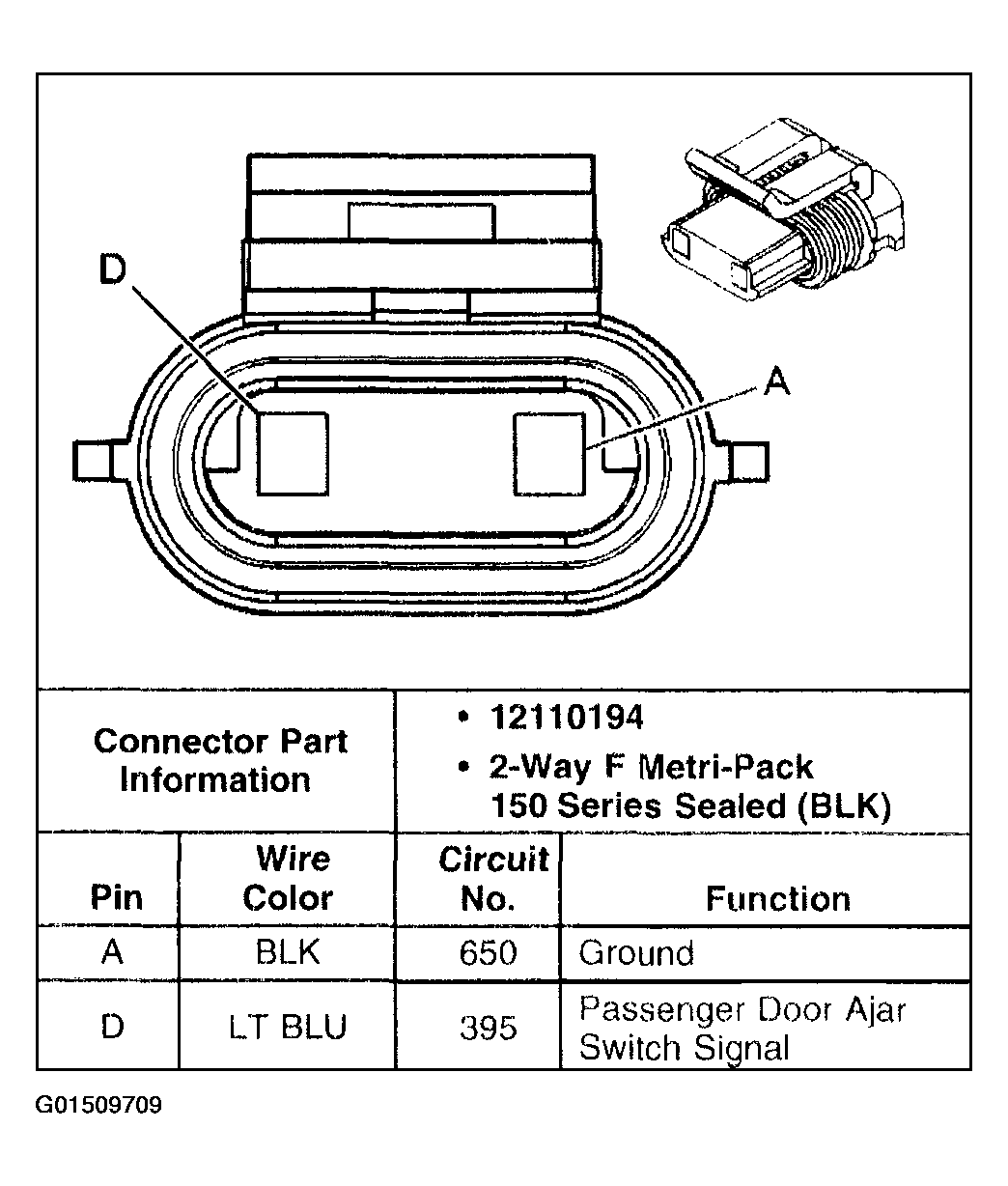

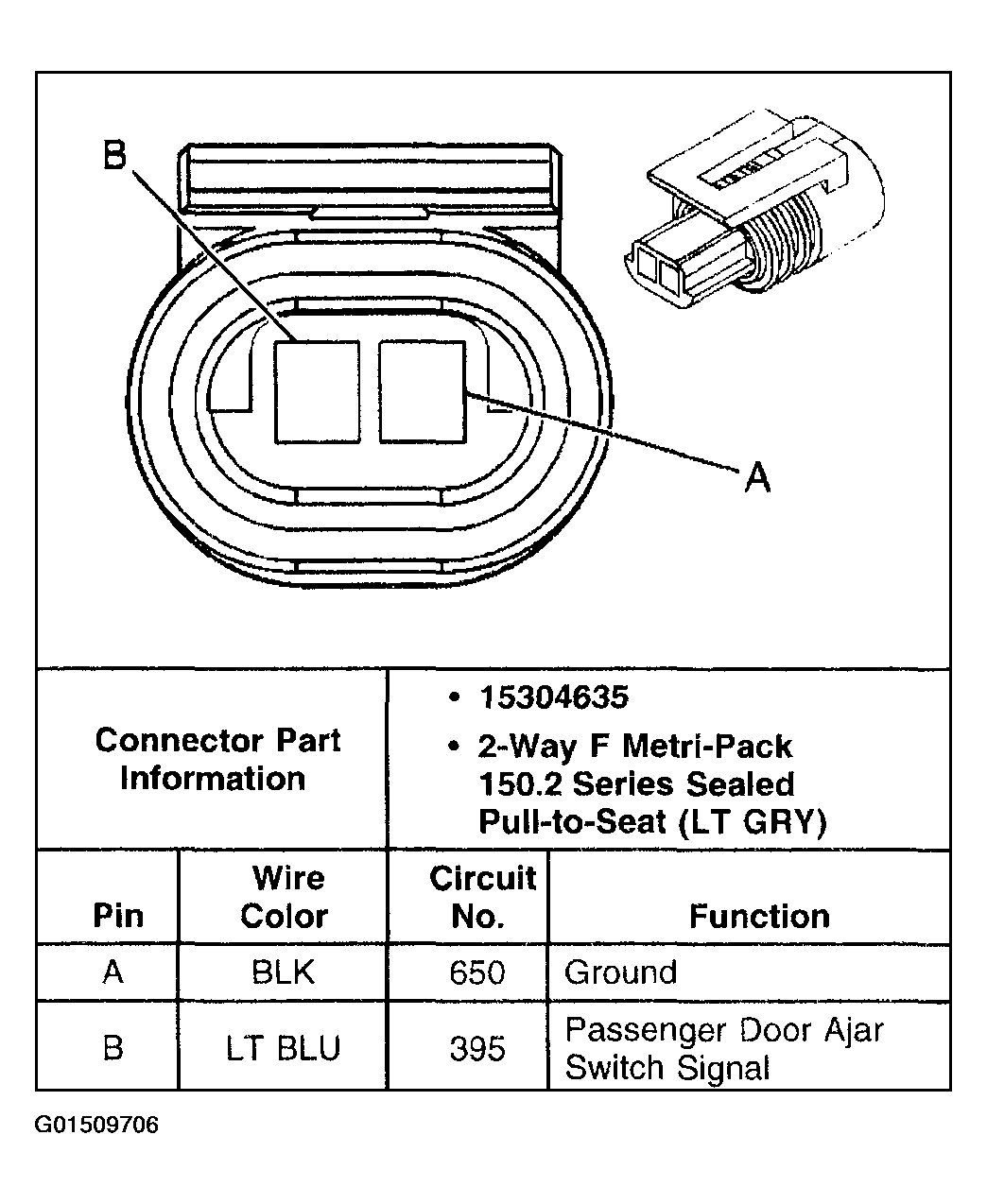

Fig 14: Identifying Door Ajar Switch - RR Connector Terminal
Courtesy of GENERAL MOTORS CORP.

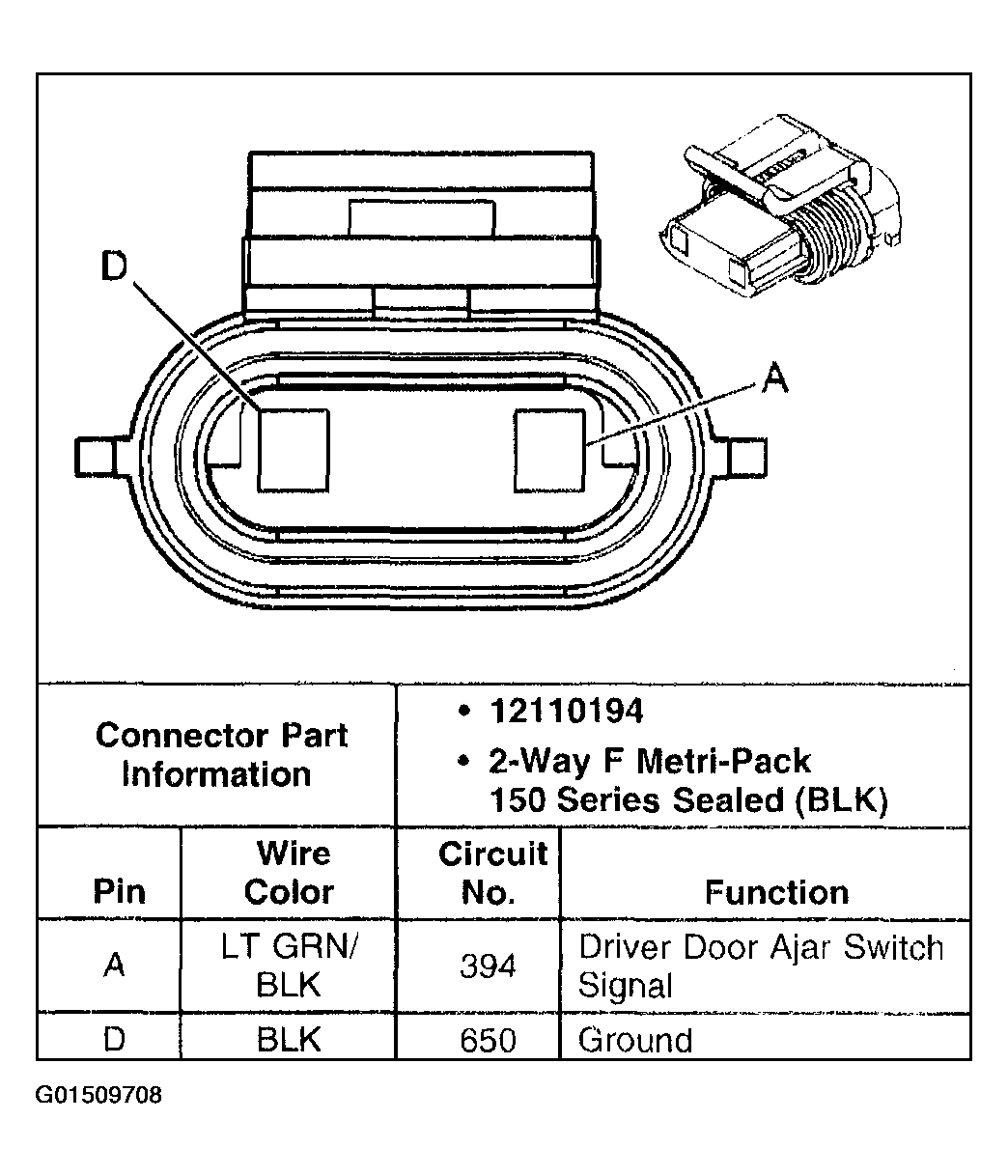

Fig 15: Identifying Door Jamb Switch - LF Connector Terminal
Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying Door Jamb Switch - RF Connector Terminal
Courtesy of GENERAL MOTORS CORP.

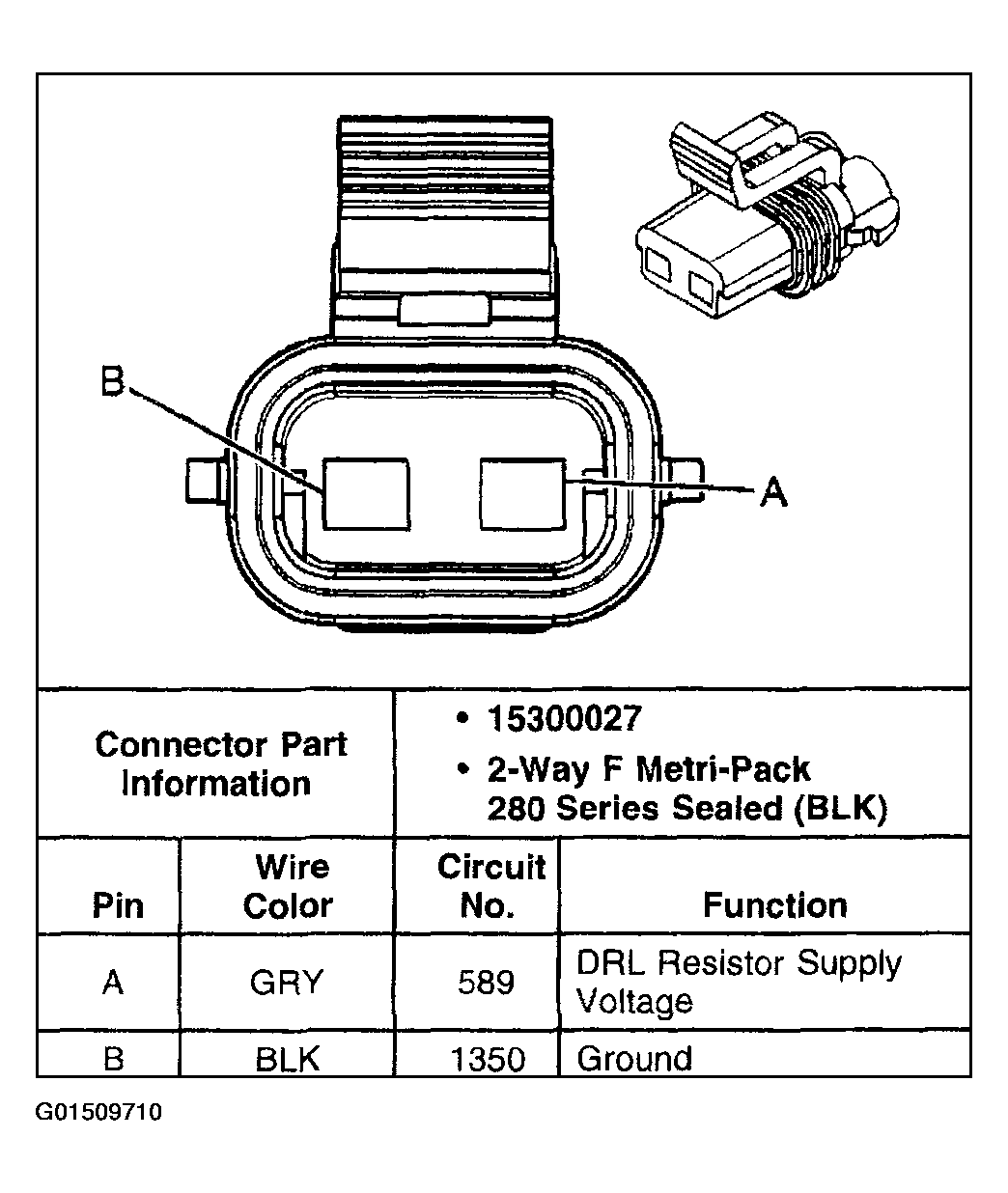

Fig 17: Identifying Daytime Running Lamps (DRL) Resistor Connector Terminal
Courtesy of GENERAL MOTORS CORP.

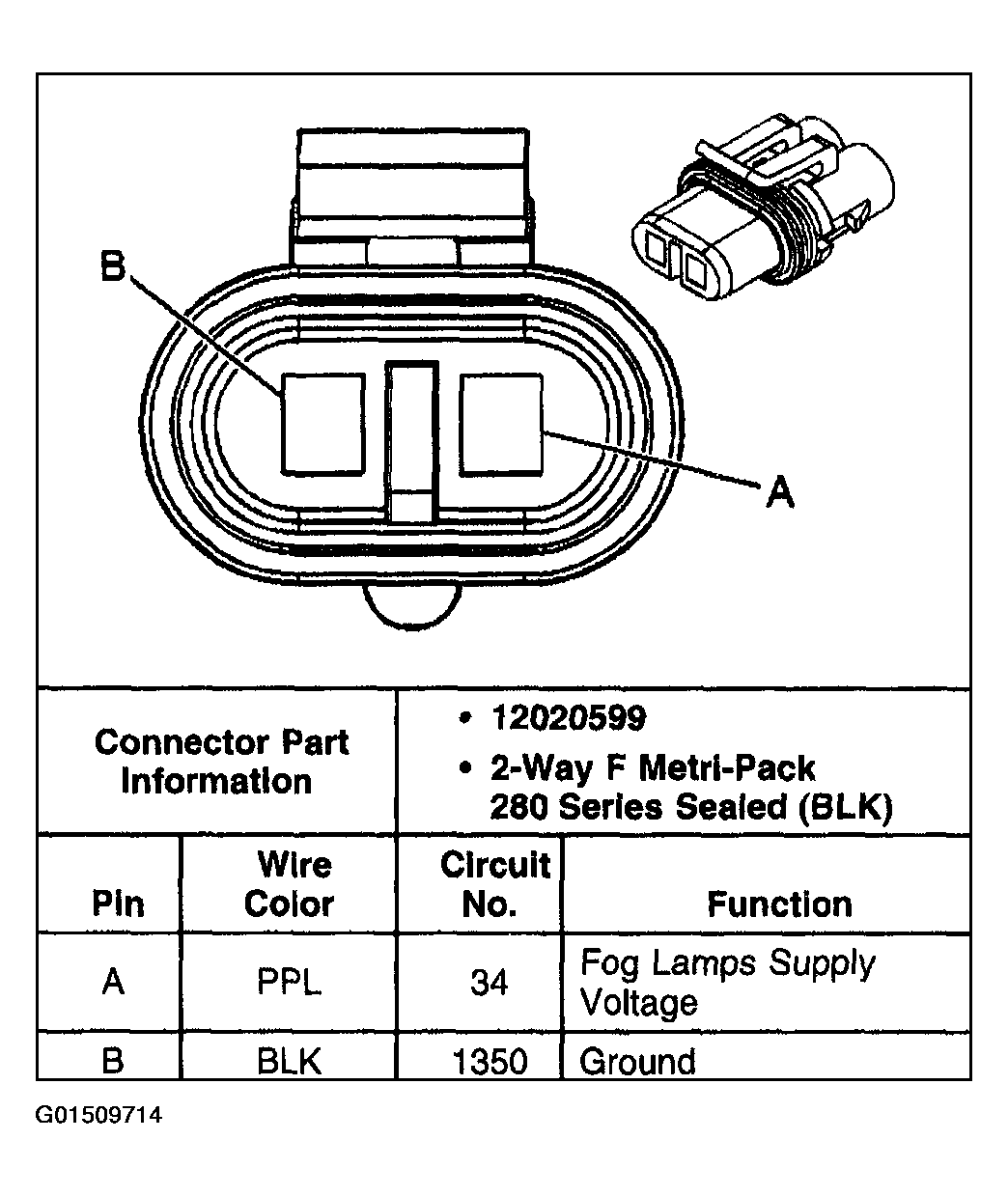

Fig 18: Identifying Fog Lamp - LF Connector Terminal (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Identifying Fog Lamp - LR Connector Terminal (Export Only)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Identifying Fog Lamp - RF Connector Terminal (Oldsmobile)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Identifying Fog Lamp - RF Connector Terminal (Pontiac)
Courtesy of GENERAL MOTORS CORP.

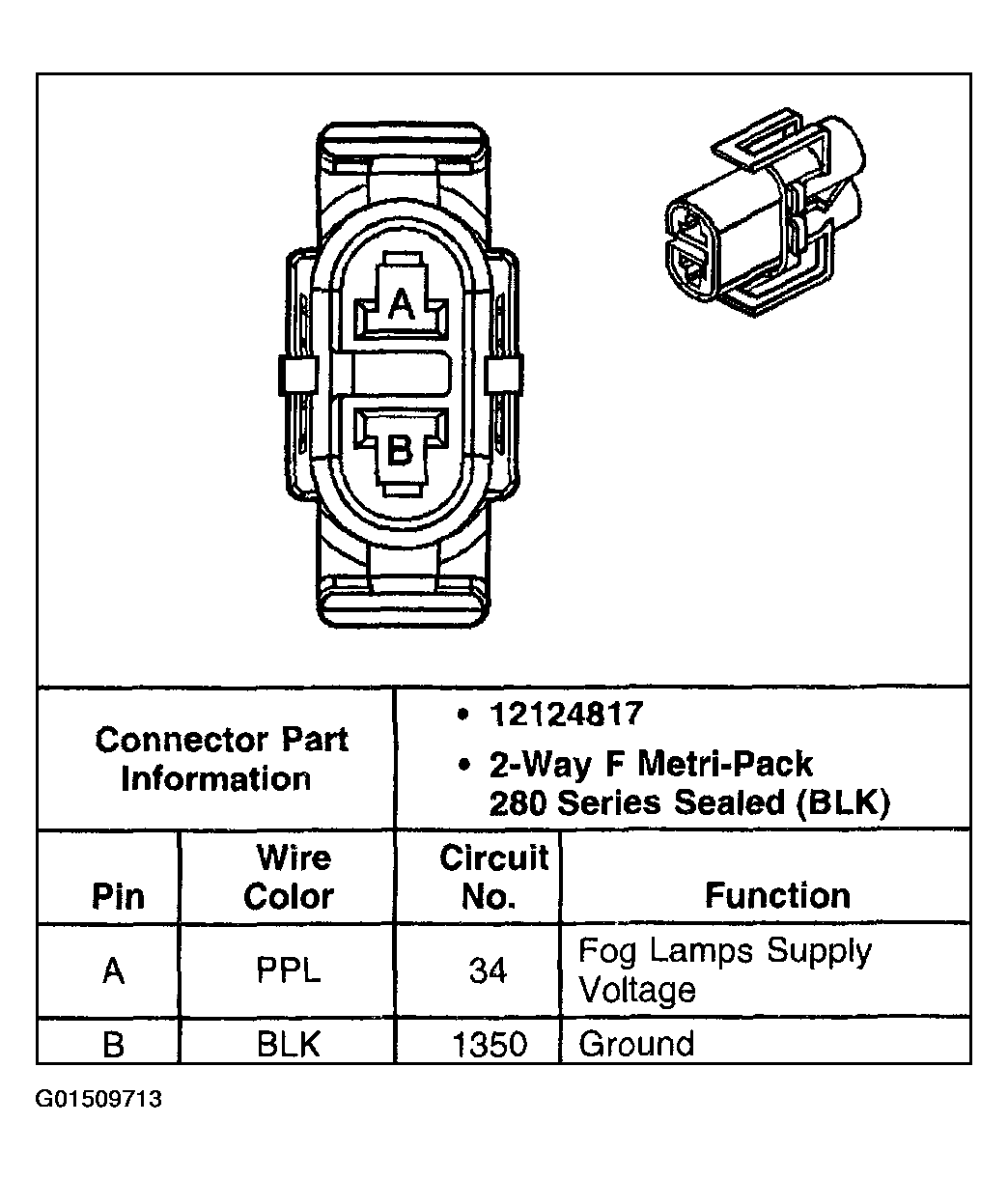

Fig 22: Identifying Fog Lamp - RR Connector Terminal (Export Only)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Identifying Fog Lamp Switch Connector Terminal
Courtesy of GENERAL MOTORS CORP.

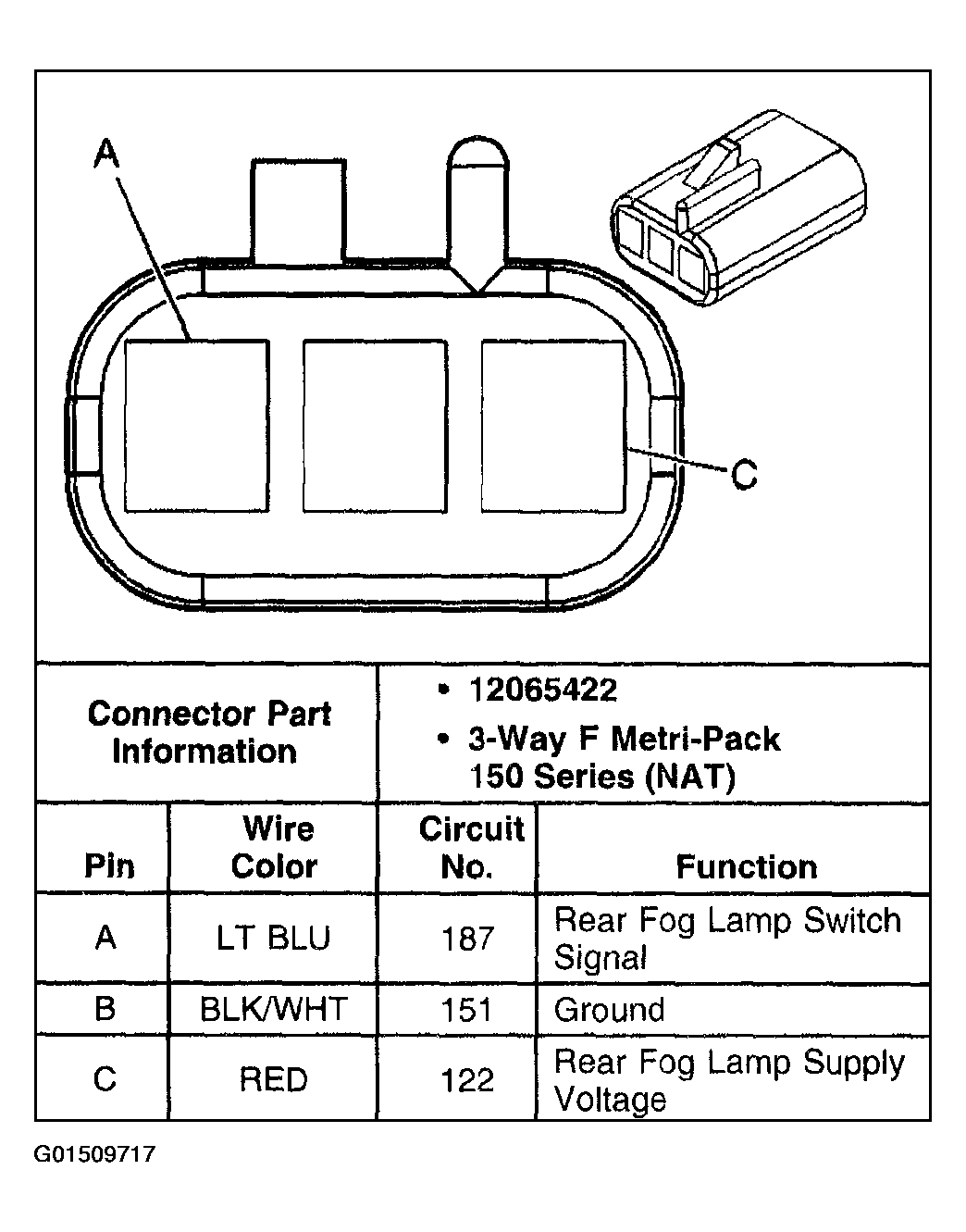

Fig 24: Identifying Fog Lamp Switch - Rear Connector Terminal (Export Only)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Identifying Hazard Switch Connector Terminal
Courtesy of GENERAL MOTORS CORP.

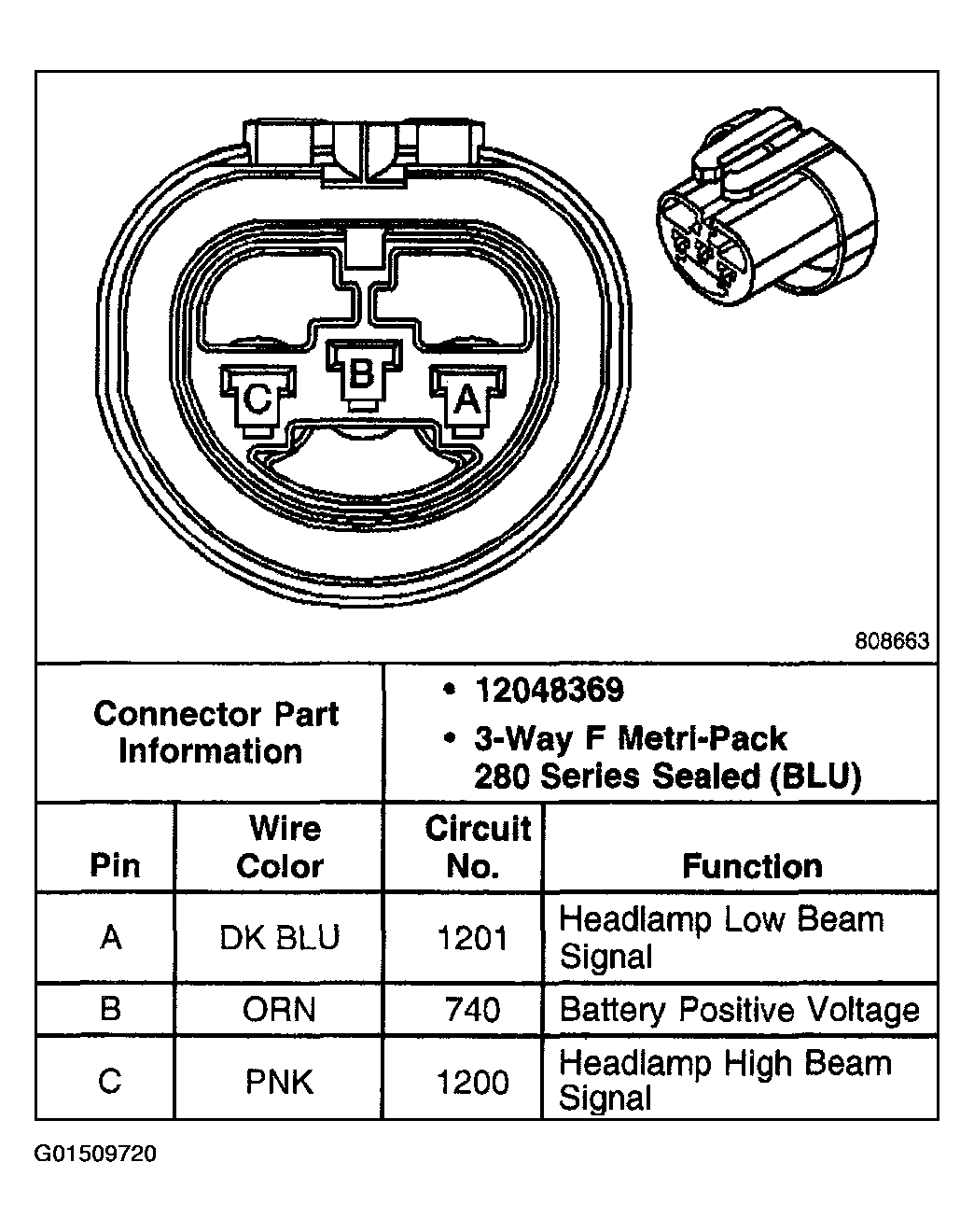

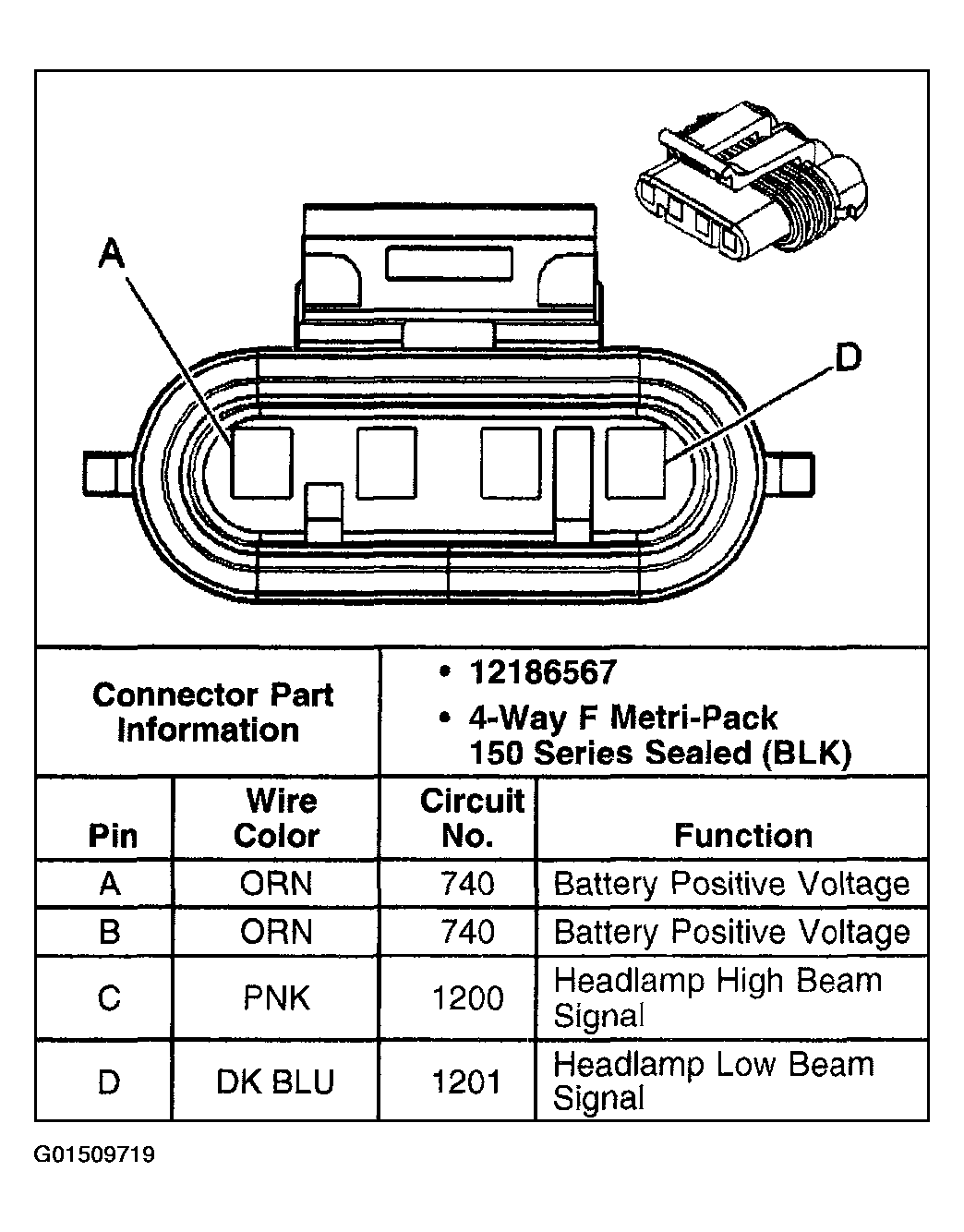

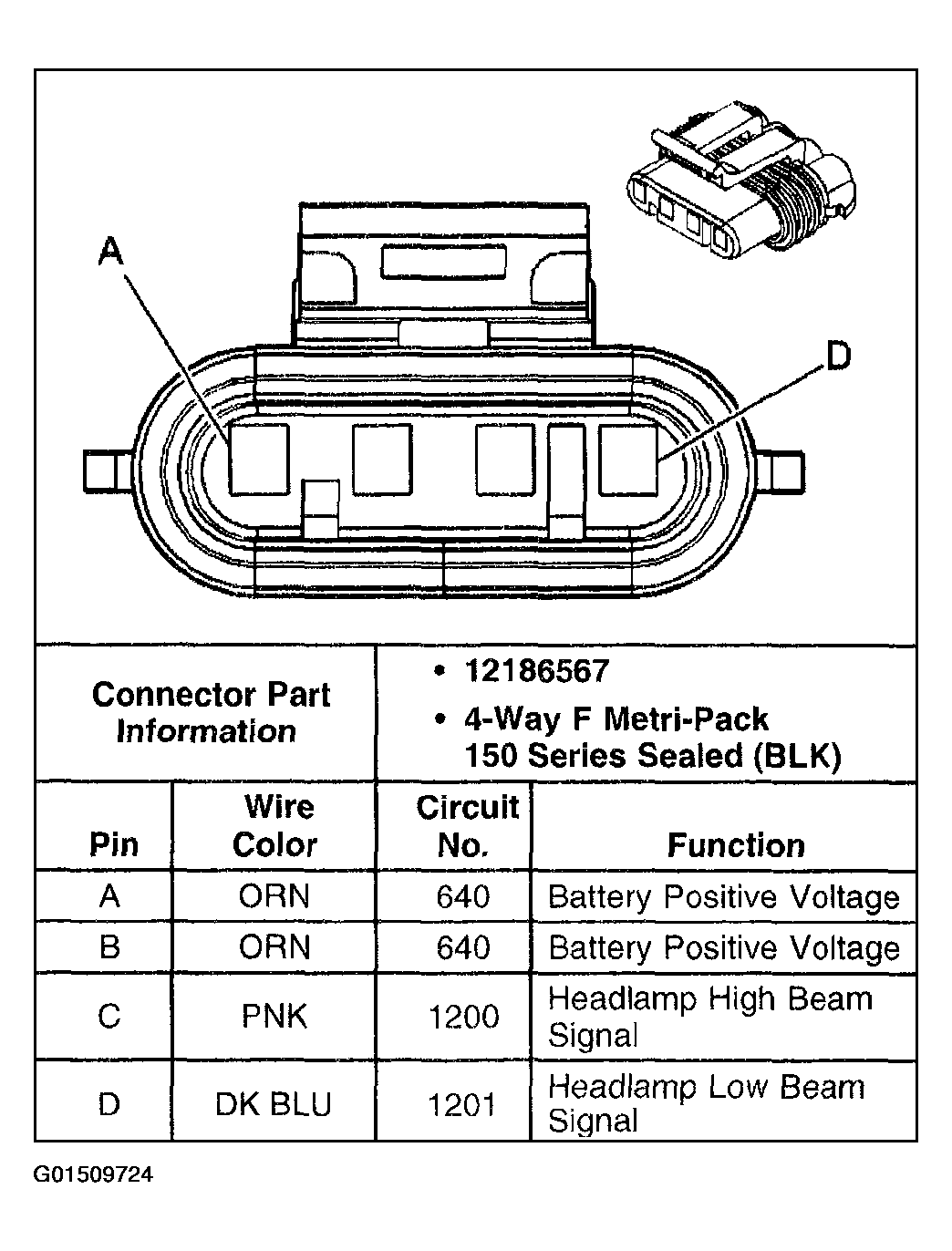

Fig 26: Identifying Headlamp - Left Connector Terminal (Oldsmobile)
Courtesy of GENERAL MOTORS CORP.

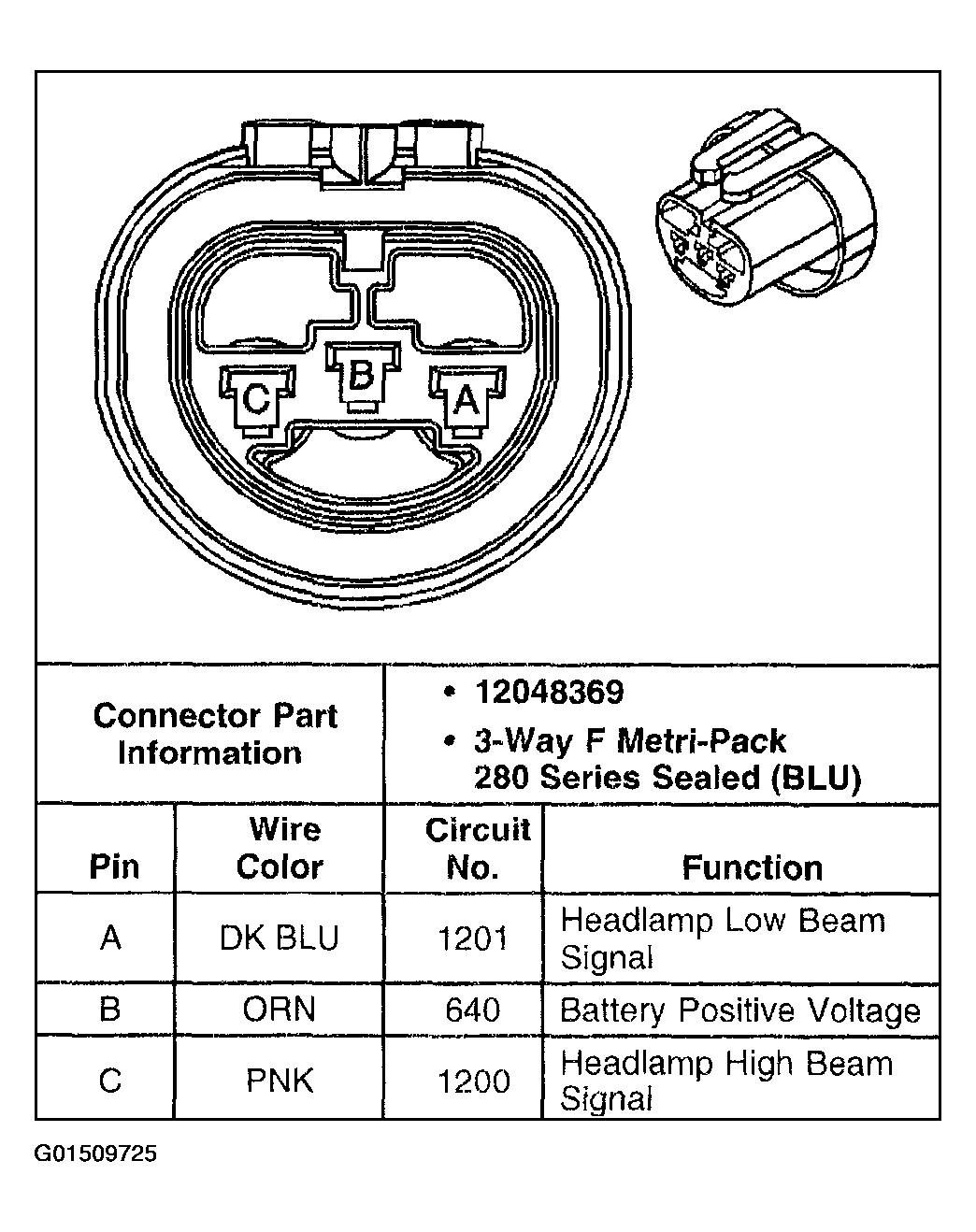

Fig 27: Identifying Headlamp - Left Connector Terminal (Pontiac)
Courtesy of GENERAL MOTORS CORP.

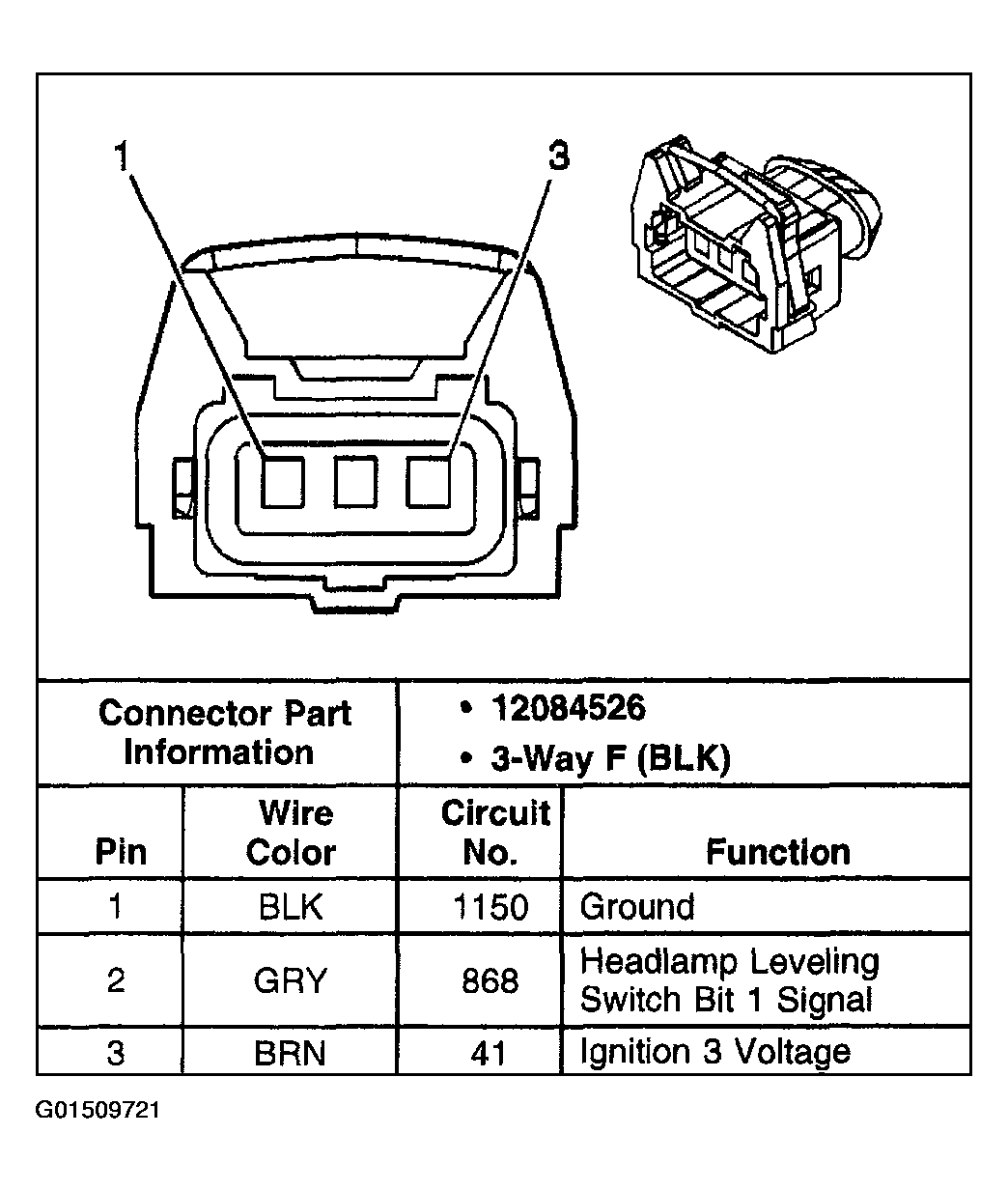

Fig 28: Identifying Headlamp Leveling Actuator Motor - Left Connector Terminal (Export Only)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Identifying Headlamp Leveling Actuator Motor - Right Connector Terminal (Export Only)
Courtesy of GENERAL MOTORS CORP.

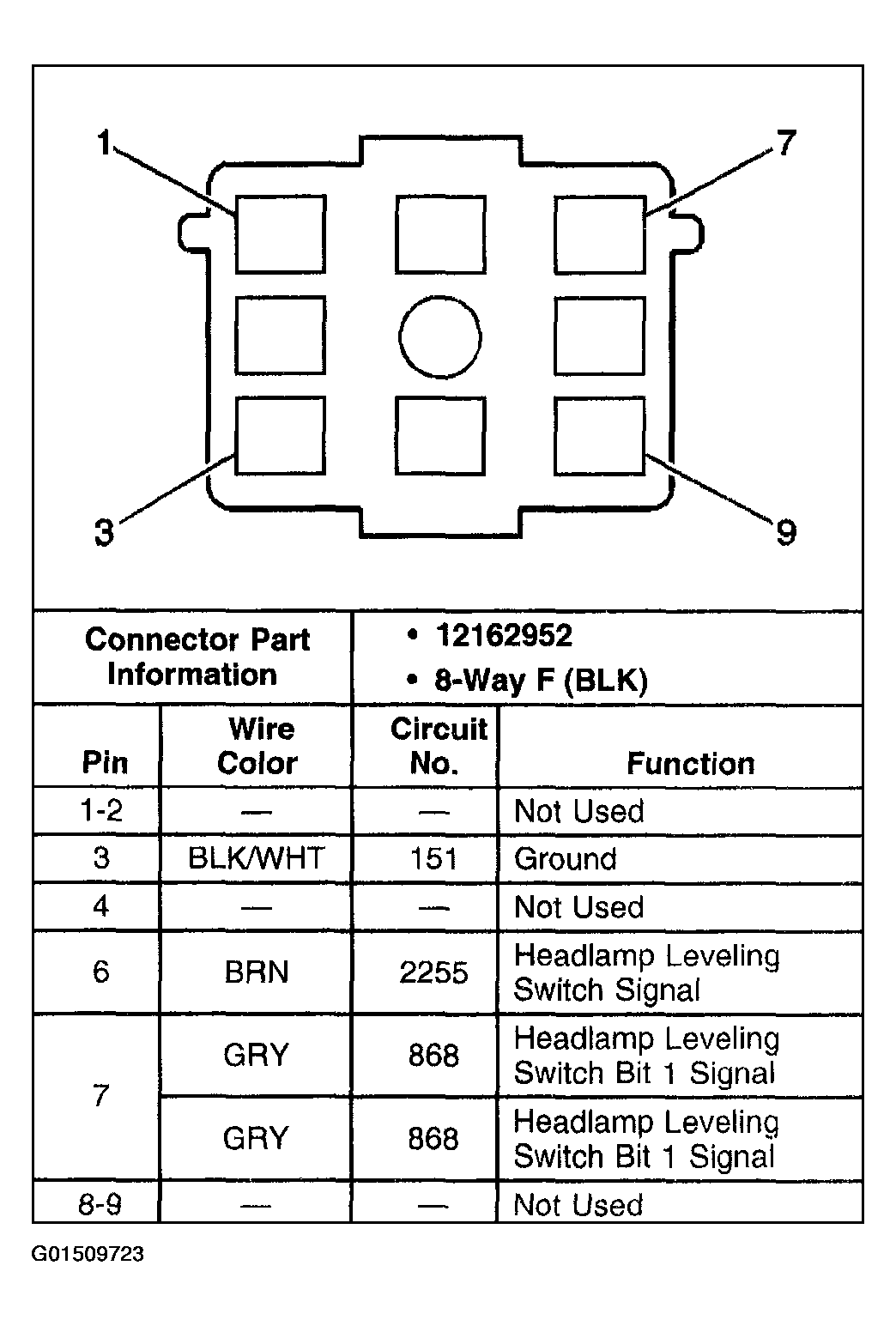

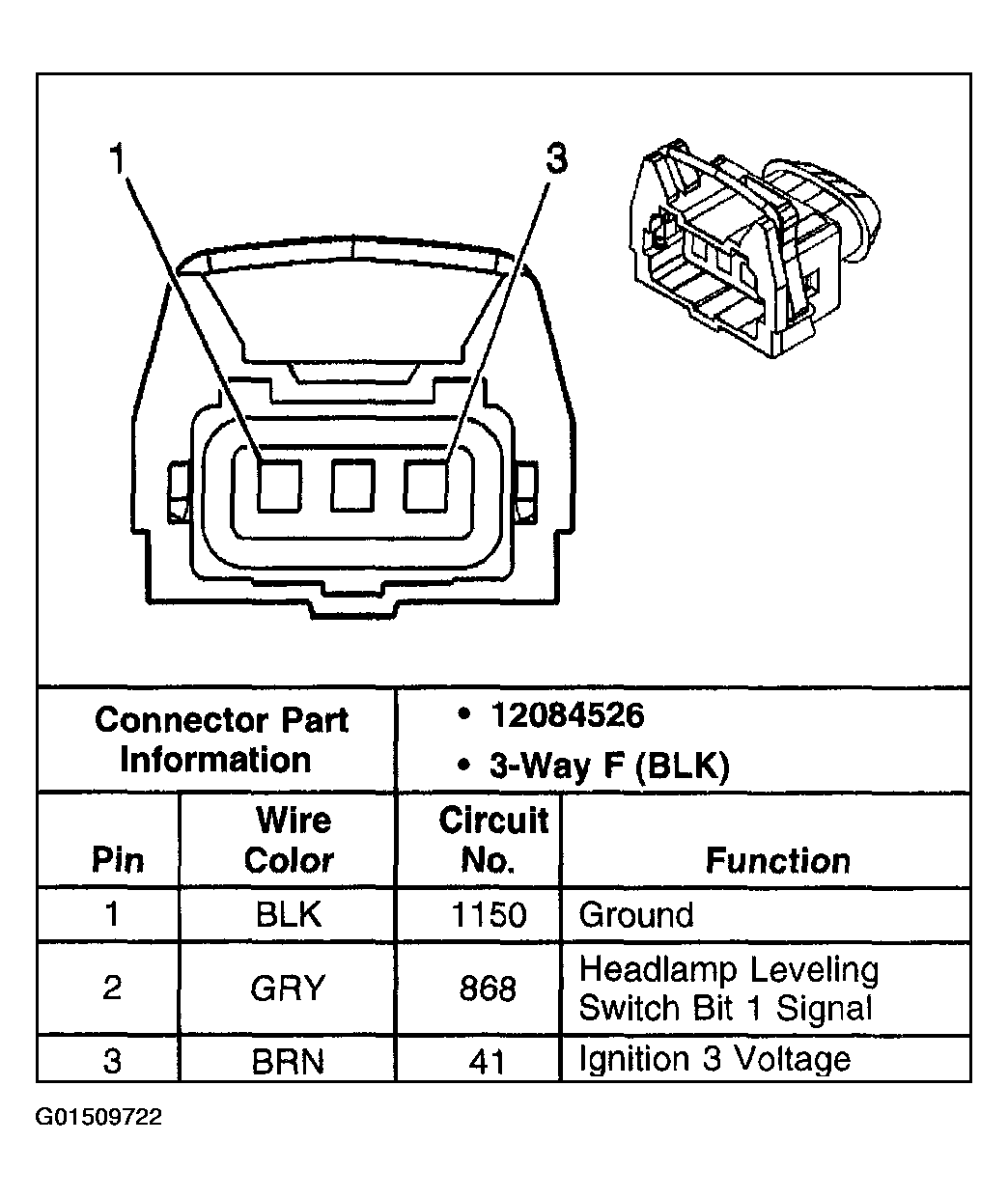

Fig 30: Identifying Headlamp Leveling Switch Connector Terminal (Export Only)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Identifying Headlamp - Right Connector Terminal (Oldsmobile)
Courtesy of GENERAL MOTORS CORP.
Fig 32: Identifying Headlamp - Right Connector Terminal (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Identifying Inside Rearview Mirror w/Reading Lamps Connector Terminal
Courtesy of GENERAL MOTORS CORP.
Fig 34: Identifying I/P Compartment Lamp Connector Terminal (Oldsmobile Only)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Identifying I/P Compartment Lamp/Switch Connector Terminal
Courtesy of GENERAL MOTORS CORP.

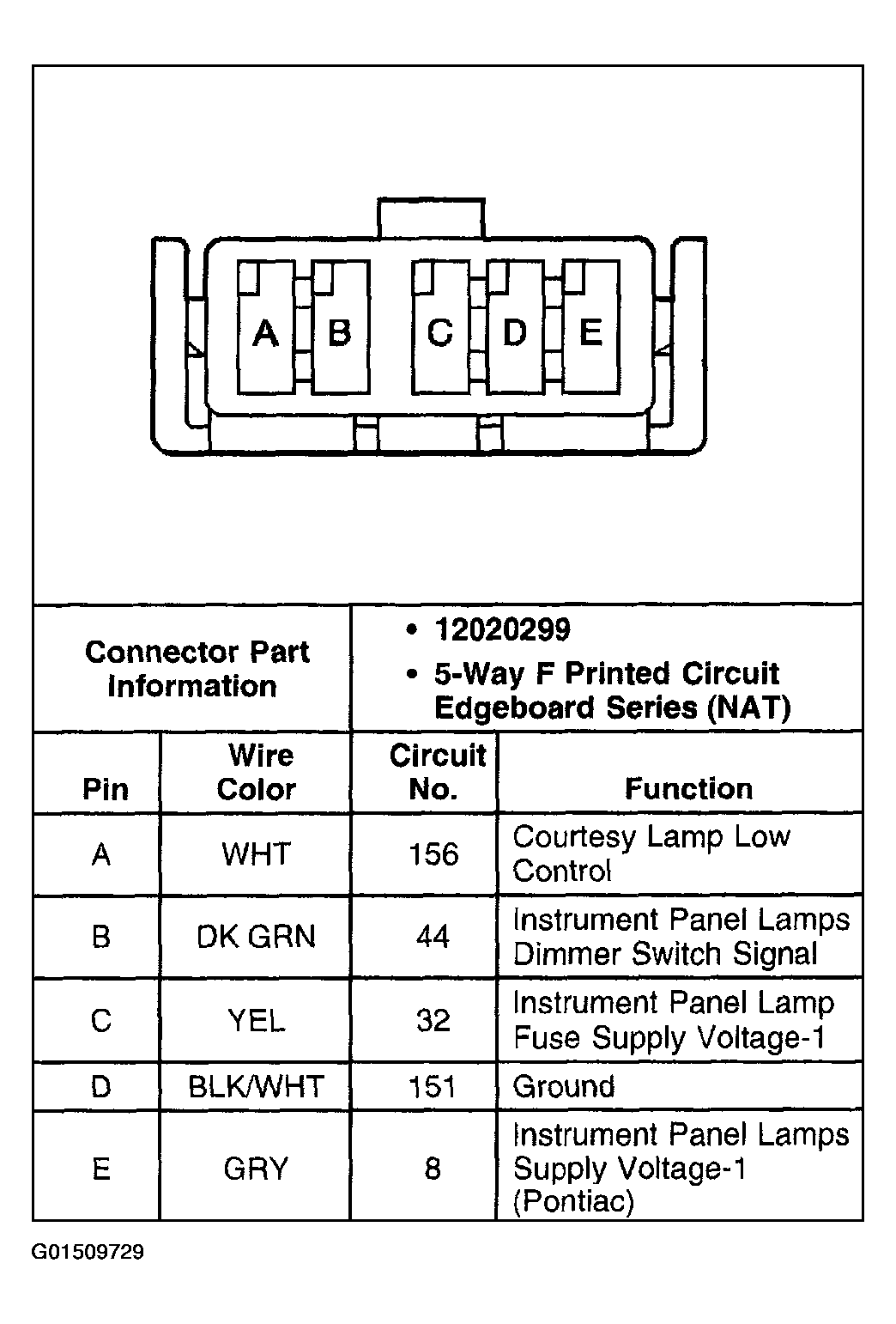

Fig 36: Identifying I/P Dimmer Switch Connector Terminal
Courtesy of GENERAL MOTORS CORP.

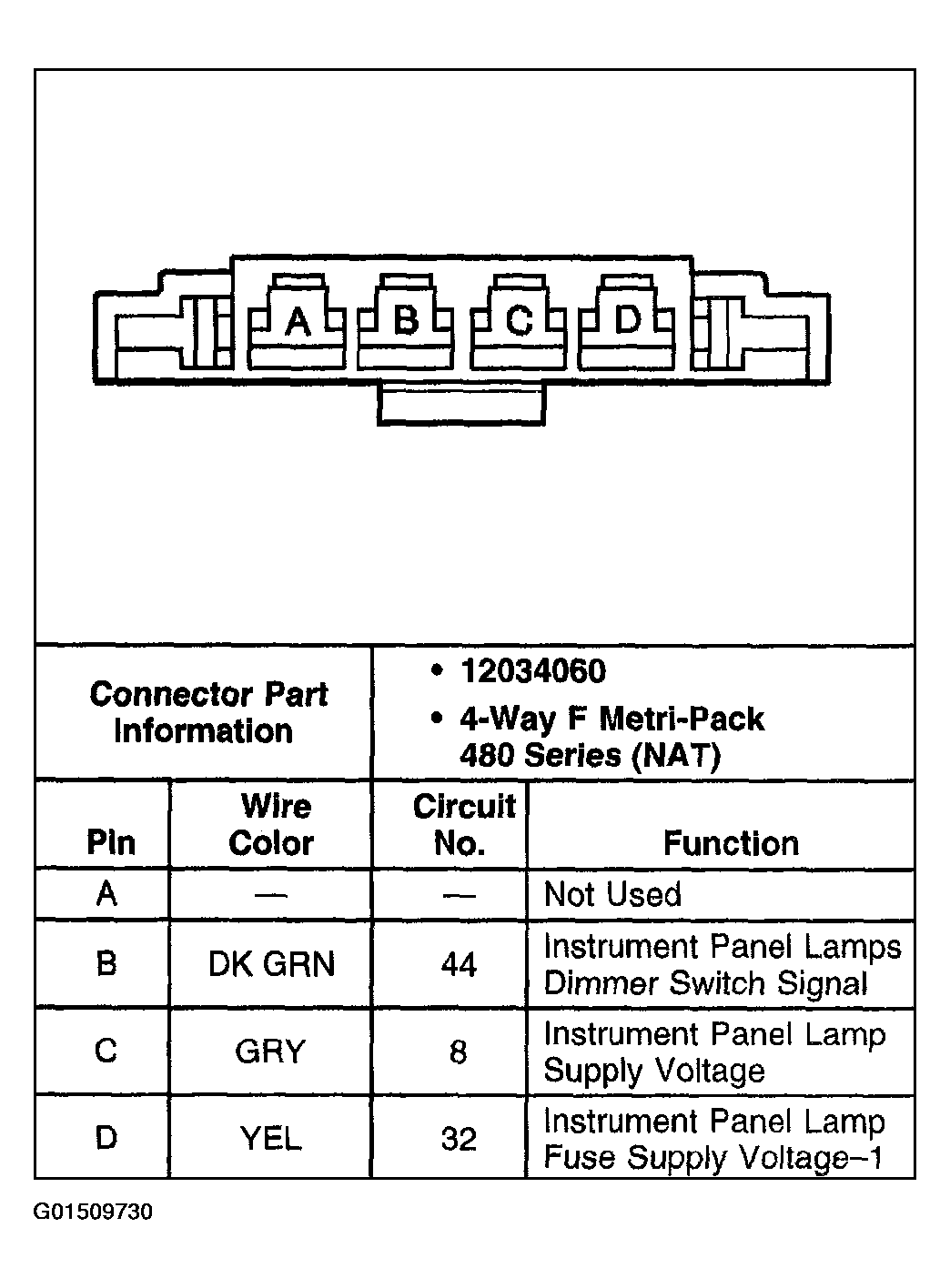

Fig 37: Identifying I/P Dimming Module Connector Terminal
Courtesy of GENERAL MOTORS CORP.

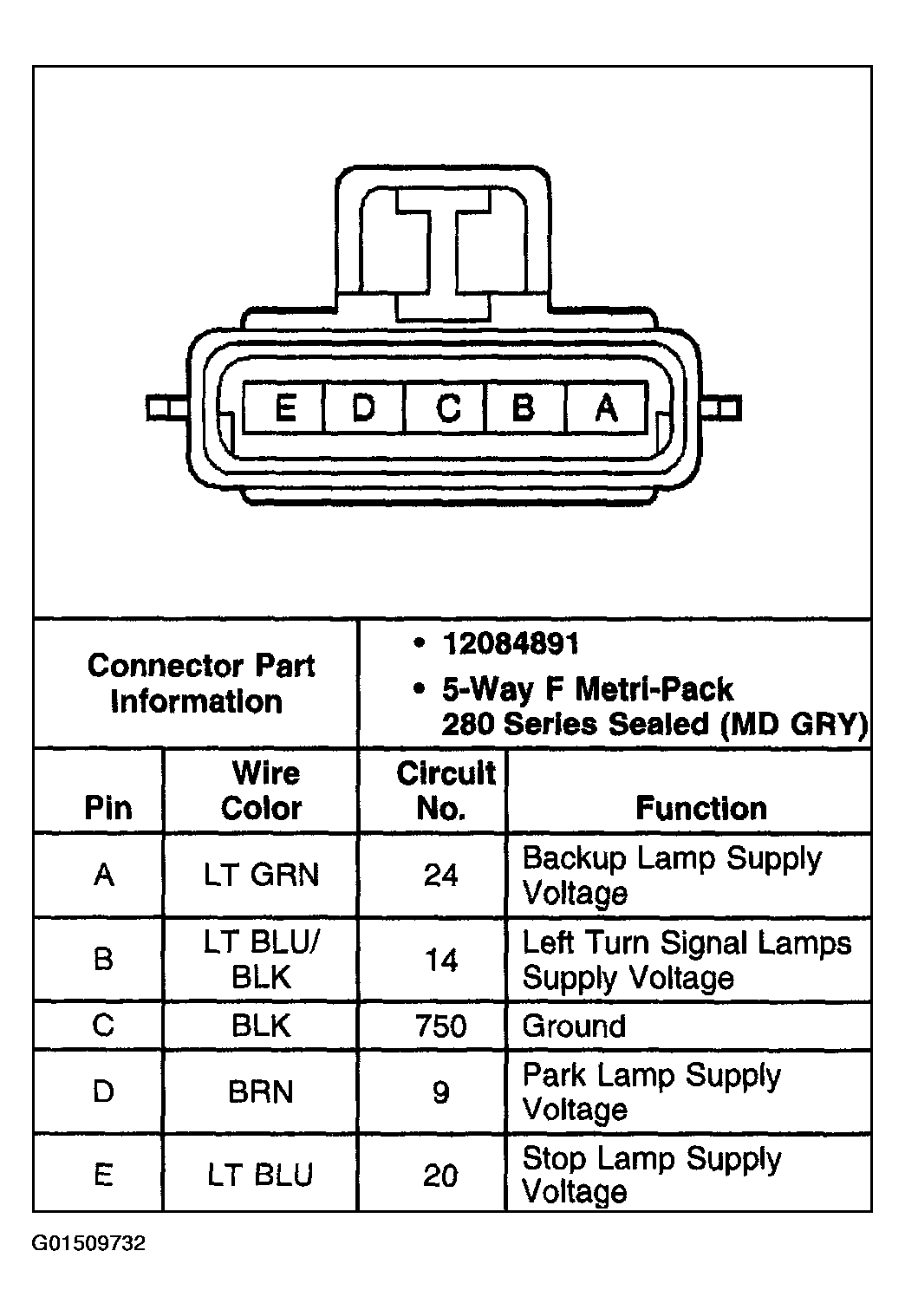

Fig 38: Identifying Lamp Assembly - LR Connector Terminal (Oldsmobile)
Courtesy of GENERAL MOTORS CORP.
Fig 39: Identifying Lamp Assembly - LR Connector Terminal (Pontiac)
Courtesy of GENERAL MOTORS CORP.

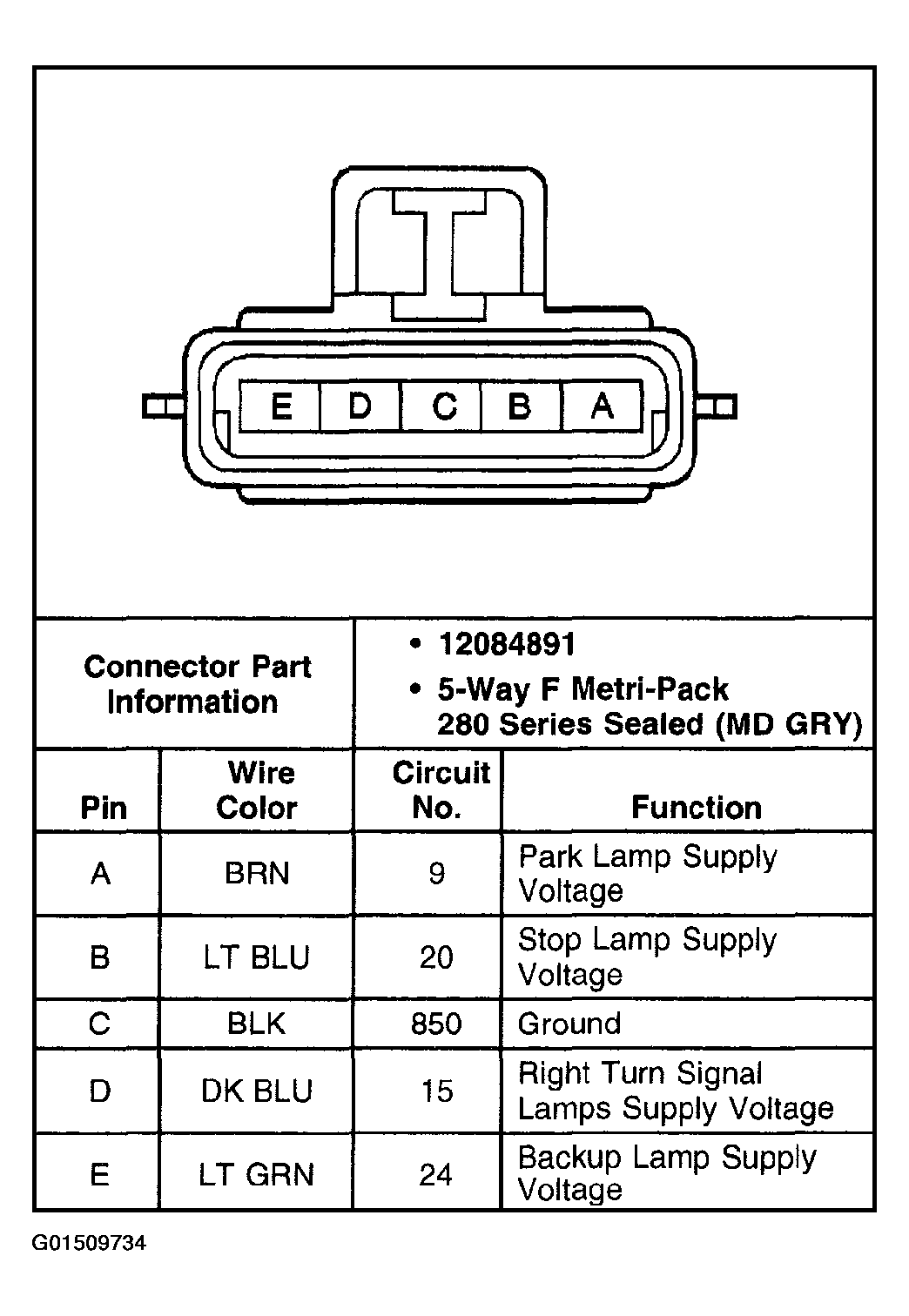

Fig 40: Identifying Lamp Assembly - RR Connector Terminal (Oldsmobile)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Identifying Lamp Assembly - RR Connector Terminal (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Fig 42: Identifying License Lamp Connector Terminal (Oldsmobile)
Courtesy of GENERAL MOTORS CORP.
Fig 43: Identifying License Lamp Connector Terminal (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Fig 44: Identifying Marker Lamp - LF Connector Terminal
Courtesy of GENERAL MOTORS CORP.
Fig 45: Identifying Marker Lamp - RF Connector Terminal
Courtesy of GENERAL MOTORS CORP.
Fig 46: Identifying Park/Turn Signal Lamp - LF Connector Terminal
Courtesy of GENERAL MOTORS CORP.
Fig 47: Identifying Park/Turn Signal Lamp - RF Connector Terminal
Courtesy of GENERAL MOTORS CORP.

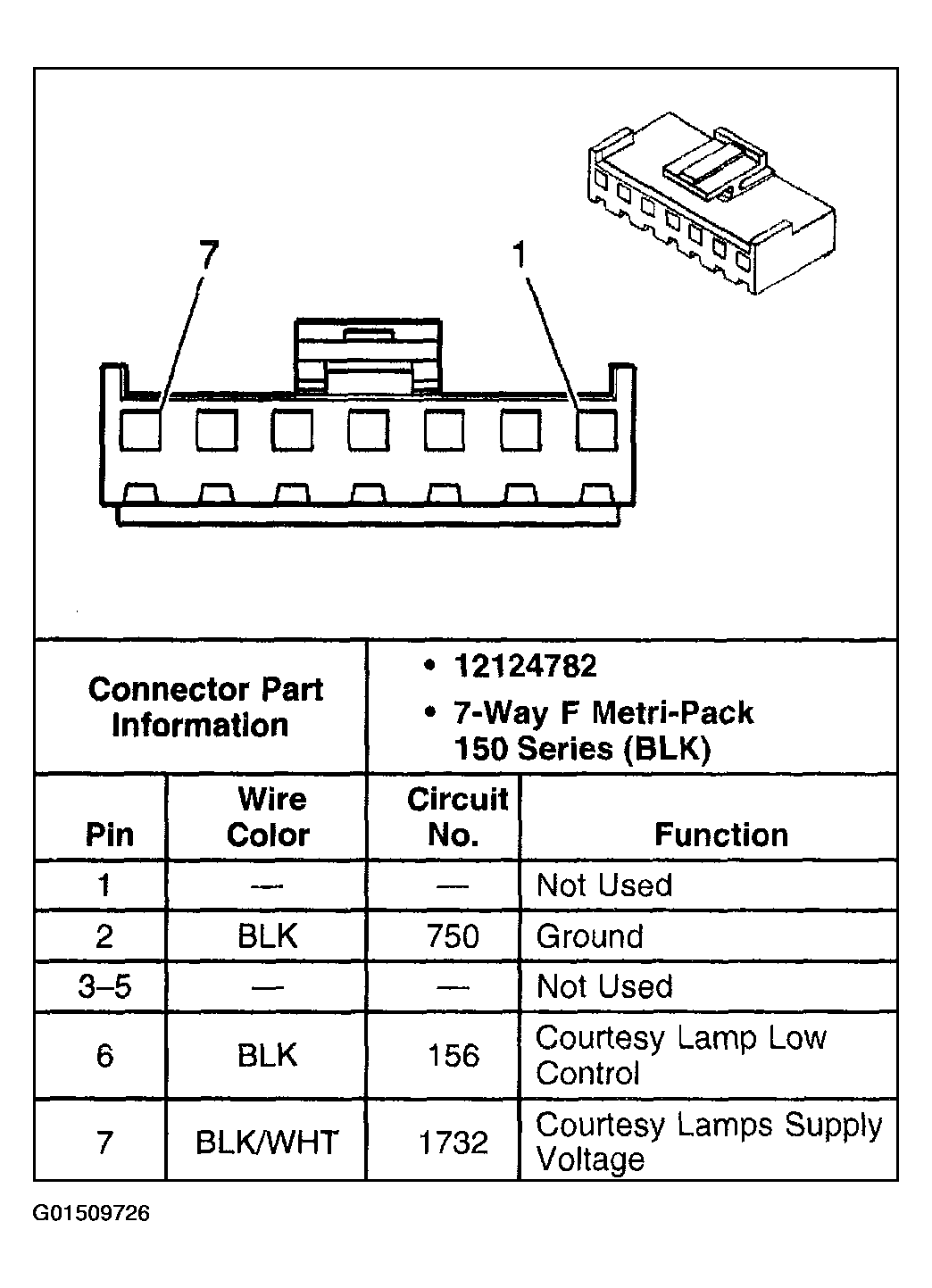

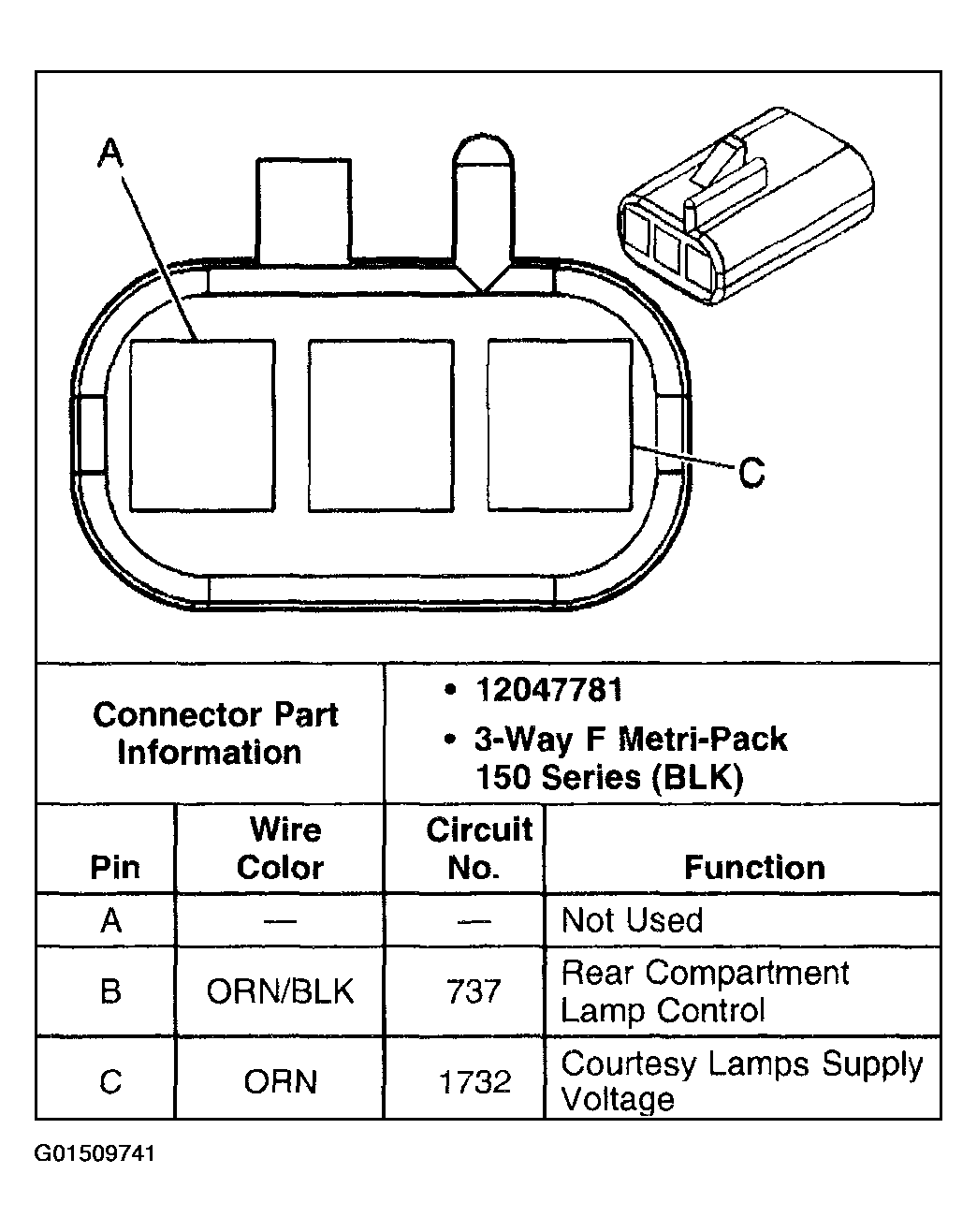

Fig 48: Identifying Rear Compartment Courtesy Lamp Connector Terminal
Courtesy of GENERAL MOTORS CORP.

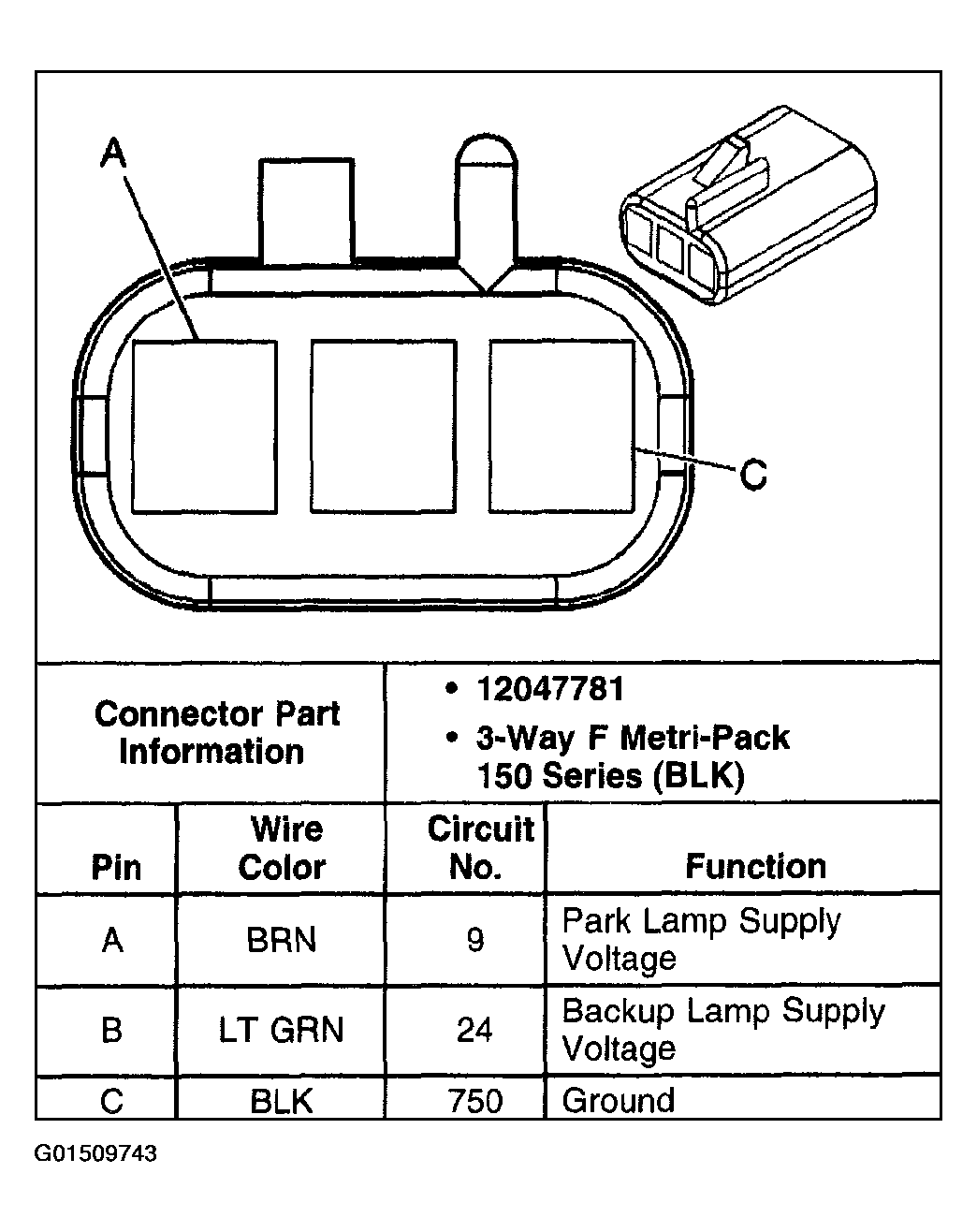

Fig 49: Identifying Rear Compartment Lid Backup/Tail Lamp - LR Connector Terminal (Oldsmobile)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Identifying Rear Compartment Lid Backup/Tail Lamp - RR Connector Terminal (Oldsmobile)
Courtesy of GENERAL MOTORS CORP.

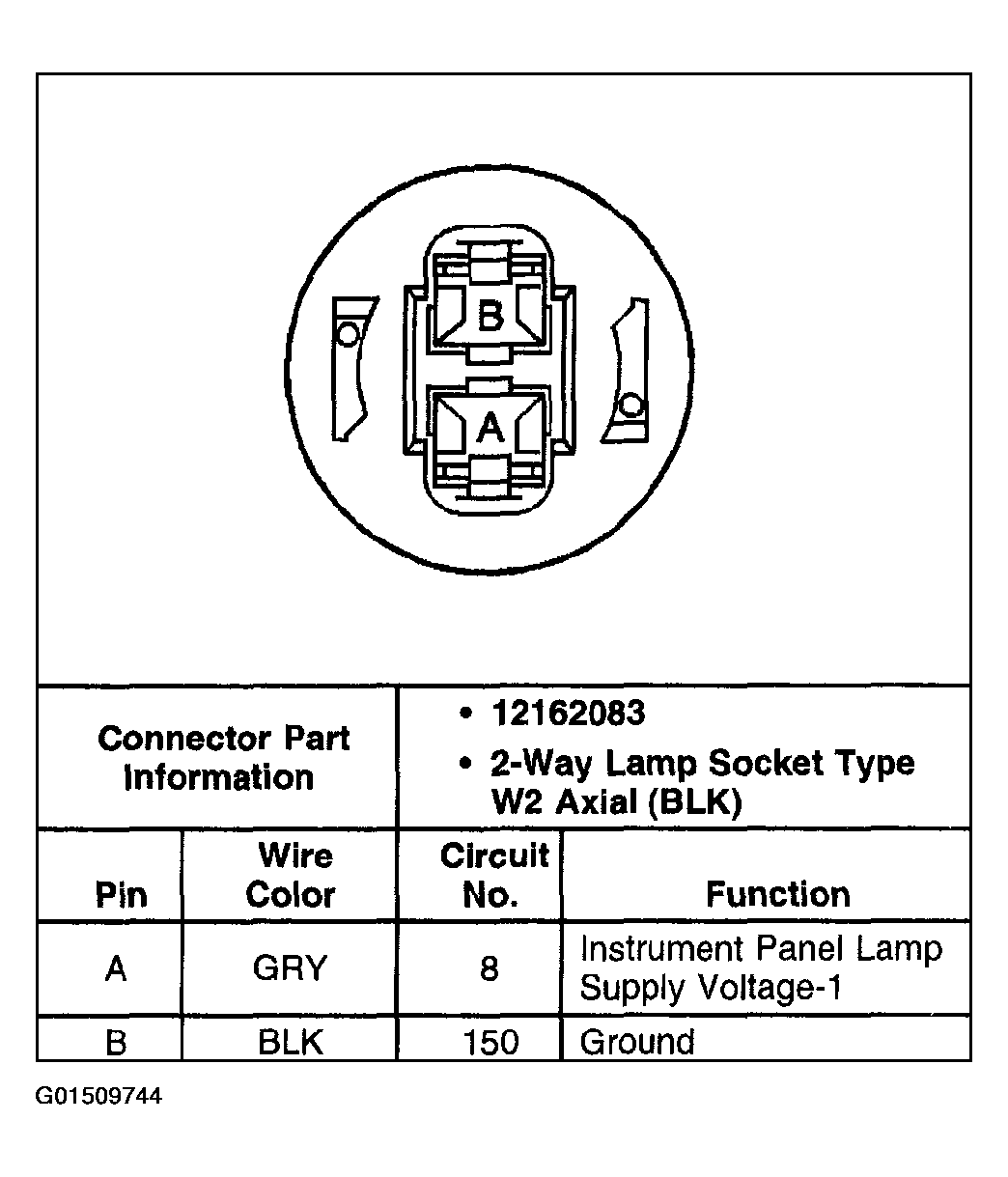

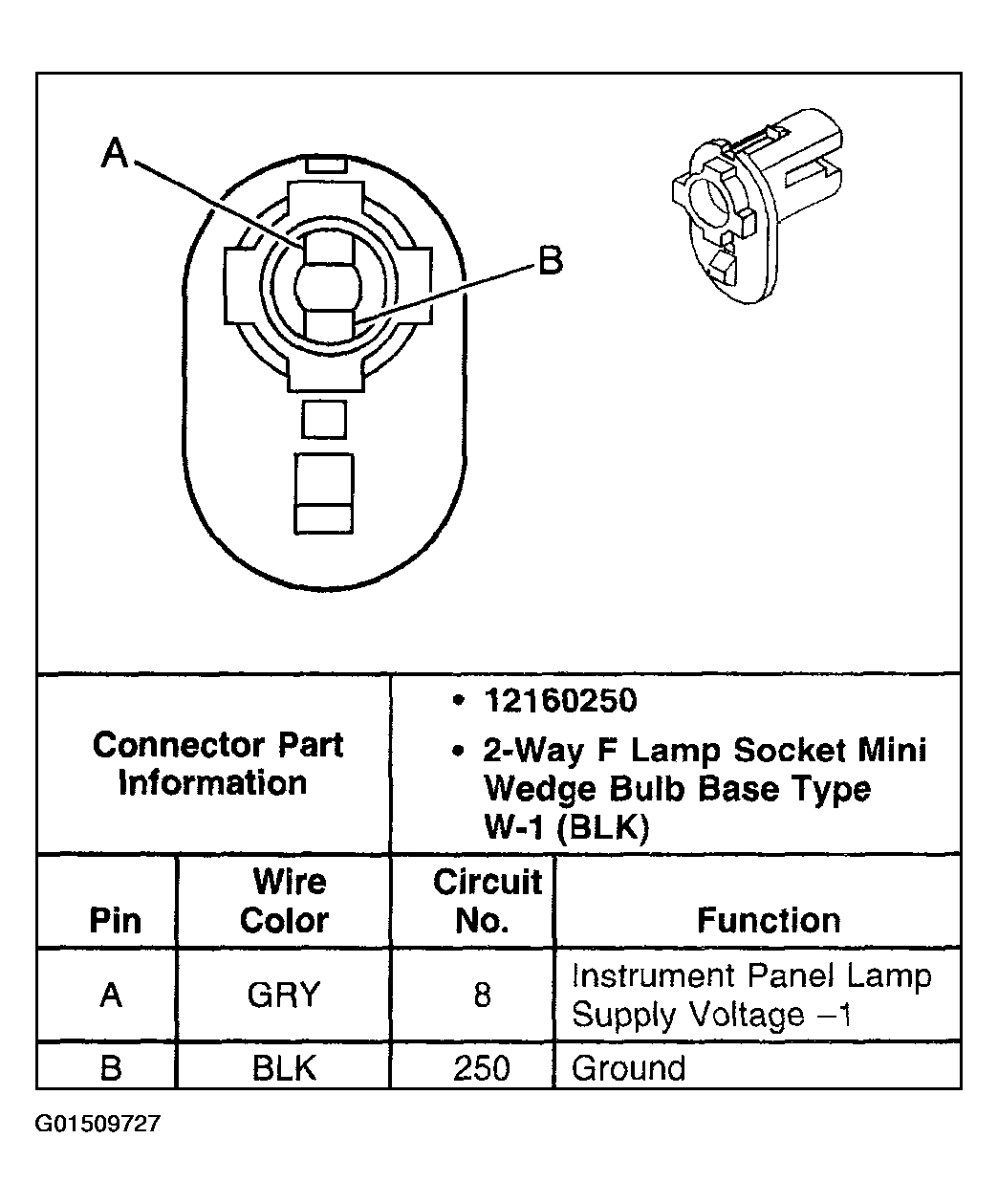

Fig 51: Identifying Shift Indicator Lamp Connector Terminal
Courtesy of GENERAL MOTORS CORP.

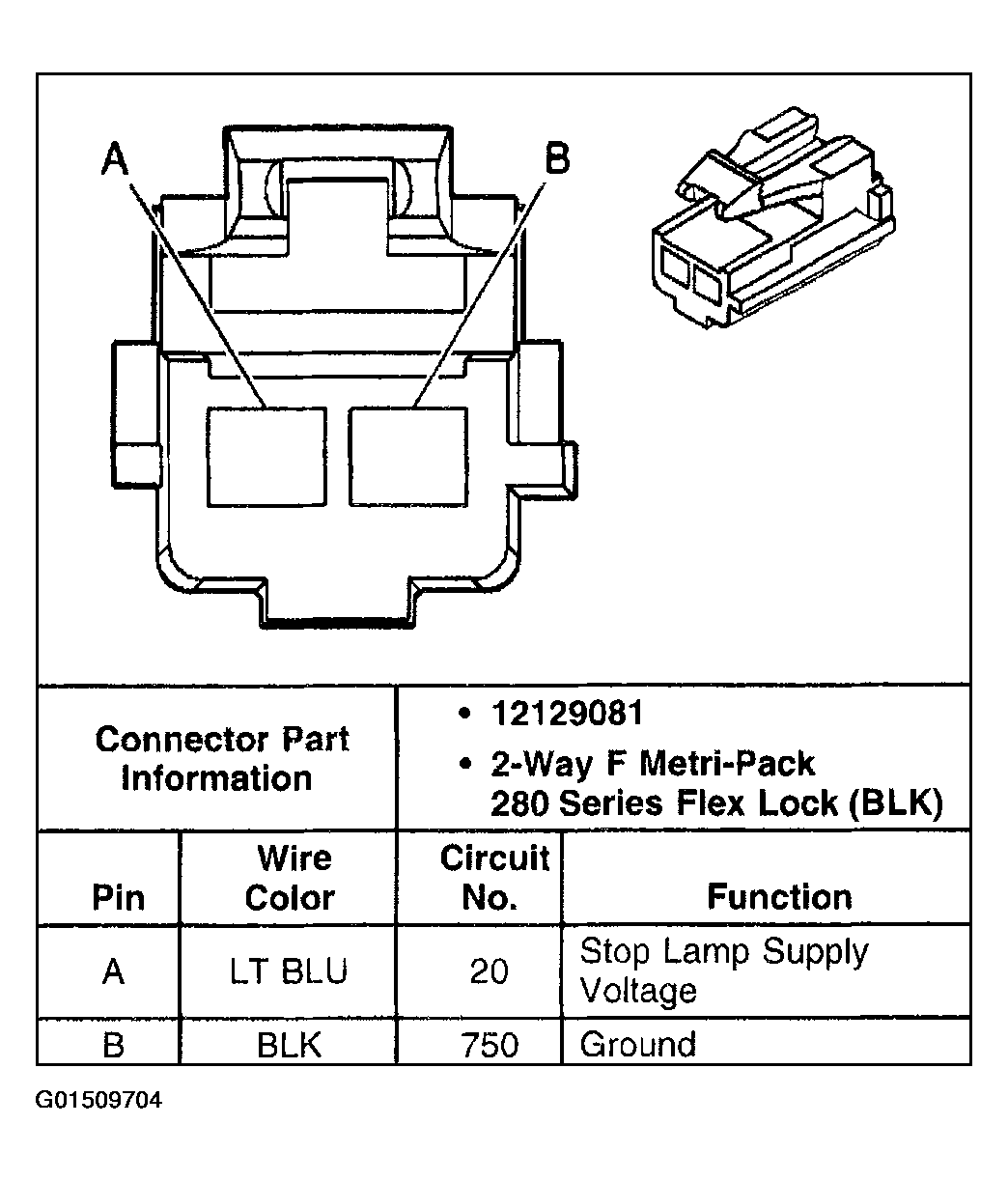

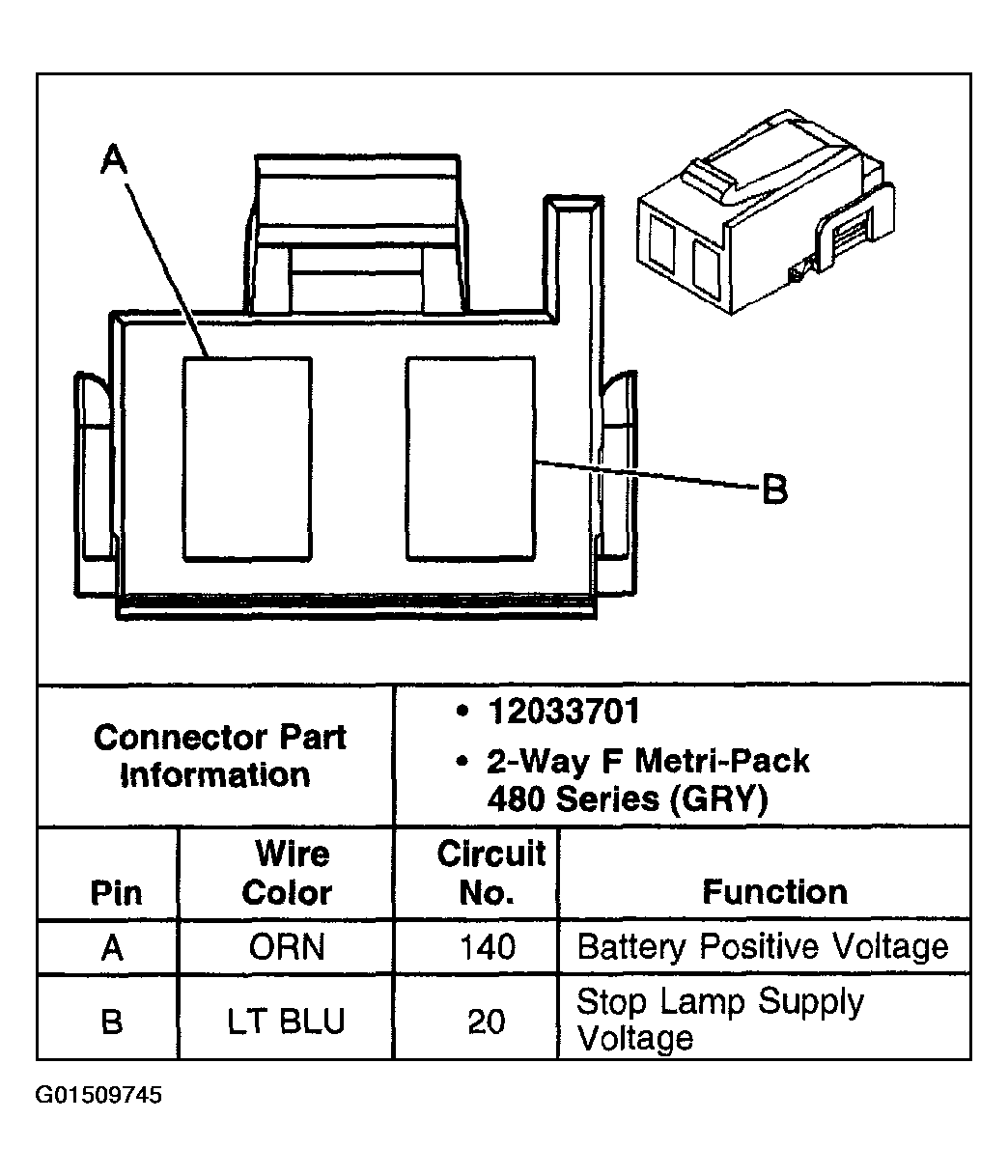

Fig 52: Identifying Stop Lamp Switch, C1 Connector Terminal
Courtesy of GENERAL MOTORS CORP.

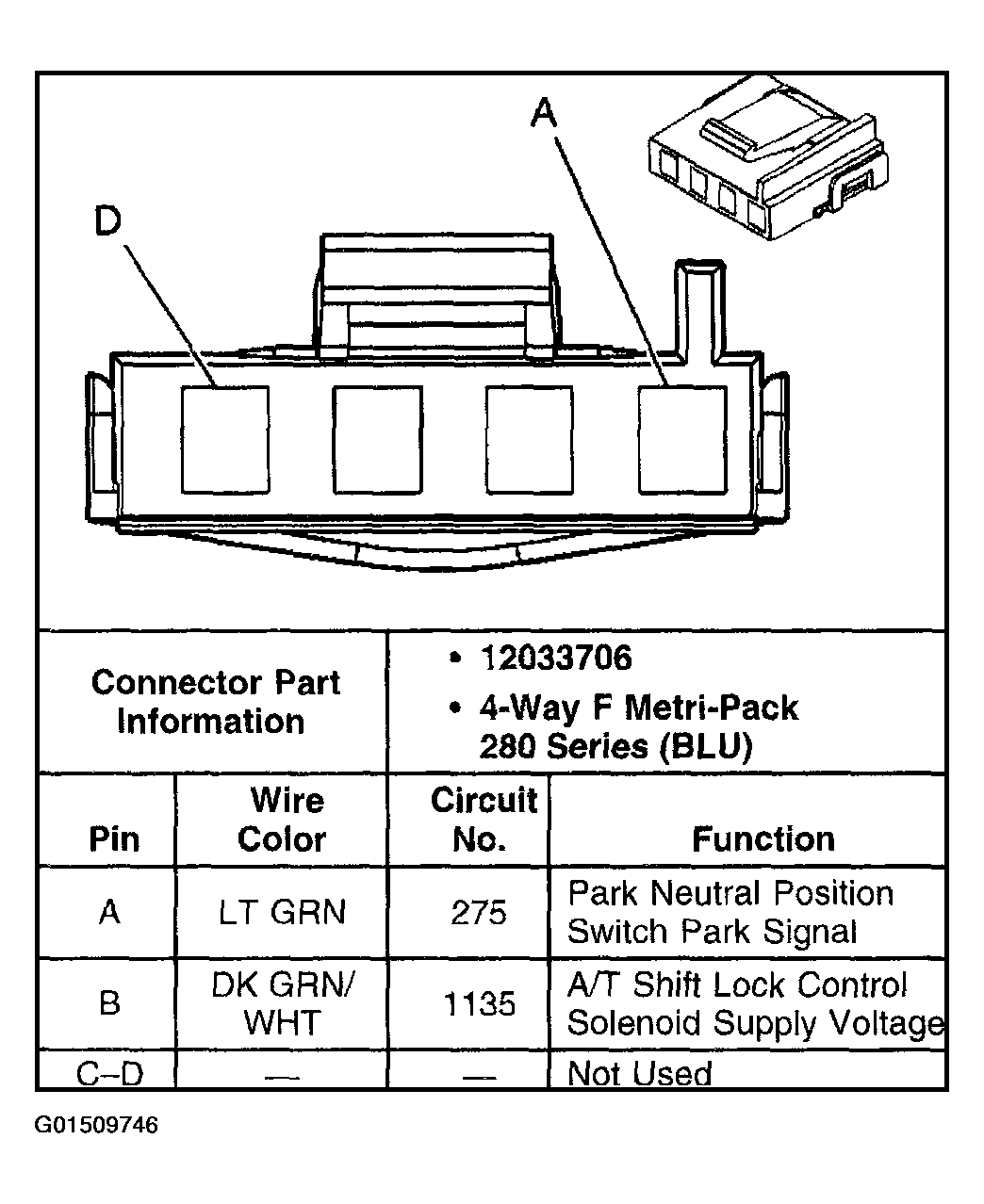

Fig 53: Identifying Stop Lamp Switch, C2 Connector Terminal
Courtesy of GENERAL MOTORS CORP.

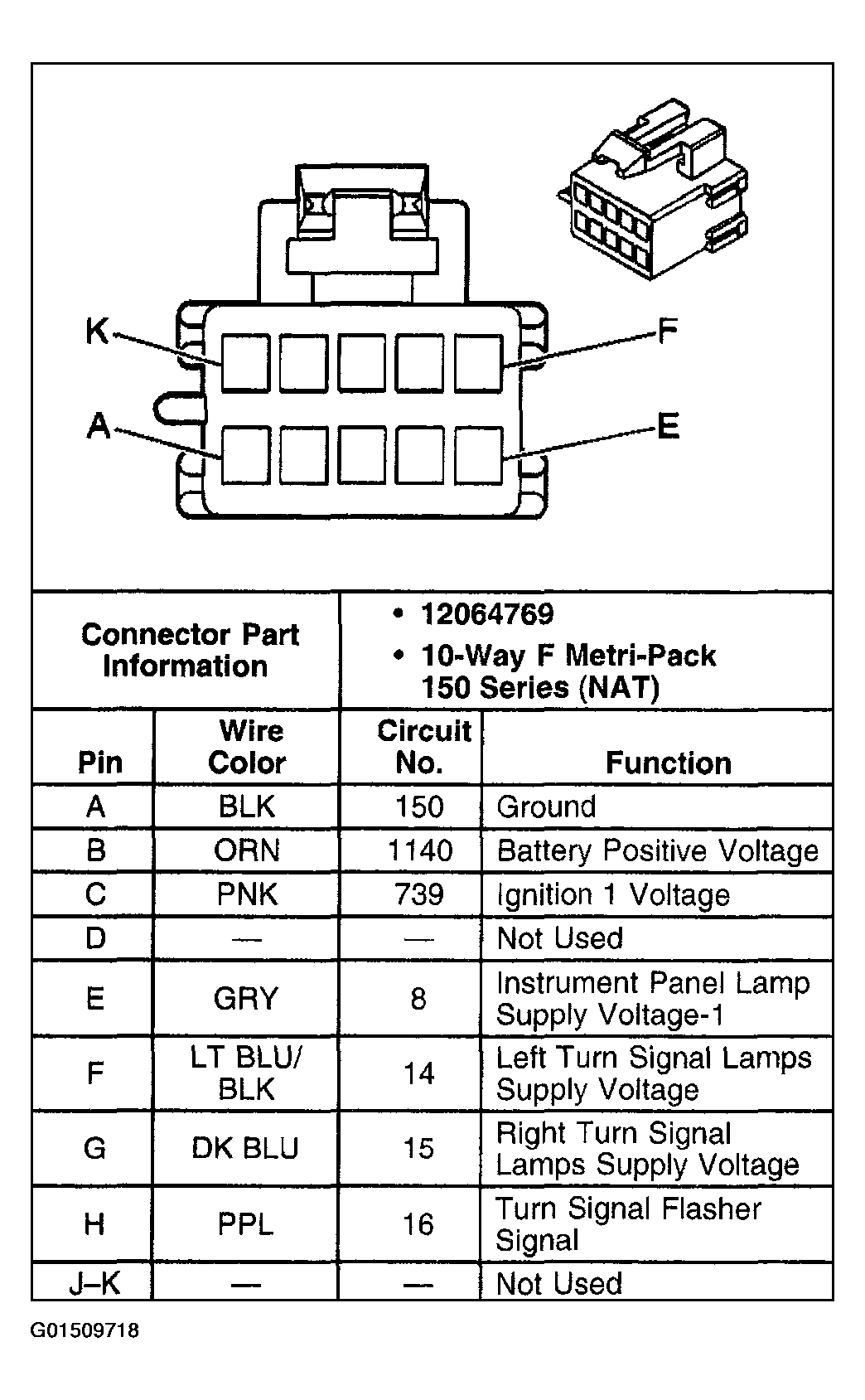

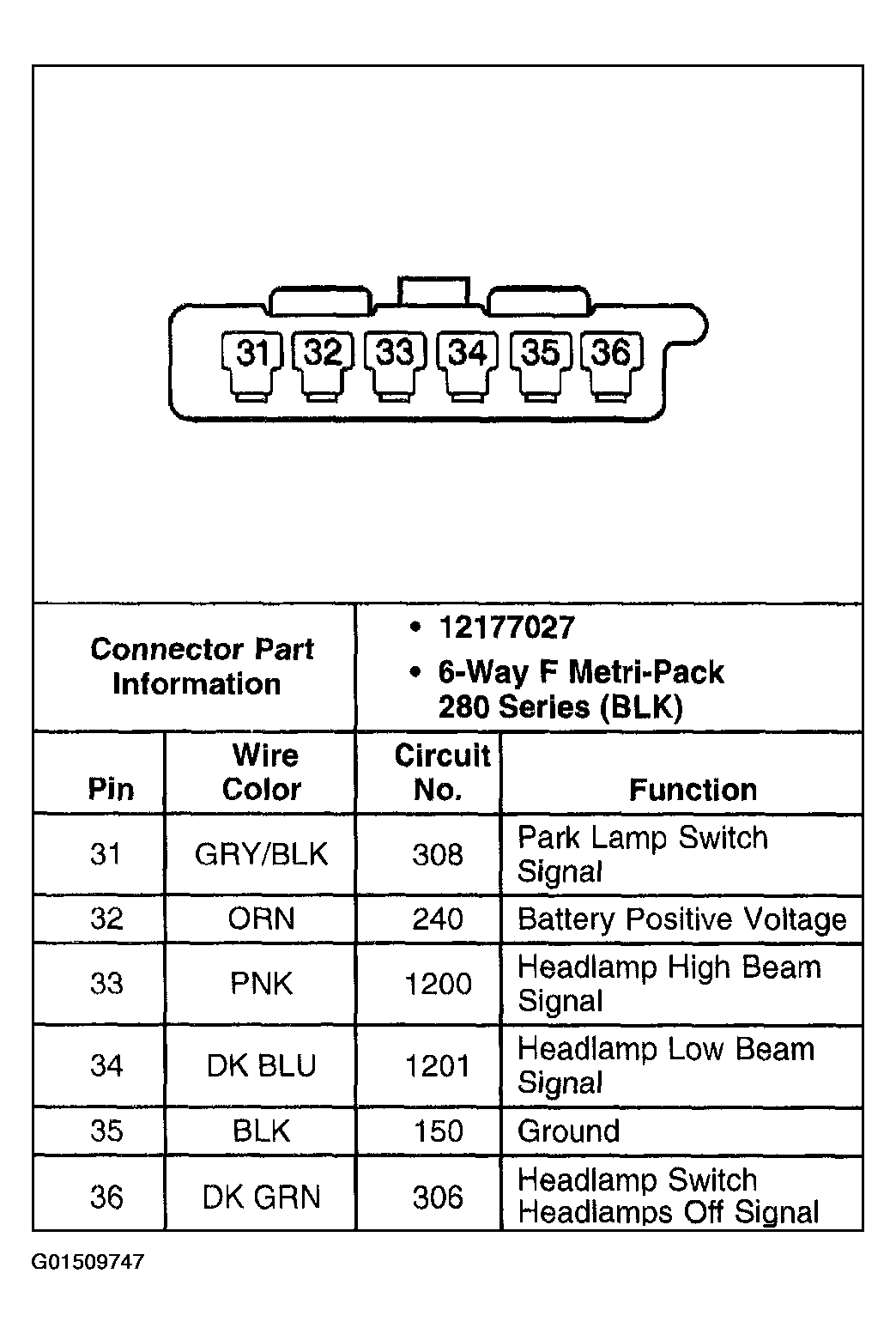

Fig 54: Identifying Turn Signal/Multifunction Switch, C1 Connector Terminal
Courtesy of GENERAL MOTORS CORP.
Fig 55: Identifying Turn Signal/Multifunction Switch, C2 Connector Terminal
Courtesy of GENERAL MOTORS CORP.

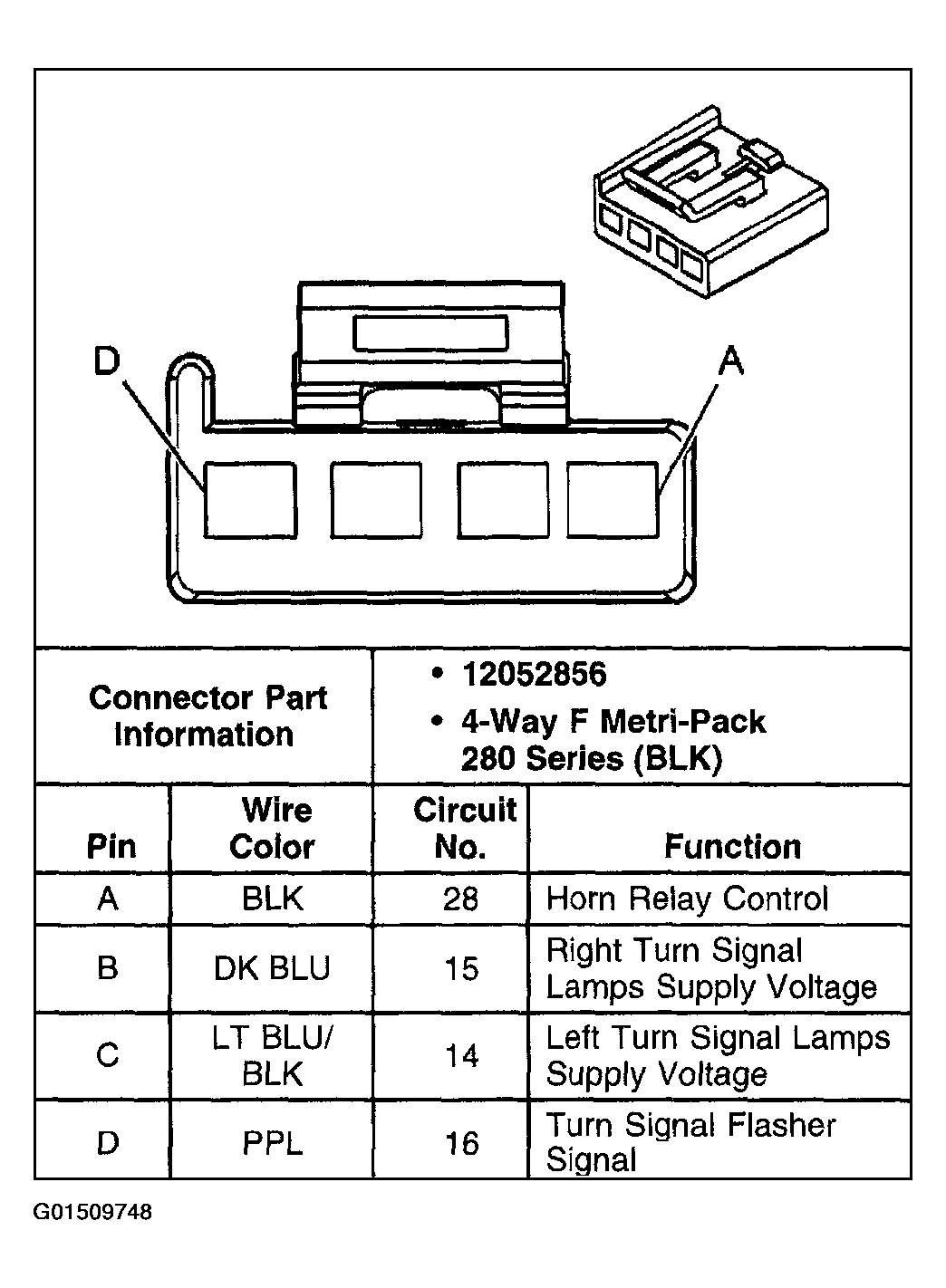

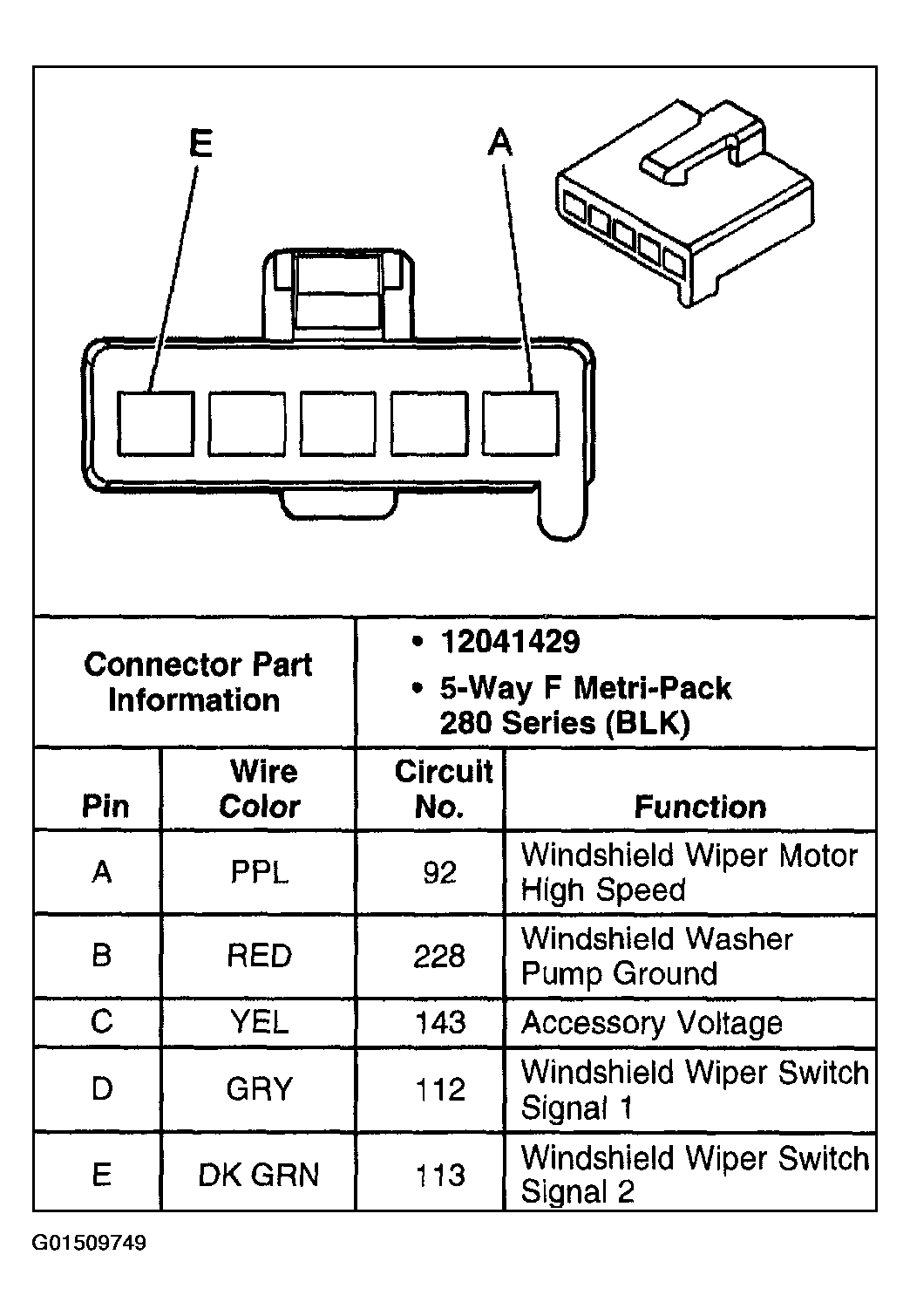

Fig 56: Identifying Turn Signal/Multifunction Switch, C3 Connector Terminal
Courtesy of GENERAL MOTORS CORP.
