Lighting Systems Component Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

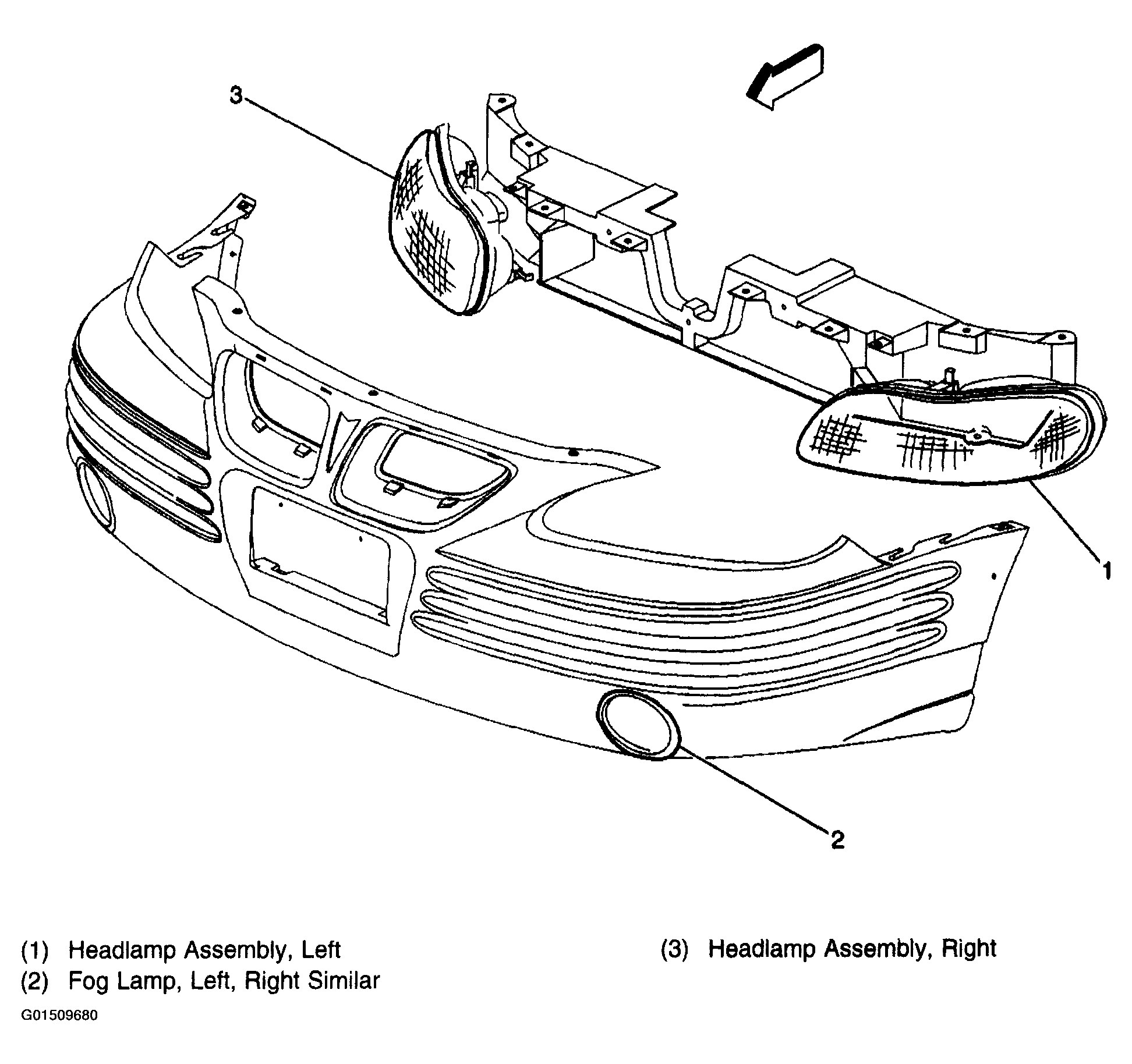

Fig 1: Identifying Front Fascia Components

Courtesy of GENERAL MOTORS CORP.

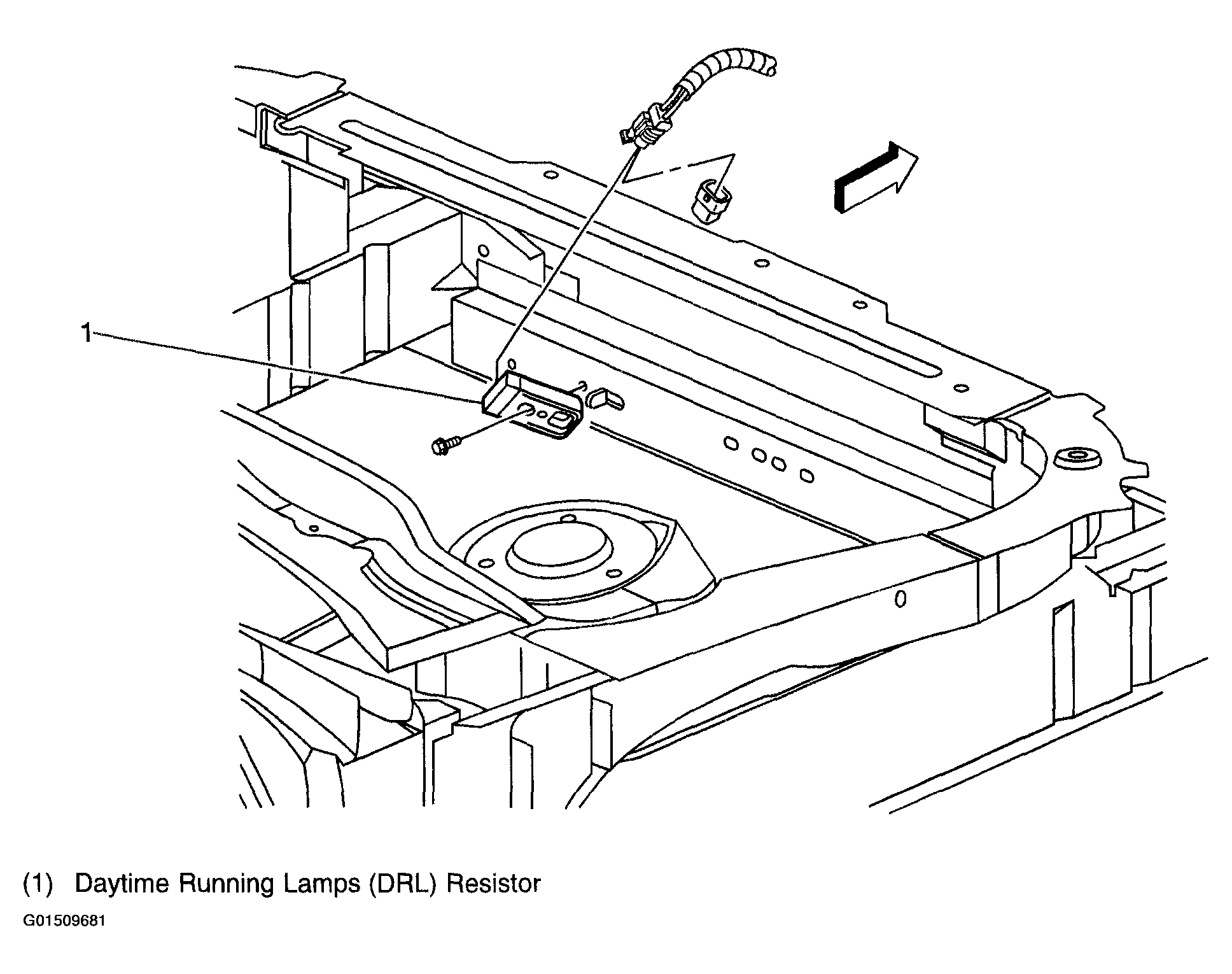

Fig 2: Identifying Daytime Running Lamps (DRL) Resistor

Courtesy of GENERAL MOTORS CORP.

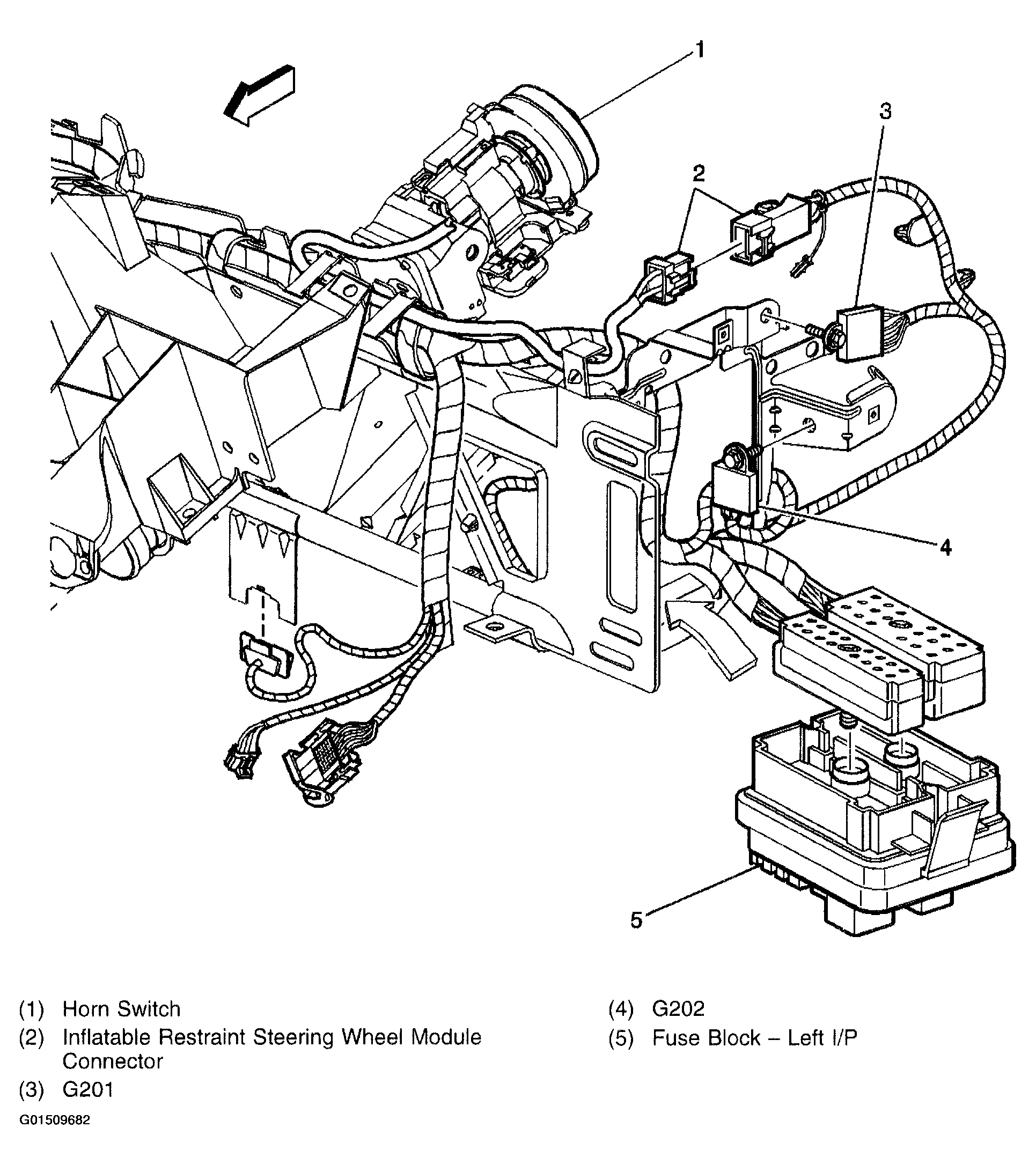

Fig 3: Identifying Left Side Of Instrument Panel With Components

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying I/P Wiring Harness Connector (RH)

Courtesy of GENERAL MOTORS CORP.

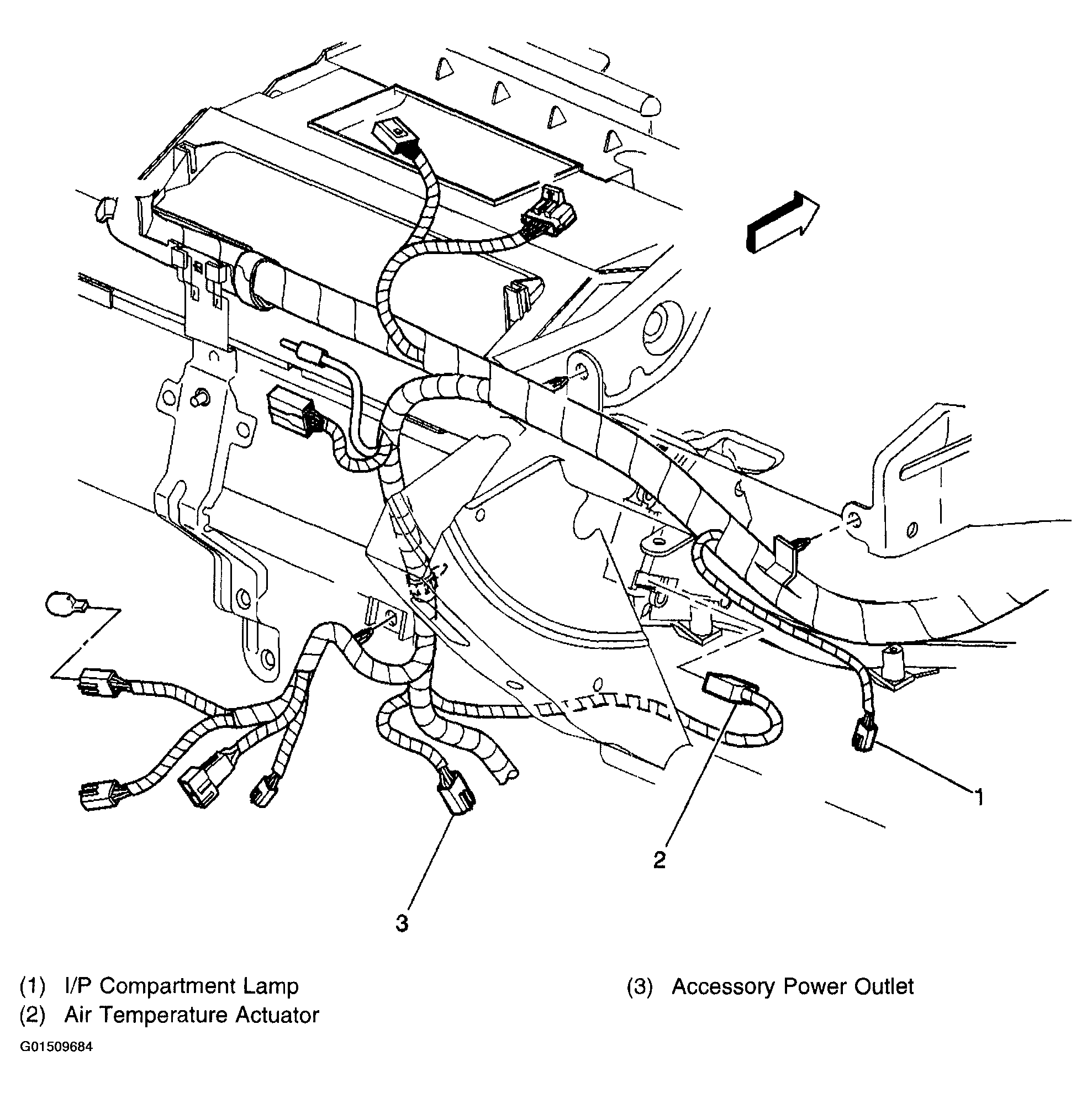

Fig 5: Identifying Top Right Side Of I/P

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying I/P Wiring Harness Connectors

Courtesy of GENERAL MOTORS CORP.

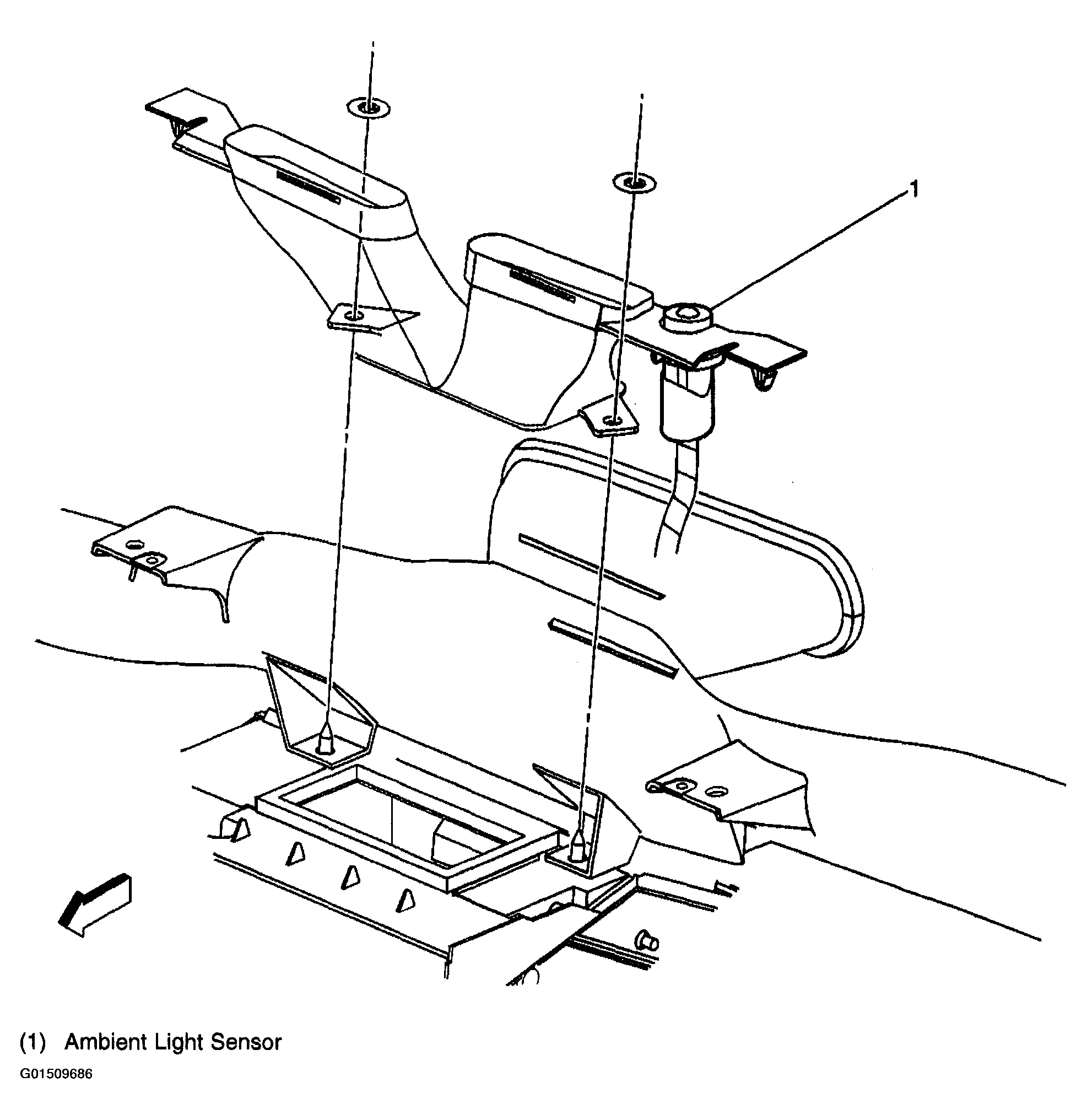

Fig 7: Identifying Top Of Instrument Panel With Ambient Light Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying I/P Wiring Harness Connectors

Courtesy of GENERAL MOTORS CORP.

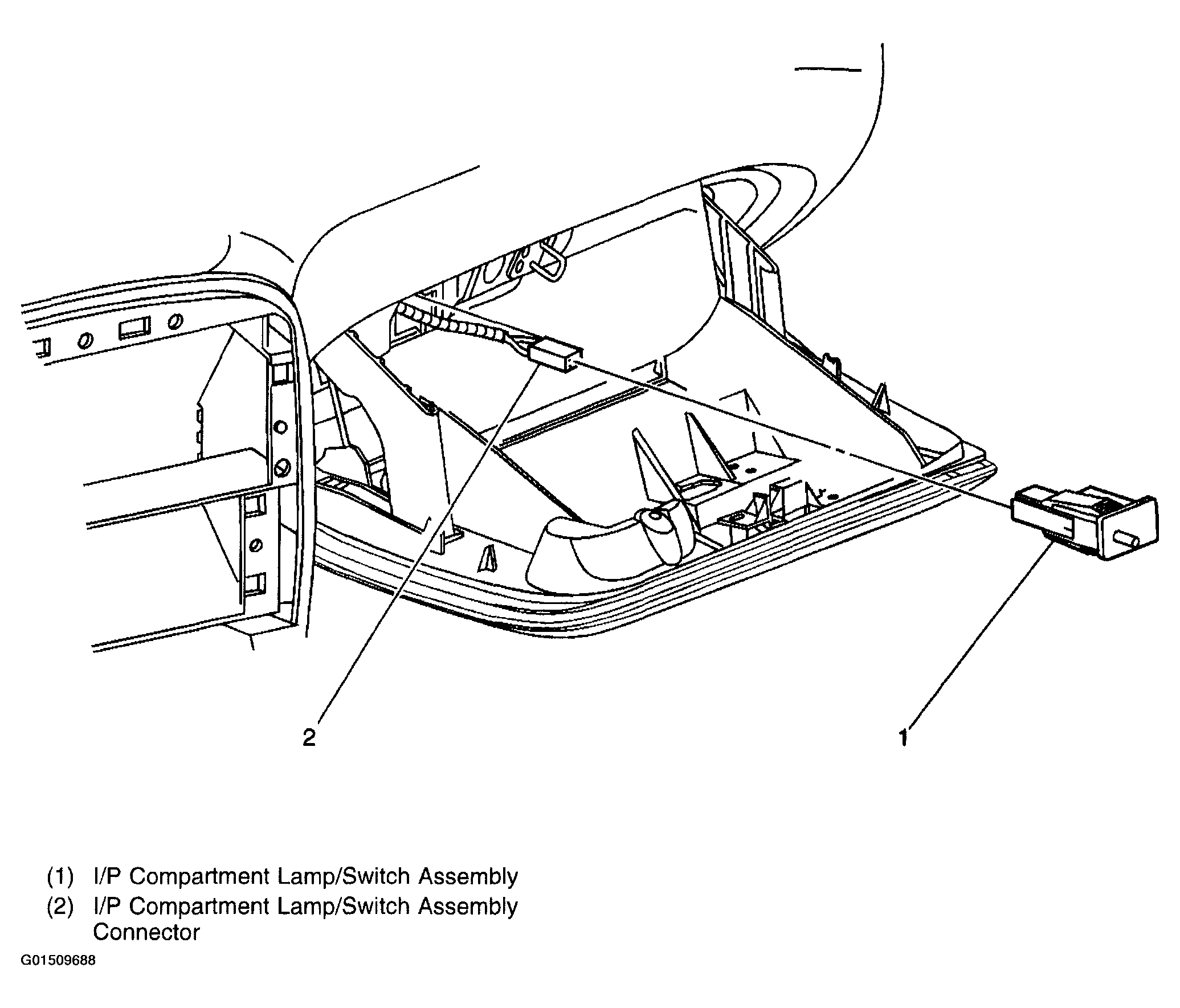

Fig 9: Identifying I/P Compartment Lamp Assembly

Courtesy of GENERAL MOTORS CORP.

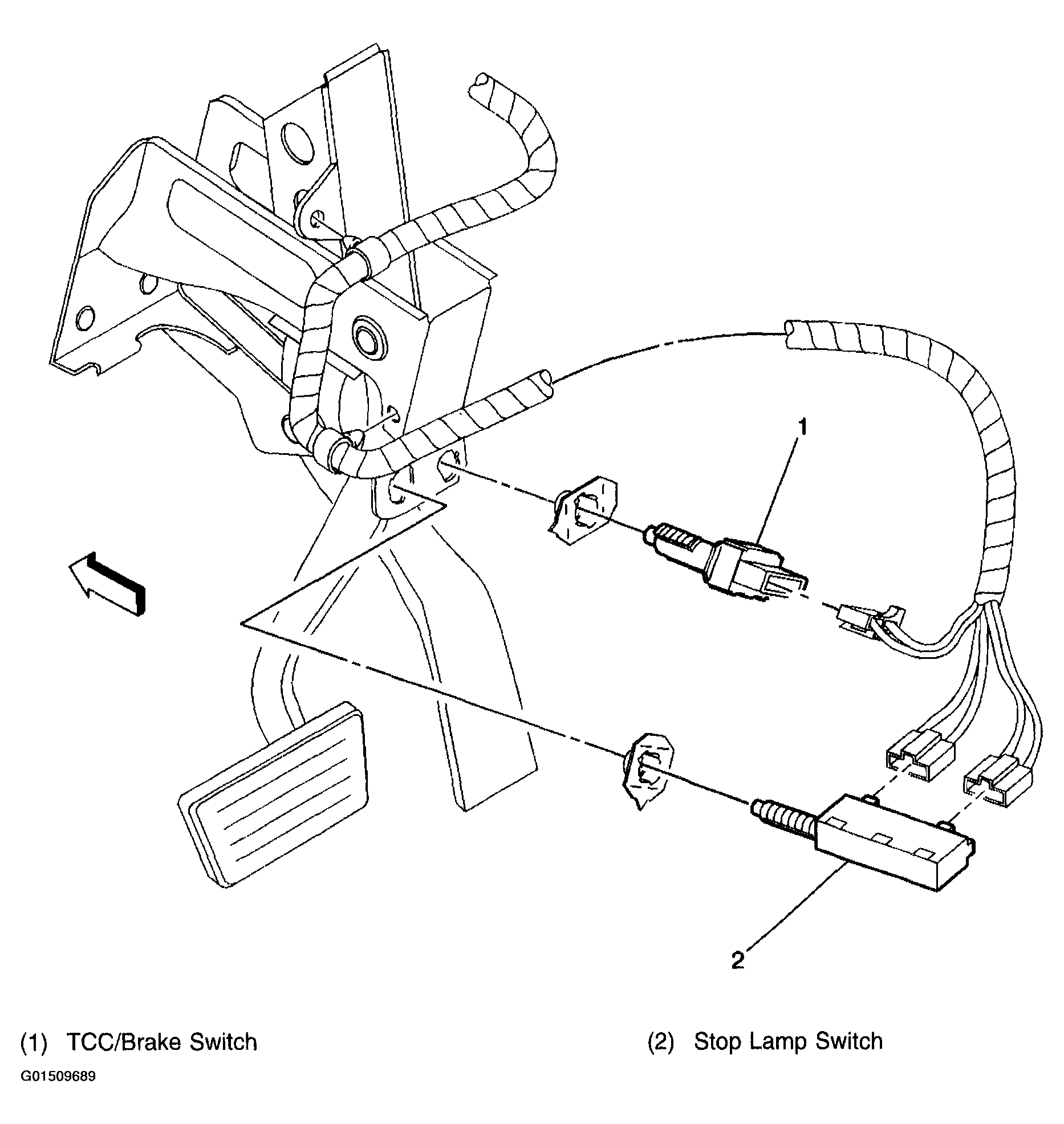

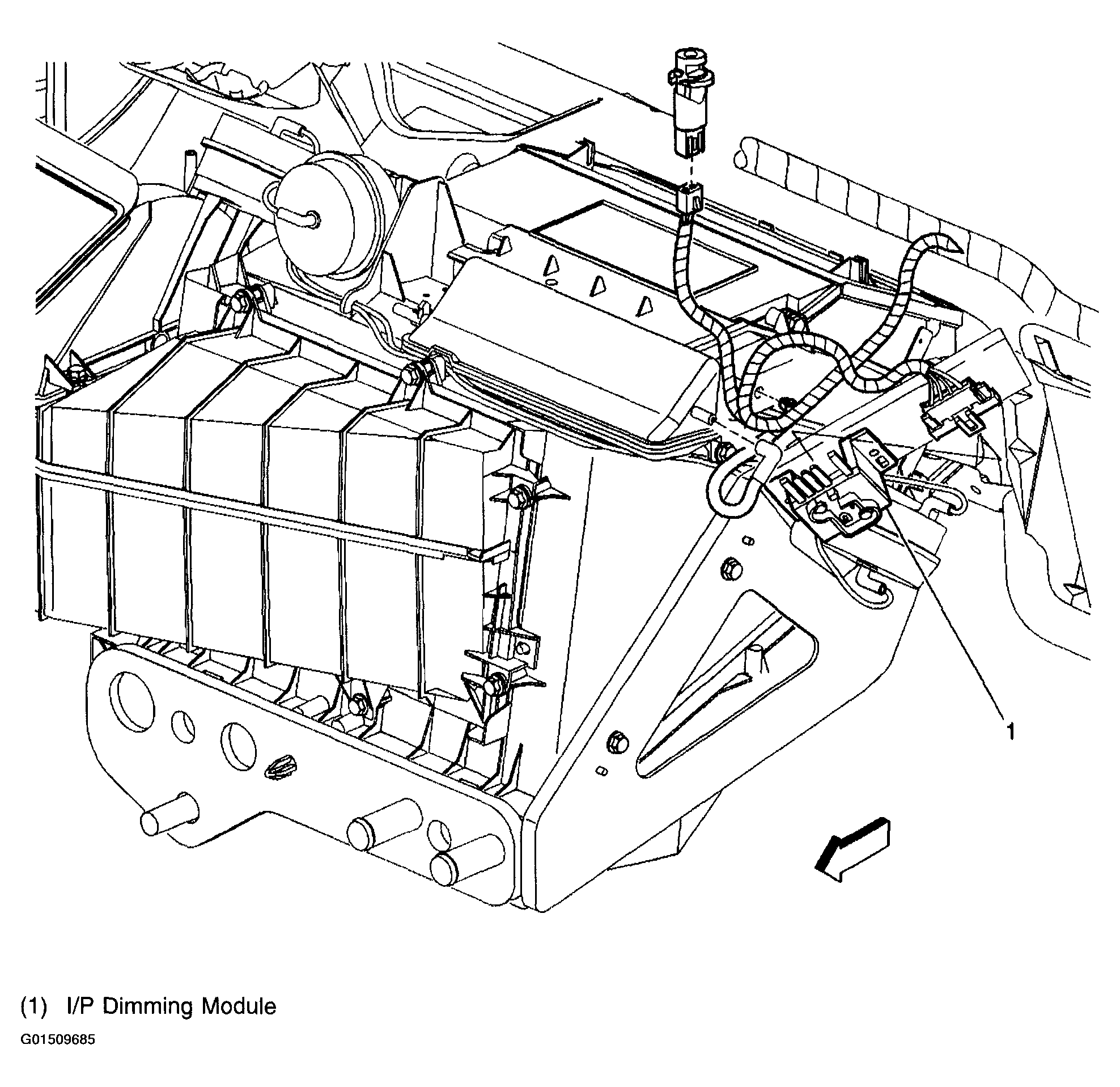

Fig 10: Identifying Below Left Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

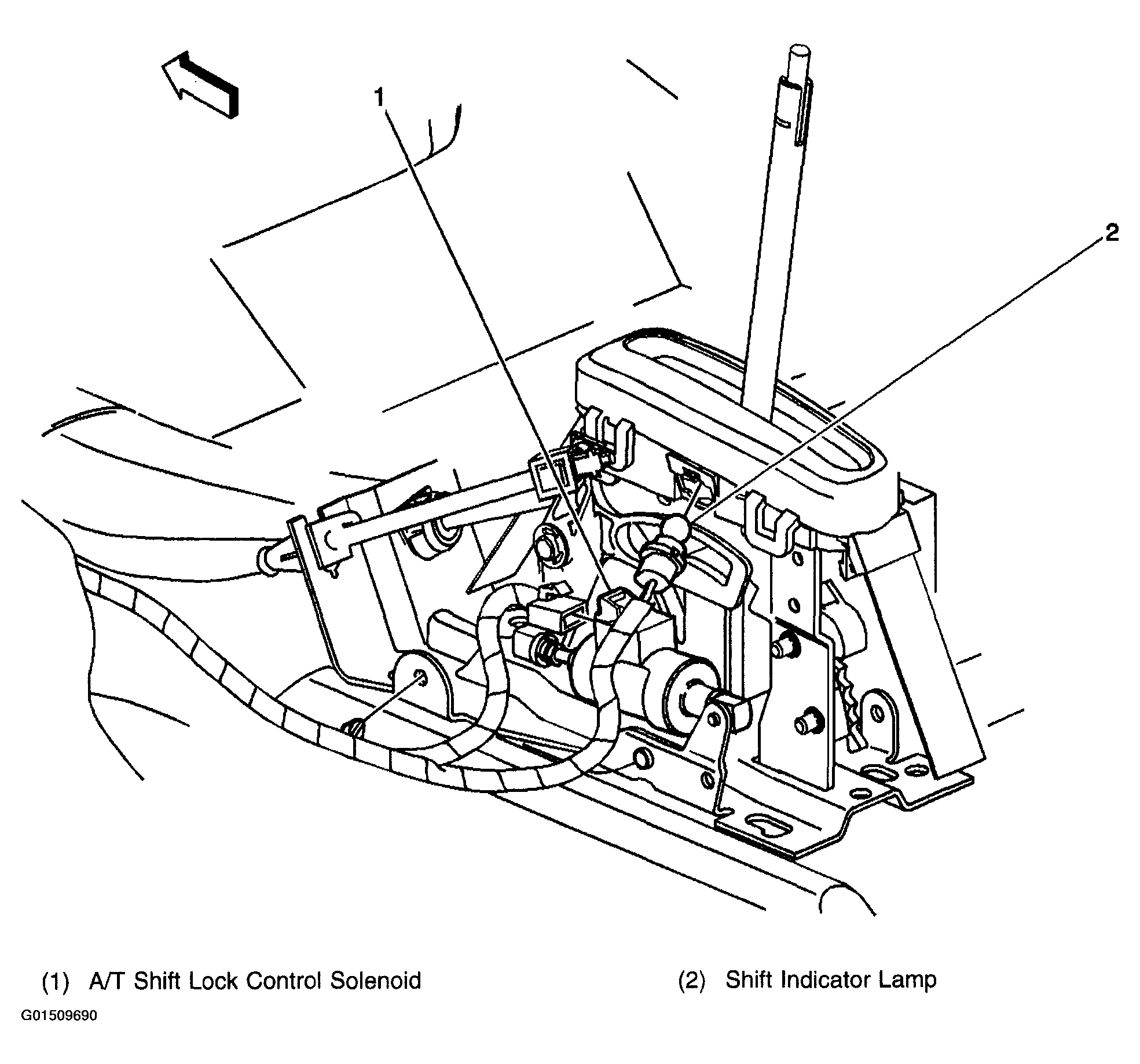

Fig 11: Identifying Under Center Console

Courtesy of GENERAL MOTORS CORP.

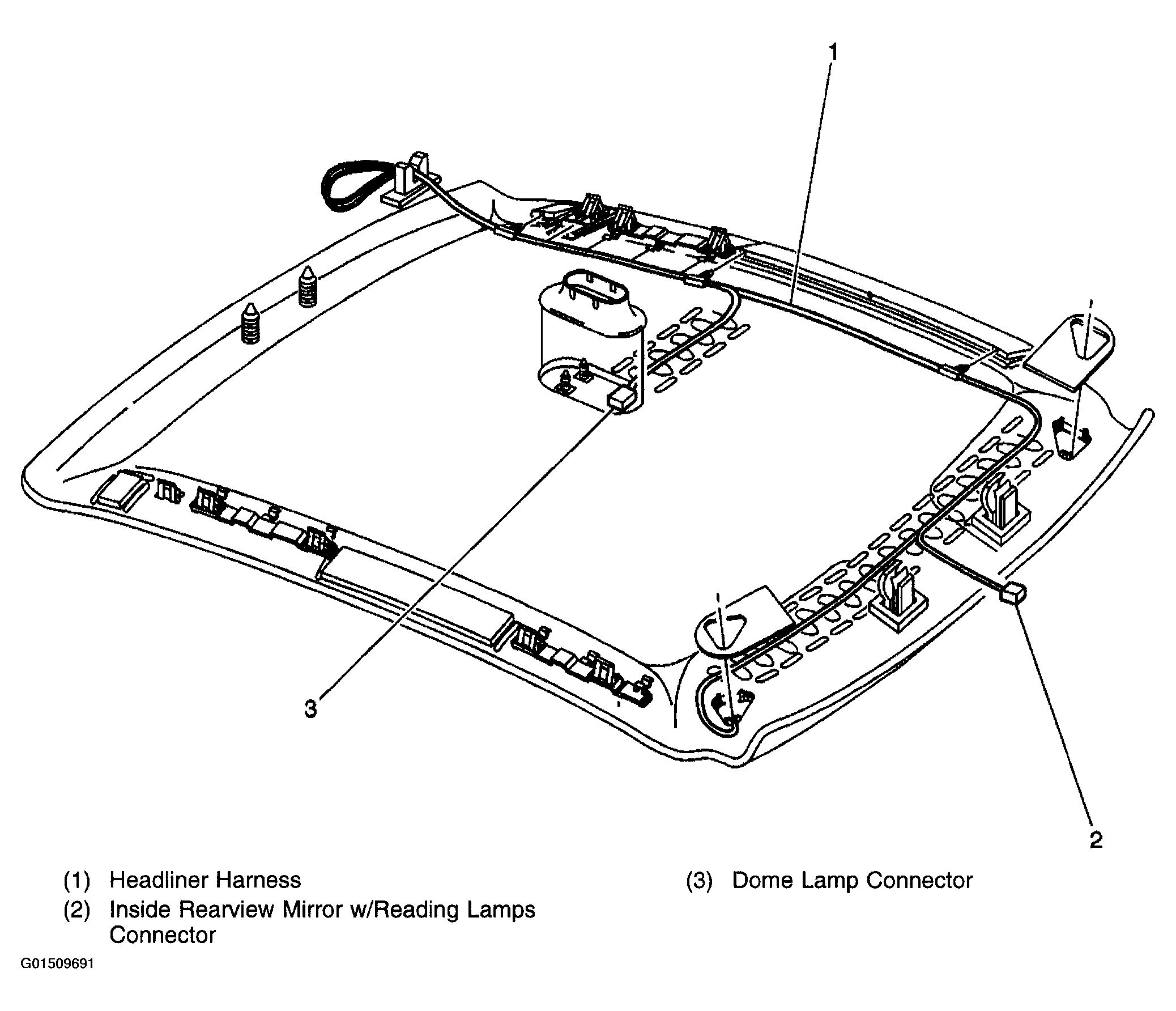

Fig 12: Identifying Headliner Components

Courtesy of GENERAL MOTORS CORP.

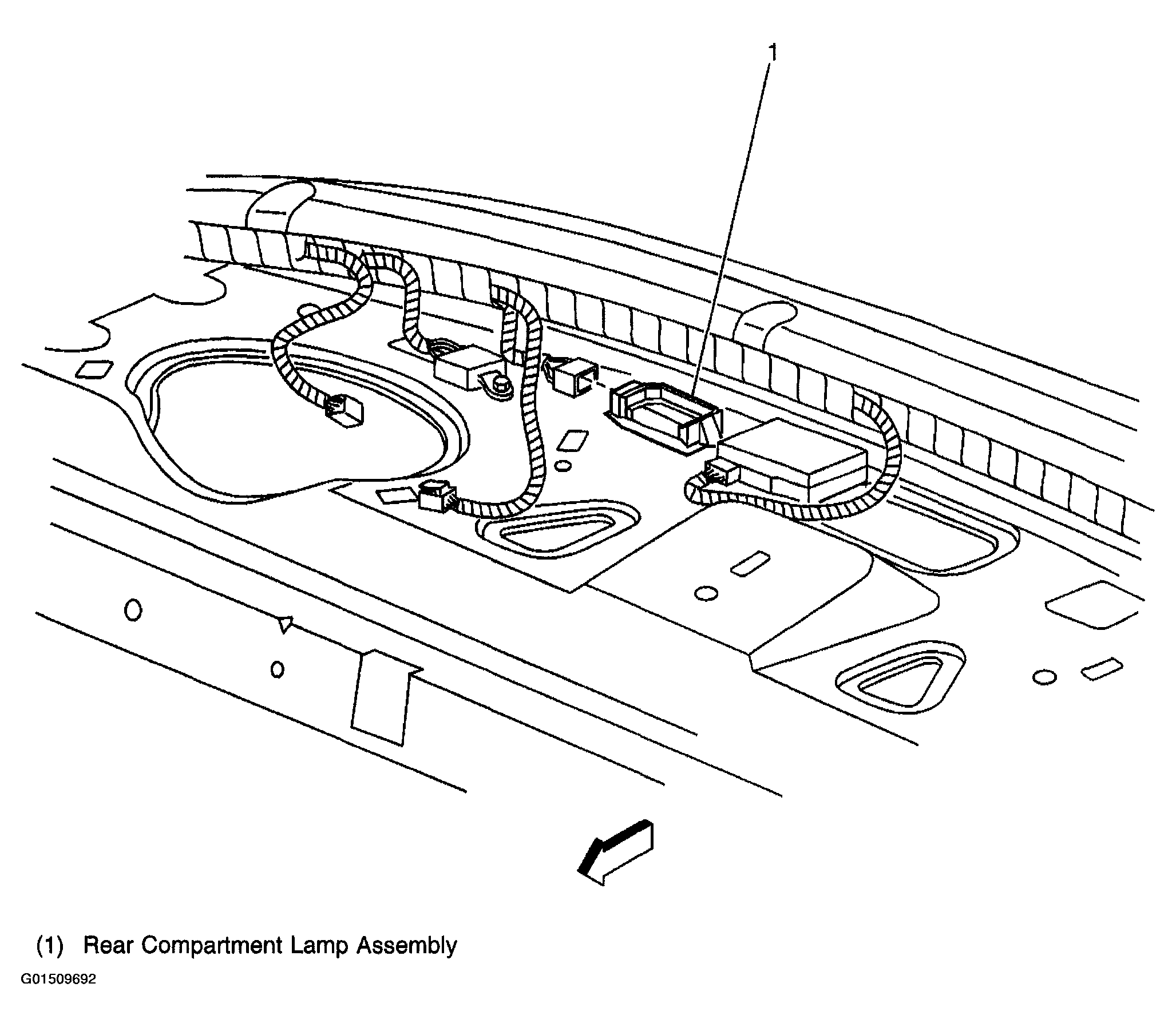

Fig 13: Identifying Rear Package Shelf

Courtesy of GENERAL MOTORS CORP.

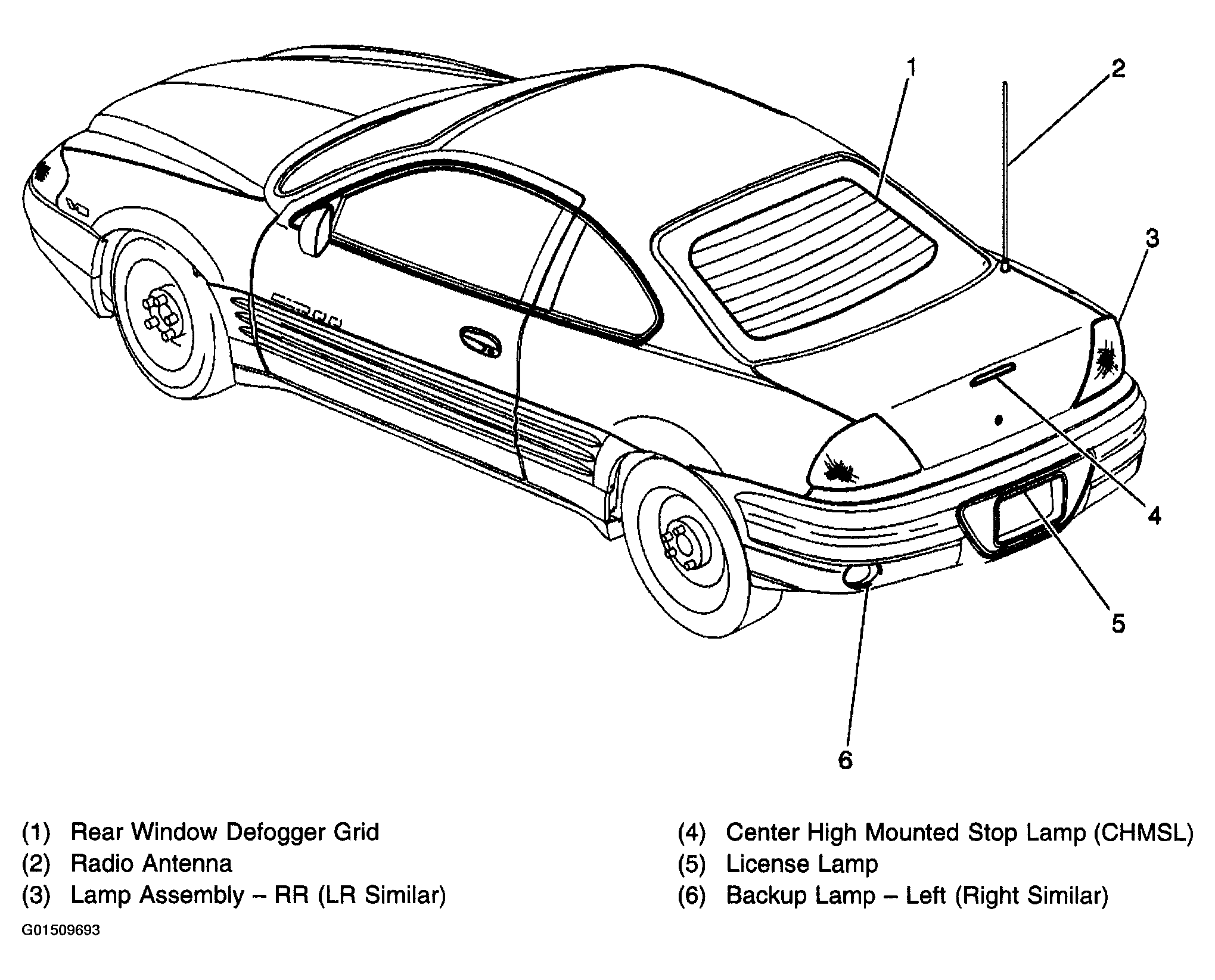

Fig 14: Identifying Exterior View Components Of Lighting System

Courtesy of GENERAL MOTORS CORP.
